2010 FIAT DUCATO Owner handbook (in English)

232
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0160mfig. 237F0N0338mfig. 239
F0N0162mfig. 238
ENGINE MARKING
This is stamped onto the cylinder block and shows the
type and the manufacture serial number. BODYWORK PAINT IDENTIFICATION
PLATE fig. 237
This plate is fitted to the engine compartment front
crossmember and contains the following identification
data:
A Paint manufacturer.
B Colour name.
C Fiat colour code.
D Respray and touch up code.
CHASSIS MARKING fig. 238
One is located on the passenger’s side inner wheel arch,
A-fig. 238, the other on the lower part of the
windscreen, fig. 239.
❒vehicle model;
❒the chassis progressive number.
231-276 DUCATO LUM EN 9ed 15-04-2011 8:20 Pagina 232

233
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
ENGINE CODES – BODYWORK VERSIONS
Versions Engine type code
100 Multijet4HV
120 MultijetSOFIM F1AE0481D
130 MultijetSOFIM F1AE0481N
160 MultijetSOFIM F1CE0481D
There is an example of a bodywork version code below
by way of explanation with a key which is valid for all
bodywork version codes:
Key 250 A A M F A AX
MODEL
PAYLOAD
ENGINE
ENGINE TRANSMISSION/AXLES
BODYWORK
WHEELBASE
VERSION
PAYLOAD
A3000 kg
B3300 kg
C3500 kg LIGHT
D3500 kg HEAVY
E4005 kg
TRANSMISSION
MManual gearbox
AAutomatic
transmissionENGINE
A100 Multijet
C120 Multijet
D160 Multijet
E130 Multijet
WHEELBASE
AShort wheelbase
BMedium wheelbase
CLong wheelbase
DMedium-long
wheelbase
BODYWORK
AChassis cab frame
BPlatform frame without drive cab
CPlatform chassis cab
DFlatbed truck
EPrimary school bus
FVan
GLong cab trailer
HLong cab frame
LSecondary school bus
MMinibus
PPanorama
R6/9 seater crew cab
UChassis without „floor“ cab
231-276 DUCATO LUM EN 9ed 15-04-2011 8:20 Pagina 233

234
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEXDiesel for automotive engines (Specification EN590)
120
Multijet
Sofim
F1AE0481D
Diesel
4 in line
88 x 94
2287
19 ± 0,5
88
120
3600
320
2000
100
Multijet
4HV
Diesel
4 in line
86 x 94.6
2198
17,5
74
100
2900
250
1500
160
Multijet
Sofim
F1CE0481D
Diesel
4 in line
95.8 x 104
2999
19
115,5
157
3500
400
1600
130
Multijet
Sofim
F1AE0481N
Diesel
4 in line
88 x 94
2287
19 ± 0,5
95,5
130
3600
320
2000
ENGINE
GENERAL INFORMATION
Engine code
Cycle
Cylinder
number and position
Piston bore
and stroke mm
Total displacement cm3
Compressionratio:
Max power
(EEC) kW
HP
corresponding
speed rpm
Maximum
torque (EEC) Nm
corresponding speed rpm
Fuel
231-276 DUCATO LUM EN 9ed 15-04-2011 8:20 Pagina 234

Mac Pherson independent wheels
Rigid rear axle with tubular axle; longitudinal leaf spring
Self-adjusting pedal without idle stroke
Front
Modifications or repairs to the fuel
supply system that are not carried out
properly or do not take the system’s technical
specifications into account can cause
malfunctions leading to the risk of fire.
POWER SUPPLY
Supply system
235
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
WARNING
Five forward gears plus reverse
with synchronisers for
forward gearsSix forward gears plus reverse
with synchronisers for
forward gears
Common Rail
direct injection
TRANSMISSION
100 Multijet 120 Multijet – 130 Multijet – 160 Multijet
Gearbox
Clutch
Traction
SUSPENSION
front
Rear
231-276 DUCATO LUM EN 9ed 15-04-2011 8:20 Pagina 235

self-ventilated discs
discs
controlled by hand lever, acting on rear brakes
236
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
STEERINGShort Medium Medium-long Longwheelbase wheelbase wheelbase wheelbase
Type
Steering circle
(kerb to kerb) m 11,06 12,46 13,54 14,28
Rack and pinion with hydraulic power steering
BRAKES
Service brakes: front
rear
Parking brake
IMPORTANT Water, ice and antifreeze salt spread on the roads may deposit on the brake discs reducing braking efficiency
the first time the brakes are applied.
231-276 DUCATO LUM EN 9ed 15-04-2011 8:20 Pagina 236

237
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Radial type tubeless tyres.
The vehicle registration document also lists all type-
approved tyres.
IMPORTANT In the event of discrepancies between the
information provided on this “Owner Handbook” and
the “Vehicle registration document”, only the latter is
valid.
Fit tyres of the same make and type on all wheels,
to ensure the safety of the vehicle in movement
IMPORTANT Do not use inner tubes in the case of
tubeless tyres.
SPARE WHEEL
Pressed steel wheel.
Tubeless tyre, same as standard tyre.
WHEEL GEOMETRY
Total front toe in: – 1 ± 1 mm
The values refer to the vehicle in running order.
F0N0113mfig. 240
READING TYRE CODE fig. 240
Example: 215/70 R 15 109S
215 = Nominal width (S, distance between sidewalls in
mm).
70 = Height/width ratio (H/S) in percentage.
R = Radial tyre.
15 = Rim diameter in inches (Ø).
109 = Load rating (capacity).
S = Maximum speed index.
231-276 DUCATO LUM EN 9ed 15-04-2011 8:20 Pagina 237

238
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

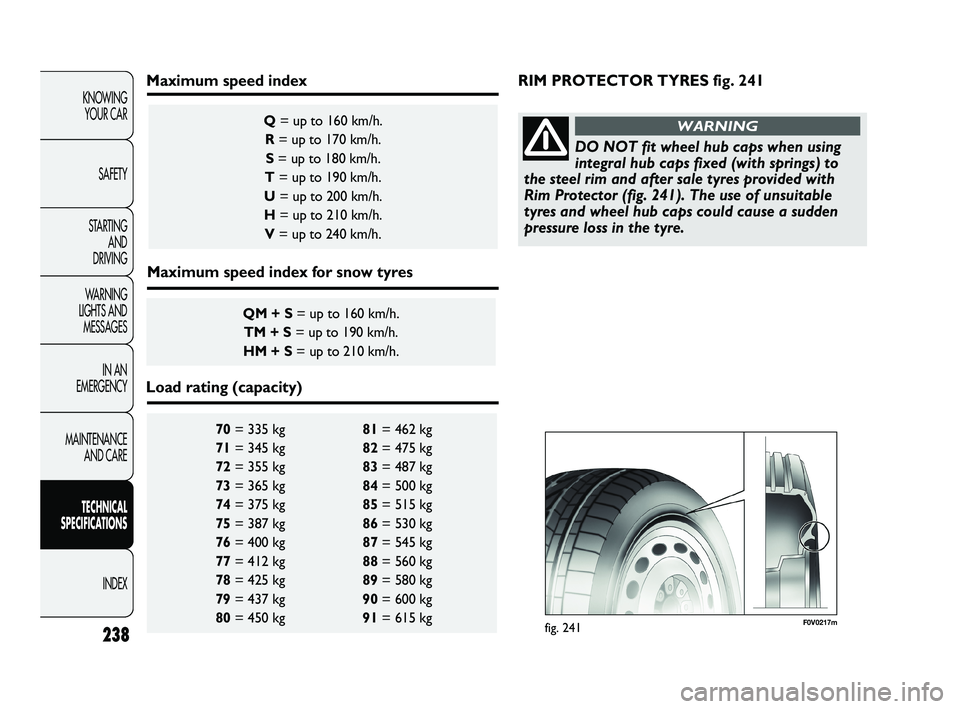

70= 335 kg 81= 462 kg
71= 345 kg 82= 475 kg
72= 355 kg 83= 487 kg
73= 365 kg 84= 500 kg
74= 375 kg 85= 515 kg
75= 387 kg 86= 530 kg
76= 400 kg 87= 545 kg
77= 412 kg 88= 560 kg
78= 425 kg 89= 580 kg
79= 437 kg 90= 600 kg
80= 450 kg 91= 615 kg
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
QM + S= up to 160 km/h.
TM + S= up to 190 km/h.
HM + S= up to 210 km/h.
Maximum speed index
Maximum speed index for snow tyres
Load rating (capacity)RIM PROTECTOR TYRES fig. 241
DO NOT fit wheel hub caps when using
integral hub caps fixed (with springs) to
the steel rim and after sale tyres provided with
Rim Protector (fig. 241). The use of unsuitable
tyres and wheel hub caps could cause a sudden
pressure loss in the tyre.
WARNING
F0V0217mfig. 241
231-276 DUCATO LUM EN 9ed 15-04-2011 8:20 Pagina 238

239
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
READING RIM CODE fig. 240
Example: 6J x 15 ET43
6 = rim width in inches 1.
J = rim drop centre outline (side projection where the tyre bead rests)
2.
15 = rim nominal diameter in inches (corresponds to diameter of the tyre to be mounted)
3= Ø.
ET43 = wheel camber (distance between the disc/rim support plane and the wheel rim centre line).
215/70 R15C 109/107S
225/70 R15C 112/110S
215/70 R15CP 109/107Q
215/75 R16C 116/114R
225/75 R16C 118/116R
225/75 R16CP 116/114Q6J x 15" – H2
6J x 15" – H2
6J x 16" – H2
6J x 16" – H2
Versions Rims Tyres provided
Ducato (except recreational)
Ducato (recreational)
Ducato Maxi (except recreational)
Ducato Maxi (recreational)
If using M+S winter tyres with speed index lower than “S” for 15 inch wheels and “R” for 16 inch wheels, respect the max
vehicle speed indicated in the table: Maximum speed index.
important Use only the tyres shown in the vehicle vehicle registration document.
If using class C tyres on a Camping vehicle, always use wheels with a metal inflation valve. When replacing, it is always advisable
to use Camping tyres.
231-276 DUCATO LUM EN 9ed 15-04-2011 8:20 Pagina 239
