2010 FIAT DUCATO Owner handbook (in English)

88
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0048mfig. 92
ELECTRICAL POWER SUPPLY AND
FUEL CUT OFF SWITCH
The vehicle is fitted with a safety switch that, in the
event of a crash, comes into operation by cutting off the
fuel supply and turning off the engine as a consequence.
When the inertia switch cuts in, this cuts off the fuel
supply and also activates the hazard warning lights, side
lights and courtesy lights while releasing all the doors
and displaying a message; they are deactivated by
pressing button A. An additional safety switch is also
present that is activated in the event of impact to cut off
the electrical supply. In this way, fuel is prevented from
escaping if the pipes are broken as well as the formation
of sparks or electrical discharges following damage to
the vehicle electrical components.
IMPORTANT After an accident, remember to remove
the key from the ignition device to avoid draining the
battery.
If no fuel leaks or damage to vehicle electrical
devices (e.g. headlights) are detected after the impact and the
vehicle is able to set off again, reactivate the automatic fuel
cut off and electrical supply switches (
for versions/markets
where provided)
following the procedure described below.
If, after a crash, you smell fuel or see
leaks from the fuel system, do not reset
the switches to avoid the risk of fire.
WARNING
Reactivating the fuel cut-off switch fig. 92
Press the button A to reactivate the fuel cut off switch.
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 88

89
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0127mfig. 93
IMPORTANT On versions other than the School
bus/Minibus, button B is replaced by a dedicated fuse;
to replace it contact a Fiat Dealership.
Before reactivating the electricity supply
switch, carefully check for fuel leaks
or damage to the vehicle electrical devices
(e.g. headlights).
WARNING
Before reactivating the fuel cut off
switch, carefully check for fuel leaks
or damage to vehicle electrical devices
(e.g. headlights).
WARNING
Reactivating the electrical supply cut-off switch
(School bus/Minibus) fig. 93
The switch is located on the positive battery terminal.
To reactivate the electrical supply switch, proceed as
follows:
❒press the button A to reset the fuel cut off switch;
❒press button B to reset the electrical supply switch.
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 89

90
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0049mfig. 94
INTERIOR FITTINGS
UPPER GLOVE COMPARTMENT
– REFRIGERATED COMPARTMENT fig.94
(for versions/markets where provided)
To use, lift the flap as shown in the figure.
If air conditioned, the compartment, equipped with
a bottle holder, may be cooled/heated by means of an
outlet connected to the climate control system.GLOVE COMPARTMENT fig. 95
To open the glove compartment, operate the opening
handle A.
F0N0050mfig. 95
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 90

91
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0051mfig. 96
LOCKABLE GLOVE COMPARTMENT fig. 96
Turn the key clockwise/anticlockwise to lock/unlock the
lock. To open the glove compartment, use the opening
handle.
The compartment is big enough to hold a laptop
computer.
GLOVE COMPARTMENT
The glove compartment A-fig. 97 is located in the
middle of the dashboard.
The glove compartment B-fig. 98 is located on the right
of the dashboard above the glove compartment.
F0N0052mfig. 97
F0N0053mfig. 98
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 91

92
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0128mfig. 99F0N0134mfig. 100
COMPARTMENT BENEATH
PASSENGER SIDE FRONT SEAT fig. 100
Proceed as follows to use the compartment:
❒open the flap A and remove it as illustrated;
❒turn the lock knob B anticlockwise and remove it to
allow the removal of the compartment. DOOR POCKETS fig. 99
There are oddment/map pockets located in each of the
door panels.
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 92

93
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
REAR PARTITION fig. 101
The vehicle may be equipped with a solid rear partition
or with a sliding glass partition.
To open/close the sliding glass partition use the knob A.
Certain versions are equipped with a protective grille on
the glass partition inside the load compartment.
F0N0218mfig. 101
CUP HOLDER – CAN HOLDER fig. 102
The cup – can holder is located in the middle of the
dashboard.
F0N0054mfig. 102
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 93

94
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0146mfig. 104F0N0055mfig. 103
ASHTRAY fig. 104
The ashtray is a removable plastic container that can be
fitted in the cup/can holders in the middle of the
dashboard.
IMPORTANT Do not use the container as an ashtray
and a waste paper basket at the same time: it might
catch fire in contact with cigarette stubs. CIGAR LIGHTER fig. 103
It is located in the centre of the dashboard.
Press the button on the cigar lighter to switch it on
when the ignition key is turned to MAR-ON.
After about 15 seconds the button will return to its
original position and the cigar lighter is ready for use.
IMPORTANT Always check that the cigar lighter has
turned off.
The cigar lighter gets very hot. Handle it
carefully and make sure children don’t
touch it: risk of fire and/or burning.
WARNING
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 94

95
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0057mfig. 106F0N0056mfig. 105

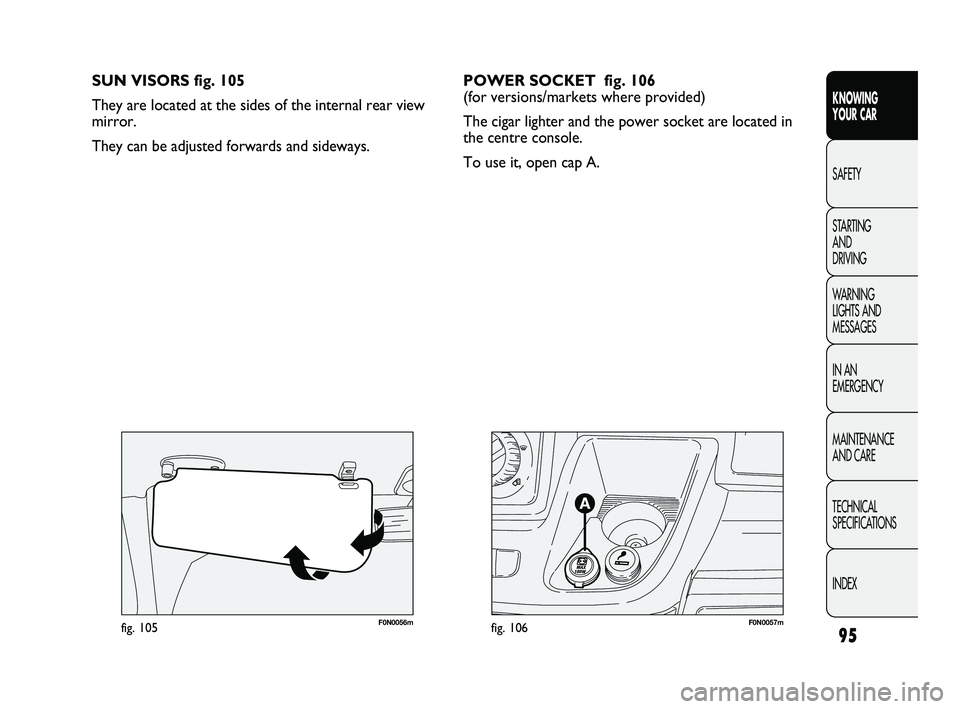

SUN VISORS fig. 105
They are located at the sides of the internal rear view
mirror.
They can be adjusted forwards and sideways.POWER SOCKET fig. 106
(for versions/markets where provided)
The cigar lighter and the power socket are located in
the centre console.
To use it, open cap A.
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 95
