2010 CHRYSLER SEBRING SEDAN Owners Manual

REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS — Interior Bulb No.
Front Courtesy/Reading Lamp..........578/W5W
Center Courtesy/Reading Lamp ..........578/W5W
Visor Vanity Lamp ...................... A6220
Glove Box Lamp ....................... A6220
Shift Indicator Lamp ................. IKLE14140
Rear Compartment (Trunk) Lamp ............. 579
NOTE: For lighted switches, see your authorized dealer
for replacement.
LIGHT BULBS — Exterior Bulb No.
Low Beam Headlamp ..................... H11
High Beam Headlamp .................... 9005Front Park/Turn Signal/Side Marker Lamp
....3757A
Front Fog Lamp ...................... PSX24W
Center High Mounted Stop (CHMSL)
Lamp ........................... W16W (921)
Rear Tail/Stop Lamp ..................... 3157
Rear Turn Signal Lamp .................... 3157
Backup Lamp .......................... 3157
License Lamp .......................... W5W
Front Position Lamp ..................... W5W
BULB REPLACEMENT
Headlamp
1. Raise and prop open the hood. Locate the connector
behind the headlamp.
NOTE:It may be necessary to remove the air cleaner
filter housing and position the totally integrated power
module aside prior to replacing the low beam headlamp
on the driver’s side of the vehicle.7
MAINTAINING YOUR VEHICLE 377

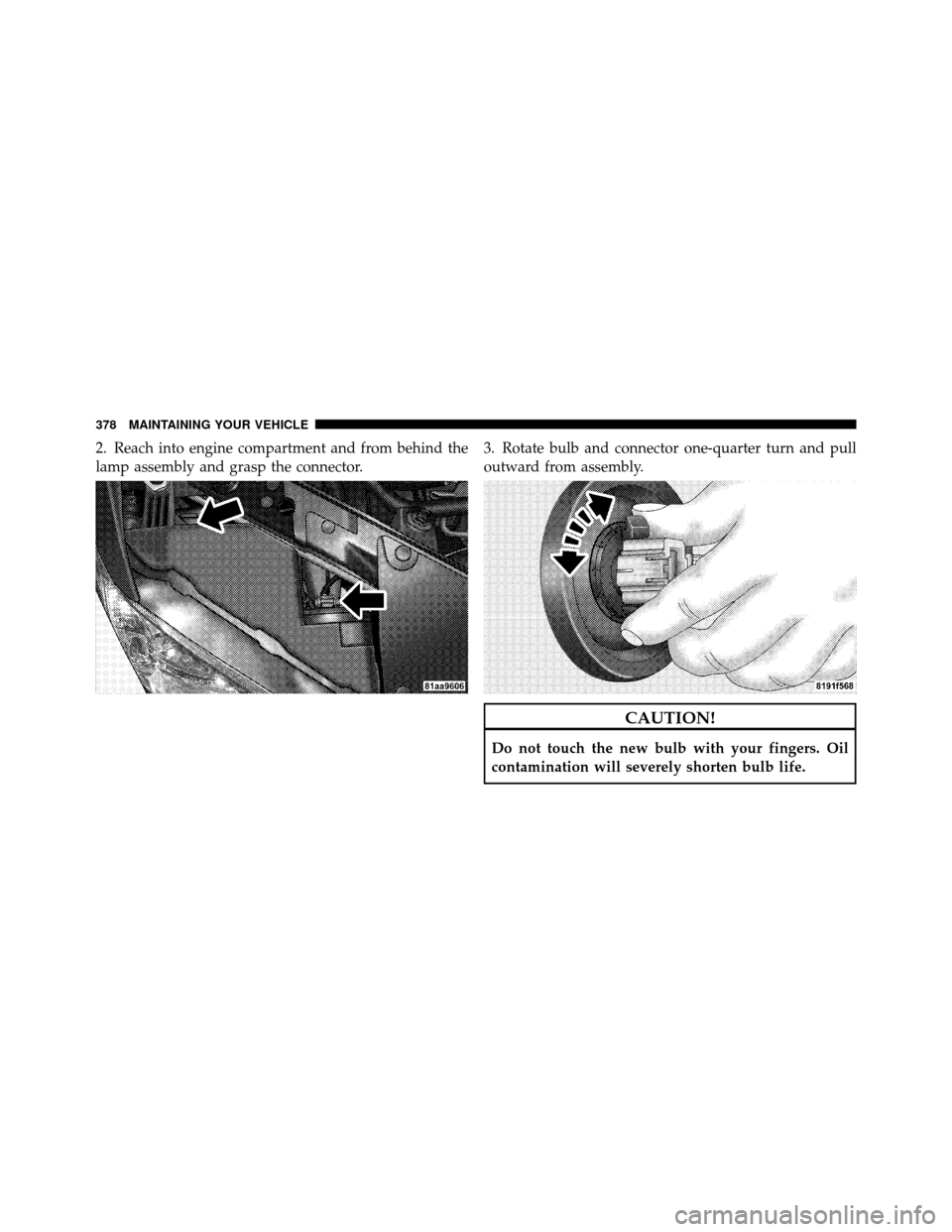

2. Reach into engine compartment and from behind the
lamp assembly and grasp the connector.3. Rotate bulb and connector one-quarter turn and pull
outward from assembly.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life.
378 MAINTAINING YOUR VEHICLE

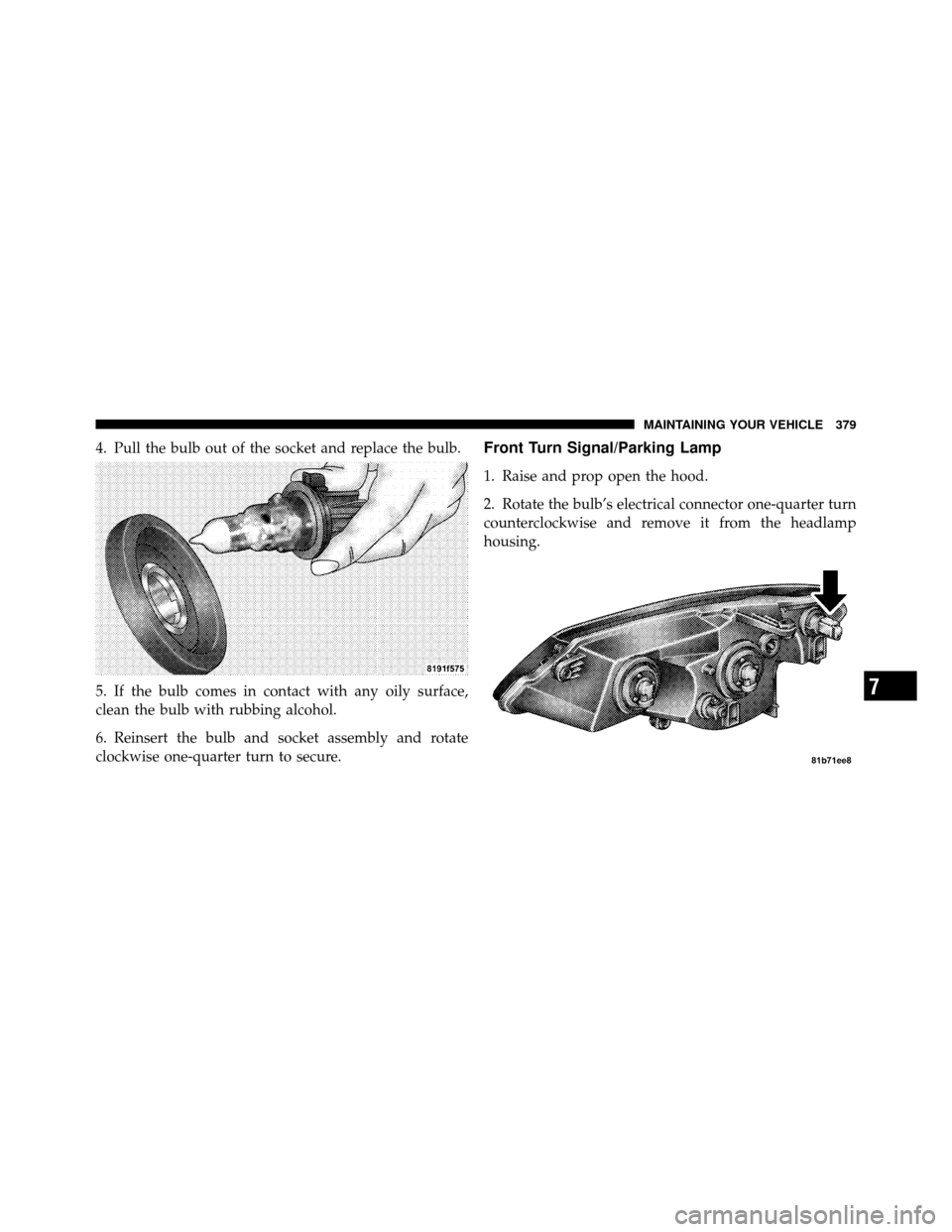

4. Pull the bulb out of the socket and replace the bulb.
5. If the bulb comes in contact with any oily surface,
clean the bulb with rubbing alcohol.
6. Reinsert the bulb and socket assembly and rotate
clockwise one-quarter turn to secure.Front Turn Signal/Parking Lamp
1. Raise and prop open the hood.
2. Rotate the bulb’s electrical connector one-quarter turn
counterclockwise and remove it from the headlamp
housing.
7
MAINTAINING YOUR VEHICLE 379

3. Remove the bulb from the connector socket and install
the replacement bulb.
4. Install the bulb and connector assembly into the
headlamp housing and rotate the connector one-quarter
turn clockwise to lock it in place.

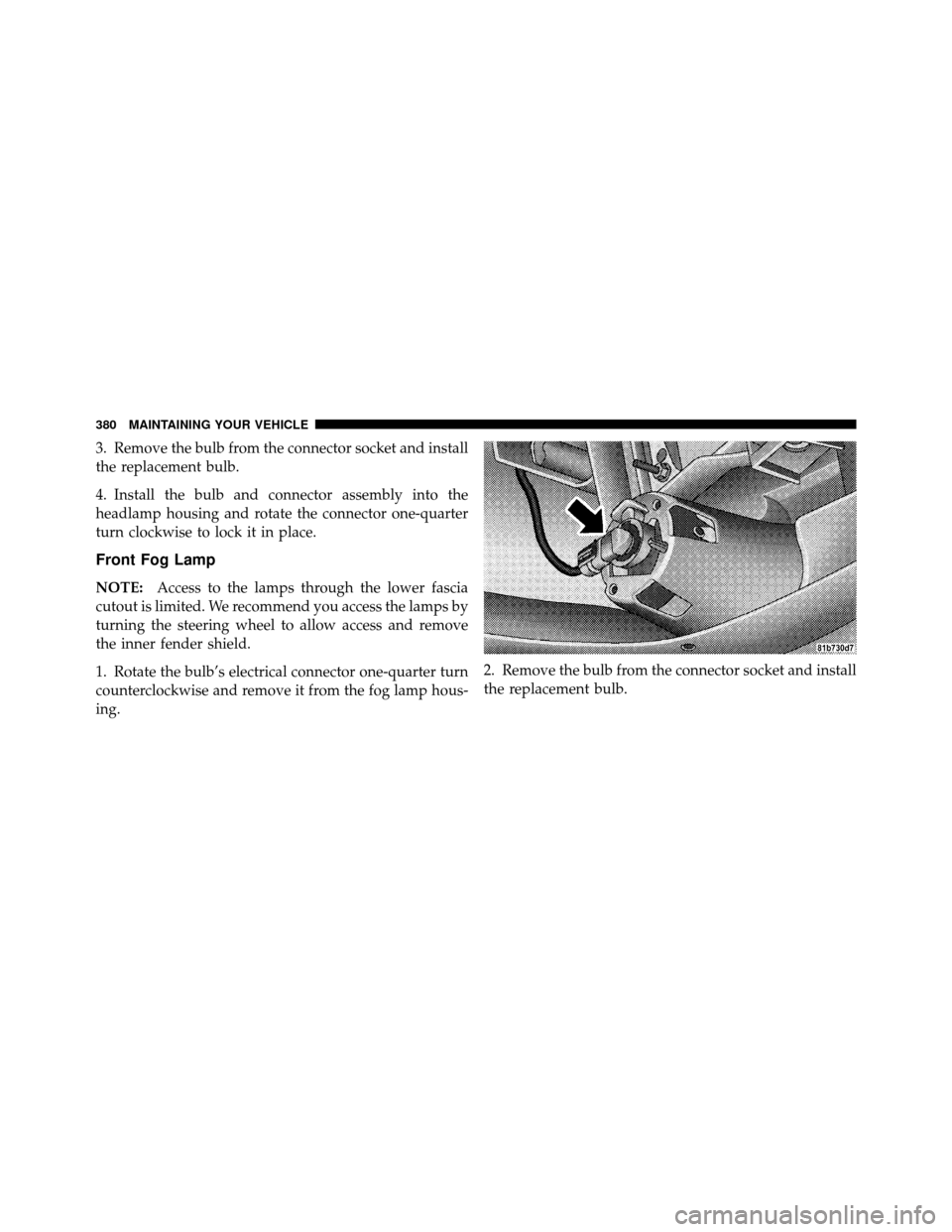

Front Fog Lamp
NOTE:Access to the lamps through the lower fascia
cutout is limited. We recommend you access the lamps by
turning the steering wheel to allow access and remove
the inner fender shield.
1. Rotate the bulb’s electrical connector one-quarter turn
counterclockwise and remove it from the fog lamp hous-
ing. 2. Remove the bulb from the connector socket and install
the replacement bulb.
380 MAINTAINING YOUR VEHICLE

CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
3. Install the bulb and connector assembly into the fog
lamp housing and rotate the connector one-quarter turn
clockwise to lock it in place.

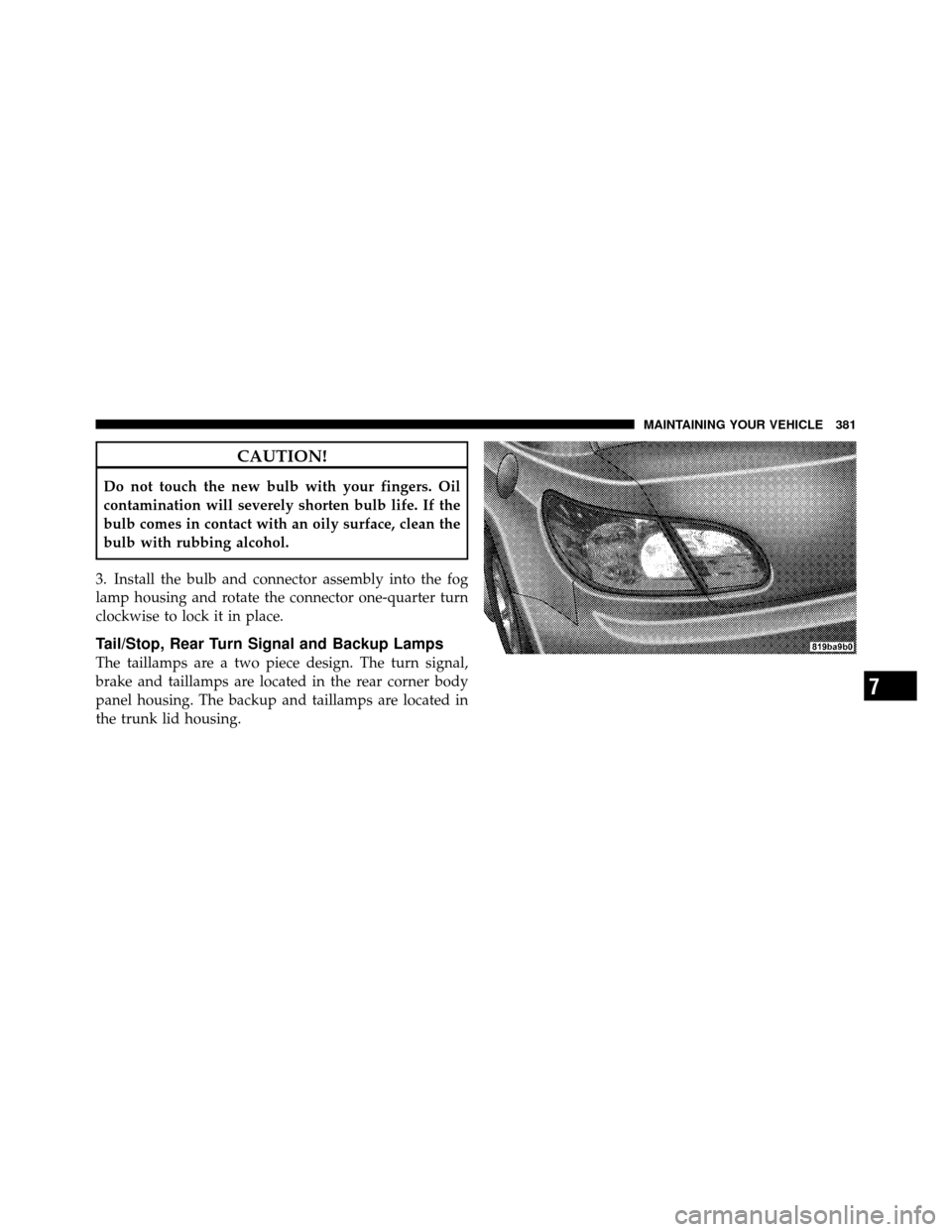

Tail/Stop, Rear Turn Signal and Backup Lamps
The taillamps are a two piece design. The turn signal,
brake and taillamps are located in the rear corner body
panel housing. The backup and taillamps are located in
the trunk lid housing.
7
MAINTAINING YOUR VEHICLE 381

Changing the Tail/Stop Lamp or Rear Turn Signal
Lamp
1. Open the trunk and gently pull back the trunk liner
behind the taillamp2. Remove the two plastic wing nuts from the taillamp
housing.
3. Grasp the taillamp housing and pull it firmly outward
while pushing gently on the studs from inside to disen-
gage the housing from the vehicle.
382 MAINTAINING YOUR VEHICLE

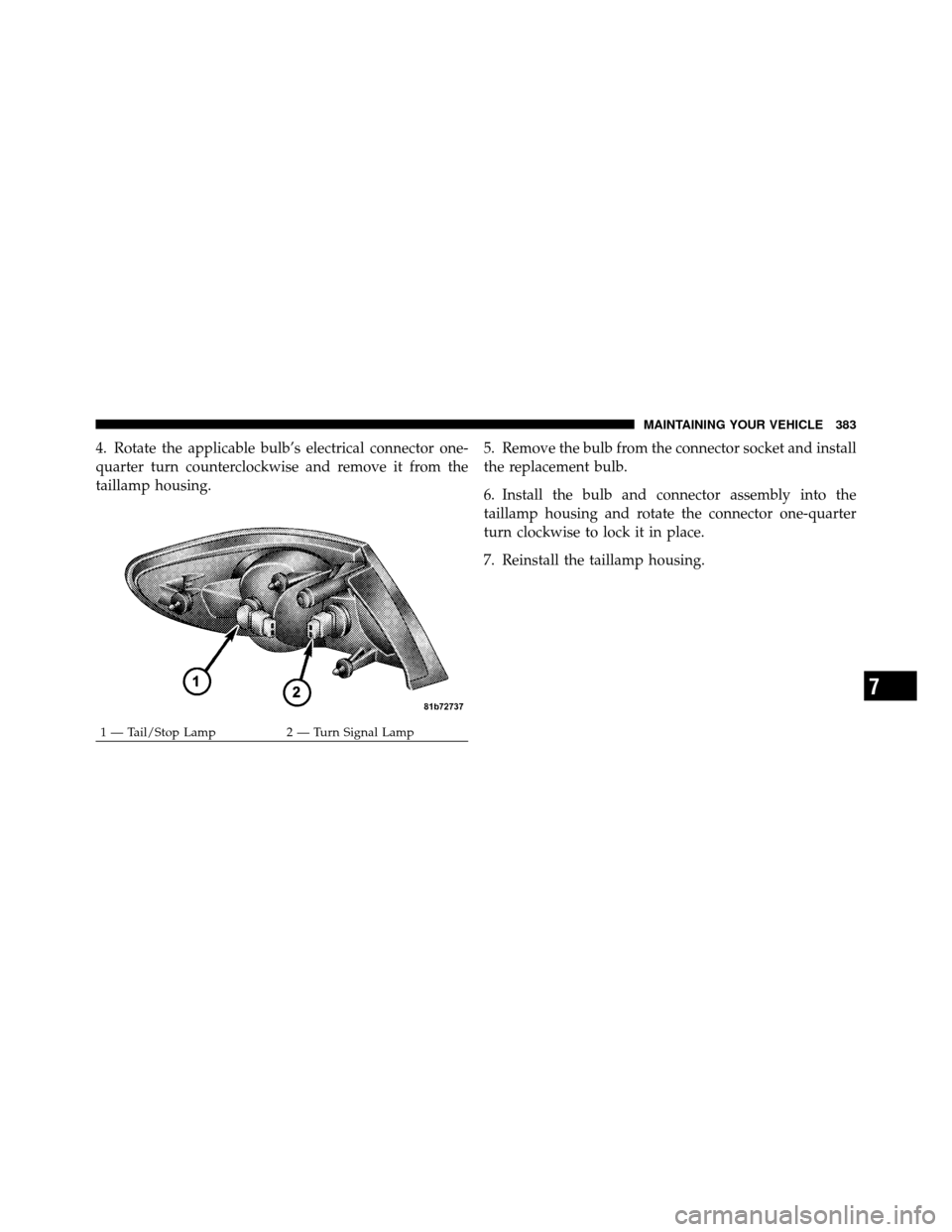

4. Rotate the applicable bulb’s electrical connector one-
quarter turn counterclockwise and remove it from the
taillamp housing.5. Remove the bulb from the connector socket and install
the replacement bulb.
6. Install the bulb and connector assembly into the
taillamp housing and rotate the connector one-quarter
turn clockwise to lock it in place.
7. Reinstall the taillamp housing.
1 — Tail/Stop Lamp
2 — Turn Signal Lamp
7
MAINTAINING YOUR VEHICLE 383

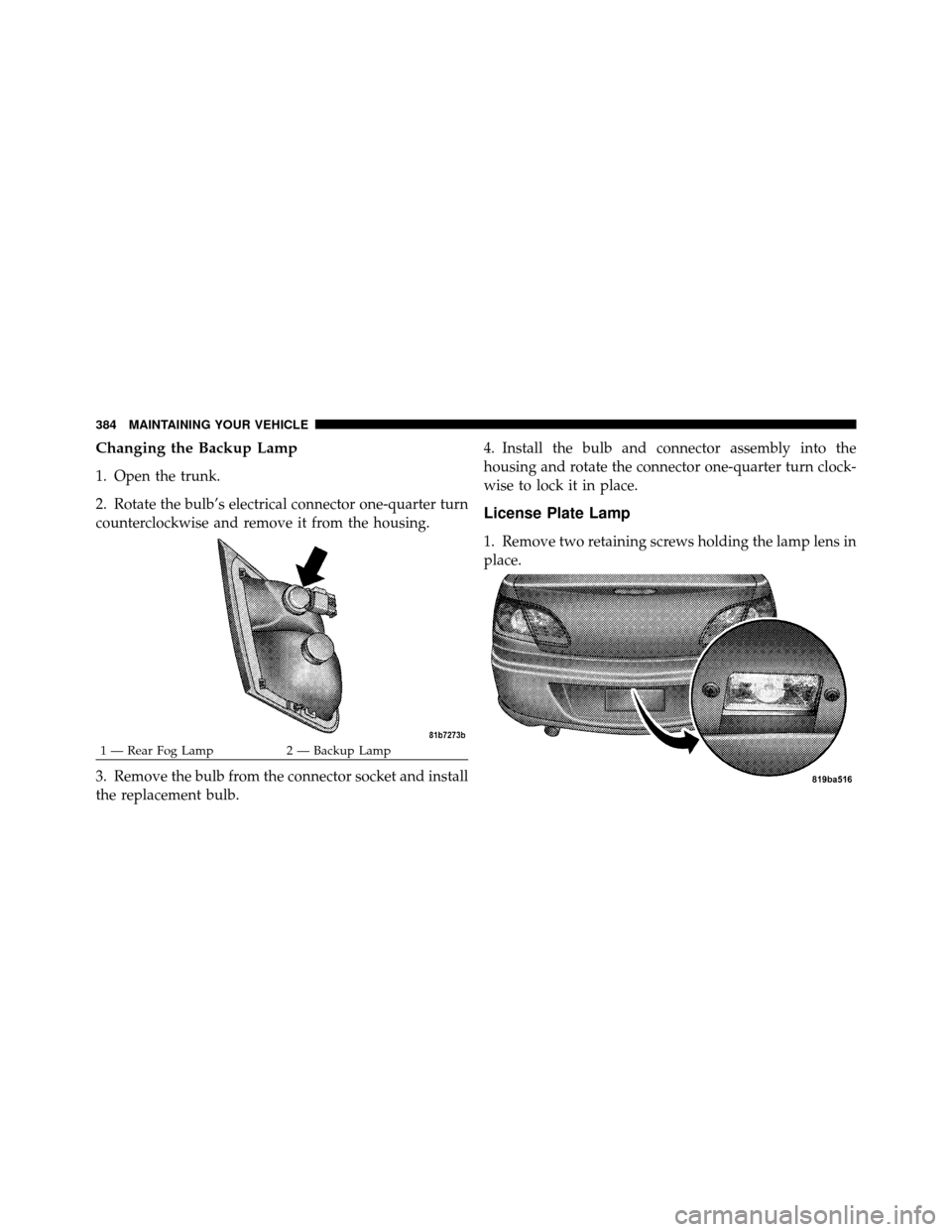

Changing the Backup Lamp
1. Open the trunk.
2. Rotate the bulb’s electrical connector one-quarter turn
counterclockwise and remove it from the housing.
3. Remove the bulb from the connector socket and install
the replacement bulb.4. Install the bulb and connector assembly into the
housing and rotate the connector one-quarter turn clock-
wise to lock it in place.
License Plate Lamp
1. Remove two retaining screws holding the lamp lens in
place.
1 — Rear Fog Lamp
2 — Backup Lamp
384 MAINTAINING YOUR VEHICLE
