The left latch opens to the top storage area.
The lower bin can be accessed directly, without first
exposing the upper bin, by operating the right latch with
the armrest down.
The first storage bin can be used to hold smaller items.
The lower storage bin includes a molded-in coin holder,
room for CD’s, DVD’s, and a power outlet that allows a
cellular phone to recharge while concealed.
NOTE:
•A notch in the side of the console base under the
armrest will also allow use of cellular phone while still
plugged into the power outlet and with the armrest
latched down.
•The power outlet located inside the console can also
energize the cigar lighter in the available Smoker’s
Package.

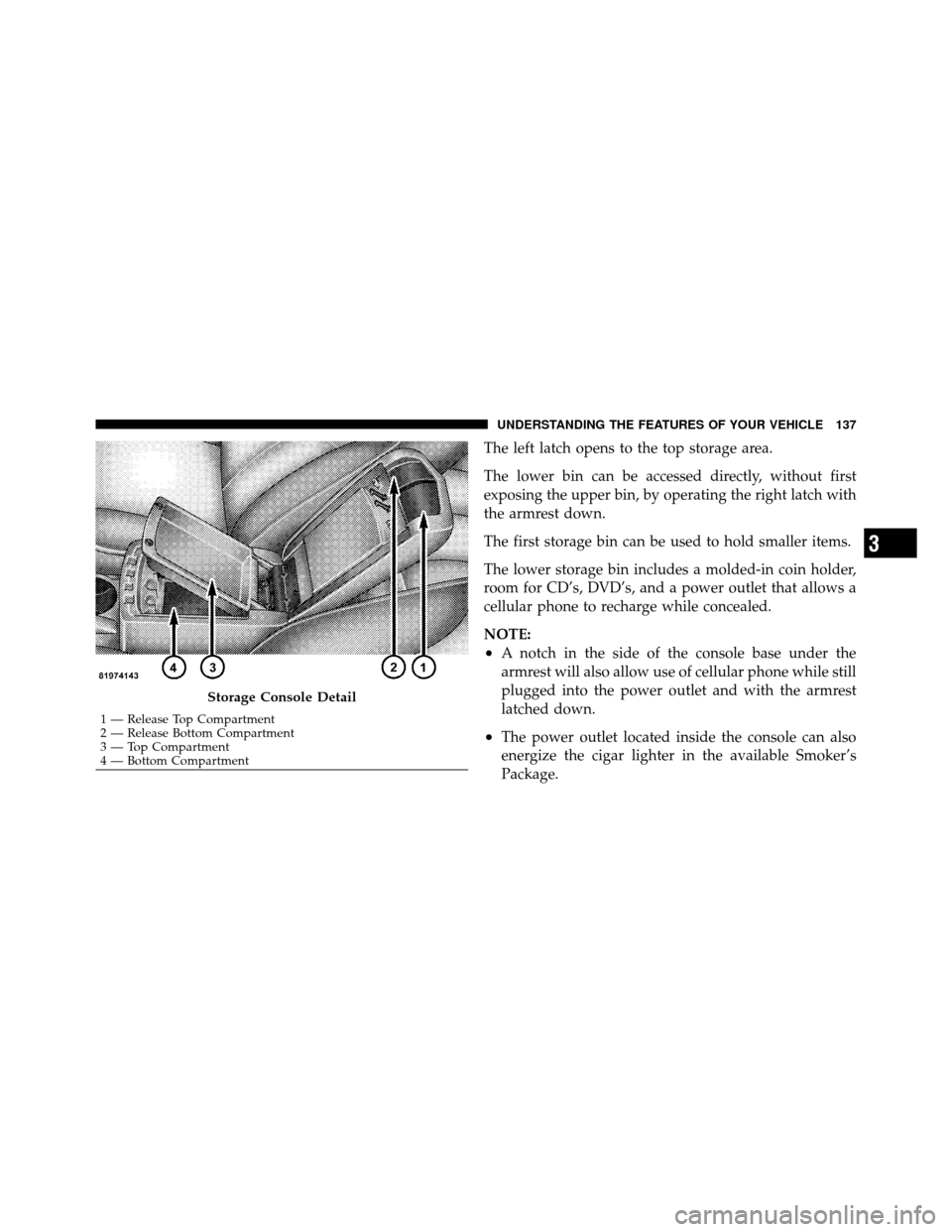

Storage Console Detail
1 — Release Top Compartment
2 — Release Bottom Compartment
3 — Top Compartment
4 — Bottom Compartment
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137

Video Console — If Equipped
The optional Video Entertainment System (VES)™ in-
cludes the following components:
•The screen for a rear seat DVD player is stored under
the armrest.
•Remote Control
•Audio/Video RCA JacksRefer to, “Video Entertainment System — If Equipped,”
in Section 4 of this manual, for further information.
Video Console
138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

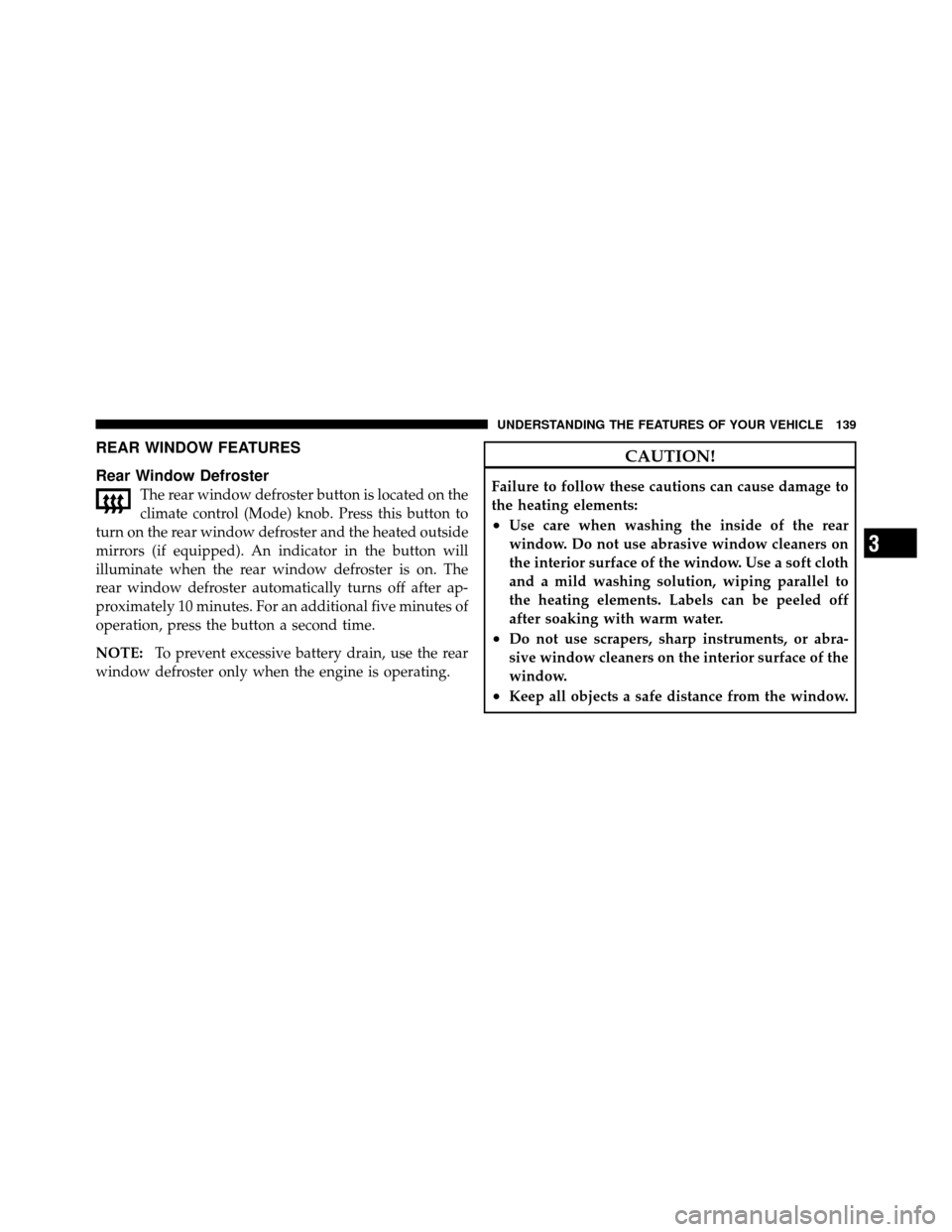

REAR WINDOW FEATURES
Rear Window Defroster
The rear window defroster button is located on the
climate control (Mode) knob. Press this button to
turn on the rear window defroster and the heated outside
mirrors (if equipped). An indicator in the button will
illuminate when the rear window defroster is on. The
rear window defroster automatically turns off after ap-
proximately 10 minutes. For an additional five minutes of
operation, press the button a second time.
NOTE: To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to
the heating elements. Labels can be peeled off
after soaking with warm water.
•Do not use scrapers, sharp instruments, or abra-
sive window cleaners on the interior surface of the
window.
•Keep all objects a safe distance from the window.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 139

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features ............... 144
 Instrument Cluster .................... 145
 Instrument Cluster Descriptions ........... 146
 Electronic Vehicle Information Center (EVIC) –
If Equipped .......................... 159
▫ Electronic Vehicle Information Center (EVIC)
Displays ........................... 161
▫ Oil Change Required .................. 162
▫ Trip Functions ...................... 162
▫ Compass Display .................... 164 ▫
Personal Settings
(Customer-Programmable Features) ....... 167
 Setting The Analog Clock ................ 169
 Sales Code REQ — AM/FM Stereo Radio And
6–Disc CD/DVD Changer
(MP3/WMA AUX Jack) .................. 170
▫ Operating Instructions - Radio Mode ...... 170
▫ Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video) . . . 178
▫ Notes On Playing MP3/WMA Files ....... 180
4

▫List Button
(Disc Mode For MP3/WMA Play) ......... 183
▫ Info Button
(Disc Mode For MP3/WMA Play) ......... 183
 Sales Code (RER/REN) — AM/FM/CD/DVD
Radio – If Equipped .................... 186
▫ Operating Instructions — Voice Recognition
System (VR) — If Equipped ............. 186
▫ Operating Instructions — uconnect™ phone
— If Equipped ...................... 186
▫ Clock Setting Procedure ............... 186
 Sales Code RES — AM/FM Stereo Radio With
CD Player (MP3 AUX Jack)............... 188
▫ Operating Instructions — Radio Mode ..... 188▫
Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 191
▫ Notes On Playing MP3 Files ............ 193
▫ Operation Instructions - Auxiliary Mode .... 196
 Sales Code RES/RSC — AM/FM Stereo Radio
With CD Player (MP3 AUX Jack) And
Sirius Radio .......................... 197
▫ Operating Instructions — Radio Mode ..... 197
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 203
▫ Notes On Playing MP3 Files ............ 205
▫ List Button (CD Mode For MP3 Play) ...... 207
▫ Info Button (CD Mode For MP3 Play) ...... 208
142 UNDERSTANDING YOUR INSTRUMENT PANEL

uconnect™ studios (Satellite Radio)
— If Equipped (REN/REQ/RER/RES
Radios Only) ......................... 209
▫ System Activation .................... 209
▫ Electronic Serial Number/Sirius
Identification Number (ESN/SID) ......... 209
▫
Selecting uconnect™ studios (Satellite) Mode. . 210
▫ Satellite Antenna ..................... 210
▫ Reception Quality .................... 210
▫ Operating Instructions - uconnect™ studios
(Satellite) Mode ..................... 211
▫ Operating Instructions - uconnect™ phone
(If Equipped) ....................... 213
 Video Entertainment System (VES)™
— If Equipped ........................ 213
Remote Sound System Controls
— If Equipped ........................ 215
▫ Right-Hand Switch Functions ............ 216
▫ Left-Hand Switch Functions For Radio
Operation .......................... 216
▫ Left-Hand Switch Functions For Media
(i.e., CD) Operation ................... 216
 CD/DVD Maintenance ................. 217
 Radio Operation And Cellular Phones ....... 217
 Climate Controls ...................... 217
▫ Manual Heating And Air Conditioning ..... 218
▫ Automatic Temperature Control (ATC)
— If Equipped ...................... 222
▫ Operating Tips ...................... 2284
UNDERSTANDING YOUR INSTRUMENT PANEL 143

INSTRUMENT PANEL FEATURES
1 — Air Outlet6 — Radio11 — Storage Compartment
2 — Side Window Demister Outlet 7 — Passenger Airbag 12 — Climate Control
3 — Instrument Cluster 8 — Glove Compartment13 — Trunk Release Button
4 — Ignition Switch 9 — Heated Seat Switch – If Equipped
5 — Analog Clock 10 — Hazard Switch
