2010 CHRYSLER SEBRING SEDAN Owners Manual

Cleaning Leather Upholstery
MOPARTotal Clean or equivalent is specifically recom-
mended for leather upholstery.
Your leather upholstery can be best preserved by regular
cleaning with a damp soft cloth. Small particles of dirt
can act as an abrasive and damage the leather upholstery
and should be removed promptly with a damp cloth.
Stubborn soils can be removed easily with a soft cloth
and MOPAR Total Clean or equivalent. Care should be
taken to avoid soaking your leather upholstery with any
liquid. Please do not use polishes, oils, cleaning fluids,
solvents, detergents, or ammonia-based cleaners to clean
your leather upholstery. Application of a leather condi-
tioner is not required to maintain the original condition.WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPAR Glass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear
quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instruments, which may
scratch the elements.
When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
7
MAINTAINING YOUR VEHICLE 369

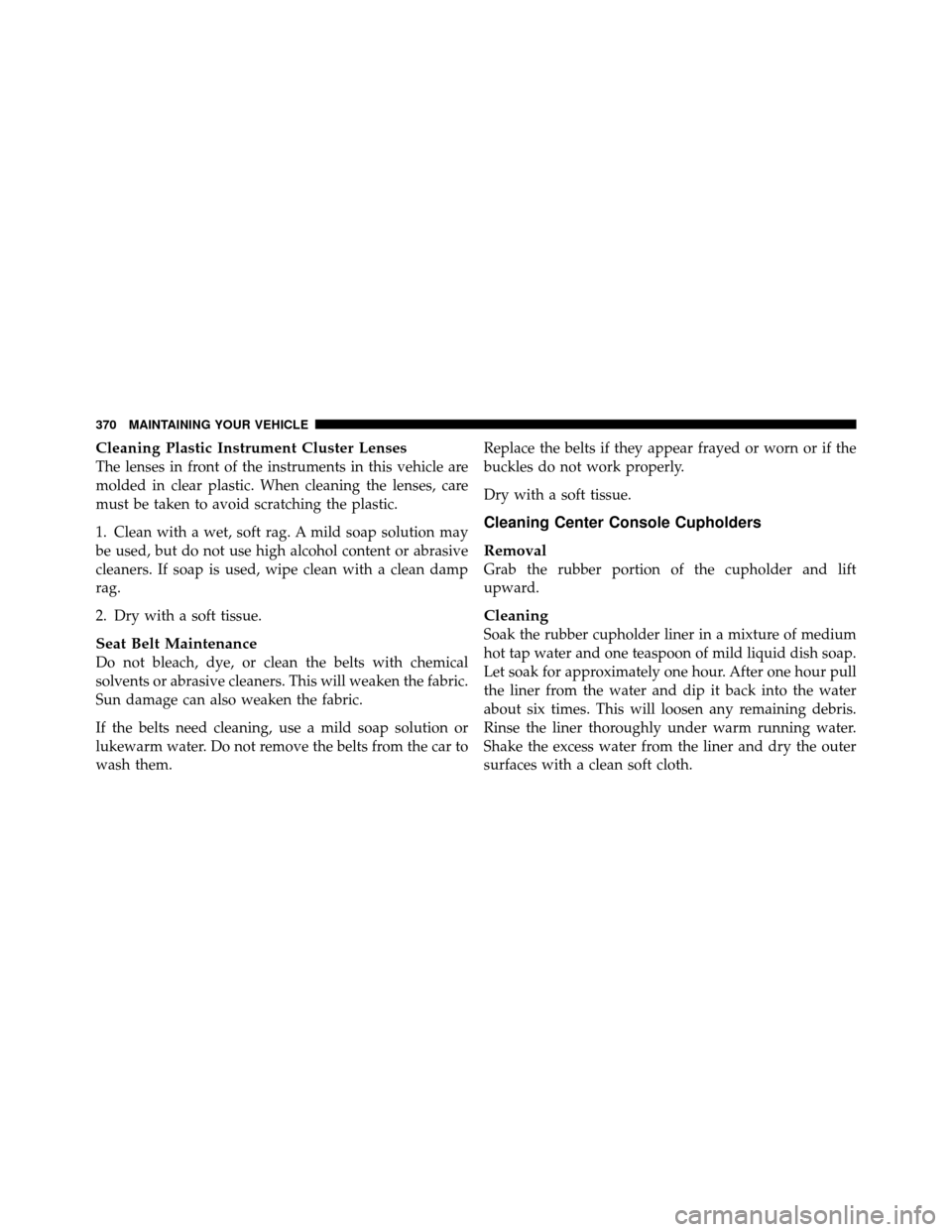

Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet, soft rag. A mild soap solution may
be used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft tissue.
Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the car to
wash them.Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
Dry with a soft tissue.
Cleaning Center Console Cupholders
Removal
Grab the rubber portion of the cupholder and lift
upward.
Cleaning
Soak the rubber cupholder liner in a mixture of medium
hot tap water and one teaspoon of mild liquid dish soap.
Let soak for approximately one hour. After one hour pull
the liner from the water and dip it back into the water
about six times. This will loosen any remaining debris.
Rinse the liner thoroughly under warm running water.
Shake the excess water from the liner and dry the outer
surfaces with a clean soft cloth.
370 MAINTAINING YOUR VEHICLE

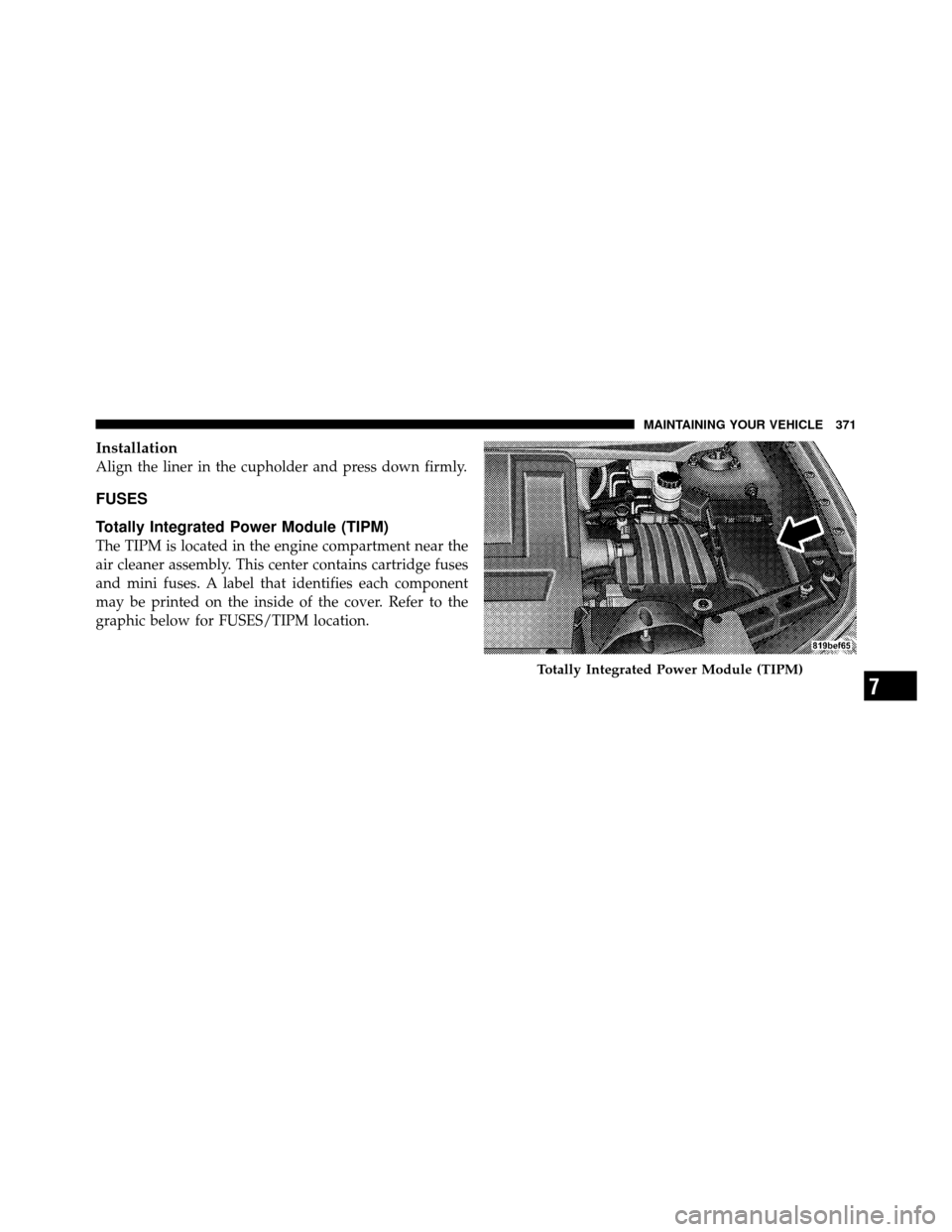

Installation
Align the liner in the cupholder and press down firmly.
FUSES
Totally Integrated Power Module (TIPM)
The TIPM is located in the engine compartment near the
air cleaner assembly. This center contains cartridge fuses
and mini fuses. A label that identifies each component
may be printed on the inside of the cover. Refer to the
graphic below for FUSES/TIPM location.
Totally Integrated Power Module (TIPM)
7
MAINTAINING YOUR VEHICLE 371

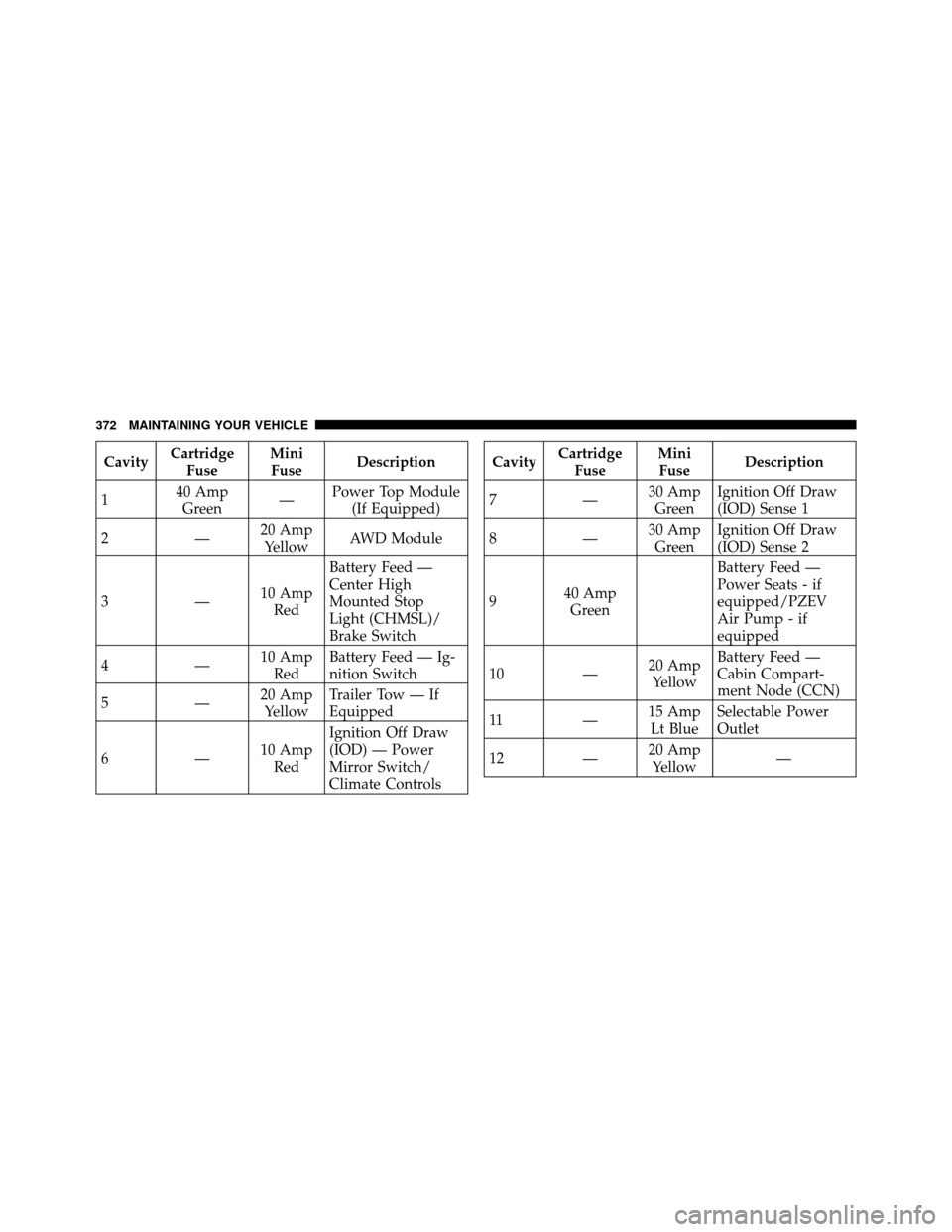

CavityCartridge
Fuse Mini
Fuse Description
1 40 Amp
Green —Power Top Module
(If Equipped)
2— 20 Amp
Yellow AWD Module
3— 10 Amp
Red Battery Feed —
Center High
Mounted Stop
Light (CHMSL)/
Brake Switch
4— 10 Amp
Red Battery Feed — Ig-
nition Switch
5— 20 Amp
Yellow Trailer Tow — If
Equipped
6— 10 Amp
Red Ignition Off Draw
(IOD) — Power
Mirror Switch/
Climate ControlsCavity
Cartridge
Fuse Mini
Fuse Description
7— 30 Amp
Green Ignition Off Draw
(IOD) Sense 1
8— 30 Amp
Green Ignition Off Draw
(IOD) Sense 2
9 40 Amp
Green Battery Feed —
Power Seats - if
equipped/PZEV
Air Pump - if
equipped
10 —20 Amp
Yellow Battery Feed —
Cabin Compart-
ment Node (CCN)
11 —15 Amp
Lt Blue Selectable Power
Outlet
12 —20 Amp
Yellow —
372 MAINTAINING YOUR VEHICLE

CavityCartridge
Fuse Mini
Fuse Description
13 —20 Amp
Yellow —
14 —10 Amp
Red Ignition Off Draw
(IOD) — Cabin
Compartment Node
(CCN)/ Interior
Lighting
15 40 Amp
Green —Battery Feed — Ra-
diator Fan Relay
16 —15 Amp
Lt. Blue IGN Run/ACC —
Cigar Lighter/PWR
Sunroof ModCavity
Cartridge
Fuse Mini
Fuse Description
17 —10 Amp
Red Ignition Off Draw
(IOD) — Wireless
Control Module
(WCM)/Clock/
Steering Control
Module (SCM)
18 40 Amp
Green —Battery Feed —
Auto Shutdown
(ASD) Relay
19 —20 Amp
Yellow Ignition Off Draw
(IOD) — Power
AmpFeed2-if
equipped
20 —15 Amp
Lt. Blue Ignition Off Draw
(IOD) — Radio
21 —10 Amp
Red —
7
MAINTAINING YOUR VEHICLE 373

CavityCartridge
Fuse Mini
Fuse Description
22 —10 Amp
Red Ignition Run — Cli-
mate Controls/Hot
Cupholder - if
equipped
23 —15 Amp
Lt. Blue Auto Shutdown
(ASD) Relay Feed 3
24 —25 Amp
Natural Battery Feed —
PWR Sunroof Feed
25 —10 Amp
Red Ignition Run —
Heated Mirrors - If
Equipped
26 —15 Amp
Lt. Blue Auto Shutdown
(ASD) Relay Feed 2Cavity
Cartridge
Fuse Mini
Fuse Description
27 —10 Amp
Red Ignition Run — Oc-
cupant Classifica-
tion Module
(OCM)/Occupant
Restraint Controller
(ORC)
28 —10 Amp
Red Ignition Run — Oc-
cupant Classifica-
tion Module
(OCM)/Occupant
Restraint Controller
(ORC)
29 — — Hot Car (No Fuse
Required)
30 —20 Amp
Yellow Ignition Run —
Heated Seats - If
Equipped
374 MAINTAINING YOUR VEHICLE

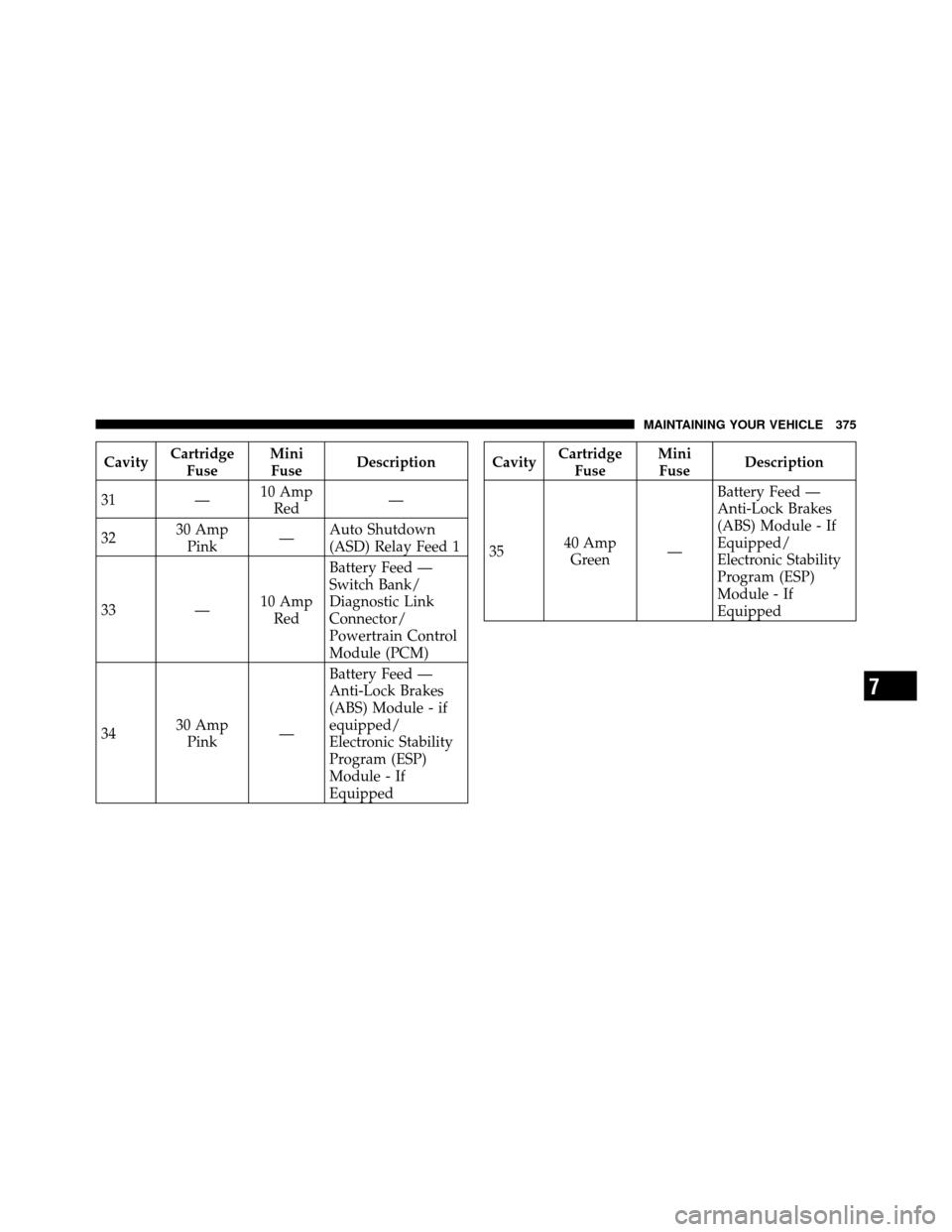

CavityCartridge
Fuse Mini
Fuse Description
31 —10 Amp
Red —
32 30 Amp
Pink —Auto Shutdown
(ASD) Relay Feed 1
33 —10 Amp
Red Battery Feed —
Switch Bank/
Diagnostic Link
Connector/
Powertrain Control
Module (PCM)
34 30 Amp
Pink —Battery Feed —
Anti-Lock Brakes
(ABS) Module - if
equipped/
Electronic Stability
Program (ESP)
Module - If
EquippedCavity
Cartridge
Fuse Mini
Fuse Description
35 40 Amp
Green —Battery Feed —
Anti-Lock Brakes
(ABS) Module - If
Equipped/
Electronic Stability
Program (ESP)
Module - If
Equipped
7
MAINTAINING YOUR VEHICLE 375

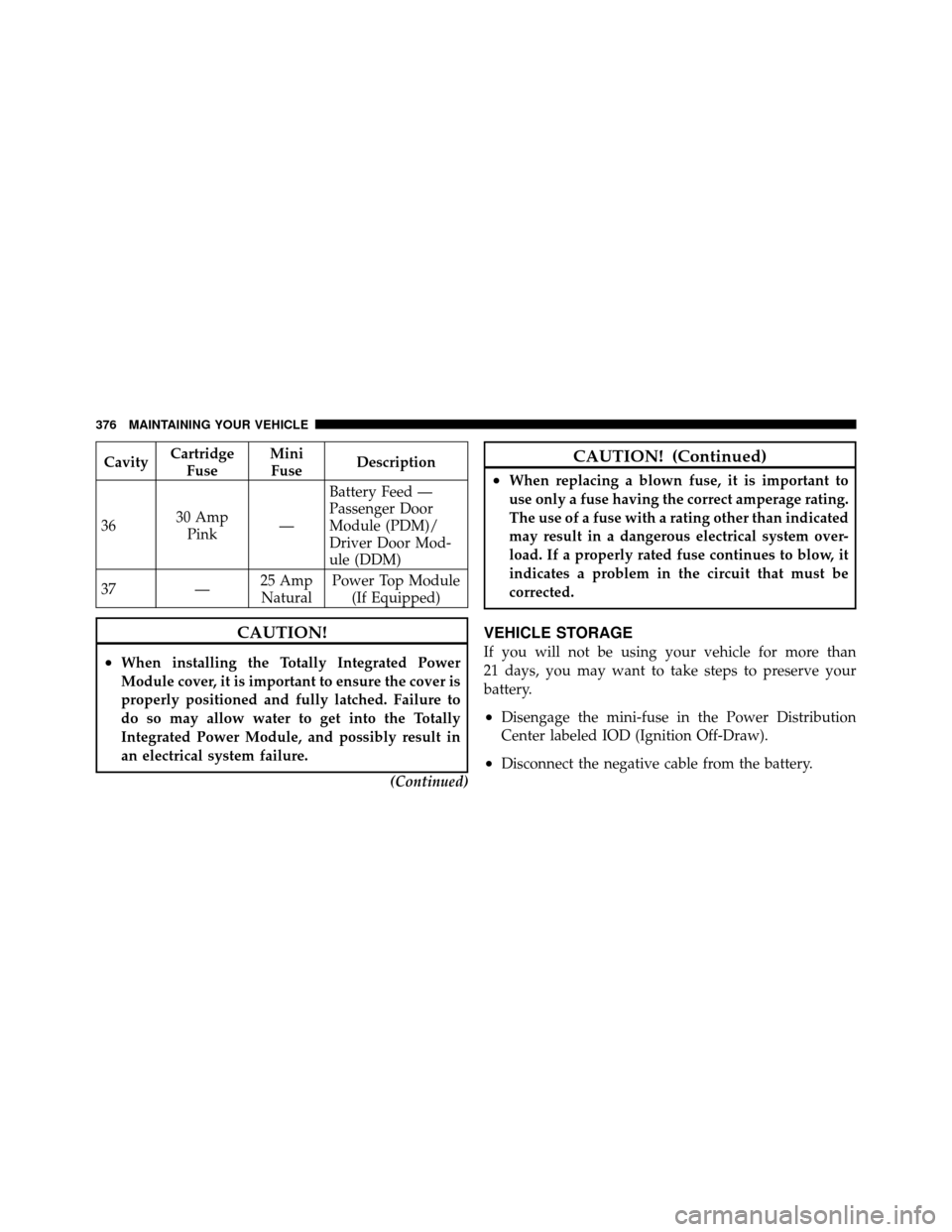

CavityCartridge
Fuse Mini
Fuse Description
36 30 Amp
Pink —Battery Feed —
Passenger Door
Module (PDM)/
Driver Door Mod-
ule (DDM)
37 —25 Amp
Natural Power Top Module
(If Equipped)
CAUTION!
•When installing the Totally Integrated Power
Module cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to
do so may allow water to get into the Totally
Integrated Power Module, and possibly result in
an electrical system failure.
(Continued)
CAUTION! (Continued)
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
VEHICLE STORAGE
If you will not be using your vehicle for more than
21 days, you may want to take steps to preserve your
battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
•Disconnect the negative cable from the battery.
