2010 CHRYSLER SEBRING SEDAN Owners Manual

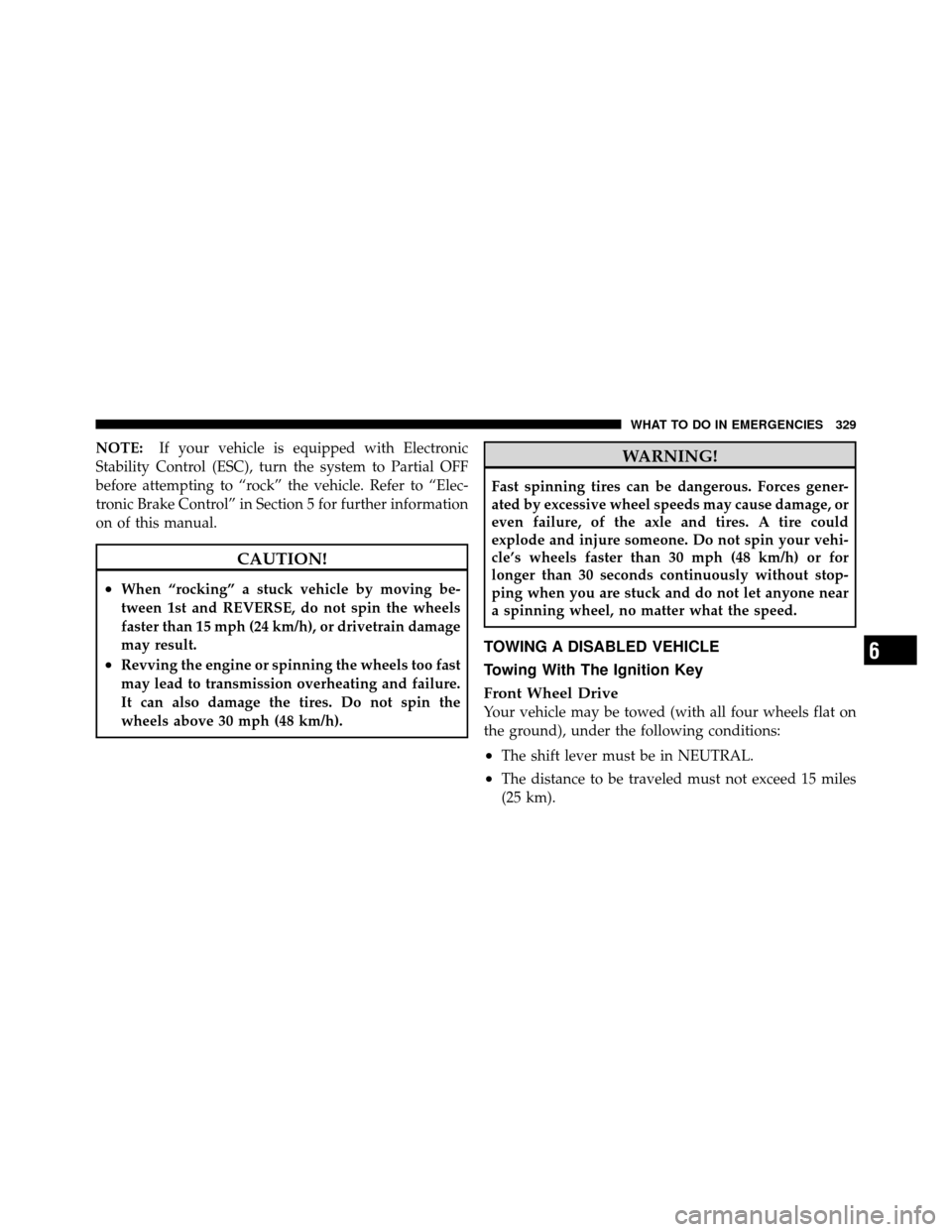

NOTE:If your vehicle is equipped with Electronic
Stability Control (ESC), turn the system to Partial OFF
before attempting to “rock” the vehicle. Refer to “Elec-
tronic Brake Control” in Section 5 for further information
on of this manual.
CAUTION!
•When “rocking” a stuck vehicle by moving be-
tween 1st and REVERSE, do not spin the wheels
faster than 15 mph (24 km/h), or drivetrain damage
may result.
•Revving the engine or spinning the wheels too fast
may lead to transmission overheating and failure.
It can also damage the tires. Do not spin the
wheels above 30 mph (48 km/h).
WARNING!
Fast spinning tires can be dangerous. Forces gener-
ated by excessive wheel speeds may cause damage, or
even failure, of the axle and tires. A tire could
explode and injure someone. Do not spin your vehi-
cle’s wheels faster than 30 mph (48 km/h) or for
longer than 30 seconds continuously without stop-
ping when you are stuck and do not let anyone near
a spinning wheel, no matter what the speed.
TOWING A DISABLED VEHICLE
Towing With The Ignition Key
Front Wheel Drive
Your vehicle may be towed (with all four wheels flat on
the ground), under the following conditions:
•The shift lever must be in NEUTRAL.
•The distance to be traveled must not exceed 15 miles
(25 km).
6
WHAT TO DO IN EMERGENCIES 329

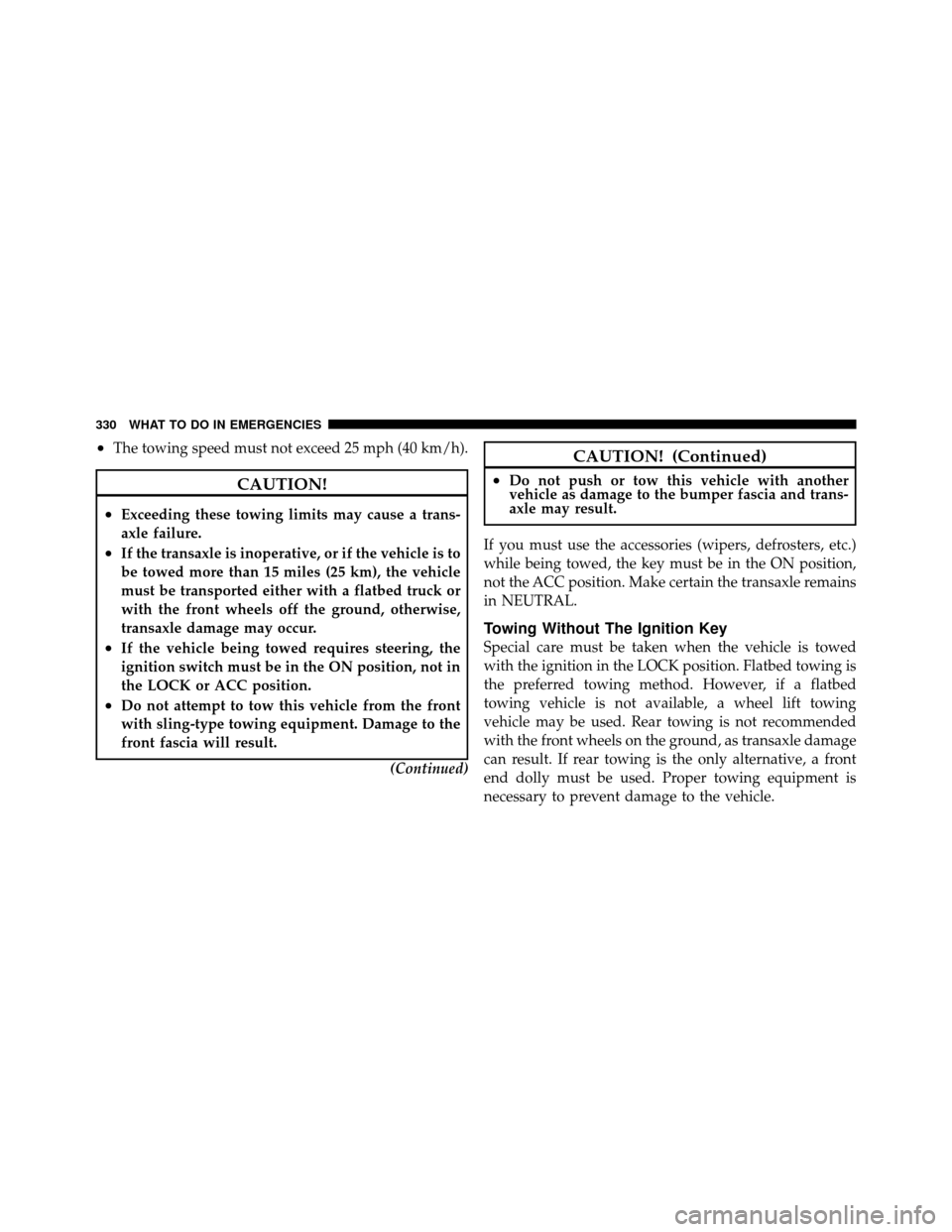

•The towing speed must not exceed 25 mph (40 km/h).
CAUTION!
•Exceeding these towing limits may cause a trans-
axle failure.
•If the transaxle is inoperative, or if the vehicle is to
be towed more than 15 miles (25 km), the vehicle
must be transported either with a flatbed truck or
with the front wheels off the ground, otherwise,
transaxle damage may occur.
•If the vehicle being towed requires steering, the
ignition switch must be in the ON position, not in
the LOCK or ACC position.
•Do not attempt to tow this vehicle from the front
with sling-type towing equipment. Damage to the
front fascia will result.(Continued)
CAUTION! (Continued)
•Do not push or tow this vehicle with another
vehicle as damage to the bumper fascia and trans-
axle may result.
If you must use the accessories (wipers, defrosters, etc.)
while being towed, the key must be in the ON position,
not the ACC position. Make certain the transaxle remains
in NEUTRAL.
Towing Without The Ignition Key
Special care must be taken when the vehicle is towed
with the ignition in the LOCK position. Flatbed towing is
the preferred towing method. However, if a flatbed
towing vehicle is not available, a wheel lift towing
vehicle may be used. Rear towing is not recommended
with the front wheels on the ground, as transaxle damage
can result. If rear towing is the only alternative, a front
end dolly must be used. Proper towing equipment is
necessary to prevent damage to the vehicle.
330 WHAT TO DO IN EMERGENCIES

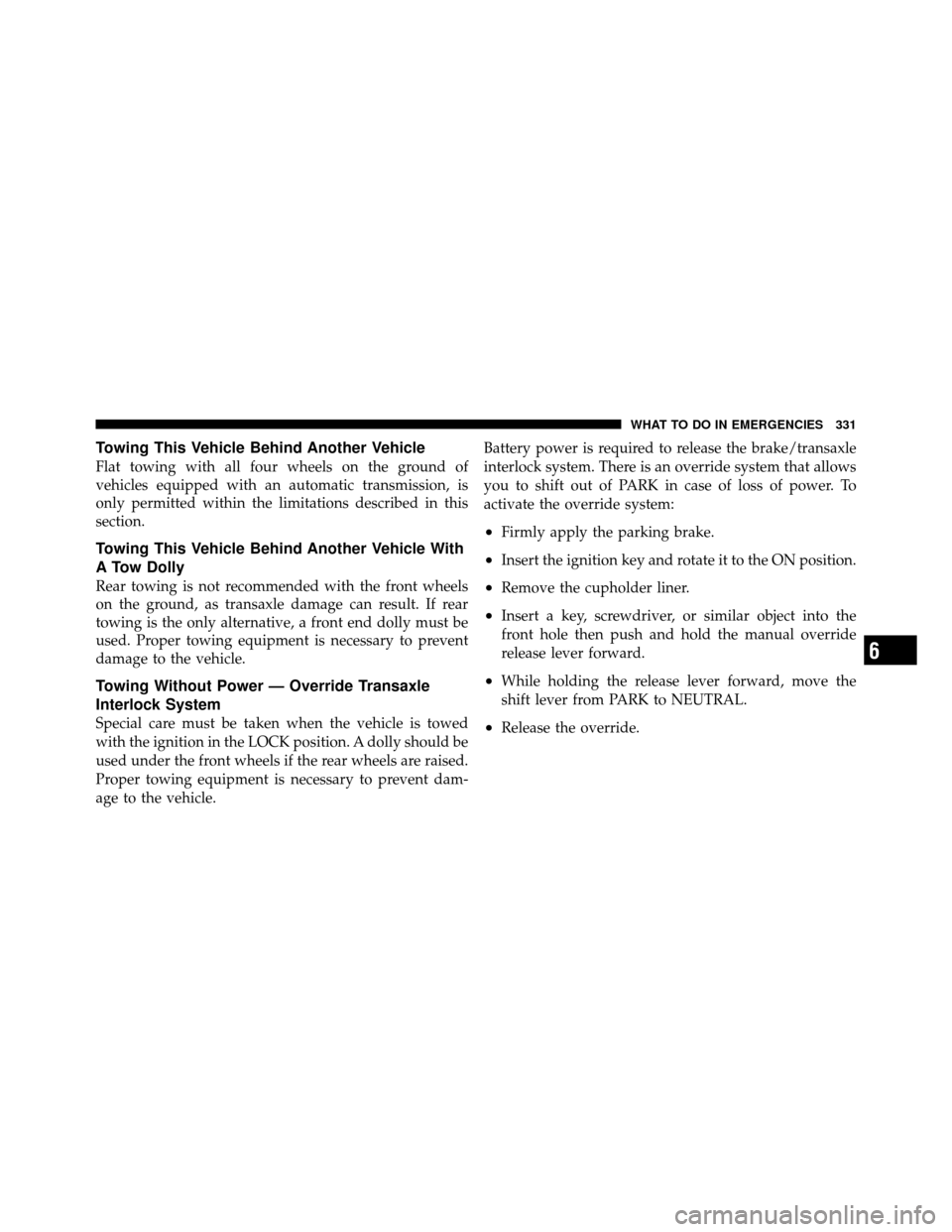

Towing This Vehicle Behind Another Vehicle
Flat towing with all four wheels on the ground of
vehicles equipped with an automatic transmission, is
only permitted within the limitations described in this
section.
Towing This Vehicle Behind Another Vehicle With
A Tow Dolly
Rear towing is not recommended with the front wheels
on the ground, as transaxle damage can result. If rear
towing is the only alternative, a front end dolly must be
used. Proper towing equipment is necessary to prevent
damage to the vehicle.
Towing Without Power — Override Transaxle
Interlock System
Special care must be taken when the vehicle is towed
with the ignition in the LOCK position. A dolly should be
used under the front wheels if the rear wheels are raised.
Proper towing equipment is necessary to prevent dam-
age to the vehicle.Battery power is required to release the brake/transaxle
interlock system. There is an override system that allows
you to shift out of PARK in case of loss of power. To
activate the override system:
•Firmly apply the parking brake.
•Insert the ignition key and rotate it to the ON position.
•Remove the cupholder liner.
•Insert a key, screwdriver, or similar object into the
front hole then push and hold the manual override
release lever forward.
•While holding the release lever forward, move the
shift lever from PARK to NEUTRAL.
•Release the override.
6
WHAT TO DO IN EMERGENCIES 331

MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment — 2.4L ............. 335
 Engine Compartment — 2.7L ............. 336
 Engine Compartment — 3.5L ............. 337
 Onboard Diagnostic System — OBD II ...... 338
▫ Loose Fuel Filler Cap Message ........... 338
 Emissions Inspection And Maintenance
Programs ............................ 339
 Replacement Parts ..................... 340
 Dealer Service ........................ 341
Maintenance Procedures ................. 341
▫ Engine Oil ......................... 342
▫ Engine Oil Filter ..................... 345
▫ Engine Air Cleaner Filter ............... 346
▫ Maintenance-Free Battery .............. 346
▫ Air Conditioner Maintenance ............ 348
▫ A/C Air Filter — If Equipped ........... 349
▫ Body Lubrication .................... 350
▫ Windshield Wiper Blades ............... 351
7

▫Adding Washer Fluid ................. 352
▫ Exhaust System ..................... 352
▫ Cooling System ..................... 354
▫ Brake System ....................... 360
▫ Automatic Transaxle .................. 362
▫ Appearance Care And Protection From
Corrosion .......................... 365
▫ Cleaning Center Console Cupholders ...... 370
 Fuses .............................. 371
▫ Totally Integrated Power Module (TIPM) . . . 371
 Vehicle Storage ....................... 376
 Replacement Bulbs .................... 377
Bulb Replacement ..................... 377
▫ Headlamp ......................... 377
▫ Front Turn Signal/Parking Lamp ......... 379
▫ Front Fog Lamp ..................... 380
▫ Tail/Stop, Rear Turn Signal And Backup
Lamps ............................ 381
▫ License Plate Lamp ................... 384
▫ Center High-Mounted Stop Lamp
(CHMSL) .......................... 385
 Fluids And Capacities .................. 386
 Fluids, Lubricants, And Genuine Parts ....... 387
▫ Engine ............................ 387
▫ Chassis ........................... 388
334 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT — 2.4L
1 — Engine Coolant Reservoir7 — Air Cleaner Filter
2 — Power Steering Fluid Reservoir 8 — Engine Oil Fill
3 — Automatic Transaxle Dipstick 9 — Coolant Pressure Cap
4 — Brake Fluid Reservoir 10 — Engine Oil Dipstick
5 — Integrated Power Module 11 — Washer Fluid Reservoir
6 — Power Distribution Center
7
MAINTAINING YOUR VEHICLE 335

ENGINE COMPARTMENT — 2.7L
1 — Engine Coolant Reservoir7 — Power Distribution Center
2 — Coolant Pressure Cap 8 — Air Cleaner Filter
3 — Power Steering Fluid Reservoir 9 — Engine Oil Dipstick
4 — Automatic Transaxle Dipstick 10 — Engine Oil Fill
5 — Brake Fluid Reservoir 11 — Washer Fluid Reservoir
6 — Integrated Power Module
336 MAINTAINING YOUR VEHICLE
