Defroster
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield. See your
authorized dealer for service if your defroster is
inoperable.
Periodic Safety Checks You Should Make Outside
the Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread. Inspect the tread and sidewall for
cuts and cracks. Check the wheel nuts for tightness.
Check the tires (including spare) for proper pressure.
Lights
Have someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
Door Latches
Check for positive closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid, or
brake fluid leaks are suspected, the cause should be
located and corrected immediately.
84 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Folding Rear Seat .................... 103
▫ Folding Rear Seat Center Armrest ........ 104
 To Open And Close The Hood ............ 104
 Lights ............................. 106
▫ Multifunction Lever .................. 106
▫ Headlights And Parking Lights .......... 107
▫ Automatic Headlights — If Equipped ...... 107
▫ Headlight Time Delay ................. 108
▫ Turn Signals ........................ 108
▫ Lane Change Assist ................... 109
▫ High/Low Beam Switch ............... 109
▫ Flash-To-Pass ....................... 109
▫ Fog Lights — If Equipped .............. 109 ▫
Daytime Running Lights — If Equipped .... 110
▫ Lights On Reminder .................. 110
▫ Instrument Panel Dimmer .............. 110
▫ Map/Reading/Interior Lights ............111
 Windshield Wipers And Washers .......... 112
▫ Intermittent Wiper System .............. 113
▫ Mist Feature ........................ 114
▫ Headlights With Wipers Feature (Available
With Automatic Headlights Only) ......... 115
▫ Windshield Washers .................. 115
 Tilt/Telescoping Steering Column .......... 116
 Electronic Speed Control — If Equipped ..... 117
▫ To Activate ......................... 117
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Lane Change Assist
Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash
three times then automatically turn off.
High/Low Beam Switch
Push the multifunction lever away from you to switch
the headlights to high beam. Pull the lever toward you, to
switch the headlights back to low beam.
Flash-To-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward you. This
will turn on the high beam headlights until the lever is
released.
NOTE:If the multifunction lever is held in the flash-to-
pass position for more than 15 seconds, the high beams
will shut off. If this occurs, wait 30 seconds for the next
flash-to-pass operation.
Fog Lights — If Equipped
The front fog light switch is on the multifunction
lever. To activate the front fog lights, turn on the
parking lights or the low beam headlights and pull
out the end of the multifunction lever.
Front Fog Light Control
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109

NOTE:The front fog lights will only operate with the
headlights on low beam. Selecting high beam headlights
will turn off the front fog lights.
Daytime Running Lights — If Equipped
The high beam headlights will turn on as Daytime
Running Lights (DRL) and operate at lower intensity
whenever the ignition is ON, the engine is running, the
headlight switch is off, the parking brake is released and
the shift lever is in any position except PARK.
NOTE: The Daytime Running Lights will turn off
automatically when a turn signal is in operation and turn
on again when the turn signal is not operating.
Lights On Reminder
If the headlights or parking lights are on after the ignition
is turned OFF, a chime will sound to alert the driver
when the driver’s door is opened.
Instrument Panel Dimmer
Rotate the dimmer control to the extreme bottom position
to fully dim the instrument panel lights and prevent the
interior lights from illuminating when a door is opened.
Rotate the center portion of the lever up to increase the
brightness of the instrument panel lights when the park-
ing lights or headlights are on.
Rotate the center portion upward to the next detent
position to brighten the odometer and radio when the
parking lights or headlights are on.
110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
In some circumstances a Transmission Temperature
Indicator, under continued operation, could cause the
fluid to boil over, come in contact with hot engine or
exhaust components and cause a fire.
28. High Beam Indicator This light indicates that the headlights are on high
beam. Pull the turn signal lever toward the steer-
ing wheel to switch the headlights to low beam.
29. Electronic Vehicle Information Center (EVIC)
Display — If Equipped
This display shows the EVIC messages when the appro-
priate conditions exist. Refer to “Electronic Vehicle Infor-
mation Center (EVIC)” in this section for more
information.
ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC) – IF EQUIPPED
The Electronic Vehicle Information Center (EVIC) fea-
tures a driver-interactive display that is located in the
instrument cluster.
Electronic Vehicle Information Center (EVIC)
4
UNDERSTANDING YOUR INSTRUMENT PANEL 159

REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS — Interior Bulb No.
Front Courtesy/Reading Lamp..........578/W5W
Center Courtesy/Reading Lamp ..........578/W5W
Visor Vanity Lamp ...................... A6220
Glove Box Lamp ....................... A6220
Shift Indicator Lamp ................. IKLE14140
Rear Compartment (Trunk) Lamp ............. 579
NOTE: For lighted switches, see your authorized dealer
for replacement.
LIGHT BULBS — Exterior Bulb No.
Low Beam Headlamp ..................... H11
High Beam Headlamp .................... 9005Front Park/Turn Signal/Side Marker Lamp
....3757A
Front Fog Lamp ...................... PSX24W
Center High Mounted Stop (CHMSL)
Lamp ........................... W16W (921)
Rear Tail/Stop Lamp ..................... 3157
Rear Turn Signal Lamp .................... 3157
Backup Lamp .......................... 3157
License Lamp .......................... W5W
Front Position Lamp ..................... W5W
BULB REPLACEMENT
Headlamp
1. Raise and prop open the hood. Locate the connector
behind the headlamp.
NOTE:It may be necessary to remove the air cleaner
filter housing and position the totally integrated power
module aside prior to replacing the low beam headlamp
on the driver’s side of the vehicle.7
MAINTAINING YOUR VEHICLE 377

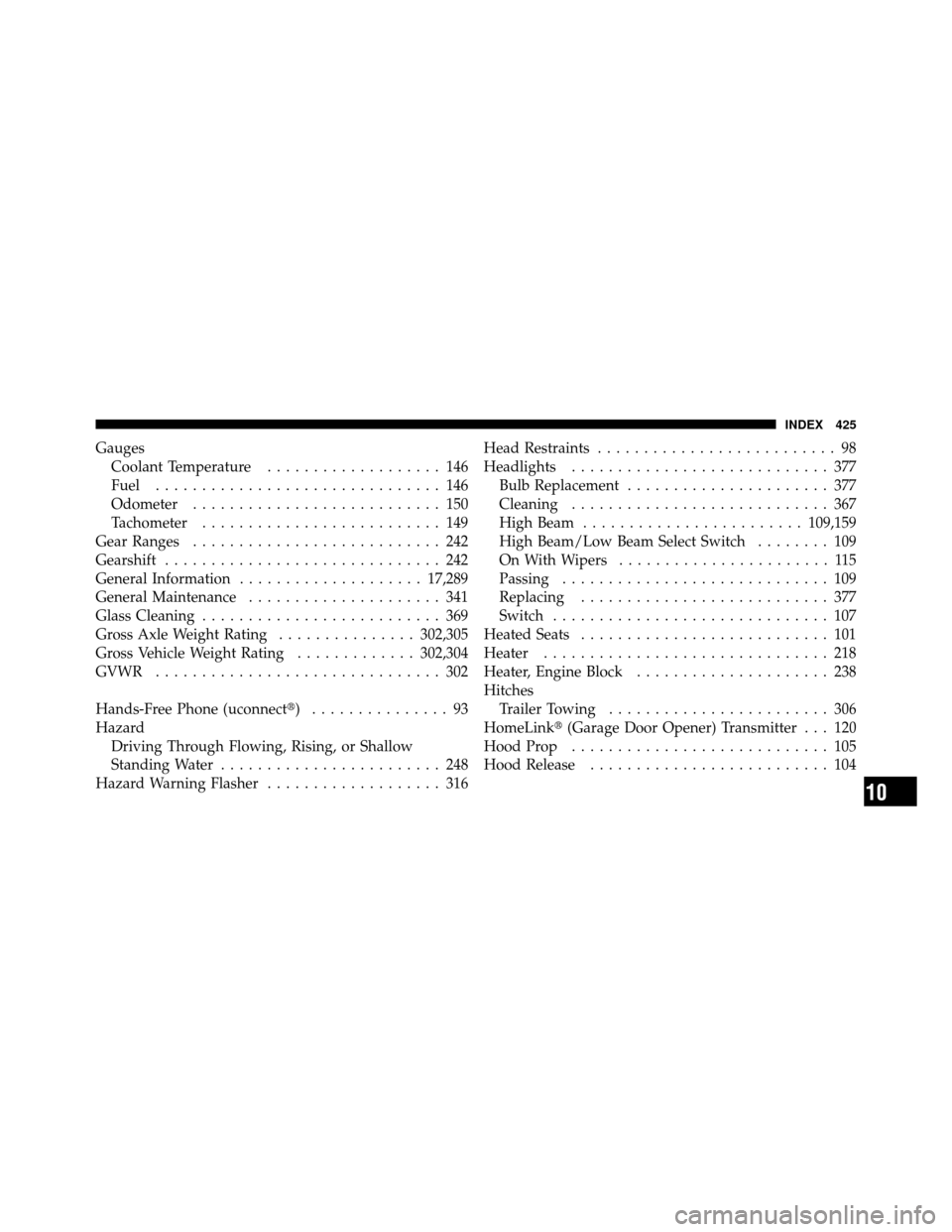

GaugesCoolant Temperature ................... 146
Fuel ............................... 146
Odometer ........................... 150
Tachometer .......................... 149
Gear Ranges ........................... 242
Gearshift .............................. 242
General Information .................... 17,289
General Maintenance ..................... 341
Glass Cleaning .......................... 369
Gross Axle Weight Rating ...............302,305
Gross Vehicle Weight Rating .............302,304
GVWR ............................... 302
Hands-Free Phone (uconnect) ............... 93
Hazard Driving Through Flowing, Rising, or Shallow
Standing Water ........................ 248
Hazard Warning Flasher ................... 316 Head Restraints
.......................... 98
Headlights ............................ 377
Bulb Replacement ...................... 377
Cleaning ............................ 367
High Beam ........................ 109,159
High Beam/Low Beam Select Switch ........ 109
On With Wipers ....................... 115
Passing ............................. 109
Replacing ........................... 377
Switch .............................. 107
Heated Seats ........................... 101
Heater ............................... 218
Heater, Engine Block ..................... 238
Hitches Trailer Towing ........................ 306
HomeLink (Garage Door Opener) Transmitter . . . 120
Hood Prop ............................ 105
Hood Release .......................... 104
10
INDEX 425

Latches................................ 84
Hood .............................. 104
Lead Free Gasoline ...................... 290
Leaks, Fluid ............................ 84
Life of Tires ............................ 278
Light Bulbs .......................... 84,377
Lights .............................. 84,106
Airbag ...................... 55,62,68,83,147
Back-Up ............................ 381
Brake Warning ........................ 148
Bulb Replacement ...................... 377
Center Mounted Stop ................... 385
Daytime Running ...................... 110
Electronic Stability Program (ESP) Indicator . . . 261
Engine Temperature Warning .............. 148
Exterior .............................. 84
Fog .......................... 109,154,380
Headlight Switch ...................... 107
Headlights ........................... 107 Headlights On With Wipers
............... 115
High Beam Indicator .................... 159
Illuminated Entry ....................... 20
Instrument Cluster ..................... 107
Interior ............................. 111
License ............................. 384
Lights On Reminder .................... 110
Low Fuel ............................ 147
Malfunction Indicator (Check Engine) ........ 157
Map Reading ......................... 111
Oil Pressure .......................... 148
Passing ............................. 109
Rear Tail ............................ 381
Seat Belt Reminder ..................... 147
Security Alarm (Theft Alarm) .............. 18
Theft Alarm (Security Alarm) .............. 154
Tire Pressure Monitoring (TPMS) ........156,281
Traction Control ....................... 261
Turn Signal ................ 84,108,154,379,381
10
