2010 CHRYSLER SEBRING SEDAN Owners Manual

Ignition Off Operation
For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), the power sunroof switch
will remain active for 45 seconds after the ignition switch
is turned OFF. Opening either front door will cancel this
feature.
For vehicles equipped with the EVIC, the power sunroof
switch will remain active for up to 10 minutes after the
ignition switch is turned OFF. Opening either front door
will cancel this feature. The time is programmable. For
details, refer to “Key-Off Power Delay,” under “Personal
Settings (Customer-Programmable Features)” under
“Electronic Vehicle Information Center (EVIC)” in Sec-
tion 4 of this manual.
ELECTRICAL POWER OUTLETS
There are two 12 Volt electrical power outlets on this
vehicle. Both of the power outlets are protected by a fuse.The instrument panel power outlet, located below the
climate control knobs, has power available only when the
ignition is ON. This power outlet will also operate a
conventional cigar lighter unit.
To preserve the heating
element, do not hold the lighter in the heating position.Instrument Panel Power Outlet
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129

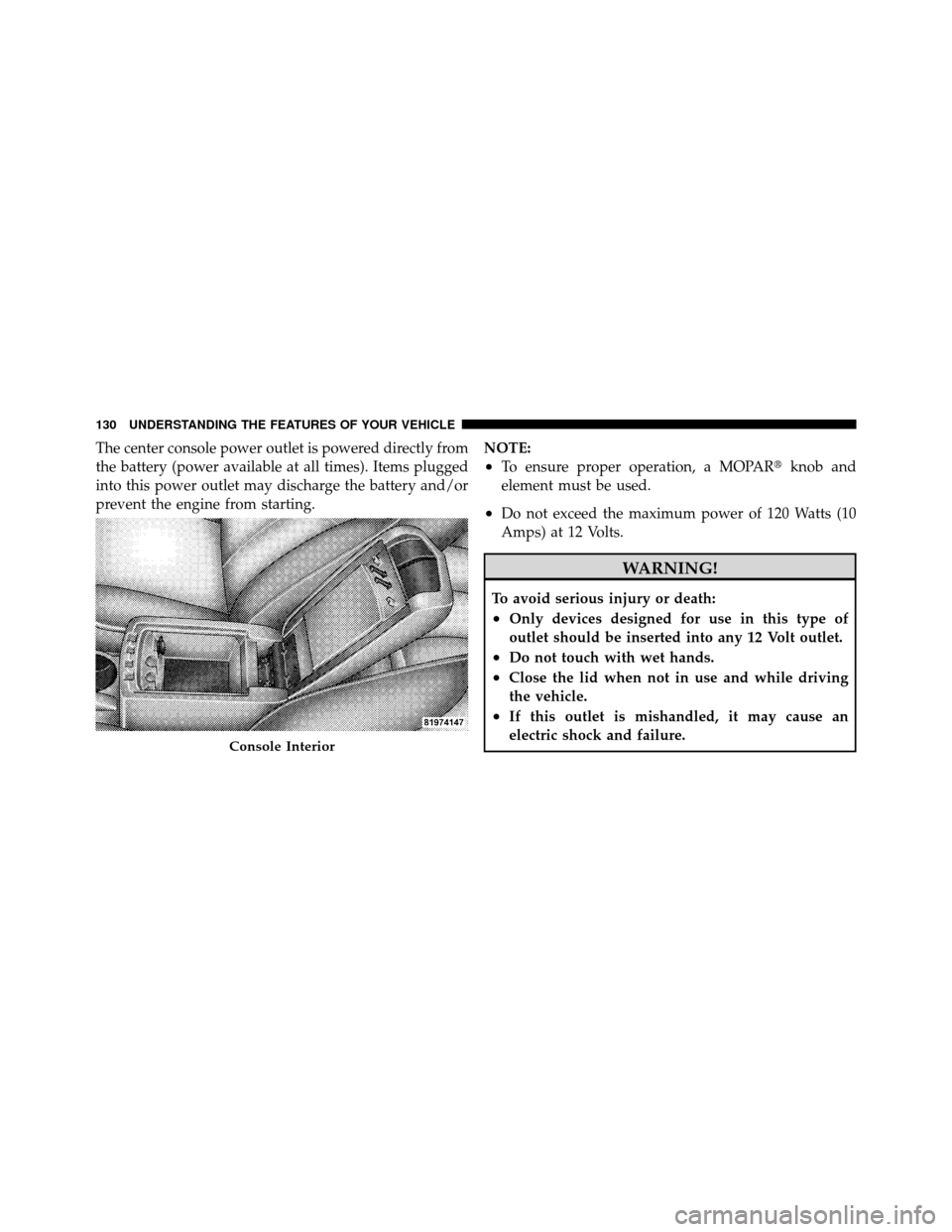

The center console power outlet is powered directly from
the battery (power available at all times). Items plugged
into this power outlet may discharge the battery and/or
prevent the engine from starting.NOTE:
•To ensure proper operation, a MOPAR
knob and
element must be used.
•Do not exceed the maximum power of 120 Watts (10
Amps) at 12 Volts.
WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of
outlet should be inserted into any 12 Volt outlet.
•Do not touch with wet hands.
•Close the lid when not in use and while driving
the vehicle.
•If this outlet is mishandled, it may cause an
electric shock and failure.
Console Interior
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
•Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent the engine from starting.
•Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the
battery even more quickly. Only use these inter-
mittently and with greater caution.
•After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.

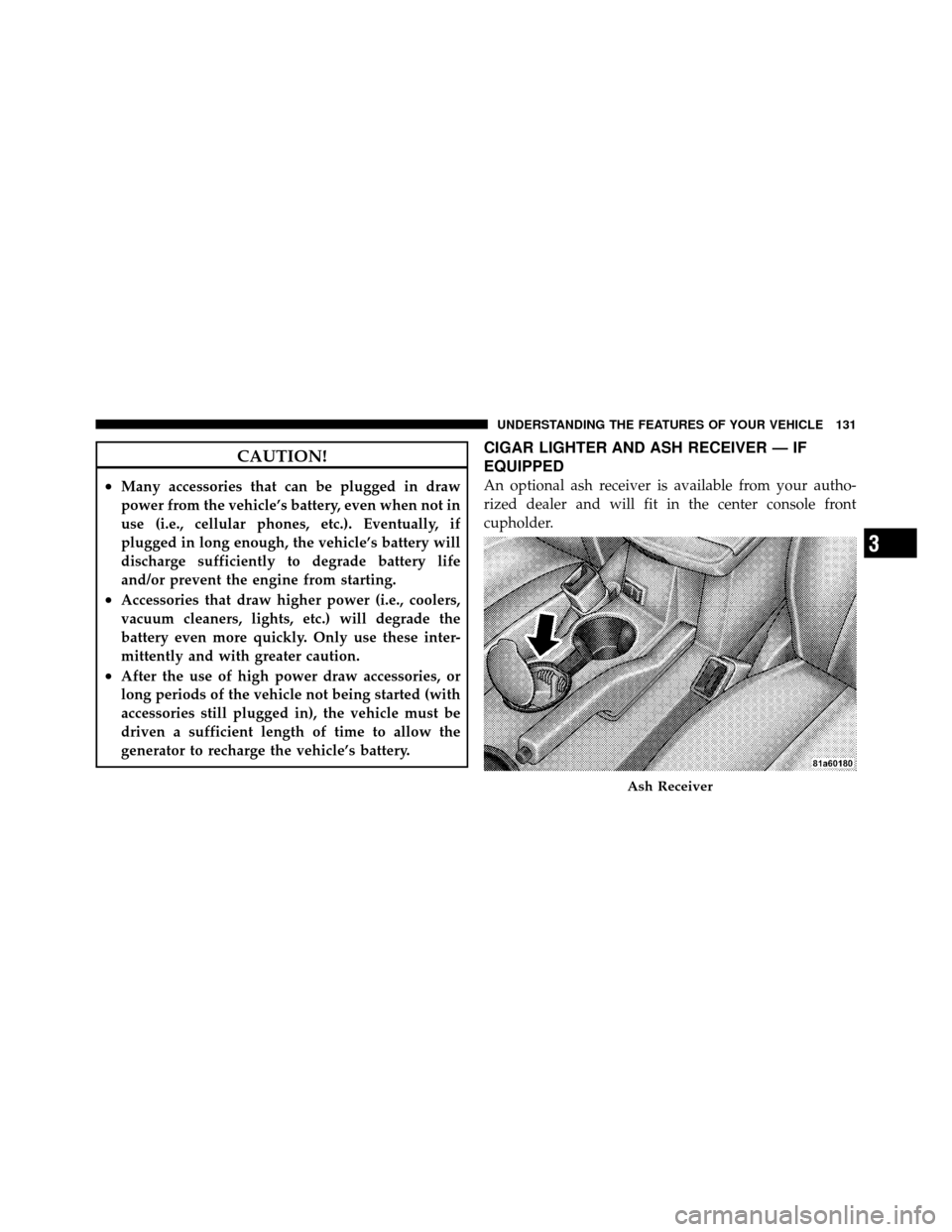

CIGAR LIGHTER AND ASH RECEIVER — IF
EQUIPPED
An optional ash receiver is available from your autho-
rized dealer and will fit in the center console front
cupholder.
Ash Receiver
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131

CAUTION!
For vehicles equipped with the heated and cooled
cupholder, locate the cup holder ash receiver in the
forward cupholder.
The optional ash receiver also comes with a cigar lighter.
You may use the power outlet, located in the instrument
panel below the climate control knobs, or in the bottom of
the console compartment, for this cigar lighter.

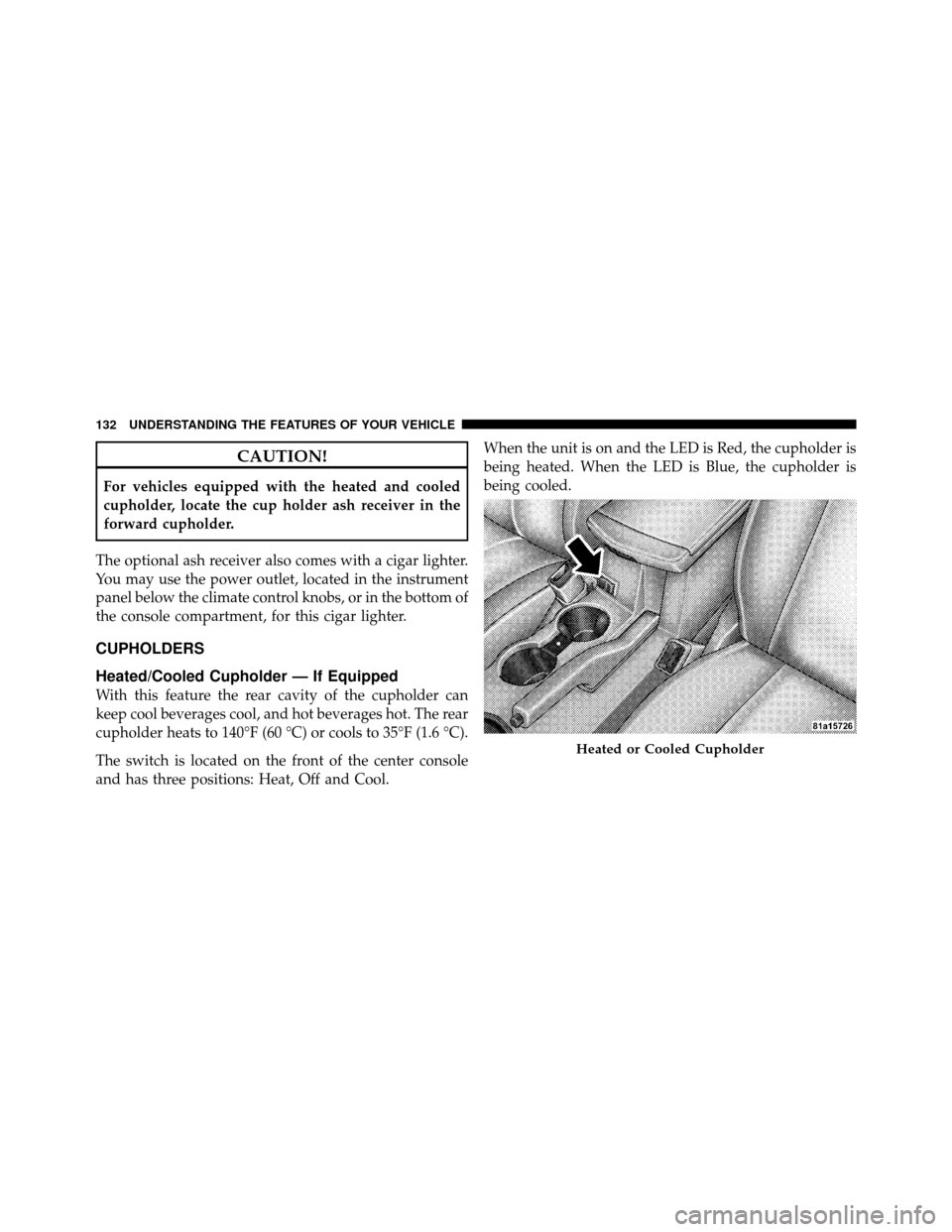

CUPHOLDERS
Heated/Cooled Cupholder — If Equipped
With this feature the rear cavity of the cupholder can
keep cool beverages cool, and hot beverages hot. The rear
cupholder heats to 140°F (60 °C) or cools to 35°F (1.6 °C).
The switch is located on the front of the center console
and has three positions: Heat, Off and Cool. When the unit is on and the LED is Red, the cupholder is
being heated. When the LED is Blue, the cupholder is
being cooled.
Heated or Cooled Cupholder
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
When using the cupholder in the “Heat” position,
avoid contact with the heated portion of the cup-
holder in order to reduce the possibility of burns.
Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injuries, medication, alcohol use, exhaus-
tion or other physical condition must exercise par-
ticular care in order to prevent serious burn injury.
Keep the cupholder free of debris or stray objects
when operated in the “Heat” position.
CAUTION!
Make sure the beverage container can withstand the
temperatures shown above, when using the Cooled
or Heated Cupholder.

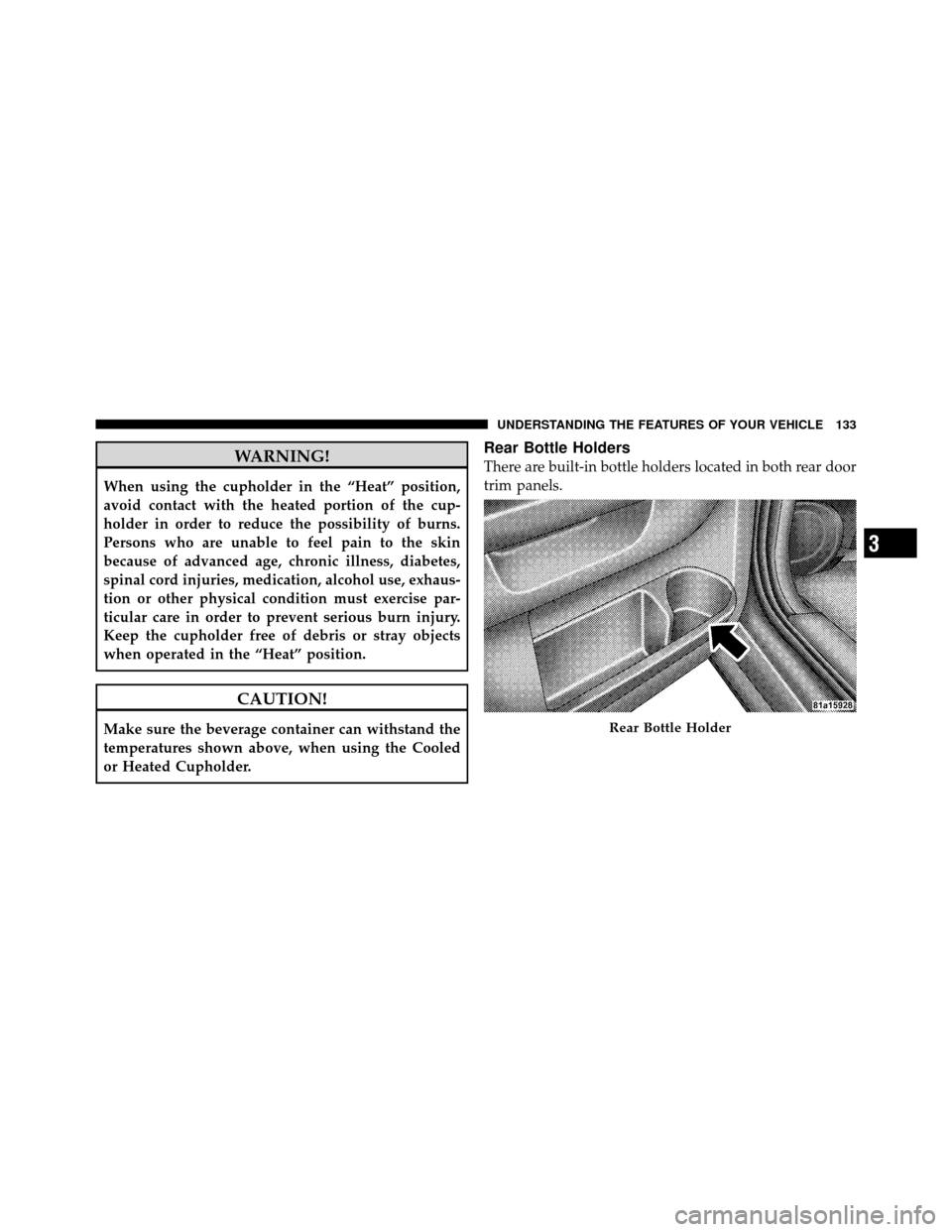

Rear Bottle Holders
There are built-in bottle holders located in both rear door
trim panels.
Rear Bottle Holder
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133

WARNING!
If containers of hot liquid are placed in the bottle
holder, they can spill when the door is closed, burn-
ing the occupants. Be careful when closing the doors
to avoid injury.
STORAGE
Driver’s Side Sunglass Holder — If Equipped
An integrated sunglass holder is located in the headliner
above the sun visor. To access the sunglass holder, lower
the sun visor. Small items such as toll tickets can be
stored between the two straps, while sunglasses or other
items can be stored above the two straps.
Cargo Area
The 60/40 split-folding rear seat provides cargo-carrying
versatility. The seatbacks fold down easily by pulling
nylon tabs between the seatbacks and the bolsters. When
the seats are folded down, they provide a continuous,
nearly flat extension of the load floor.
Sunglass Holder
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

When the seatback is folded to the upright position, make
sure it is latched by strongly pulling on the top of the
seatback above the seat strap.
WARNING!
•Be certain that the seatback is securely locked into
position. If the seatback in not securely locked
into position, the seat will not provide the proper
stability for child seats and/or passengers. An
improperly latched seat could cause serious injury.
•The cargo area in the rear of the vehicle (with the
rear seatbacks in the locked-up or folded down
position) should not be used as a play area by
children when the vehicle is in motion. They could
be seriously injured in an accident. Children
should be seated and using the proper restraint
system.(Continued)
WARNING! (Continued)
•To help protect against personal injury, passengers
should not be seated in the rear cargo area. The
rear cargo space is intended for load carrying
purposes only, not for passengers, who should sit
in seats and use seat belts.
•The weight and position of cargo and passengers
can change the vehicle center of gravity and ve-
hicle handling. To avoid loss of control resulting
in personal injury, follow these guidelines for
loading your vehicle:
Always place cargo evenly on the cargo floor. Put heavier
objects as low and as far forward as possible.
Place as much cargo as possible in front of the rear axle.
Too much weight or improperly placed weight over or
behind the rear axle can cause the rear of the vehicle to
sway.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135

Do not pile luggage or cargo higher than the top of the
seatback. This could impair visibility or become a dan-
gerous projectile in a sudden stop or collision.

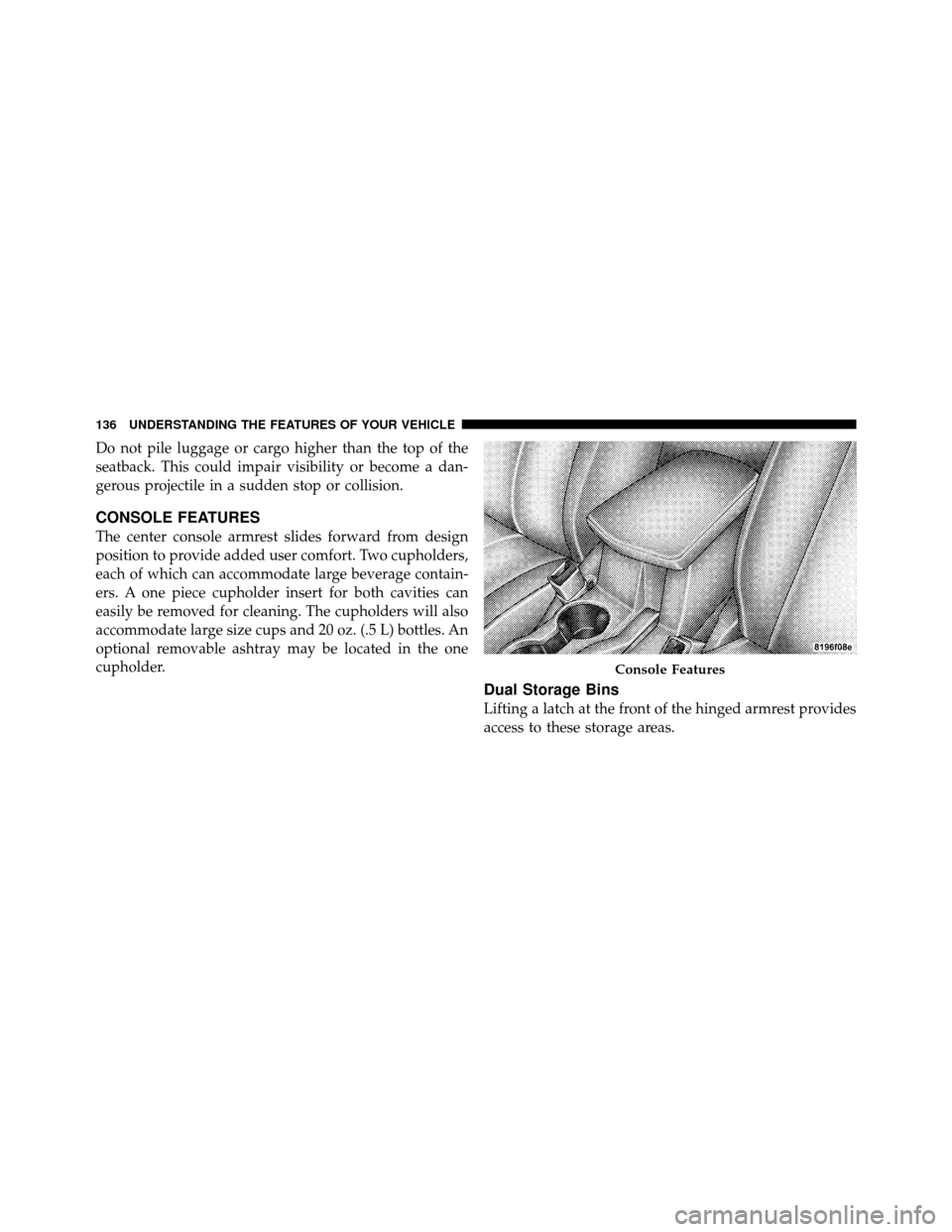

CONSOLE FEATURES
The center console armrest slides forward from design
position to provide added user comfort. Two cupholders,
each of which can accommodate large beverage contain-
ers. A one piece cupholder insert for both cavities can
easily be removed for cleaning. The cupholders will also
accommodate large size cups and 20 oz. (.5 L) bottles. An
optional removable ashtray may be located in the one
cupholder.
Dual Storage Bins
Lifting a latch at the front of the hinged armrest provides
access to these storage areas.
Console Features
