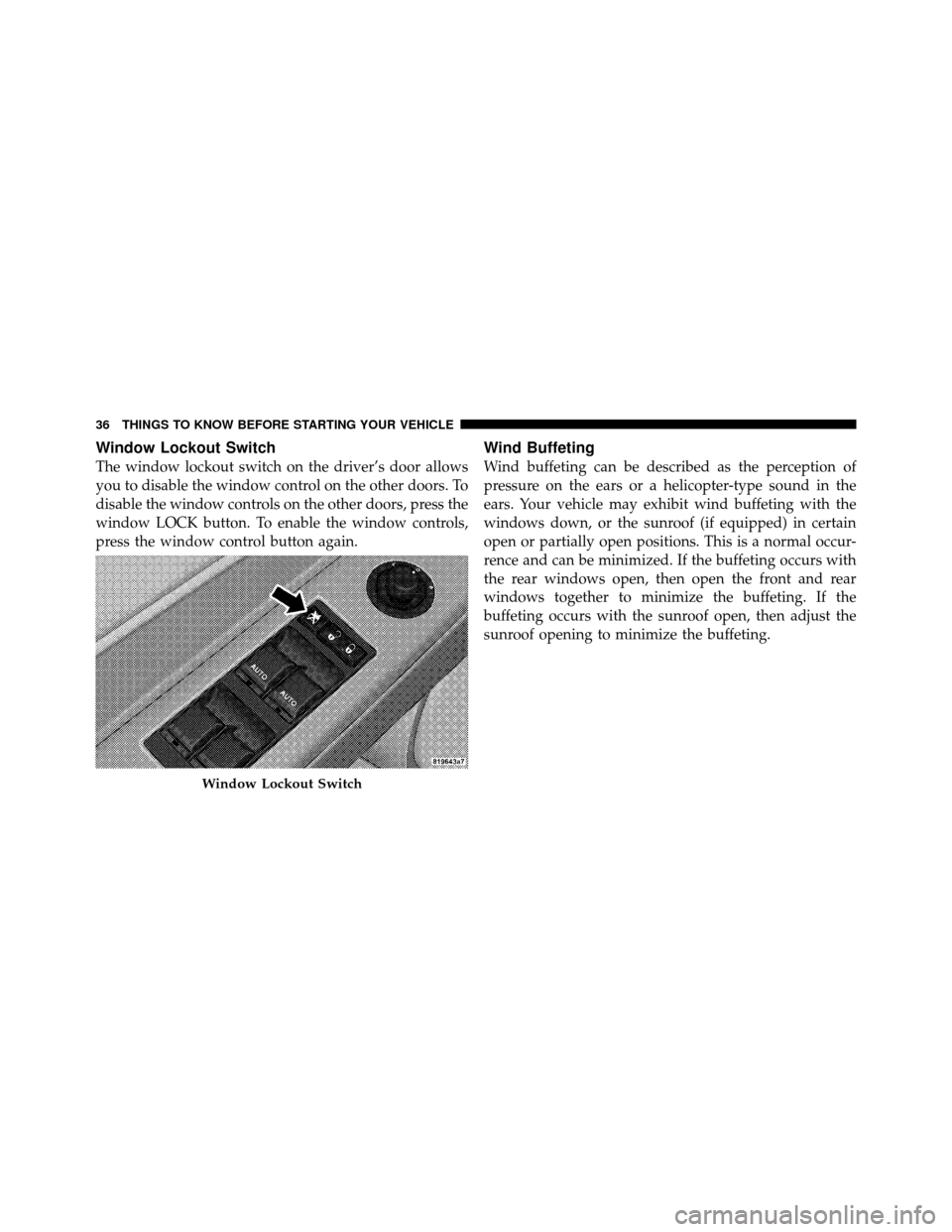

Window Lockout Switch
The window lockout switch on the driver’s door allows
you to disable the window control on the other doors. To
disable the window controls on the other doors, press the
window LOCK button. To enable the window controls,
press the window control button again.
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the rear windows open, then open the front and rear
windows together to minimize the buffeting. If the
buffeting occurs with the sunroof open, then adjust the
sunroof opening to minimize the buffeting.
Window Lockout Switch
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫To Set a Desired Speed ................ 118
▫ To Deactivate ....................... 118
▫ To Resume Speed .................... 118
▫ To Vary The Speed Setting .............. 119
▫ To Accelerate For Passing .............. 120
 Garage Door Opener — If Equipped ........ 120
▫ Programming HomeLink .............. 121
▫ Gate Operator/Canadian Programming .... 124
▫ Security ........................... 125
▫ Troubleshooting Tips .................. 125
▫ General Information .................. 126
 Power Sunroof — If Equipped ............ 126
▫ Sunroof Operation ................... 127 ▫
Auto Sunroof Express With Anti-Pinch
Protection — If Equipped .............. 128
▫ Sunshade Operation .................. 128
▫ Wind Buffeting ...................... 128
▫ Sunroof Maintenance ................. 128
▫ Ignition Off Operation ................. 129
 Electrical Power Outlets ................. 129
 Cigar Lighter And Ash Receiver —
If Equipped .......................... 131
 Cupholders .......................... 132
▫ Heated/Cooled Cupholder —
If Equipped ........................ 132
▫ Rear Bottle Holders ................... 133
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87

General Information
This device complies with FCC rules Part 15 and Industry
Canada RSS-210. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received including interference that may cause undesired
operation.
NOTE:
•The transmitter has been tested and it complies with
FCC and IC rules. Changes or modifications not
expressly approved by the party responsible for com-
pliance could void the user ’s authority to operate the
device.
•The term IC before the certification/registration num-
ber only signifies that Industry Canada technical
specifications were met.
POWER SUNROOF — IF EQUIPPED
The sunroof controls are mounted between the dome/
reading lights.
Power Sunroof Switch
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

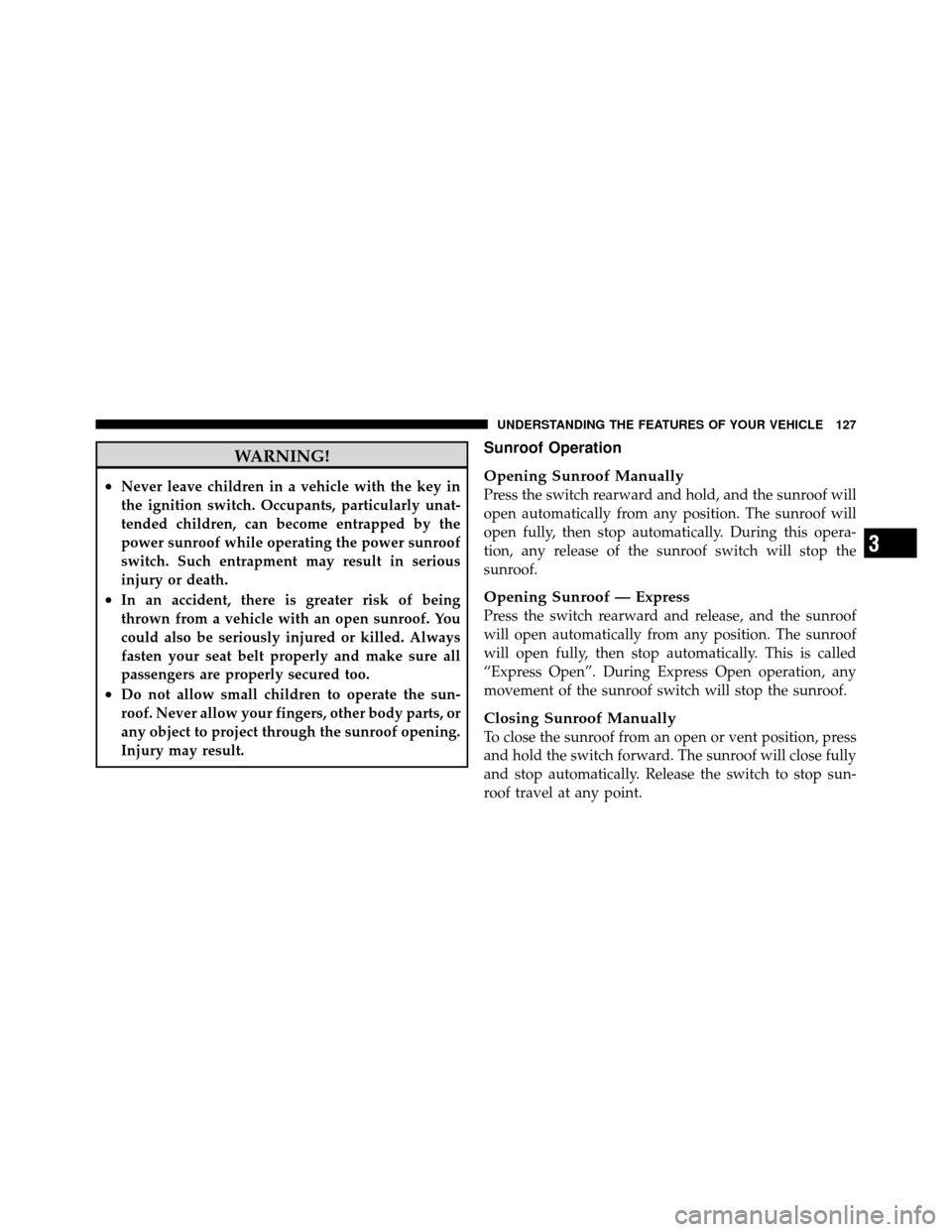

WARNING!
•Never leave children in a vehicle with the key in
the ignition switch. Occupants, particularly unat-
tended children, can become entrapped by the
power sunroof while operating the power sunroof
switch. Such entrapment may result in serious
injury or death.
•In an accident, there is greater risk of being
thrown from a vehicle with an open sunroof. You
could also be seriously injured or killed. Always
fasten your seat belt properly and make sure all
passengers are properly secured too.
•Do not allow small children to operate the sun-
roof. Never allow your fingers, other body parts, or
any object to project through the sunroof opening.
Injury may result.
Sunroof Operation
Opening Sunroof Manually
Press the switch rearward and hold, and the sunroof will
open automatically from any position. The sunroof will
open fully, then stop automatically. During this opera-
tion, any release of the sunroof switch will stop the
sunroof.
Opening Sunroof — Express
Press the switch rearward and release, and the sunroof
will open automatically from any position. The sunroof
will open fully, then stop automatically. This is called
“Express Open”. During Express Open operation, any
movement of the sunroof switch will stop the sunroof.
Closing Sunroof Manually
To close the sunroof from an open or vent position, press
and hold the switch forward. The sunroof will close fully
and stop automatically. Release the switch to stop sun-
roof travel at any point.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127

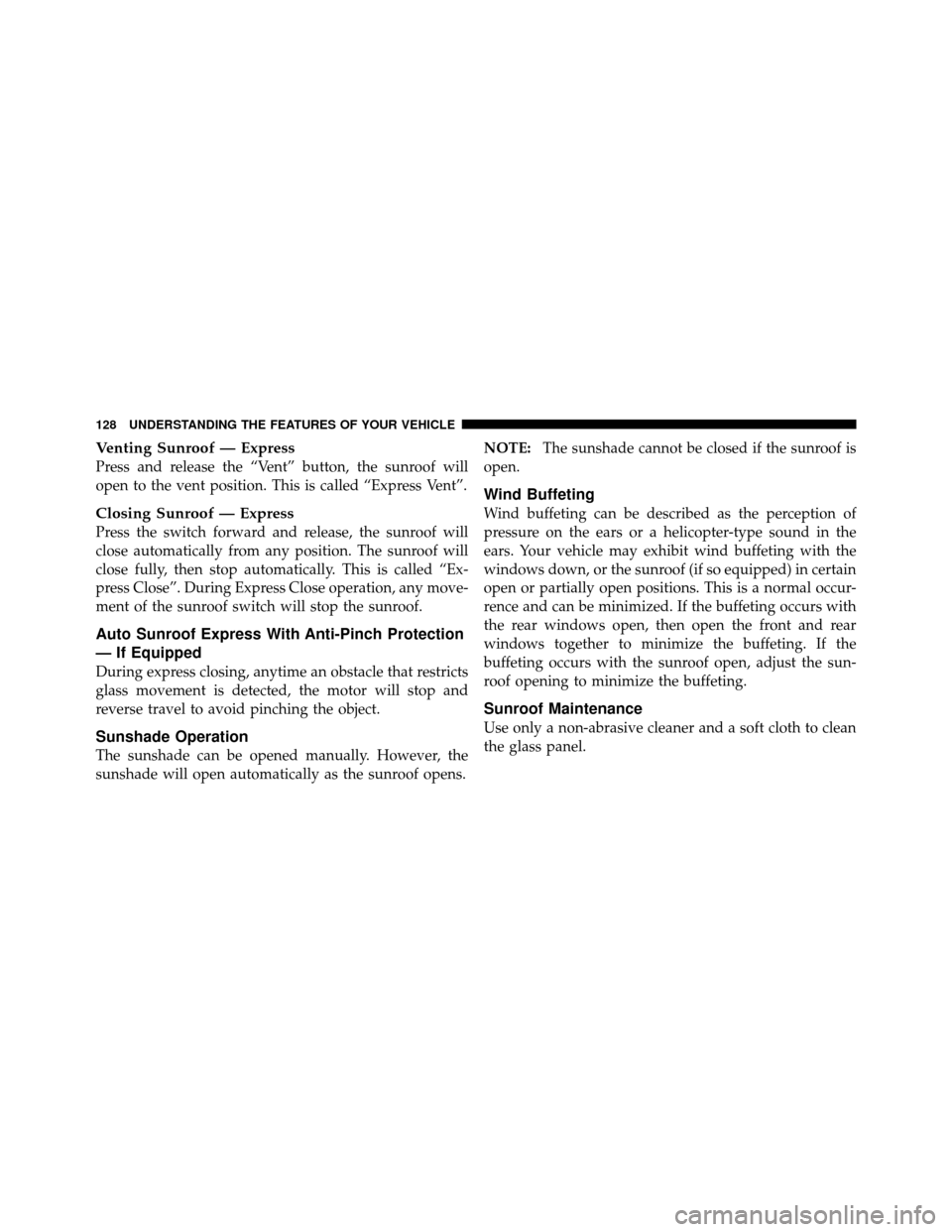

Venting Sunroof — Express
Press and release the “Vent” button, the sunroof will
open to the vent position. This is called “Express Vent”.
Closing Sunroof — Express
Press the switch forward and release, the sunroof will
close automatically from any position. The sunroof will
close fully, then stop automatically. This is called “Ex-
press Close”. During Express Close operation, any move-
ment of the sunroof switch will stop the sunroof.
Auto Sunroof Express With Anti-Pinch Protection
— If Equipped
During express closing, anytime an obstacle that restricts
glass movement is detected, the motor will stop and
reverse travel to avoid pinching the object.
Sunshade Operation
The sunshade can be opened manually. However, the
sunshade will open automatically as the sunroof opens.NOTE:
The sunshade cannot be closed if the sunroof is
open.
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if so equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the rear windows open, then open the front and rear
windows together to minimize the buffeting. If the
buffeting occurs with the sunroof open, adjust the sun-
roof opening to minimize the buffeting.
Sunroof Maintenance
Use only a non-abrasive cleaner and a soft cloth to clean
the glass panel.
128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

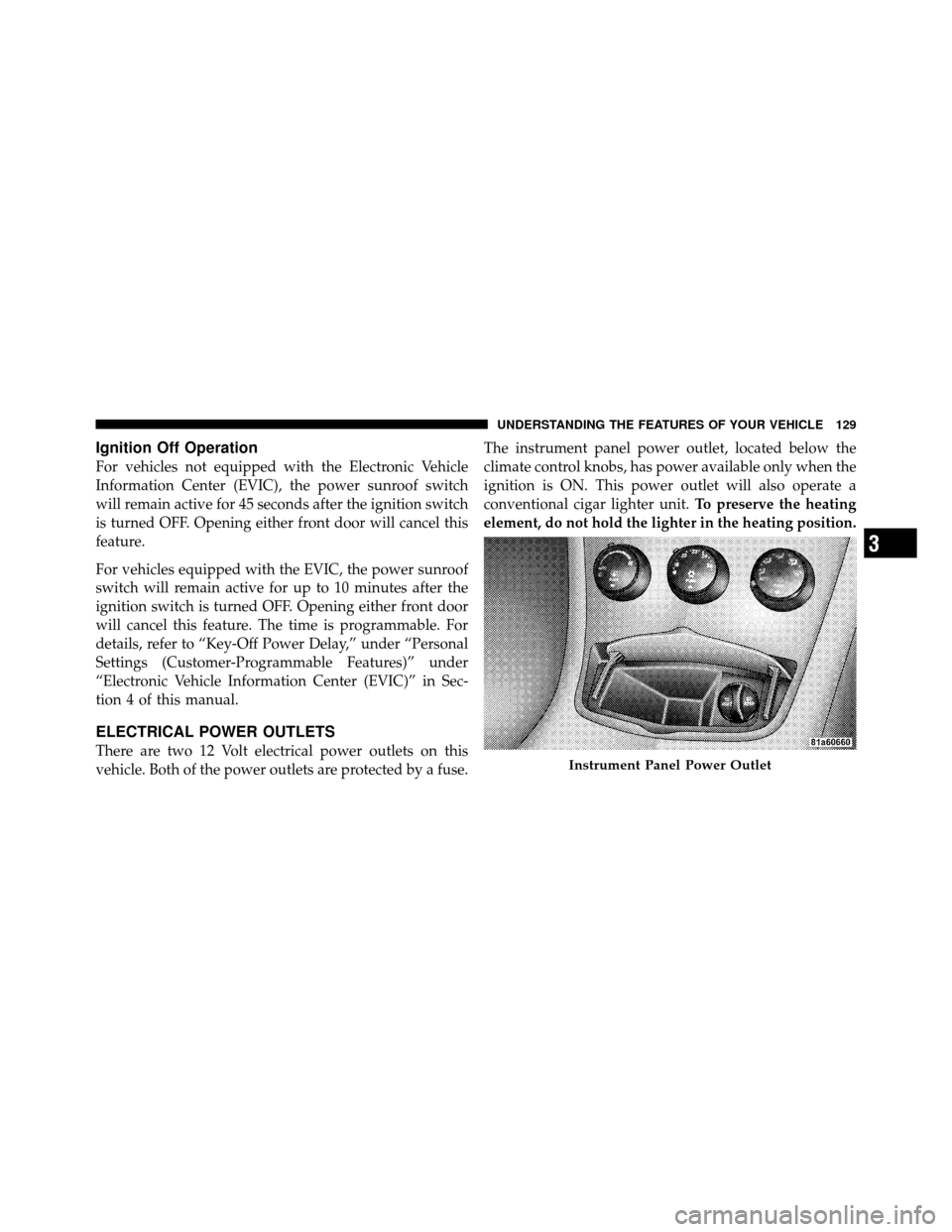

Ignition Off Operation
For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), the power sunroof switch
will remain active for 45 seconds after the ignition switch
is turned OFF. Opening either front door will cancel this
feature.
For vehicles equipped with the EVIC, the power sunroof
switch will remain active for up to 10 minutes after the
ignition switch is turned OFF. Opening either front door
will cancel this feature. The time is programmable. For
details, refer to “Key-Off Power Delay,” under “Personal
Settings (Customer-Programmable Features)” under
“Electronic Vehicle Information Center (EVIC)” in Sec-
tion 4 of this manual.
ELECTRICAL POWER OUTLETS
There are two 12 Volt electrical power outlets on this
vehicle. Both of the power outlets are protected by a fuse.The instrument panel power outlet, located below the
climate control knobs, has power available only when the
ignition is ON. This power outlet will also operate a
conventional cigar lighter unit.
To preserve the heating
element, do not hold the lighter in the heating position.Instrument Panel Power Outlet
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129

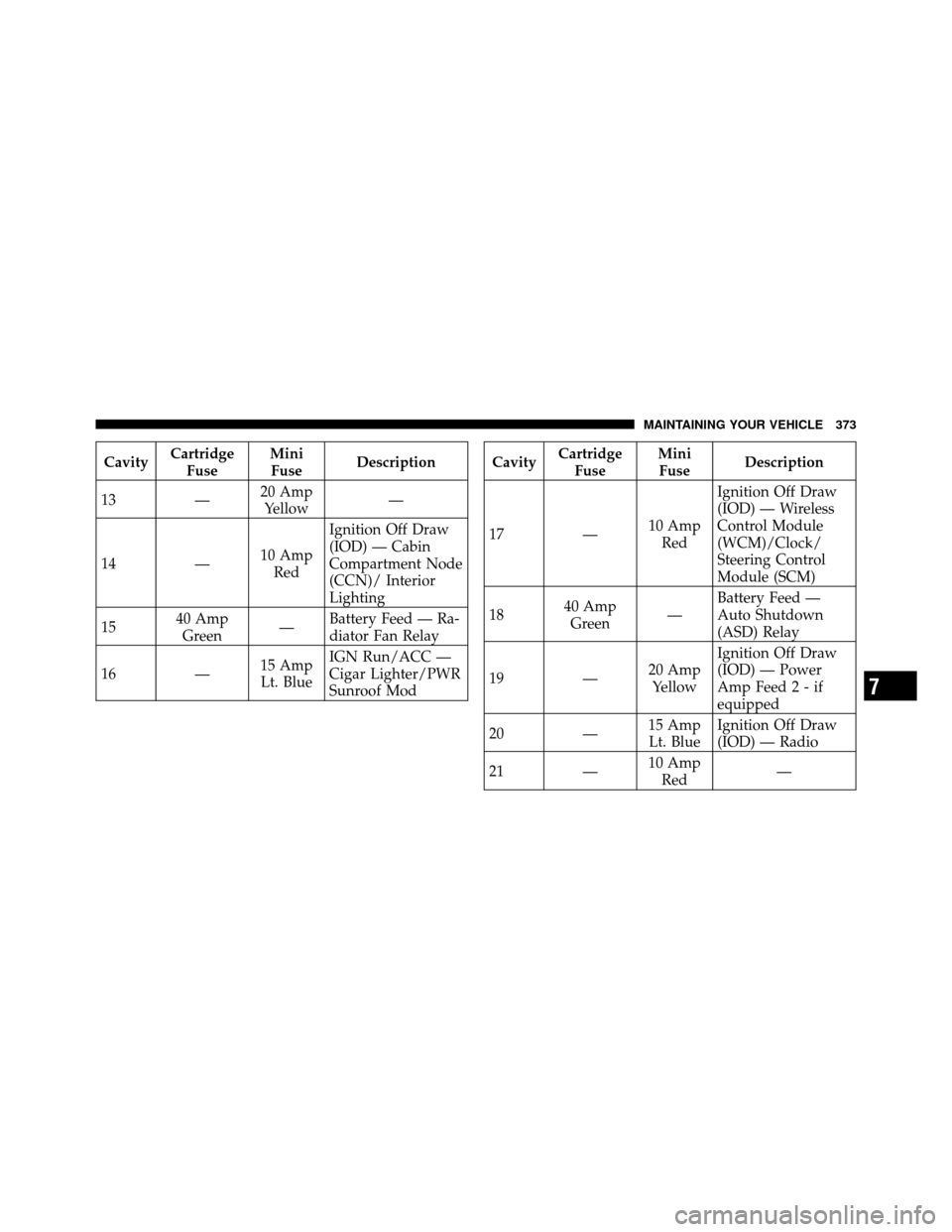

CavityCartridge
Fuse Mini
Fuse Description
13 —20 Amp
Yellow —
14 —10 Amp
Red Ignition Off Draw
(IOD) — Cabin
Compartment Node
(CCN)/ Interior
Lighting
15 40 Amp
Green —Battery Feed — Ra-
diator Fan Relay
16 —15 Amp
Lt. Blue IGN Run/ACC —
Cigar Lighter/PWR
Sunroof ModCavity
Cartridge
Fuse Mini
Fuse Description
17 —10 Amp
Red Ignition Off Draw
(IOD) — Wireless
Control Module
(WCM)/Clock/
Steering Control
Module (SCM)
18 40 Amp
Green —Battery Feed —
Auto Shutdown
(ASD) Relay
19 —20 Amp
Yellow Ignition Off Draw
(IOD) — Power
AmpFeed2-if
equipped
20 —15 Amp
Lt. Blue Ignition Off Draw
(IOD) — Radio
21 —10 Amp
Red —
7
MAINTAINING YOUR VEHICLE 373

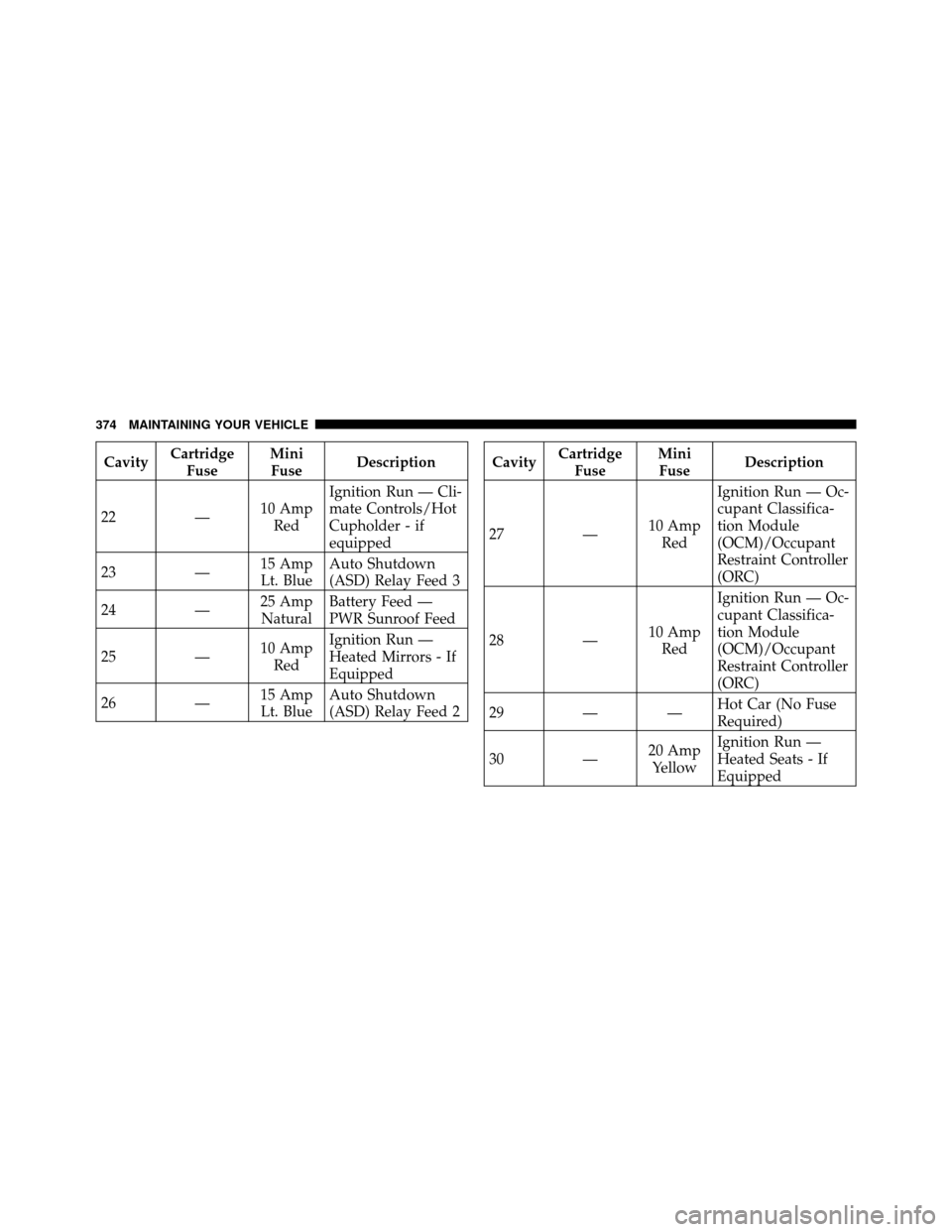

CavityCartridge
Fuse Mini
Fuse Description
22 —10 Amp
Red Ignition Run — Cli-
mate Controls/Hot
Cupholder - if
equipped
23 —15 Amp
Lt. Blue Auto Shutdown
(ASD) Relay Feed 3
24 —25 Amp
Natural Battery Feed —
PWR Sunroof Feed
25 —10 Amp
Red Ignition Run —
Heated Mirrors - If
Equipped
26 —15 Amp
Lt. Blue Auto Shutdown
(ASD) Relay Feed 2Cavity
Cartridge
Fuse Mini
Fuse Description
27 —10 Amp
Red Ignition Run — Oc-
cupant Classifica-
tion Module
(OCM)/Occupant
Restraint Controller
(ORC)
28 —10 Amp
Red Ignition Run — Oc-
cupant Classifica-
tion Module
(OCM)/Occupant
Restraint Controller
(ORC)
29 — — Hot Car (No Fuse
Required)
30 —20 Amp
Yellow Ignition Run —
Heated Seats - If
Equipped
374 MAINTAINING YOUR VEHICLE
