2009 TOYOTA SIENNA Owners Manual

65
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving

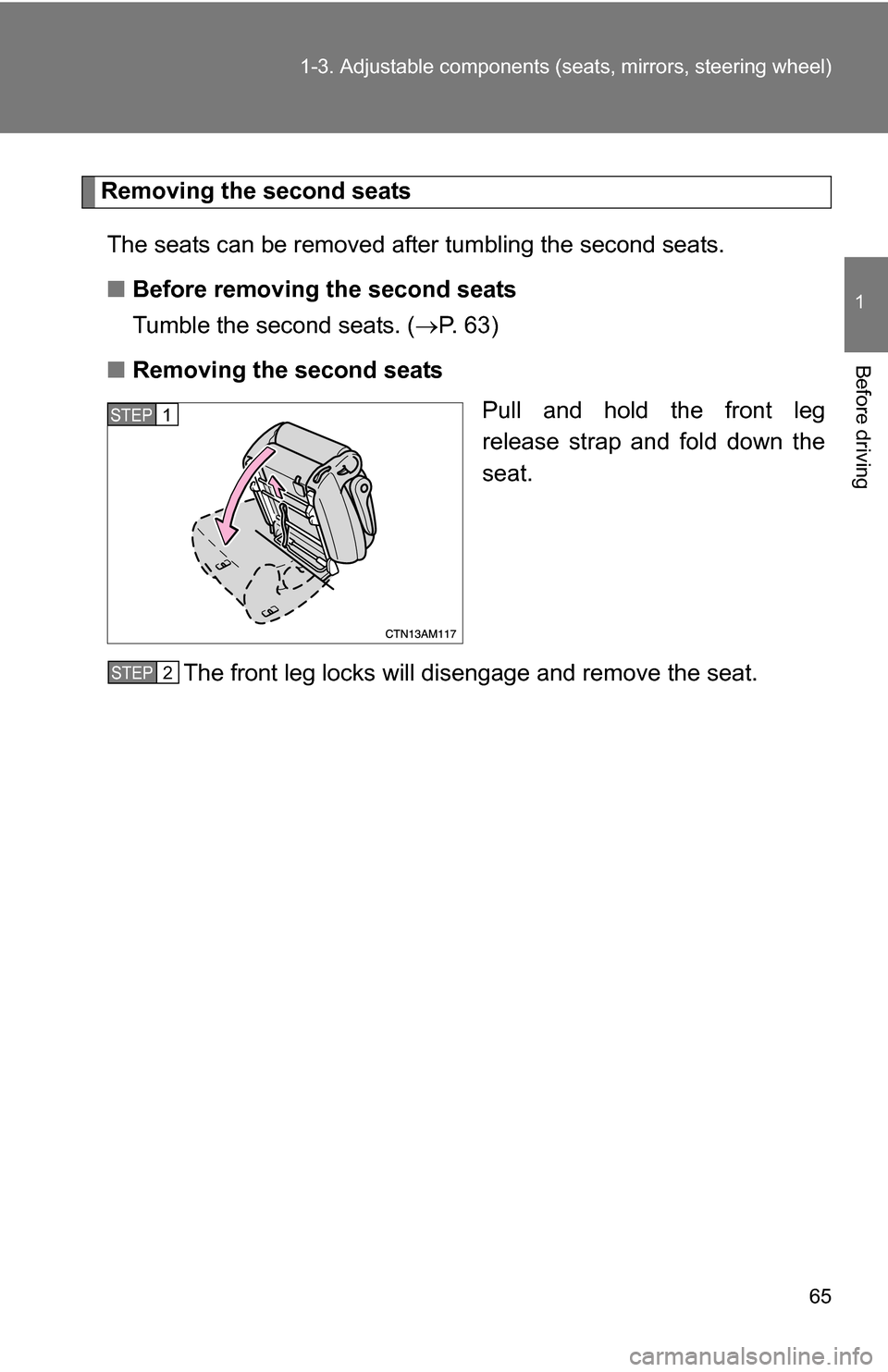

Removing the second seats
The seats can be removed after tumbling the second seats.
■ Before removing the second seats
Tumble the second seats. ( P. 6 3 )
■ Removing the second seats
Pull and hold the front leg
release strap and fold down the
seat.
The front leg locks will dise ngage and remove the seat.
STEP1
STEP2

66 1-3. Adjustable components (seats, mirrors, steering wheel)

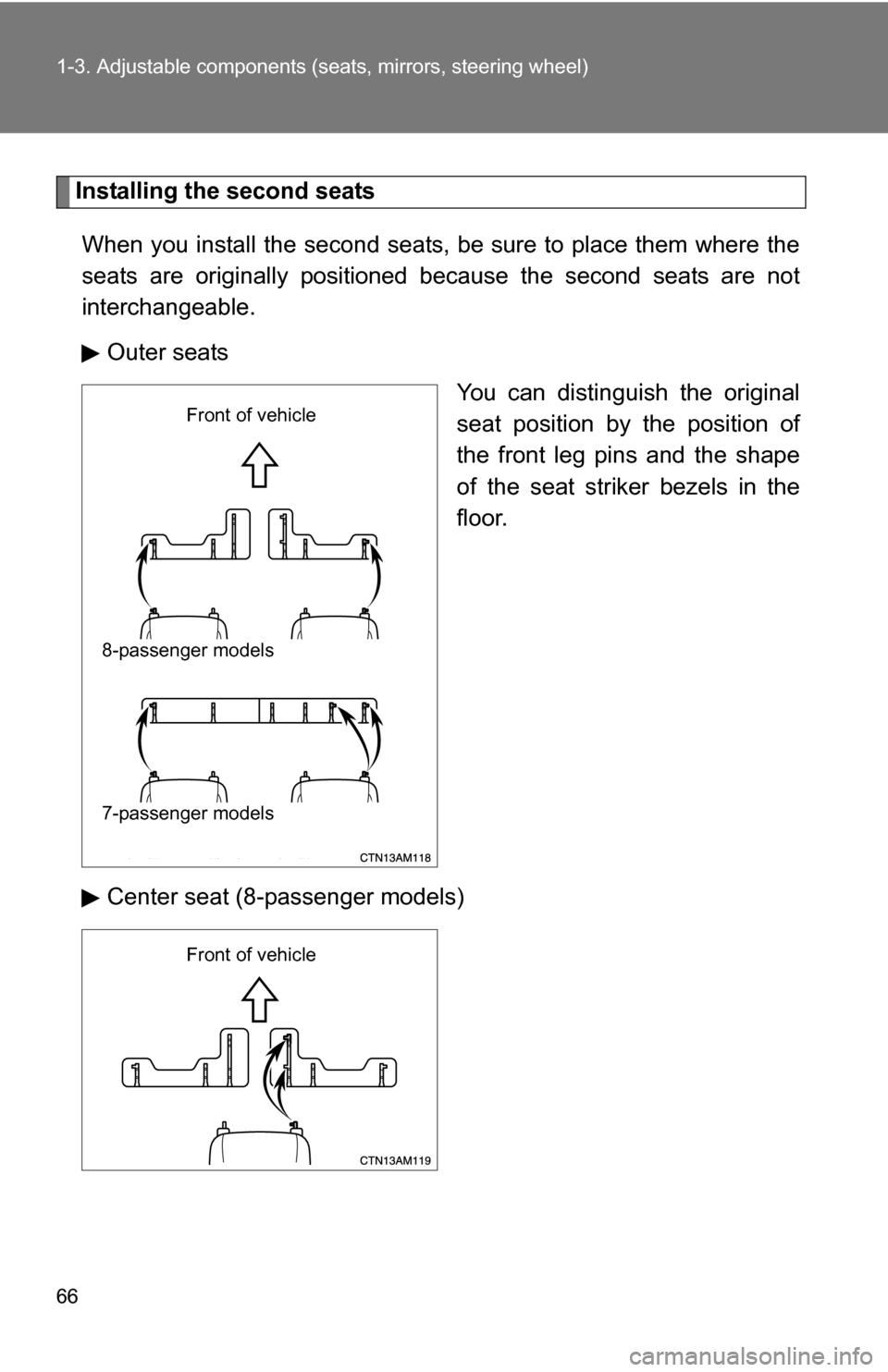

Installing the second seats
When you install the second seats, be sure to place them where the
seats are originally positioned because the second seats are not
interchangeable. Outer seats You can distinguish the original
seat position by the position of
the front leg pins and the shape
of the seat striker bezels in the
floor.
Center seat (8-passenger models)
Front of vehicle
8-passenger models
7-passenger models
Front of vehicle

67
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving

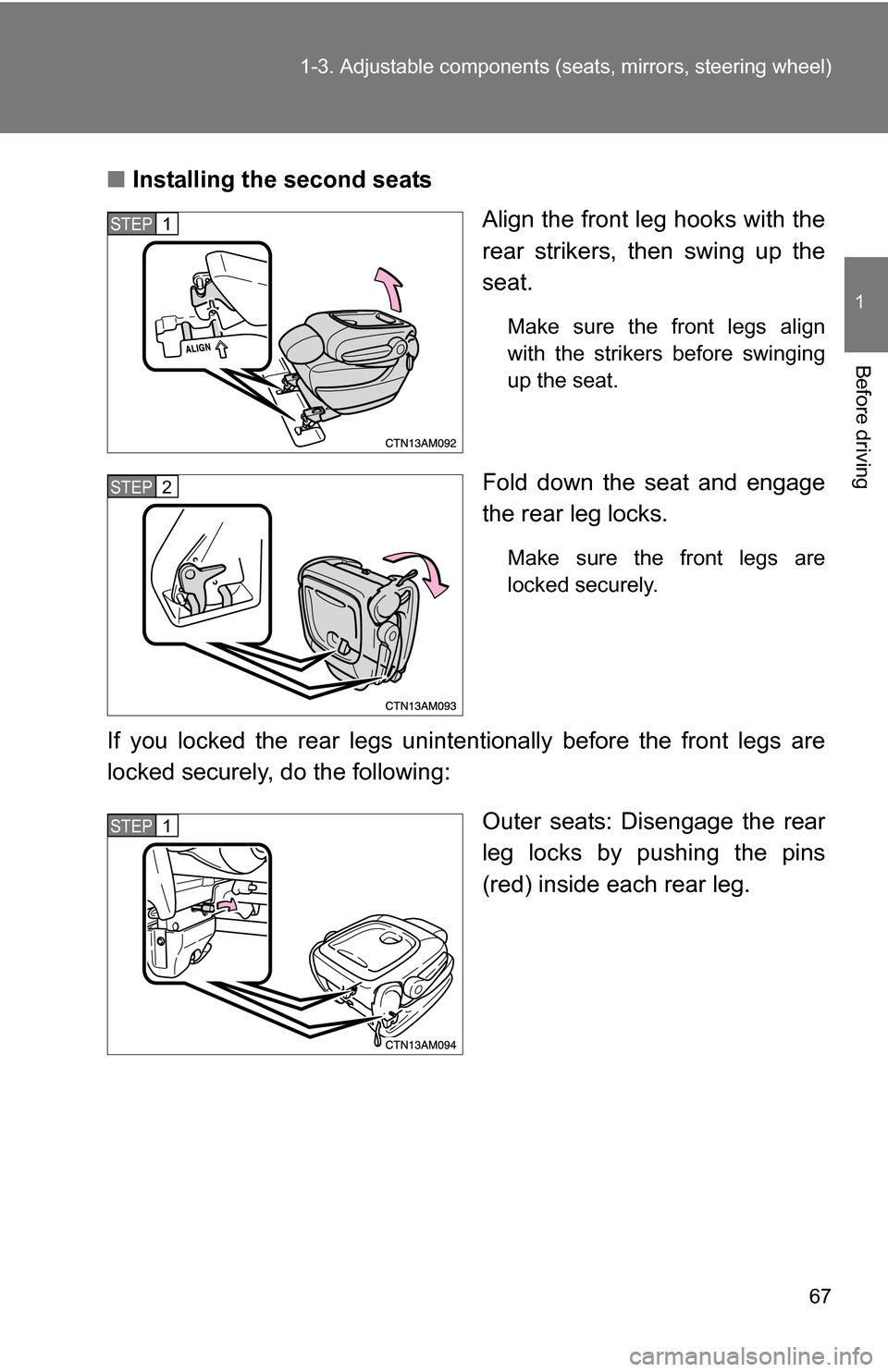

■Installing the second seats
Align the front leg hooks with the
rear strikers, then swing up the
seat.
Make sure the front legs align
with the strikers before swinging
up the seat.
Fold down the seat and engage
the rear leg locks.
Make sure the front legs are
locked securely.
If you locked the rear legs unintentionally before the front legs are
locked securely, do the following:
Outer seats: Disengage the rear
leg locks by pushing the pins
(red) inside each rear leg.
STEP1
STEP2
STEP1

68 1-3. Adjustable components (seats, mirrors, steering wheel)
Center seat: Disengage the rear
leg locks by pulling the rear leg
release lever.
Reinstall the seat following the correct procedure.
■ Changing the installed position
Outer seat (7-passenger models)
The right side second seat can
be moved to the inside when the
console box (if equipped) is not
installed between the second
seats.STEP1
STEP2

69
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Center seat (8-passenger models)
The second center seat can be
used in the forward position.
To use the second center seat in the forward position, install it
according to the following procedure: Slide the front seats forward and stand the seatbacks in the
upright position. Fold the front seat side table (if
equipped) down.
Remove the second center s eat from the normal position.
(  P. 6 5 )
STEP1
STEP2
STEP3

70 1-3. Adjustable components (seats, mirrors, steering wheel)
Align the front leg hooks with the
rear strikers of the foremost pair.
Then swing up the seat.
Push the foot pedal forward to
securely latch the front leg locks.
Make sure the front legs are
locked securely, fold down the
seat and engage the rear leg
locks.STEP4
STEP5

71
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving

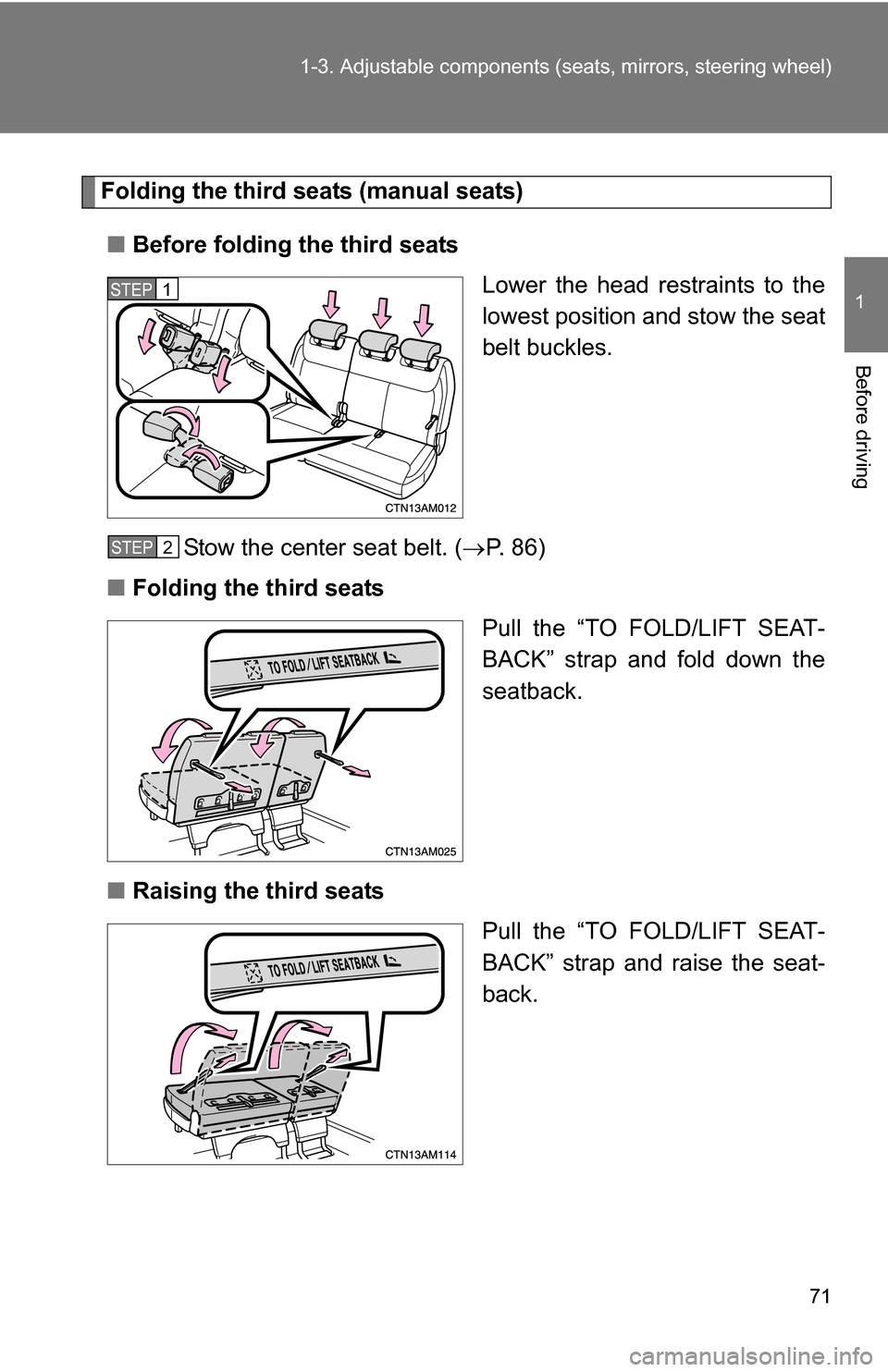

Folding the third seats (manual seats)
■ Before folding the third seats
Lower the head restraints to the
lowest position and stow the seat
belt buckles.
Stow the center seat belt. ( P. 86)
■ Folding the third seats
Pull the “TO FOLD/LIFT SEAT-
BACK” strap and fold down the
seatback.
■ Raising the third seats
Pull the “TO FOLD/LIFT SEAT-
BACK” strap and raise the seat-
back.
STEP1
STEP2

72 1-3. Adjustable components (seats, mirrors, steering wheel)

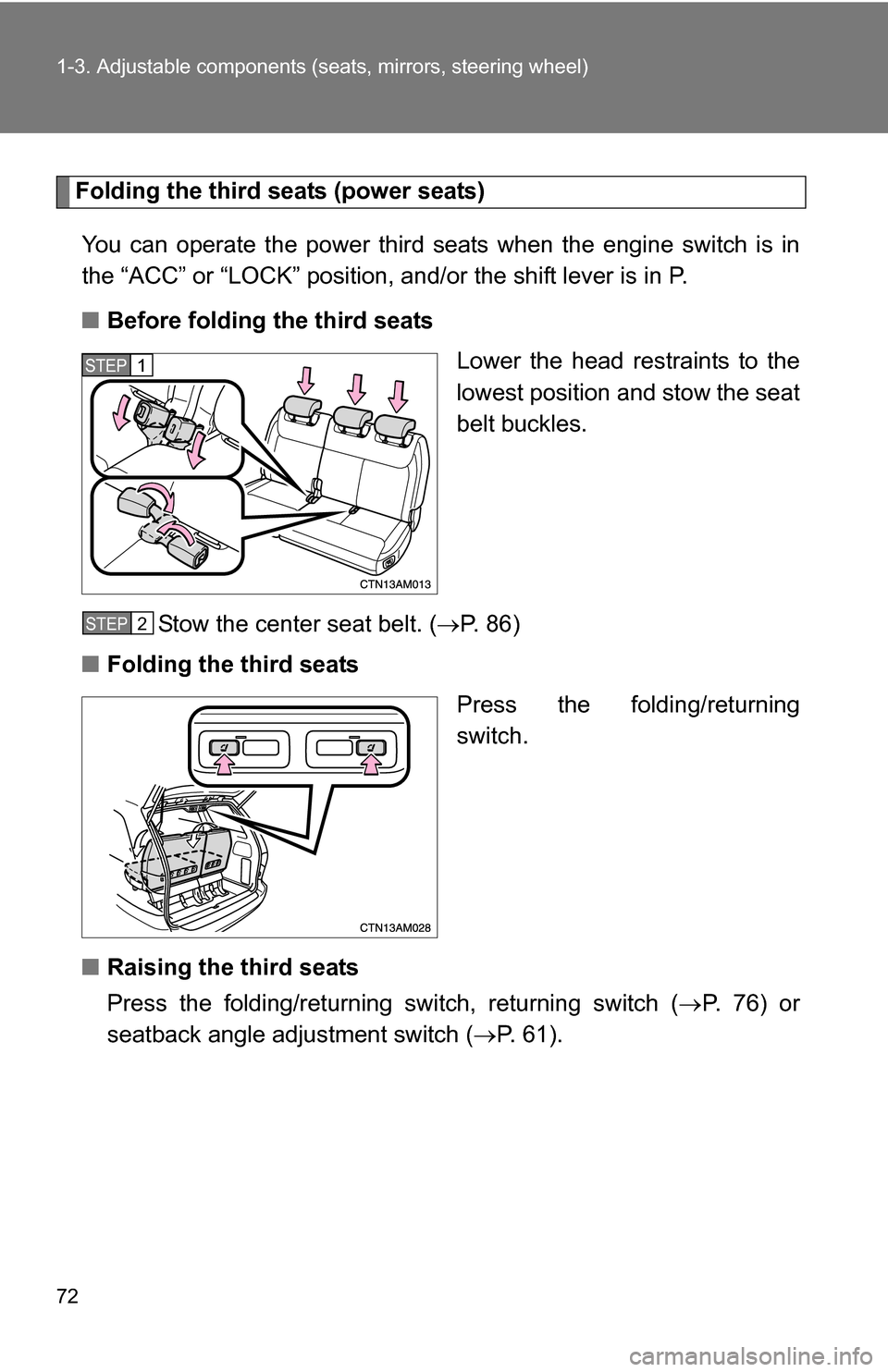

Folding the third seats (power seats)
You can operate the power third seats when the engine switch is in
the “ACC” or “LOCK” position, and/or the shift lever is in P.
■ Before folding the third seats
Lower the head restraints to the
lowest position and stow the seat
belt buckles.
Stow the center seat belt. ( P. 8 6 )
■ Folding the third seats
Press the folding/returning
switch.
■ Raising the third seats
Press the folding/returning switch, returning switch ( P. 7 6 ) o r
seatback angle adjustment switch ( P. 6 1 ) .
STEP1
STEP2
