257
3-1. Using the air conditioning system
and defogger
3
Interior features

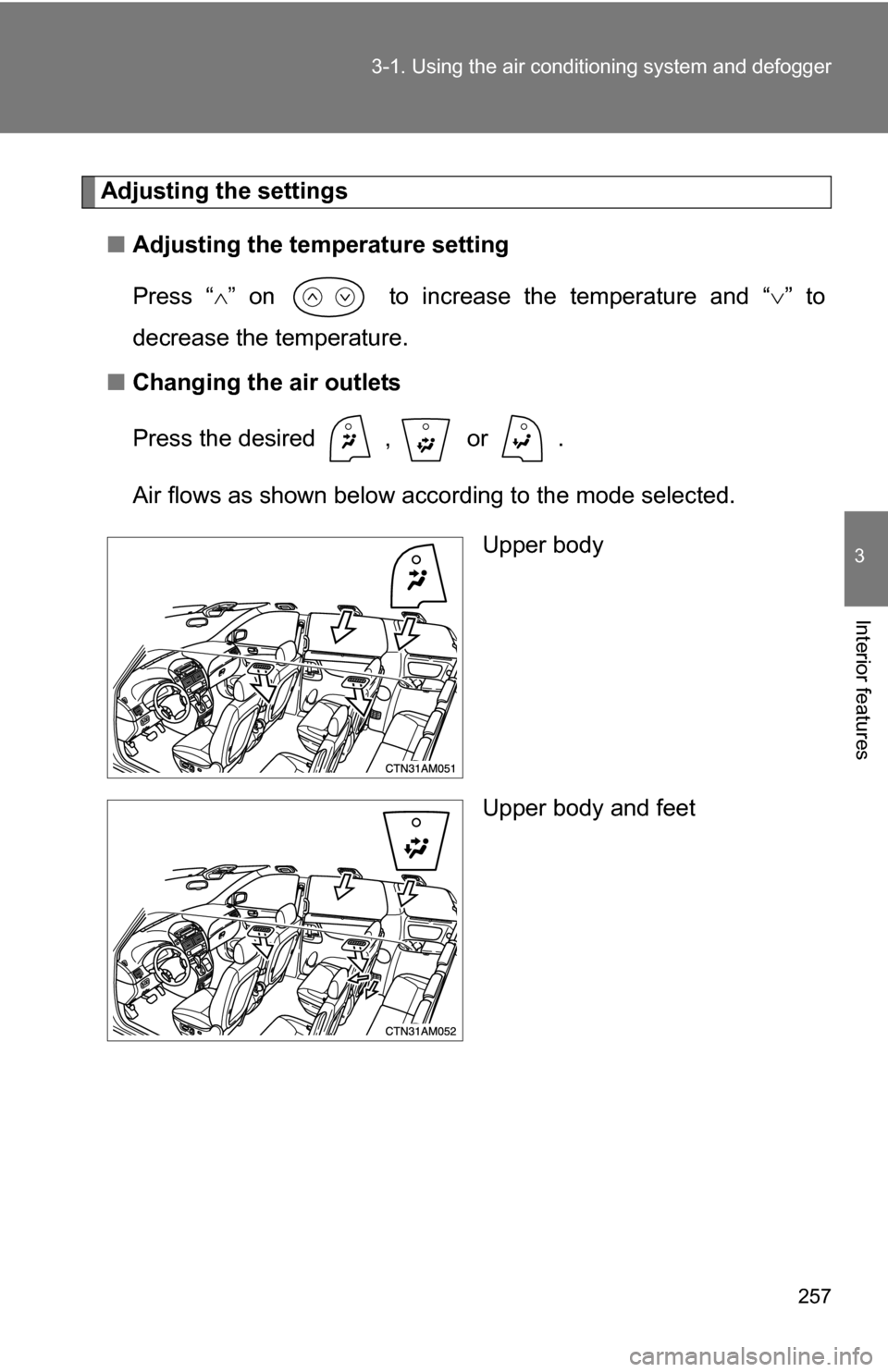

Adjusting the settings
■ Adjusting the temperature setting
Press “ ” on to increase the temperature and “ ” to
decrease the temperature.
■ Changing the air outlets
Press the desired , or .
Air flows as shown below according to the mode selected.
Upper body
Upper body and feet

258 3-1. Using the air conditioning system and defogger

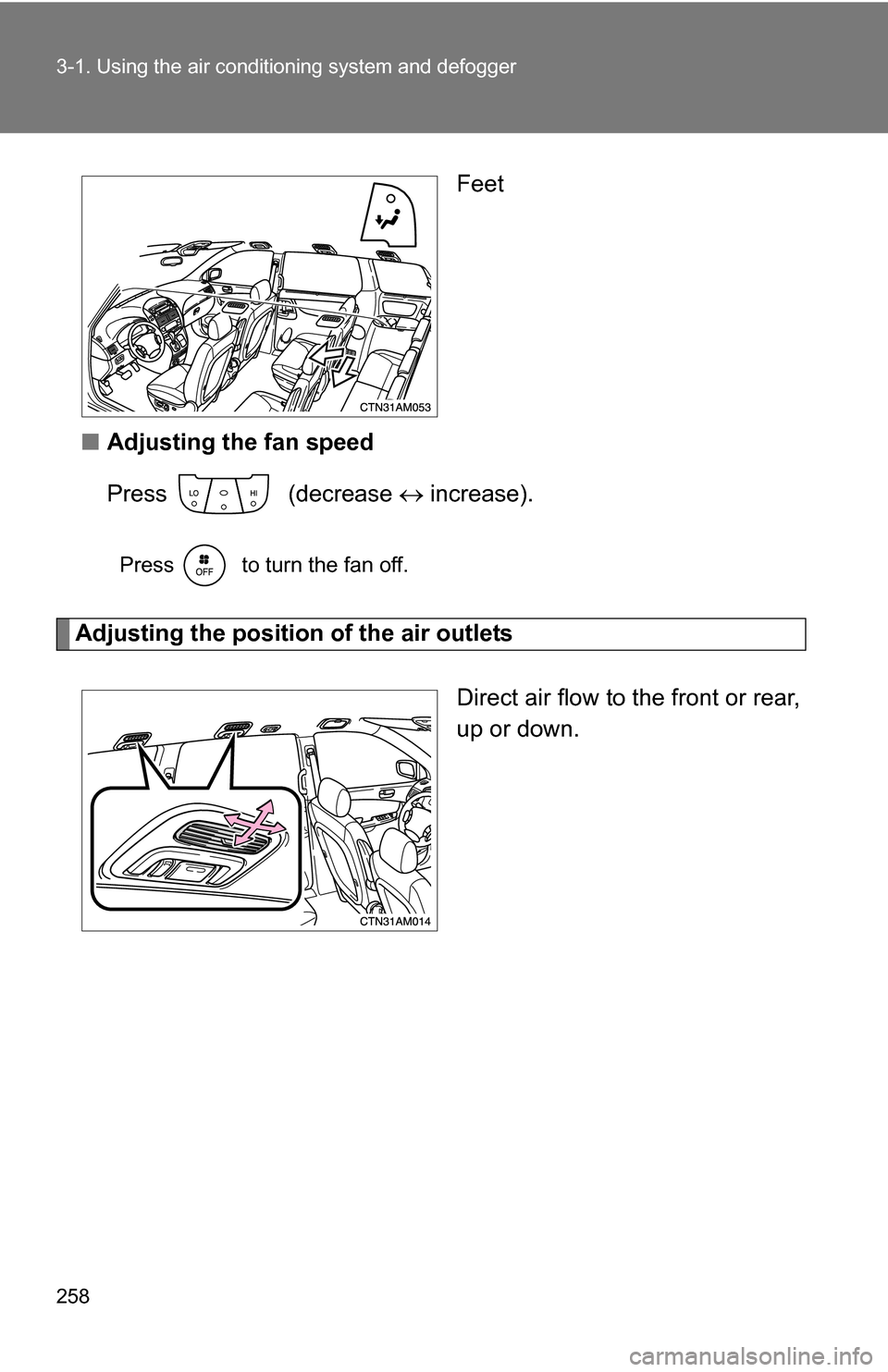

Feet
■ Adjusting the fan speed
Press (decrease  increase).
Press to turn the fan off.
Adjusting the position of the air outlets
Direct air flow to the front or rear,
up or down.

259
3-1. Using the air conditioning system
and defogger
3
Interior features

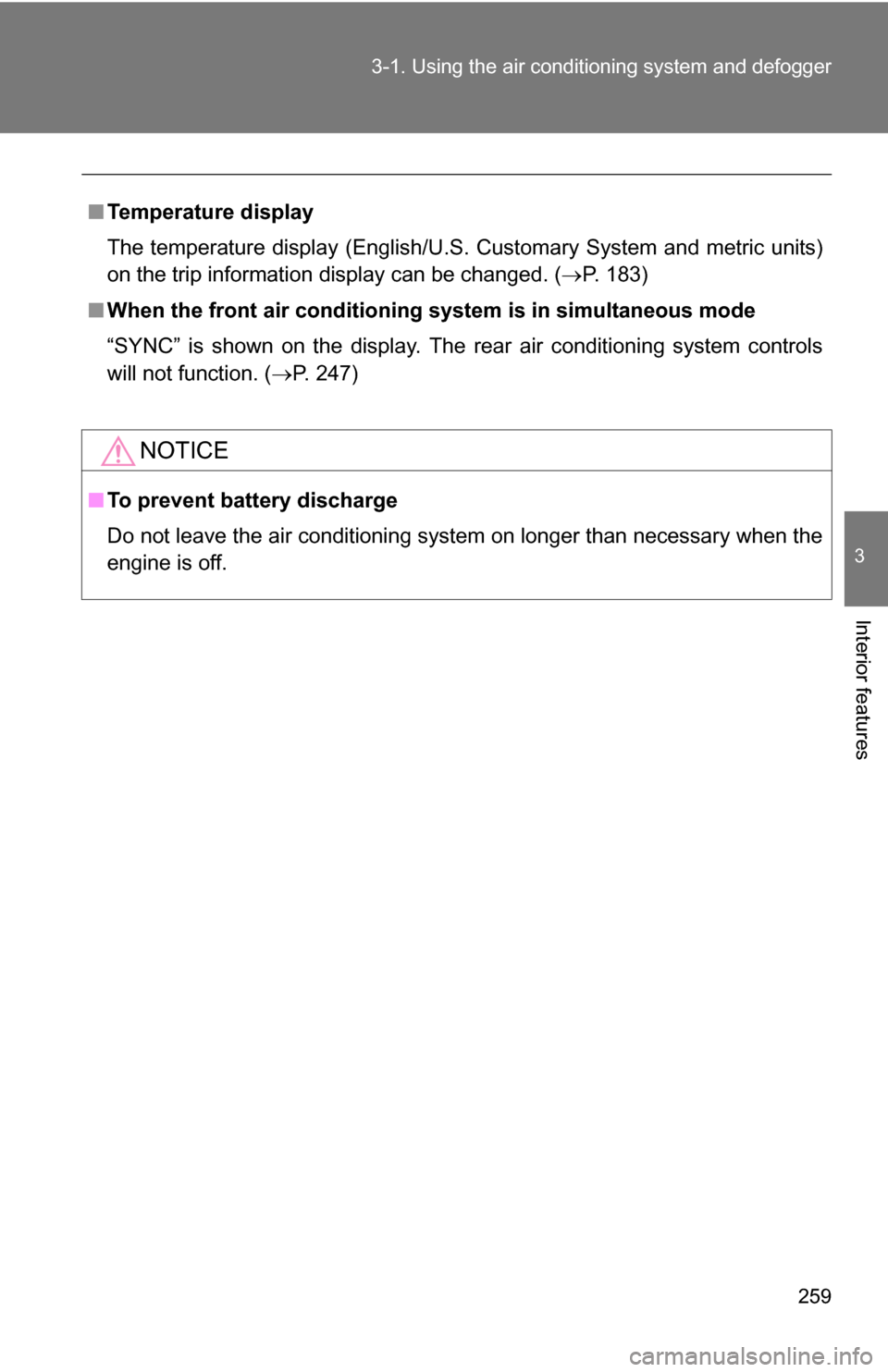

■Temperature display
The temperature display (English/U.S. Customary System and metric units)
on the trip information display can be changed. ( P. 183)
■ When the front air conditioning system is in simultaneous mode
“SYNC” is shown on the display. The rear air conditioning system controls
will not function. ( P. 247)
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is off.

260
3-1. Using the air conditioning system and defogger

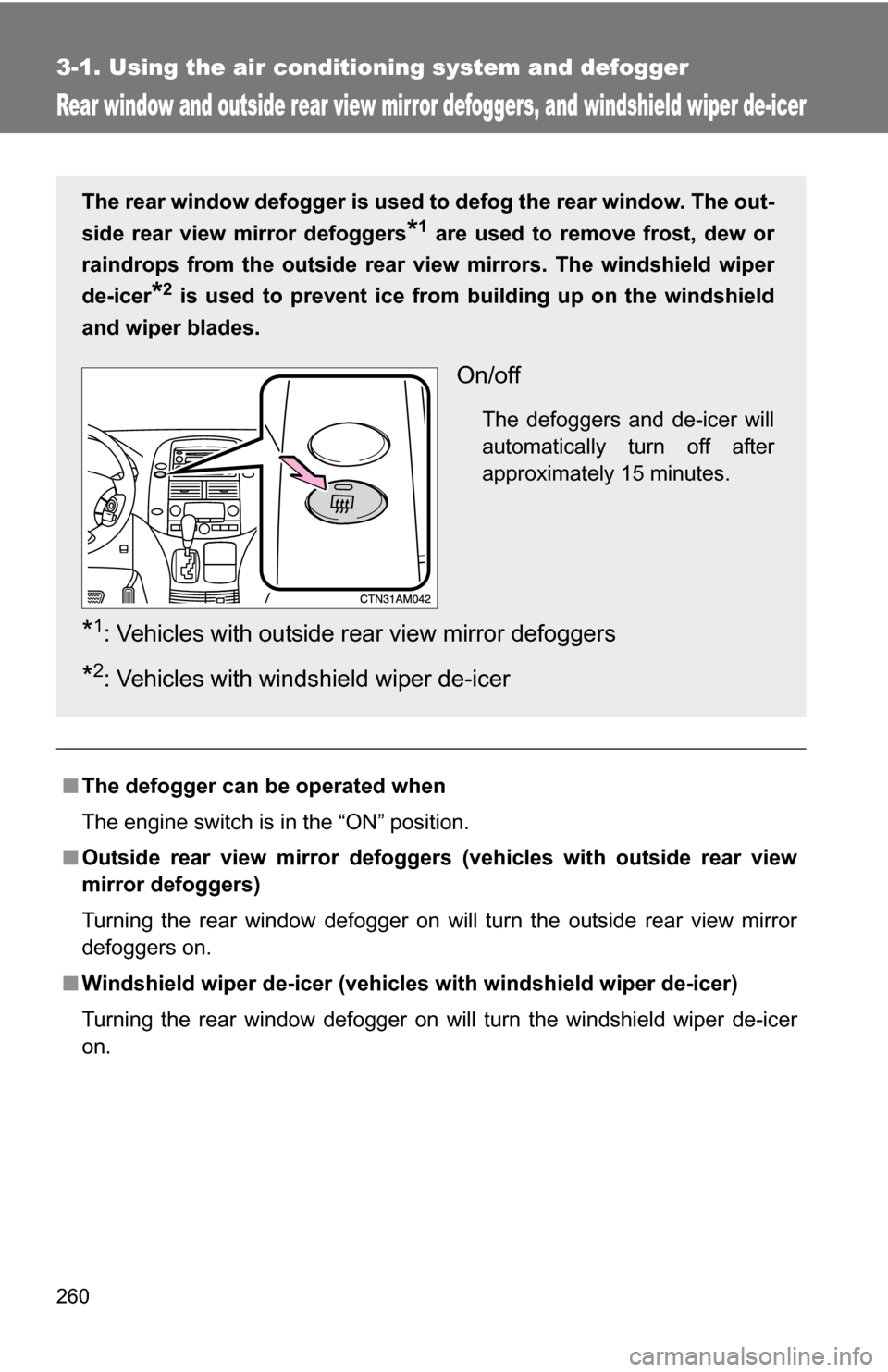

Rear window and outside rear view mirror defoggers, and windshield wiper de-icer
■The defogger can be operated when
The engine switch is in the “ON” position.
■ Outside rear view mirror defoggers (vehicles with outside rear view
mirror defoggers)
Turning the rear window defogger on will turn the outside rear view mirror
defoggers on.
■ Windshield wiper de-icer (vehicl es with windshield wiper de-icer)
Turning the rear window defogger on will turn the windshield wiper de-icer
on.
The rear window defogger is used to defog the rear window. The out-
side rear view mirror defoggers
*1 are used to remove frost, dew or
raindrops from the outside rear vi ew mirrors. The windshield wiper
de-icer
*2 is used to prevent ice from building up on the windshield
and wiper blades.
On/off
The defoggers and de-icer will
automatically turn off after
approximately 15 minutes.
*1: Vehicles with outside rear view mirror defoggers
*2: Vehicles with windshield wiper de-icer

261
3-1. Using the air conditioning system
and defogger
3
Interior features

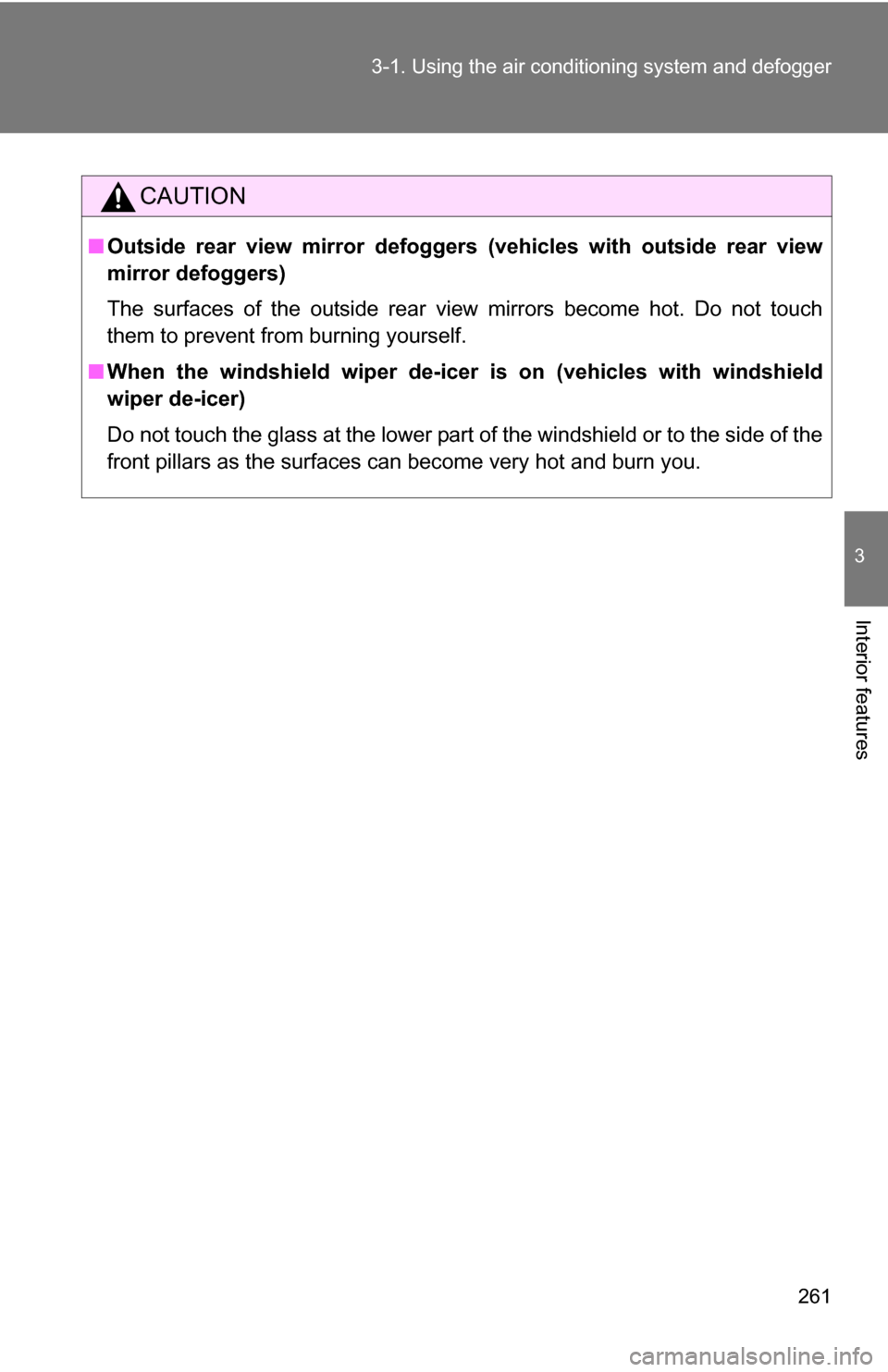

CAUTION
■Outside rear view mirror defoggers (vehicles with outside rear view
mirror defoggers)
The surfaces of the outside rear view mirrors become hot. Do not touch
them to prevent from burning yourself.
■ When the windshield wiper de-icer is on (vehicles with windshield
wiper de-icer)
Do not touch the glass at the lower part of the windshield or to the side of the
front pillars as the surfaces can become very hot and burn you.

262
3-2. Using the audio system

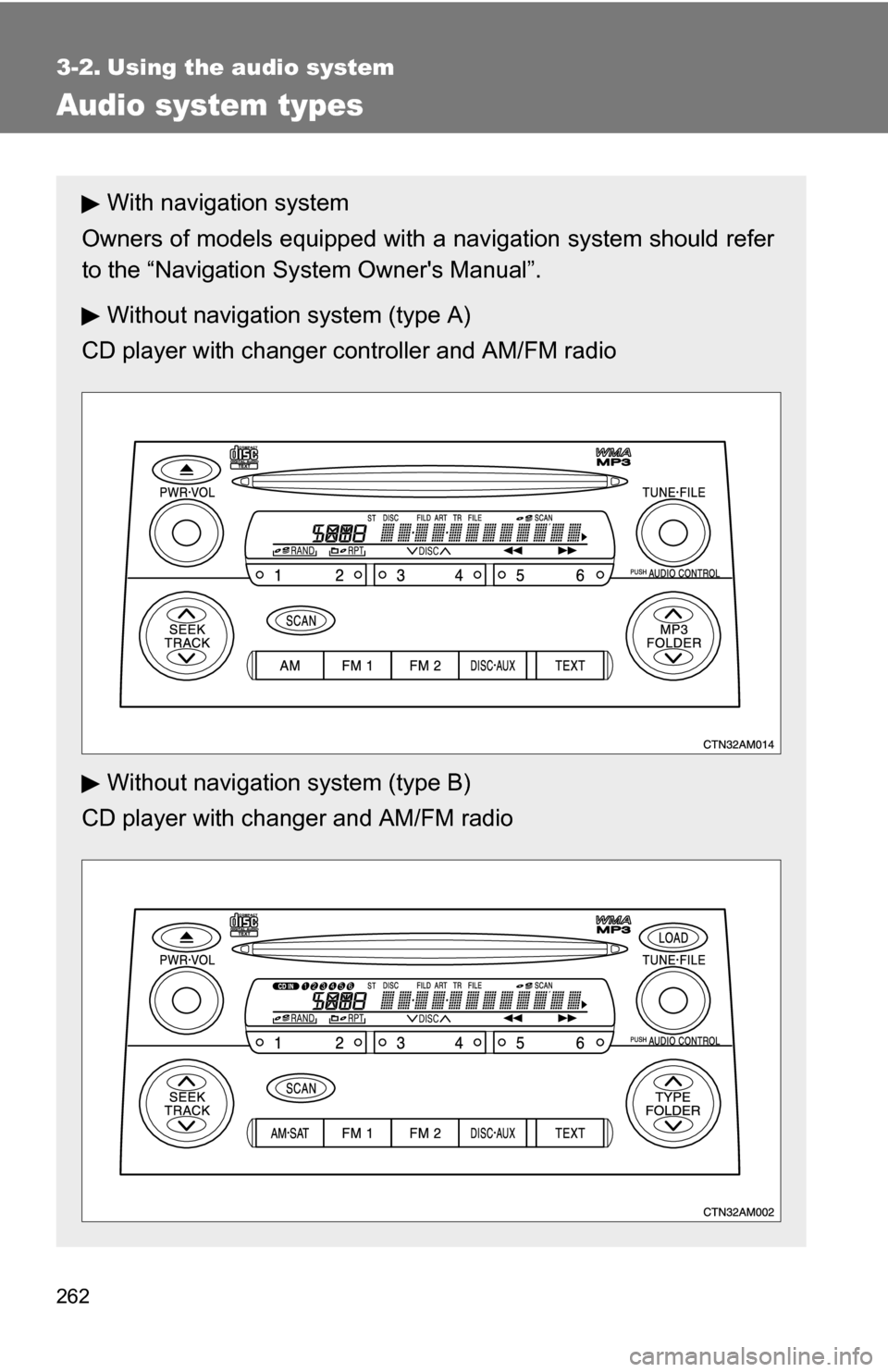

Audio system types
With navigation system
Owners of models equipped with a navigation system should refer
to the “Navigation Sy stem Owner's Manual”.
Without navigation system (type A)
CD player with changer controller and AM/FM radio
Without navigation system (type B)
CD player with changer and AM/FM radio

263
3-2. Using the audio system
3
Interior features
■
Using cellular phones
Interference may be heard through the audio system's speakers if a cellular
phone is being used inside or close to the vehicle while the audio syste\
m is
operating.

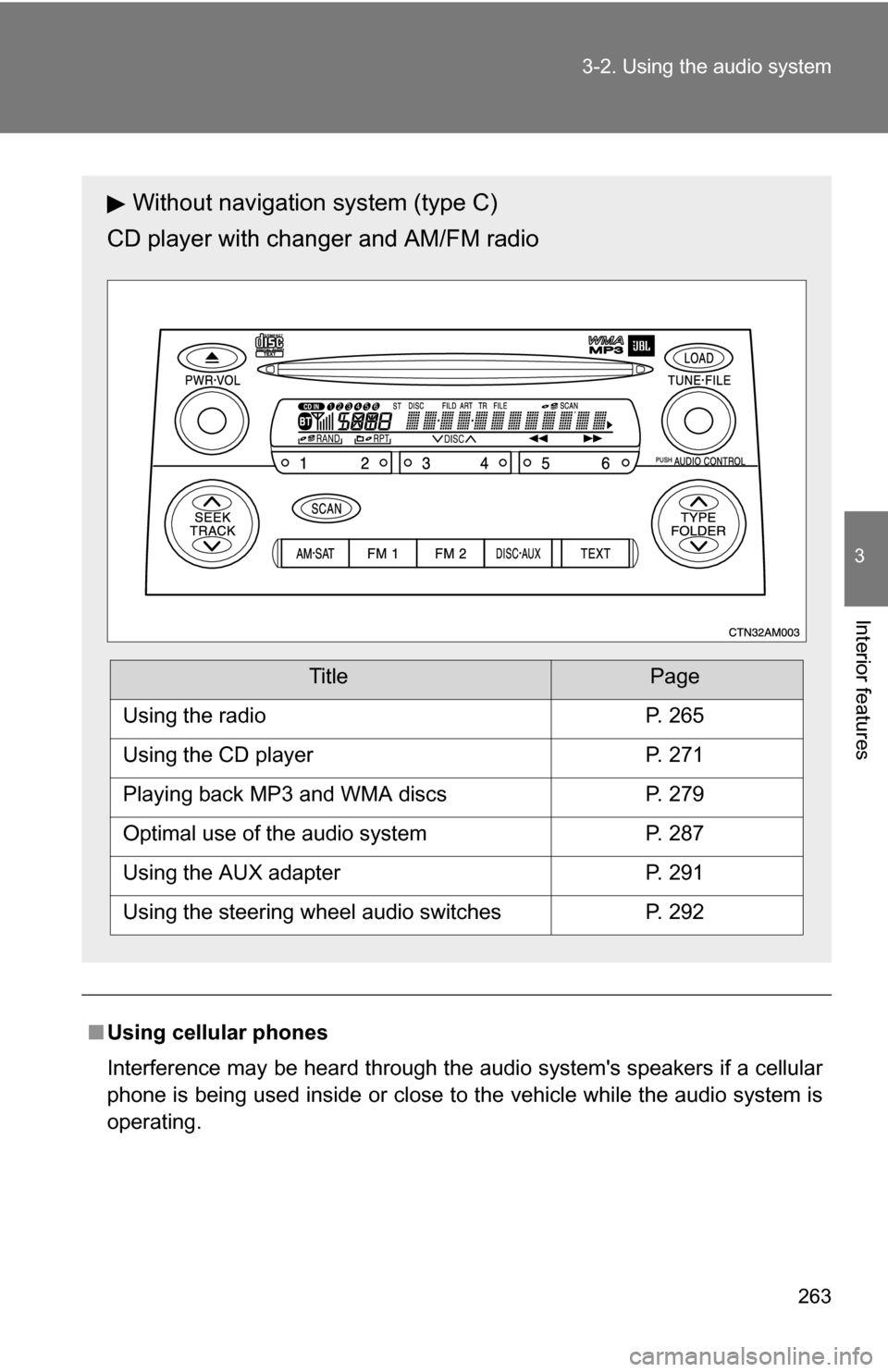

Without navigation system (type C)
CD player with changer and AM/FM radio
TitlePage
Using the radioP. 265
Using the CD playerP. 271
Playing back MP3 and WMA discsP. 279
Optimal use of the audio systemP. 287
Using the AUX adapterP. 291
Using the steering wheel audio switchesP. 292

264 3-2. Using the audio system

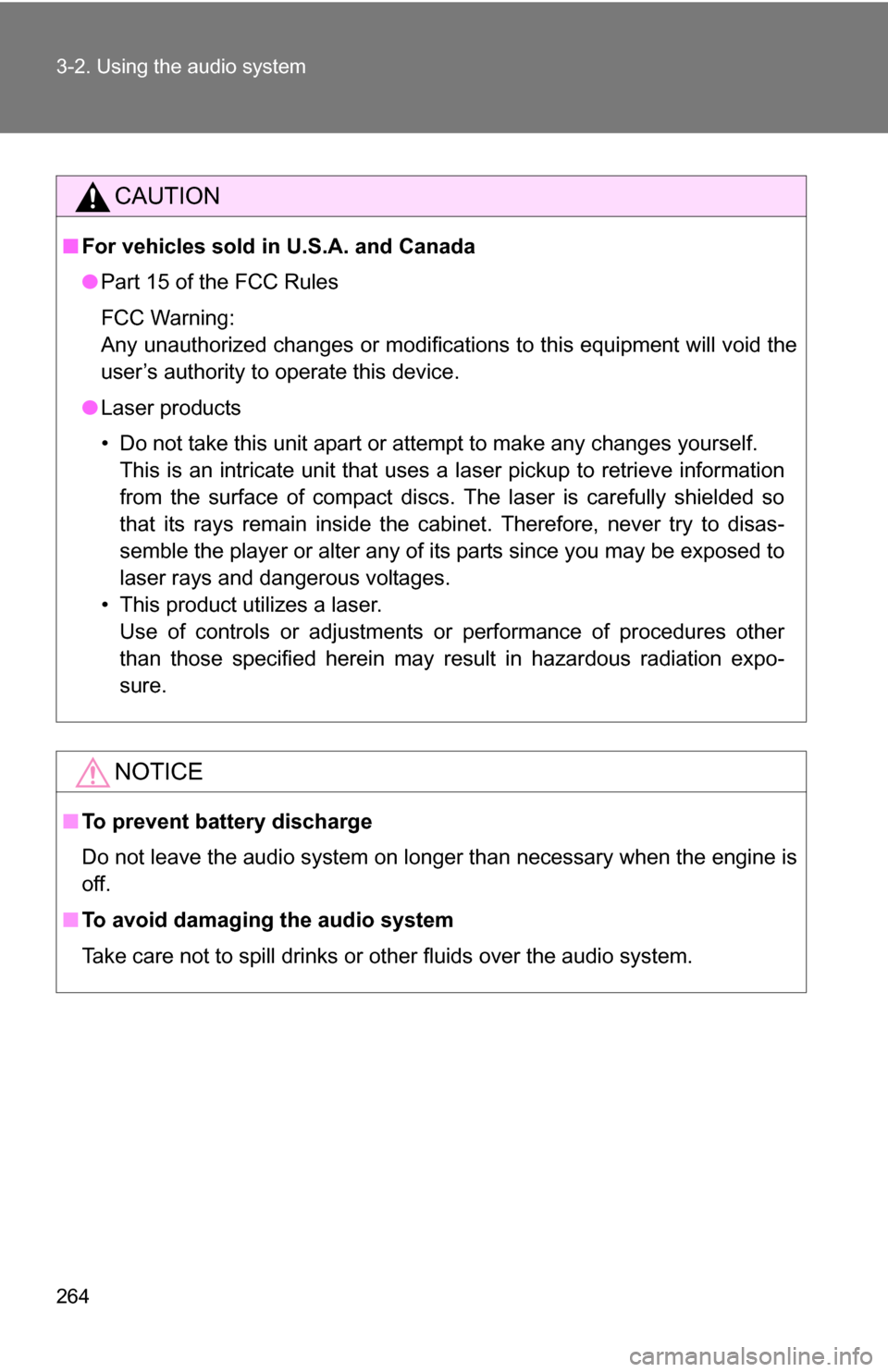

CAUTION
■For vehicles sold in U.S.A. and Canada
●Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifications to this equipment will void the
user’s authority to operate this device.
● Laser products
• Do not take this unit apart or attempt to make any changes yourself.
This is an intricate unit that uses a laser pickup to retrieve information
from the surface of compact discs. The laser is carefully shielded so
that its rays remain inside the cabinet. Therefore, never try to disas-
semble the player or alter any of its parts since you may be exposed to
laser rays and dangerous voltages.
• This product utilizes a laser. Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation expo-
sure.
NOTICE
■ To prevent battery discharge
Do not leave the audio system on longer than necessary when the engine is
off.
■ To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.
