2009 TOYOTA SIENNA Owners Manual

5
When trouble arises
537
5-2. Steps to take in an emergency
■

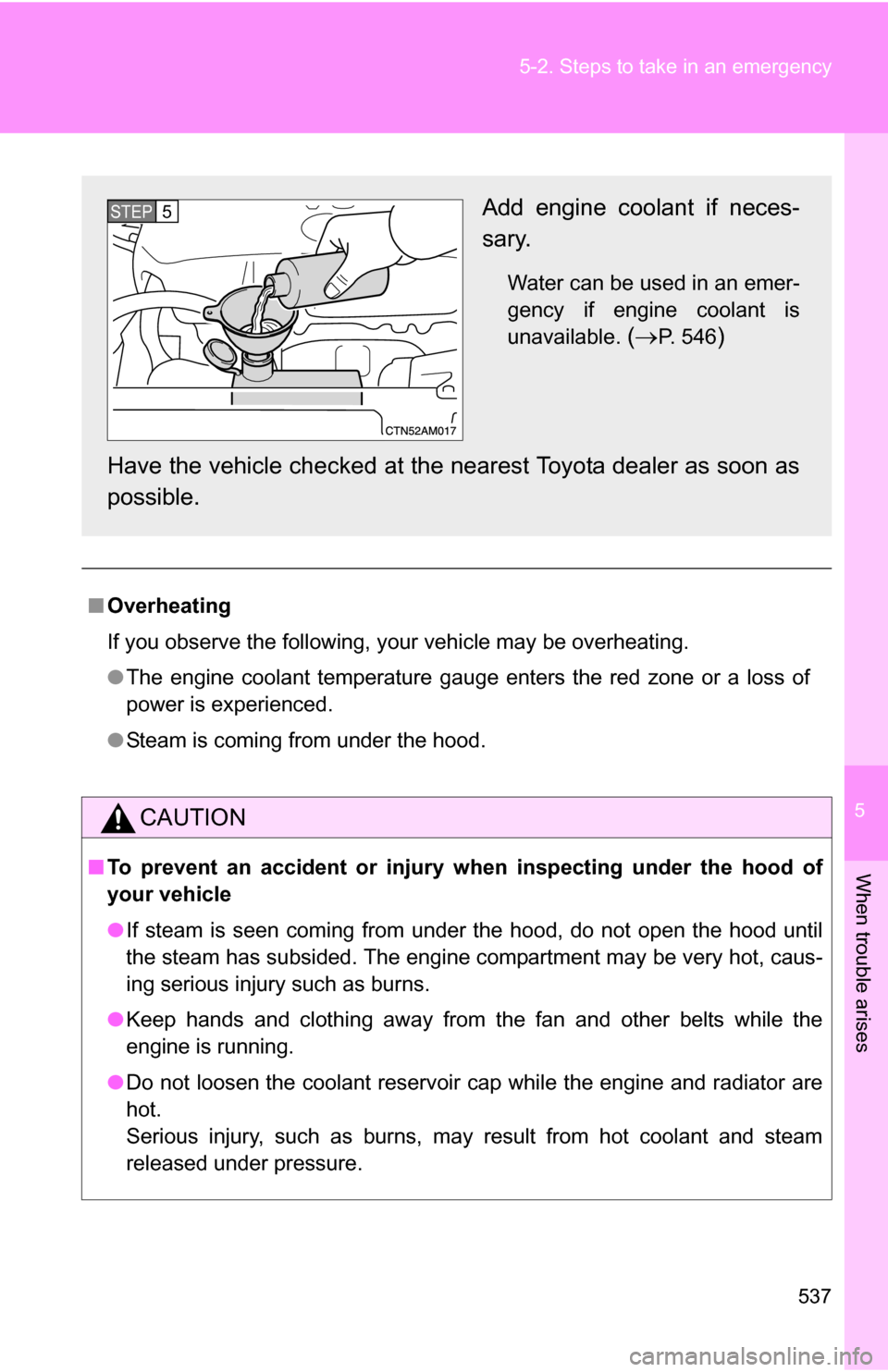

Overheating
If you observe the following, your vehicle may be overheating.
●The engine coolant temperature gauge enters the red zone or a loss of
power is experienced.
● Steam is coming from under the hood.
CAUTION
■To prevent an accident or injury when inspecting under the hood of
your vehicle
●If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injury such as burns.
● Keep hands and clothing away from the fan and other belts while the
engine is running.
● Do not loosen the coolant reservoir cap while the engine and radiator are
hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
Add engine coolant if neces-
sary.
Water can be used in an emer-
gency if engine coolant is
unavailable.
(P. 546)
Have the vehicle chec ked at the nearest Toyota dealer as soon as
possible.
STEP5

538 5-2. Steps to take in an emergency

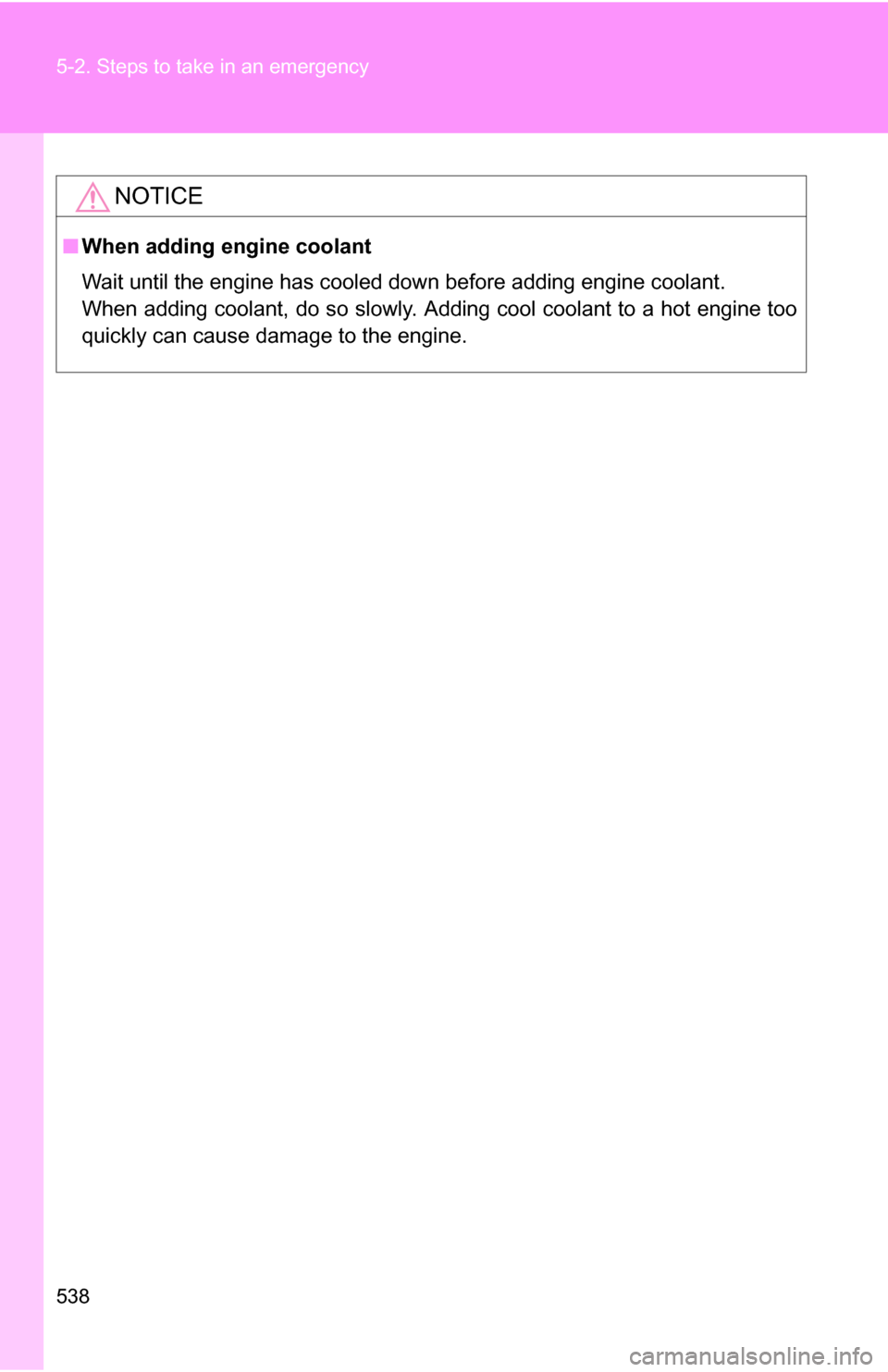

NOTICE
■When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.

5
When trouble arises
539
5-2. Steps to take in an emergency

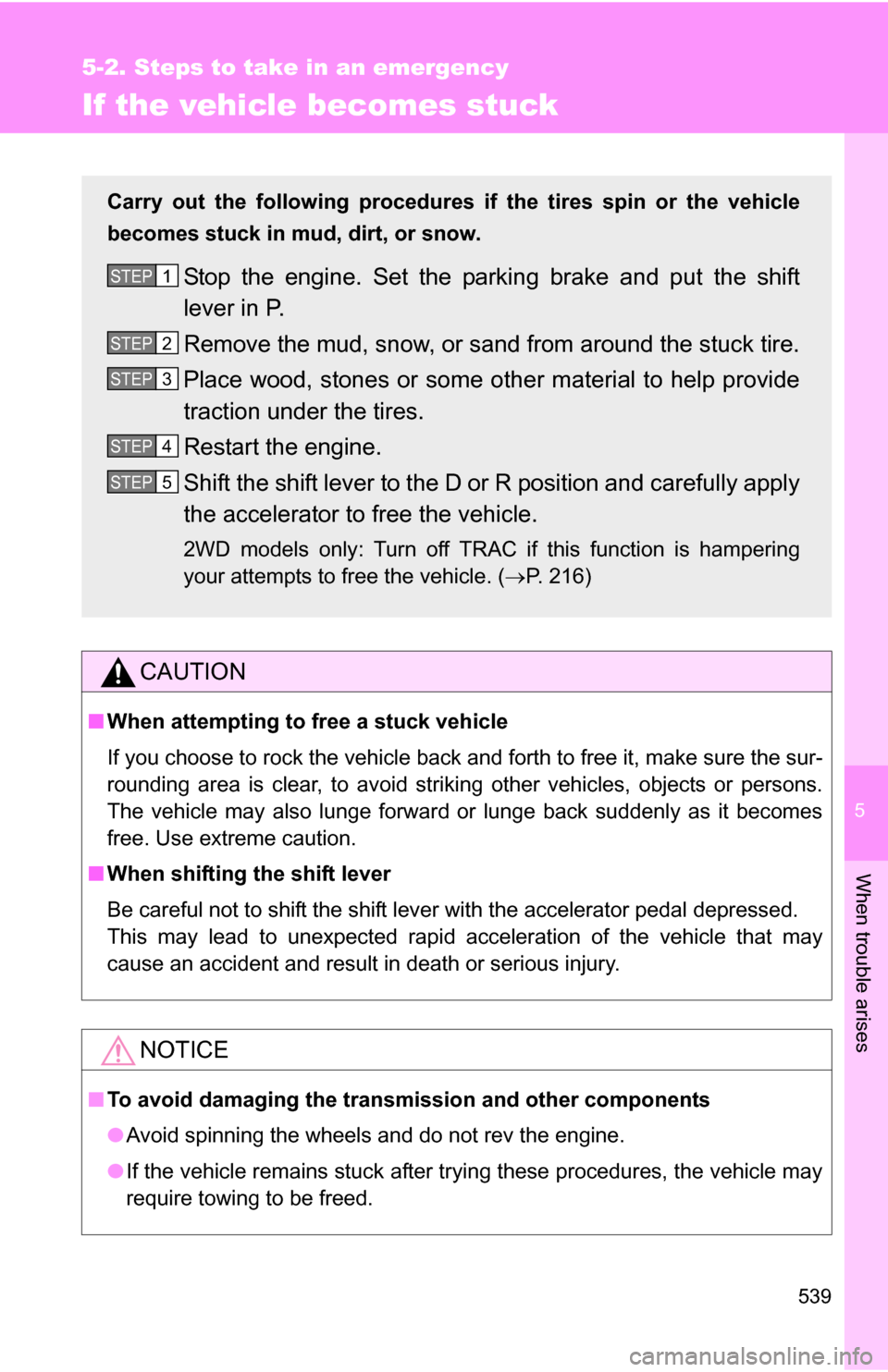

If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the sur-
rounding area is clear, to avoid striking other vehicles, objects or persons.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the wheels and do not rev the engine.
● If the vehicle remains stuck after trying these procedures, the vehicle may
require towing to be freed.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow.
Stop the engine. Set the parking brake and put the shift
lever in P.
Remove the mud, snow, or sand from around the stuck tire.
Place wood, stones or some other material to help provide
traction under the tires.
Restart the engine.
Shift the shift lever to the D or R position and carefully apply
the accelerator to free the vehicle.
2WD models only: Turn off TRAC if this function is hampering
your attempts to free the vehicle. (P. 216)
STEP1
STEP2
STEP3
STEP4
STEP5

540 5-2. Steps to take in an emergency

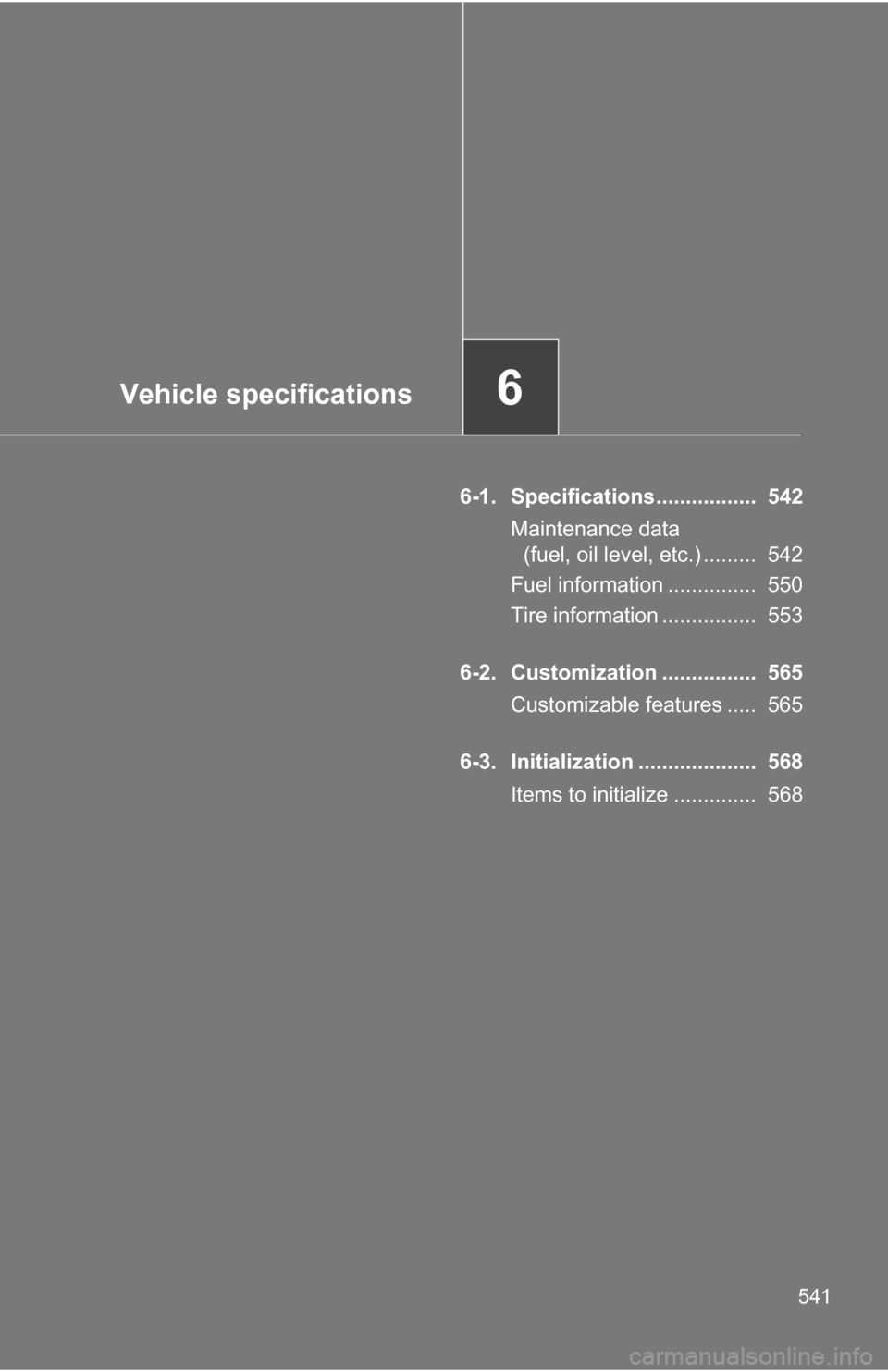

Vehicle specifications6
541
6-1. Specifications................. 542Maintenance data (fuel, oil level, etc.) ......... 542
Fuel information ............... 550
Tire information ................ 553
6-2. Customization ................ 565 Customizable features ..... 565
6-3. Initialization .................... 568 Items to initialize .............. 568

542
6-1. Specifications

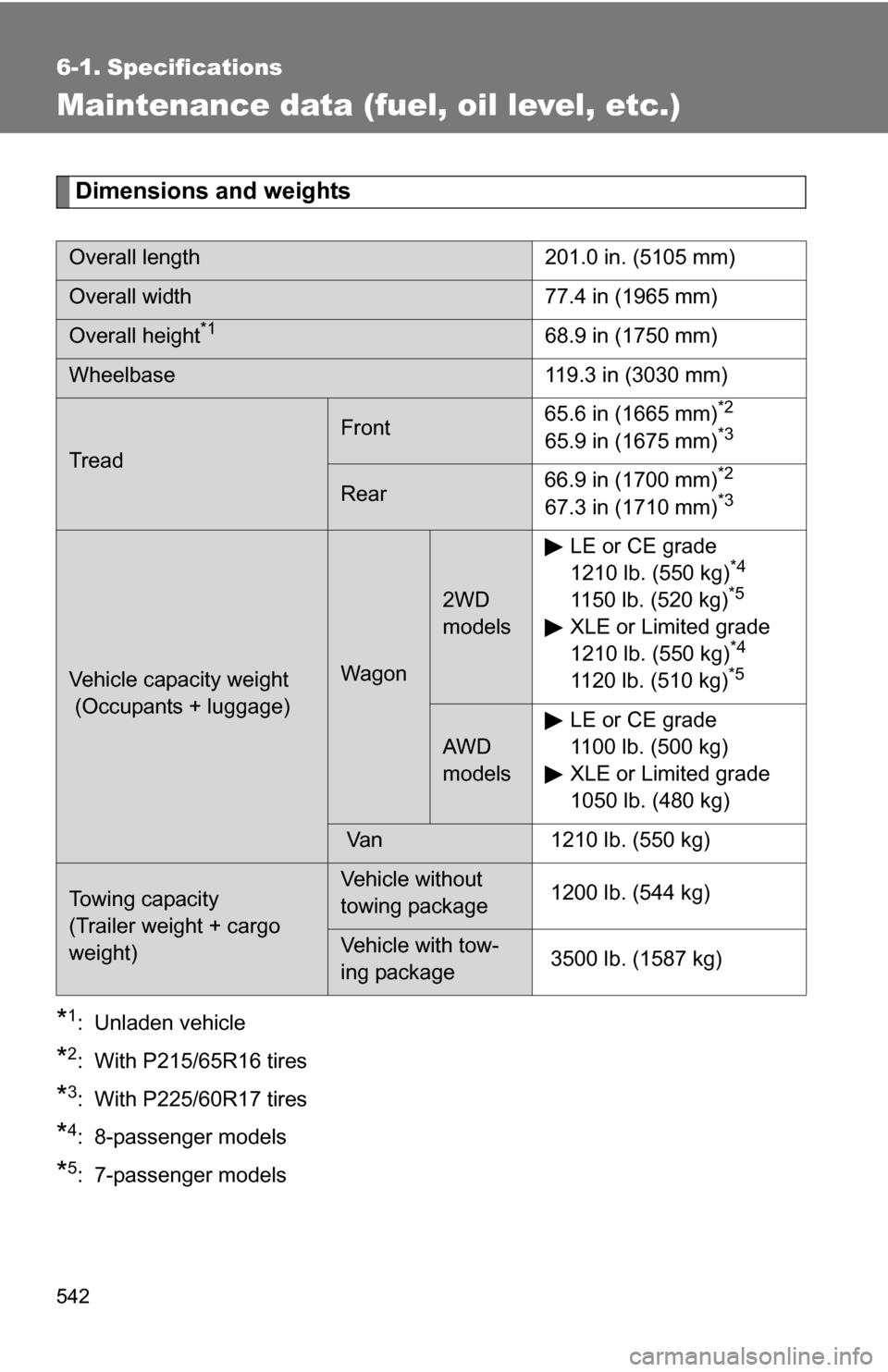

Maintenance data (fuel, oil level, etc.)
Dimensions and weights
*1: Unladen vehicle
*2: With P215/65R16 tires
*3: With P225/60R17 tires
*4: 8-passenger models
*5: 7-passenger models
Overall length201.0 in. (5105 mm)
Overall width77.4 in (1965 mm)
Overall height*168.9 in (1750 mm)
Wheelbase119.3 in (3030 mm)
Tread
Front65.6 in (1665 mm)*2
65.9 in (1675 mm)*3
Rear66.9 in (1700 mm)*2
67.3 in (1710 mm)*3
Vehicle capacity weight
(Occupants + luggage)Wagon
2WD
modelsLE or CE grade
1210 lb. (550 kg)
*4
1150 lb. (520 kg)*5
XLE or Limited grade
1210 lb. (550 kg)*4
1120 lb. (510 kg)*5
AWD
models
LE or CE grade
1100 lb. (500 kg)
XLE or Limited grade
1050 lb. (480 kg)
Van
1210 lb. (550 kg)
Towing capacity
(Trailer weight + cargo
weight)Vehicle without
towing package 1200 lb. (544 kg)
Vehicle with tow-
ing package 3500 lb. (1587 kg)

543
6-1. Specifications
6
Vehicle specifications

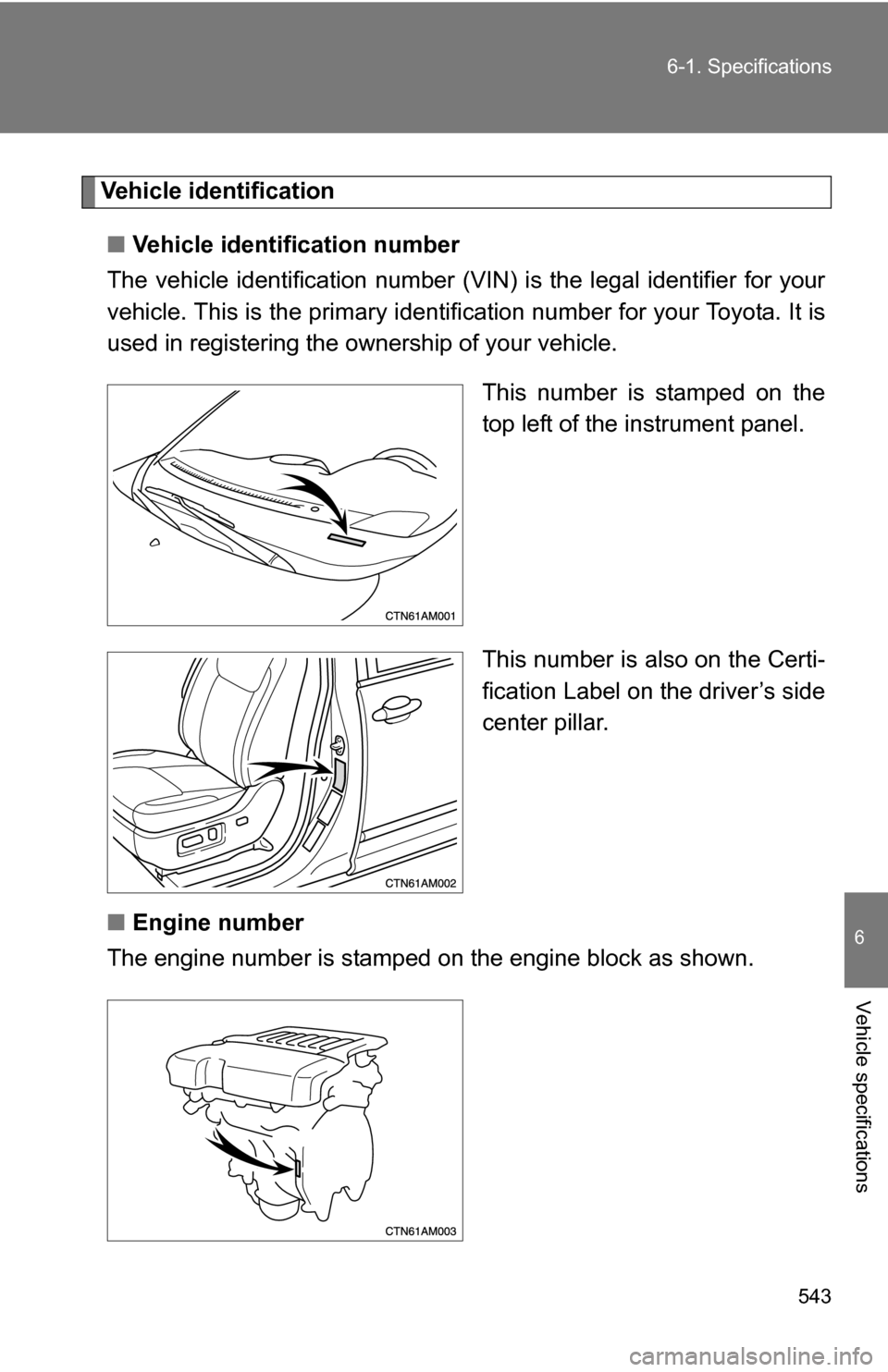

Vehicle identification
■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label on the driver’s side
center pillar.
■ Engine number
The engine number is stamped on the engine bl ock as shown.

544 6-1. Specifications

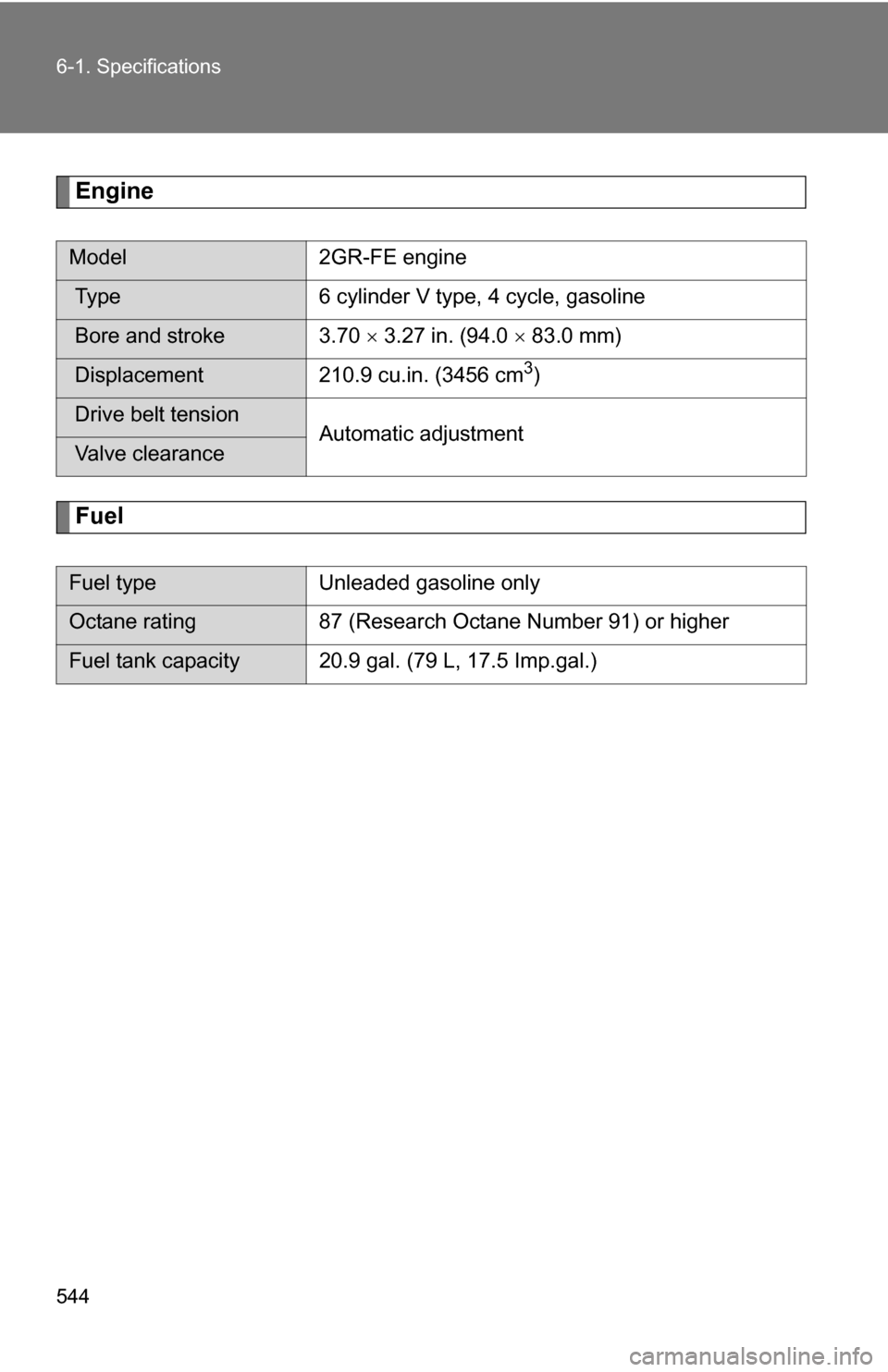

Engine
Fuel
Model2GR-FE engine
Type 6 cylinder V type, 4 cycle, gasoline
Bore and stroke 3.70  3.27 in. (94.0  83.0 mm)
Displacement 210.9 cu.in. (3456 cm3)
Drive belt tension
Automatic adjustment
Valve clearance
Fuel typeUnleaded gasoline only
Octane rating 87 (Research Octane Number 91) or higher
Fuel tank capacity 20.9 gal. (79 L, 17.5 Imp.gal.)
