2009 SUBARU TRIBECA automatic

5AT-19
General Description
AUTOMATIC TRANSMISSION
398527700 PULLER ASSY • Used for removing the extension case roller
bearing.
•Used for removing the extension oil seal.
•Used for removing the front differential side
retainer bearing outer race.
•Used for removing the front differential side
retainer oil seal.
498057300 INSTALLER Used for installing the extension oil seal.
498077000 REMOVER Used for removing the differential taper roller
bearing.
18630AA010 WRENCH COMPL
RETAINER
Used for removing and installing the differential
side retainer.
398487700 DRIFT Used for installing the front differential taper
roller bearing.
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
ST-398527700
ST-498057300
ST-498077000
ST18630AA010
ST-398487700

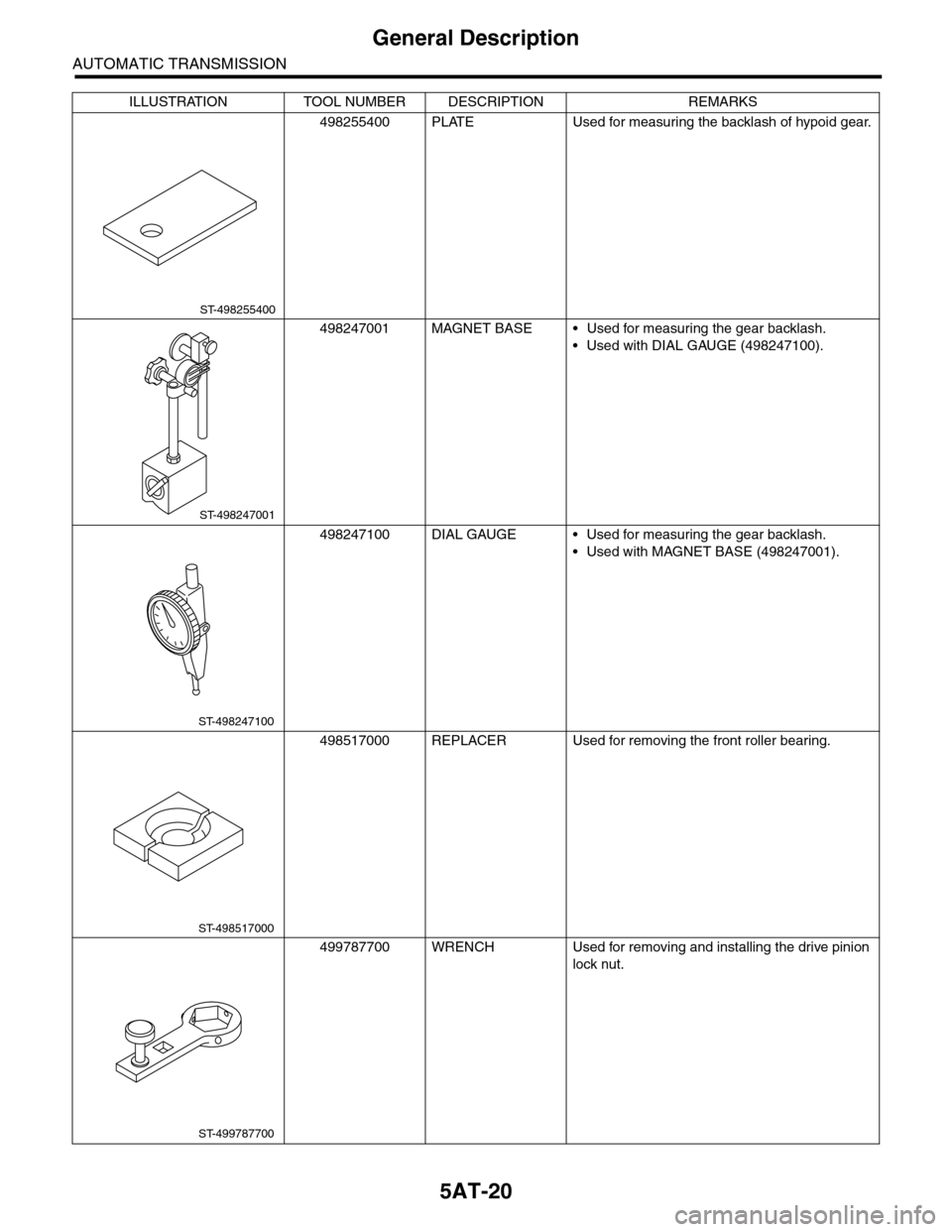

5AT-20
General Description
AUTOMATIC TRANSMISSION
498255400 PLATE Used for measuring the backlash of hypoid gear.
498247001 MAGNET BASE • Used for measuring the gear backlash.
•Used with DIAL GAUGE (498247100).
498247100 DIAL GAUGE • Used for measuring the gear backlash.
•Used with MAGNET BASE (498247001).
498517000 REPLACER Used for removing the front roller bearing.
499787700 WRENCH Used for removing and installing the drive pinion
lock nut.
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
ST-498255400
ST-498247001
ST-498247100
ST-498517000
ST-499787700

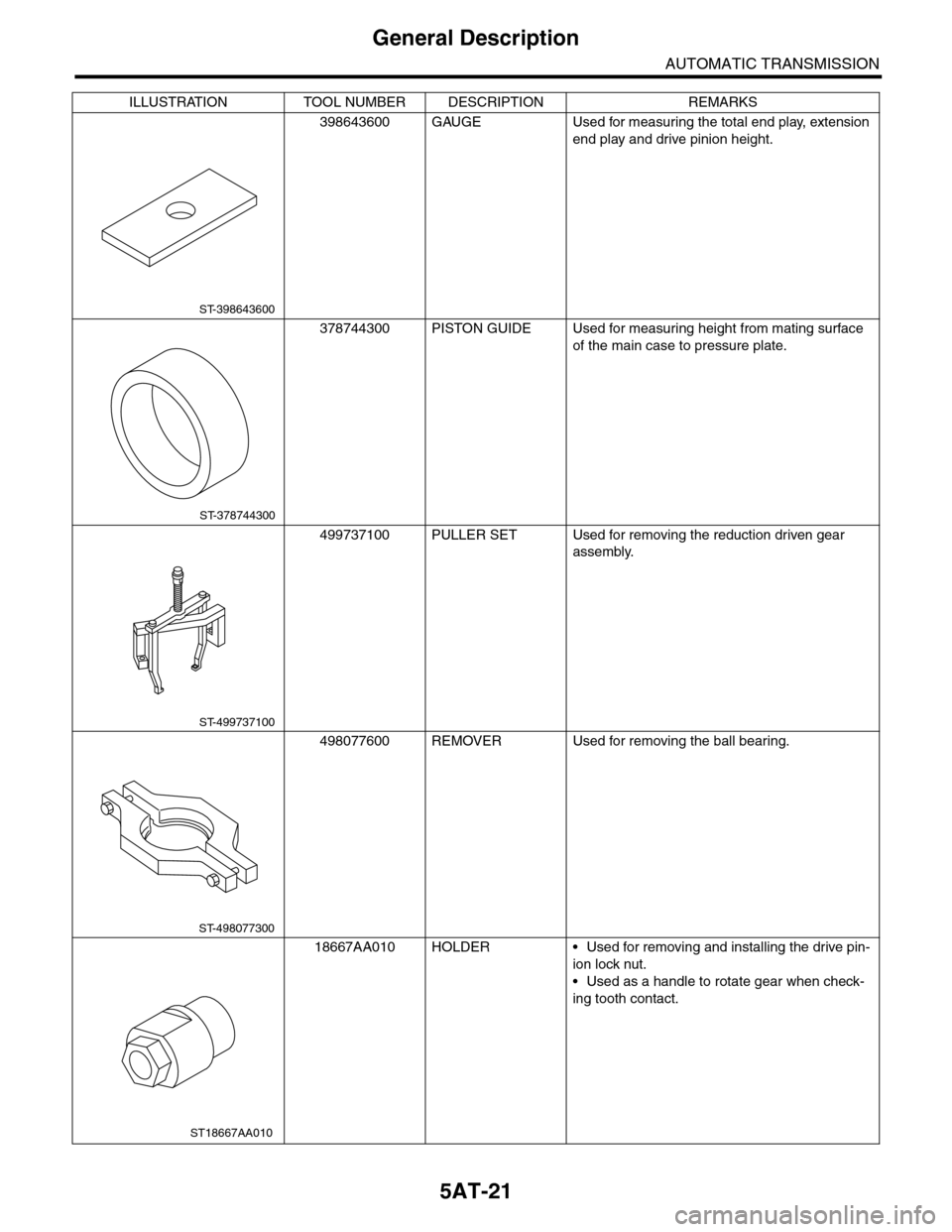

5AT-21
General Description
AUTOMATIC TRANSMISSION
398643600 GAUGE Used for measuring the total end play, extension
end play and drive pinion height.
378744300 PISTON GUIDE Used for measuring height from mating surface
of the main case to pressure plate.
499737100 PULLER SET Used for removing the reduction driven gear
assembly.
498077600 REMOVER Used for removing the ball bearing.
18667AA010 HOLDER • Used for removing and installing the drive pin-
ion lock nut.
•Used as a handle to rotate gear when check-
ing tooth contact.
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
ST-398643600
ST-378744300
ST-499737100
ST-498077300
ST18667AA010

5AT-22
General Description
AUTOMATIC TRANSMISSION
18482AA010 CARTRIDGE Troubleshooting for the electrical system.
22771AA030 SUBARU SELECT
MONITOR KIT
Tr o u b l e s h o o t i n g f o r t h e e l e c t r i c a l s y s t e m .
18675AA000 DIFFERENTIAL
SIDE OIL SEAL
INSTALLER
Used for installing the differential side retainer oil
seal.
18654AA000 INSTALLER Used for removing and installing the ball bearing.
28399SA010 OIL SEAL PROTEC-
TOR
Used for protecting oil seal when installing front
drive shaft.
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
ST18482AA010
ST22771AA030
ST18675AA000
ST18654AA000
ST28399SA010

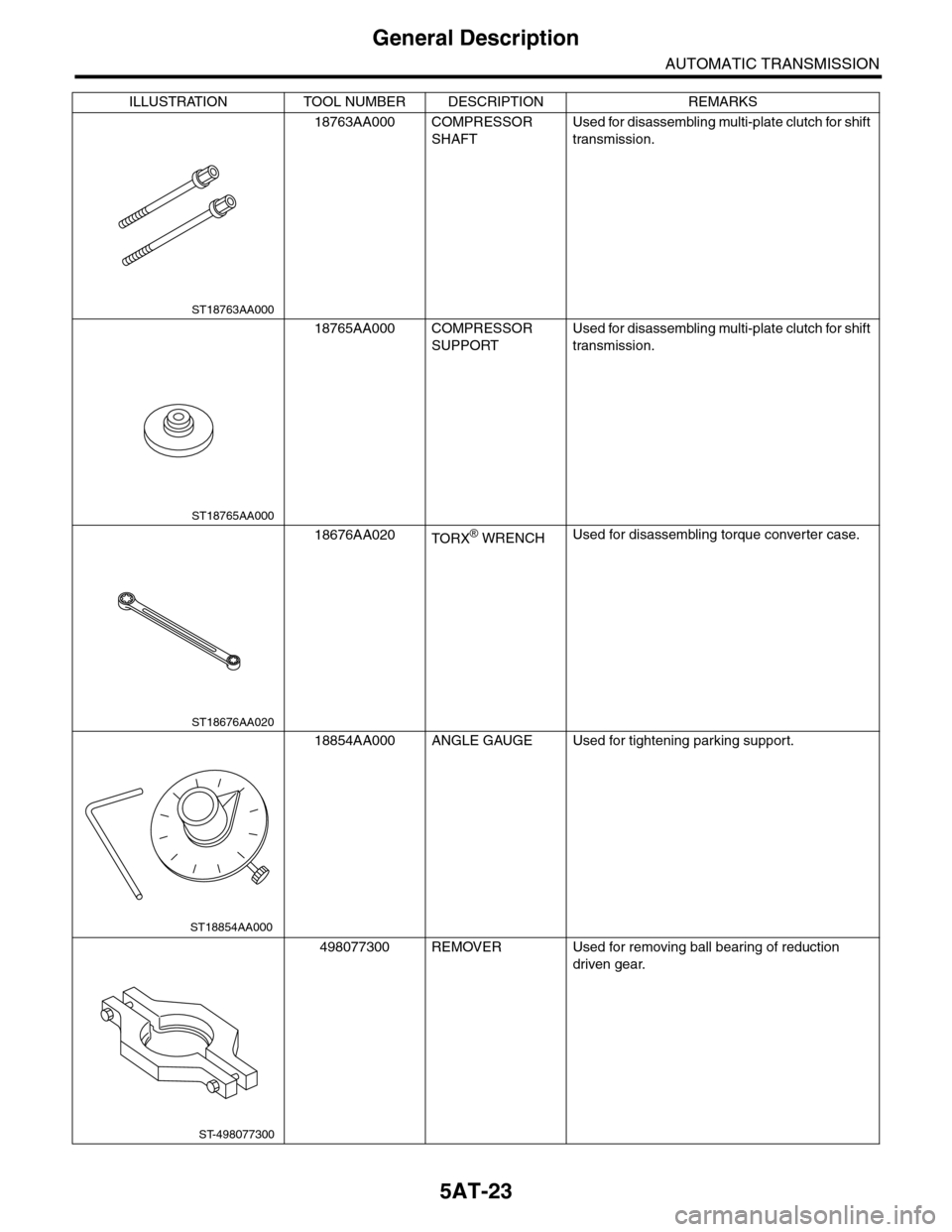

5AT-23
General Description
AUTOMATIC TRANSMISSION
18763AA000 COMPRESSOR
SHAFT
Used for disassembling multi-plate clutch for shift
transmission.
18765AA000 COMPRESSOR
SUPPORT
Used for disassembling multi-plate clutch for shift
transmission.
18676AA020TORX® WRENCHUsed for disassembling torque converter case.
18854AA000 ANGLE GAUGE Used for tightening parking support.
498077300 REMOVER Used for removing ball bearing of reduction
driven gear.
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
ST18763AA000
ST18765AA000
ST18676AA020
ST18854AA000
ST-498077300

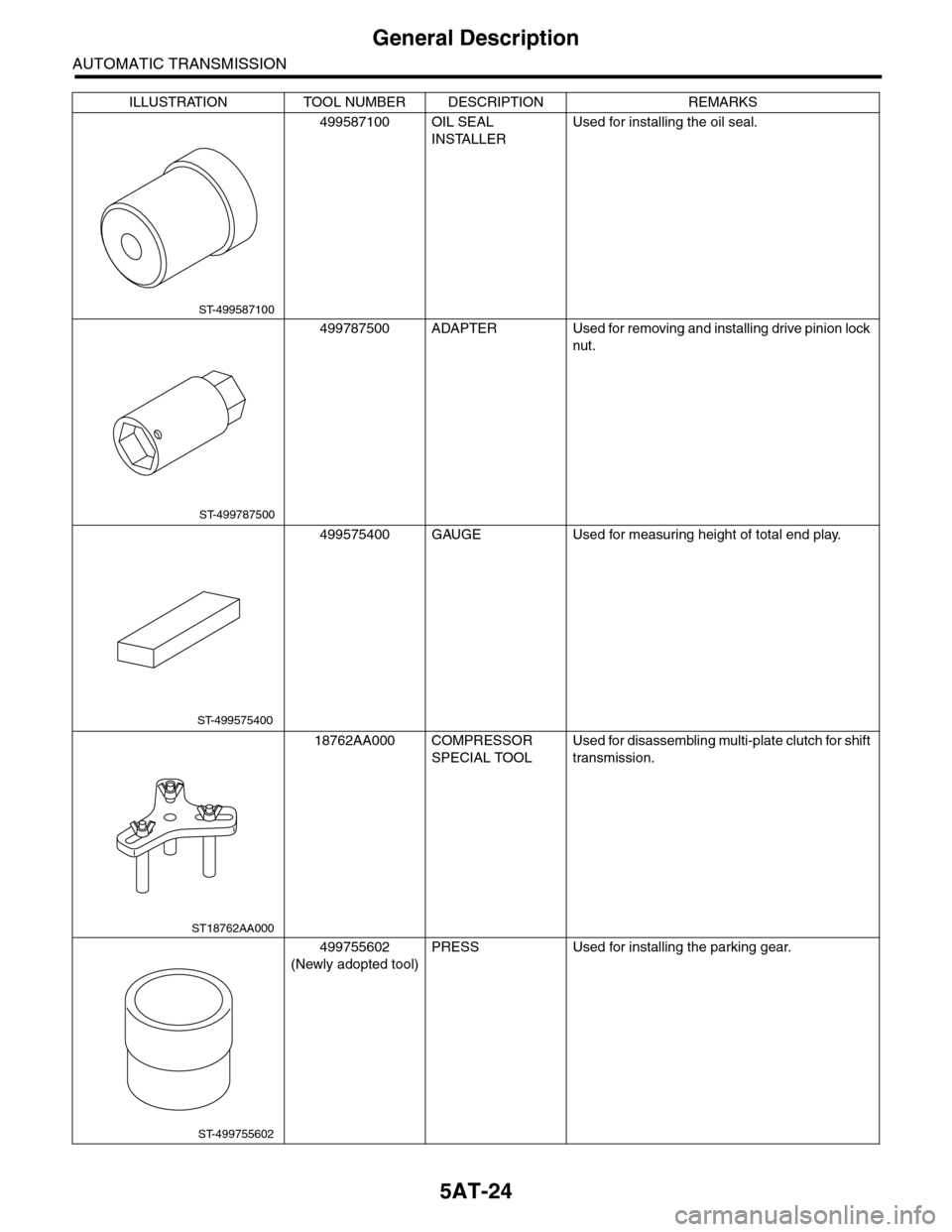

5AT-24
General Description
AUTOMATIC TRANSMISSION
499587100 OIL SEAL
INSTALLER
Used for installing the oil seal.
499787500 ADAPTER Used for removing and installing drive pinion lock
nut.
499575400 GAUGE Used for measuring height of total end play.
18762AA000 COMPRESSOR
SPECIAL TOOL
Used for disassembling multi-plate clutch for shift
transmission.
499755602
(Newly adopted tool)
PRESS Used for installing the parking gear.
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
ST-499587100
ST-499787500
ST-499575400
ST18762AA000
ST-499755602

5AT-25
General Description
AUTOMATIC TRANSMISSION
2. GENERAL TOOL
18680AA010
(Newly adopted tool)
HOLDER GEAR Used for removing reduction driven gear assem-
bly. (2-piece set)
18766AA000
(Newly adopted tool)
SUPPORT PULLER Used for removing reduction driven gear assem-
bly.
18767AA000
(Newly adopted tool)
REMOVER • Used to pull out the parking gear.
•Used to pull out the bearing from the VTD
assembly.
TO OL N AM E RE MA R KS
Depth gauge Used for measuring the transmission end play.
Thickness gauge Used for measuring clearance of the clutch, brake and oil pump.
Micrometer Used for measuring thickness of the drive pinion.
Spring balance Used for measuring the starting torque of the drive pinion.
Circuit tester Used for measuring resistance and voltage.
TO RX® T70Used for removing and installing differential gear oil drain plug.
Snap ring pliers Used for removing and installing each snap ring.
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
ST18680AA010
ST18766AA000
ST18767AA000

5AT-26
Automatic Transmission Fluid
AUTOMATIC TRANSMISSION
2. Automatic Transmission Fluid
A: INSPECTION
NOTE:
The level of ATF varies with fluid temperature. Pay
attention to the ATF temperature when checking
ATF level.
1) Raise the ATF temperature by driving a distance
of 5 to 10 km (3 to 6 miles). Otherwise, idle the en-
gine to raise ATF temperature to 70 — 80°C (158
— 176°F) on Subaru Select Monitor. 5AT(diag)-15, READ CURRENT DATA, OPERA-
TION, Subaru Select Monitor.>
2) Park the vehicle on a level surface.
3) After selecting all positions (P, R, N, D), set the
select lever in “P” range. Idle the engine for 1 or 2
minutes, and measure the ATF level.
4) Make sure that the ATF level is between upper
and lower marks of the HOT side.
5) If the ATF level is below the lower mark, add rec-
ommended ATF until the fluid level is between up-
per and lower marks.
CAUTION:
•Be careful not to exceed the upper level.
•When the transmission is cold, be careful not
to add ATF to the upper level on HOT side.
Overfilling of ATF may cause oil splashing.
6) Raise the ATF temperature by driving a distance
of 5 to 10 km (3 to 6 miles). Otherwise, idle the en-
gine to raise ATF temperature to 70 — 80°C (158
— 176°F) on Subaru Select Monitor. 5AT(diag)-15, READ CURRENT DATA, OPERA-
TION, Subaru Select Monitor.>
7) Check the ATF for leaks.
Visually check for leaks in the transmission. If there
are leaks, replace the gasket, oil seal, plug or other
parts.
B: REPLACEMENT
1) Lift-up the vehicle.
2) Remove the ATF drain plug to drain ATF.
CAUTION:
Directly after the vehicle has been running or
the engine has been long idle running, the ATF
is hot. Be careful not to burn yourself.
3) Check the condition of ATF.
Transmission Fluid.>
4) Tighten the ATF drain plug.
NOTE:
Use a new gasket.
Tightening torque:
20 N·m (2.0 kgf-m, 14.8 ft-lb)
5) Lower the vehicle.
6) Pour ATF from the oil charge pipe.
Specified fluid:
SUBARU ATF (Part No. K0140Y0700)
Recommended fluid:
IDEMITSU ATF HP
CASTROL TRANSMAX J
PENNZOIL QUAKERSTATE • PENNZOIL ATF-
J
NOTE:
Use of the recommended fluid is permitted only in
regions where the specified fluid is not available.
Capacity:
Fill with the same amount of ATF as drained.
Capacity when transmission is overhauled:
9.6 — 10.0 2 ( 1 0 . 1 — 1 0 . 6 U S q t , 8 . 4 — 8 . 8 I m p
qt)
7) Check the level and leaks of ATF.
mission Fluid.>
(A) ATF level gauge
(B) Upper level
(C) Lower level
AT-00674
COLDLF
HOTLF(C)
(C)
(B)
(B)
(A)
(A) Oil pan
(B) ATF drain plug
(A)
AT-03126
(B)
