SL-49
Impact Sensor
SECURITY AND LOCKS
20.Impact Sensor
A: REMOVAL
1) Remove the key from ignition switch.
2) Close all doors and the rear gate.
3) Press the UNLOCK button of the keyless trans-
mitter.
4) Change the setting of impact sensor using Sub-
aru Select Monitor.
5) Disconnect the ground cable from battery.
6) Remove the impact sensor.
B: INSTALLATION
1) Remove the key from ignition switch.
2) Close all doors and the rear gate.
3) Press the UNLOCK button of the keyless trans-
mitter.
4) Disconnect the ground cable from battery.
5) Install the impact sensor.
6) Connect the ground cable to the battery.
7) Change the setting of impact sensor using Sub-
aru Select Monitor.
C: OPERATION
1. IMPACT SENSOR SETTING USING SUB-
ARU SELECT MONITOR
1) Connect the Subaru Select Monitor to data link
connector.
2) Turn the ignition switch to ON.
3) Select {Integ. unit} from main menu.
4) Select {ECU customizing}.
5) Make a impact monitor setting.
•When installing: ON
•When removing: OFF
6) Make a impact monitor ON/OFF setting.
•When installing: ON
•When removing: OFF
7) Turn the ignition switch to OFF, and then remove
the Subaru Select Monitor.
D: ADJUSTMENT
1. CHECK IMPACT SENSOR
1) Remove the key from ignition switch.
2) Close all windows.
3) Close all doors and the rear gate. Leave open
the front hood.
4) Press the LOCK button of the keyless transmit-
ter from outside of vehicle.
5) Check that the security indicator light blinks
twice within 0.5 seconds in 2 seconds cycle after 30
seconds.
6) Hit the windshield with your palm continuously
and check the security alarm operates. Lift up the
front hood approx. 12 cm (4.7 in) or more, and then
drop it off to check the operation of security alarm.
7) If NG, adjust the impact sensitivity.
2. IMPACT SENSITIVITY ADJUSTMENT
1) Connect the Subaru Select Monitor to data link
connector.
2) Turn the ignition switch to ON.
3) Select {Impact Sensor} from the main menu.
4) Make a {ECU customizing}.
•Sensitivity can be adjusted in 11 levels (0 to 10).
•Initial setting is 5.
•Smaller number means more sensitive.
•Larger number means less sensitive.
5) Turn the ignition switch to OFF, and then remove
the Subaru Select Monitor.
NOTE:
•Set the sensor so as not to let the alarm on nor-
mal vibration (reclining to the door, hit the ball and
etc.).
•Set the sensor to operate the alarm with hitting
the door or window glass, etc. continuously like a
mayhem by robbery.
•Ask the customer about parking situation for set-
ting, because the alarm operate when the vibration
not only the burglar but also the construction etc.

SL-55
Immobilizer Antenna
SECURITY AND LOCKS
26.Immobilizer Antenna
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the screws, and detach the upper col-
umn cover and lower column cover.
3) Remove the instrument panel lower cover. to EI-36, REMOVAL, Instrument Panel Lower Cov-
er.>
4) Disconnect the immobilizer antenna connector
(A) and ignition switch lighting connector (B).
5) Loosen the screw and release the lock (D) at op-
posite side using flat-tip screwdriver (1), and then
detach the immobilizer antenna (C).
CAUTION:
Do not apply excessive force to remove the im-
mobilizer antenna and lock. Otherwise they
may be broken because those parts are the
products made of a plastic.
B: INSTALLATION
Install in the reverse order of removal.
SL-00258
(D)
(1)
SL-00315
(A)
(C)
(B)

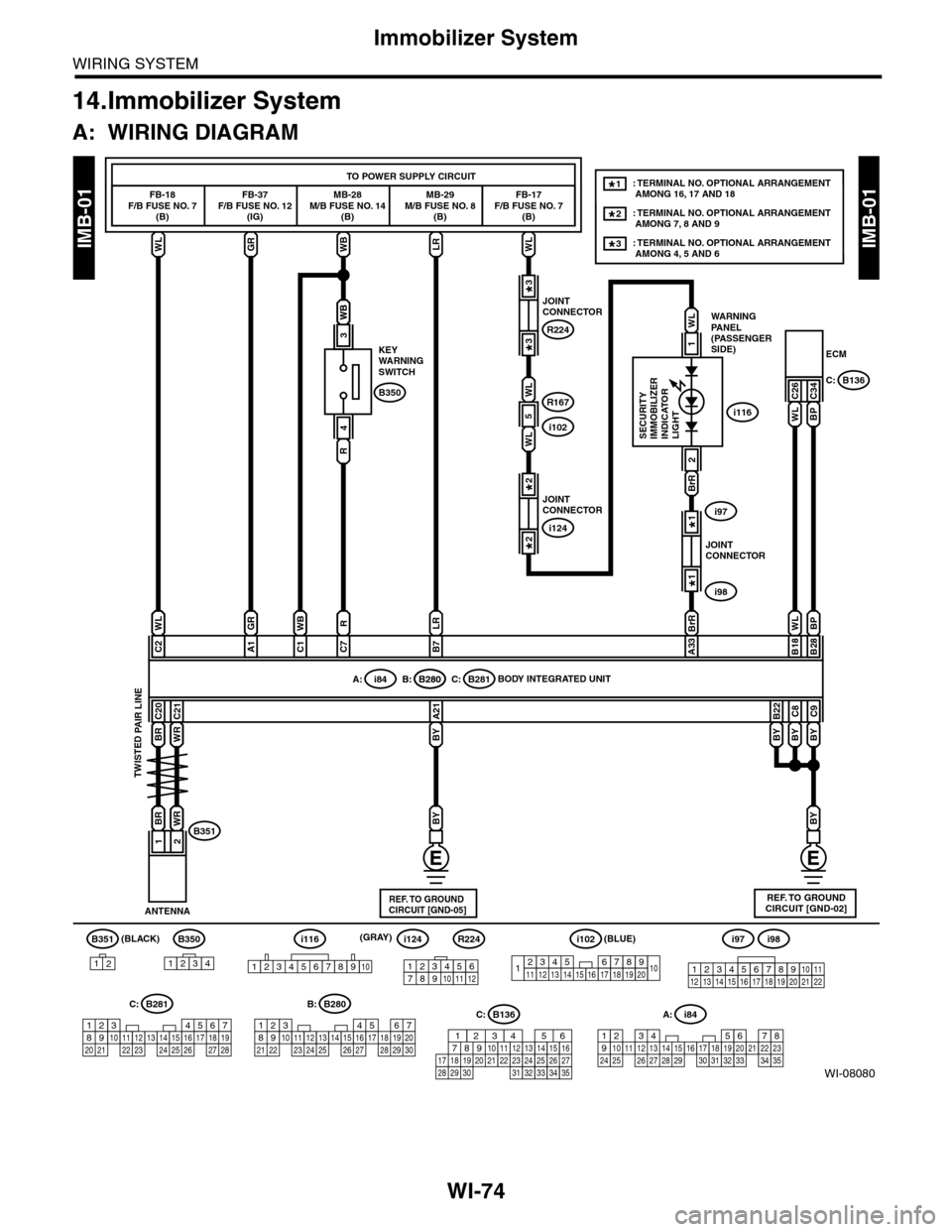

WI-74
Immobilizer System
WIRING SYSTEM
14.Immobilizer System
A: WIRING DIAGRAM
WI-08080
IMB-01IMB-01
BR
B351
12
B350
1234
A: i84
1234567891011121415161718192021222324252627282930313233343513
WLGRWBLRWL
FB-18F/B FUSE NO. 7(B)
FB-37F/B FUSE NO. 12(IG)
MB-28M/B FUSE NO. 14(B)
KEYWARNINGSWITCH
MB-29M/B FUSE NO. 8(B)
FB-17F/B FUSE NO. 7(B)
ECM
TO POWER SUPPLY CIRCUIT
C26C34B350
WB
R
4
WB
3
WL
C2
GR
A1
RWB
C7C1
LR
B7
BrR BrR
A33
BP
B28
WL
B18
BYBY
BY
C9
BY
C8
BY
B22
WLBP
A: i84B: B280C: B281B: B280
C20
WR
BRWR
C21
BY
A21
12
ANTENNA
BODY INTEGRATED UNIT
B351
WARNINGPANEL(PASSENGERSIDE)
SECURITYIMMOBILIZERINDICATORLIGHT
B136C:
2
56782194310242223 25111213141526 27 281617181920 21
B281C:
5467821931022 23111213141524 25 26 2716171828 29192021 30
B280B:
i116
REF. TO GROUNDCIRCUIT [GND-02]
(BLACK)
TWISTED PAIR LINE
JOINTCONNECTOR
i97
i98
1*
1*
JOINTCONNECTOR
R224
R167
i102
3*
3*
JOINTCONNECTOR
i124
2*
2*
1
WL
: TERMINAL NO. OPTIONAL ARRANGEMENT AMONG 16, 17 AND 18
: TERMINAL NO. OPTIONAL ARRANGEMENT AMONG 7, 8 AND 9
1*
2*
: TERMINAL NO. OPTIONAL ARRANGEMENT AMONG 4, 5 AND 63*
123456789101112
i124i98i97
12345678910111213141516171819202122
i116
12345678910
C: B136
16101112131415252430
9871718192028212223293231
123456
2726333435
R224
1234567891413121110151617181920
i102(BLUE)
5
WL
WL
REF. TO GROUNDCIRCUIT [GND-05]
(GRAY)

WI-144
Security System
WIRING SYSTEM
51.Security System
A: WIRING DIAGRAM
WI-08146
SEC-01SEC-01
SEC-02B
HORNHORN
F5F47
TO POWER SUPPLY CIRCUIT
MB-19M/B FUSE NO. 9MB-20M/B FUSE NO. 9FB-10M/B FUSE NO. 8(B)
FB-17F/B FUSE NO. 7(B)
FB-18F/B FUSE NO. 7 (B)
FB-37F/B FUSE NO. 12(IG)
MB-29M/B FUSE NO. 8 (B)
RGLRWLWLGRLRRL
73
LR
LR
JOINTCONNECTOR(ILLUMINATION & BACK-UP LIGHT)
KEYLESS ENTRYCONTROL MODULE
i99
LR
4
i96
BY
BYYG
A9
RW
B11
BY
A21
BrR
A33
WL
WL
R167
i102
WL
C2
GR
A1
LR
B7
Y
B12
BrR
2
1
SECURITY/IMMOBILIZERINDICATORLIGHTREF. TO TURN SIGNAL LIGHTAND HAZARD LIGHT SYSTEM[TURN-01]
BODY INTEGRATED UNITA: i84B: B280C: B281
WARNING BOX(PASSENGER SIDE)
i116YG
RW
RGRL
i96
12345678
567821943102422 23 25111213141526 27 281617181920 21
B281C:
5467821931022 23111213141524 25 26 2716171828 29192021 30
B280B:A: i84
1234567891011121415161718192021222324252627282930313233343513
REF. TO GROUNDCIRCUIT [GND-04]
SEC-02A
MB-21HORN RELAY
5
JOINTCONNECTOR
i124
2*
2*
1*
1*
JOINTCONNECTOR
R224
4*
4*
WL
BrWBrW
JOINT CONNECTOR
i97i98
3*
3*3*
: TERMINAL NO. OPTIONAL ARRANGEMENT AMONG 7, 8 AND 9: TERMINAL NO. OPTIONAL ARRANGEMENT AMONG 16, 17 AND 18
2*
: TERMINAL NO. OPTIONAL ARRANGEMENT AMONG 10, 11 AND 12
1*
3*
: TERMINAL NO. OPTIONAL ARRANGEMENT BETWEEN 5 AND 6
4*
1234567891413121110151617181920
i102(BLUE)
123456789101112
R224
i124(GRAY)
(GRAY)
i99(BLACK)i116
12345678910i98
i97
12345678910111213141516171819202122
