Page 25 of 281
30A-21
GENERAL INFORMATION
Steering: Tightening torque
30A
119405
121365119649
121364
No. Description Tightening torque (Nm)
(1) Steering wheel bolt 44
(2) Steering column nuts 21
(3) Universal joint bolts on
the steering box24
(4) Steering box bolt 105
(5) Track rod nuts 37
Page 26 of 281
30A-22
GENERAL INFORMATION
Steering: Tightening torque
30A
(6) Wheel bolt 105
(7) Wheel alignment lock nut 53 No. Description Tightening torque (Nm)
Page 27 of 281

30A-23
GENERAL INFORMATION
Axle assemblies: Check
30A
aLock the slip plates of the lift.
aPosition the vehicle on a lift (see Vehicle: Towing
and lifting) .
aCheck the condition of the following components:
-track rods,
-axial ball joint linkages,
-subframe,
-lower arm rubber bushes,
-lower arm ball joints (see Front driveshaft lower
arm ball joint: Check) ,
-shock absorbers,
-tyres,
aCheck:
-the tyre size (see 35A, Wheels and tyres, Tyres:
Identification, page 35A-7) ,
-the tyre inflation pressure (see 35A, Wheels and
tyres, Tyre pressure: Identification, page 35A-
10) .
aPut the vehicle in the VODM position (vehicle in run-
ning order) (see 30A, General information, Under-
body heights: Adjustment value, page 30A-24) :
-tank full,
-vehicle empty (without luggage, etc.).
aConsult:
-the front axle geometry values (see 30A, General
information, Front axle assembly: Adjustment
values, page 30A-31) ,
-the rear axle geometry values (see 30A, General
information, Rear axle assembly: Adjustment
values, page 30A-38) .
aRefer to the user manual for the geometry tester.
aCheck the geometry using the geometry tester.
aIf there is an inconsistency between the manufactur-
er's values and the measured values:
aAdjust the front axle (see 30A, General informa-
tion, Front axle system: Adjustment, page 30A-
36)
Page 28 of 281
30A-24
GENERAL INFORMATION
Underbody heights: Adjustment value
30A
I - MEASURING POINT
Radius under load:
-R1: Distance between the ground and the front wheel
shaft.
-R2: Distance between the ground and the rear wheel
shaft.
1 - Front height (W1): (W1) : Height between the ground and the side mem-
ber (the measuring point is located 23 mm from point B
of the yoke)
2 - Rear height (W2)
132534
119336
139113
119401
Page 29 of 281

30A-25
GENERAL INFORMATION
Underbody heights: Adjustment value
30A
(W2) : Height between the ground and the bolt shaft of
the rear axle bearing
II - MEASURING METHODS
Measure the heights:
-R1,
-R2,
-W1 right-hand and left-hand,
-W2 right-hand and left-hand.
Special cases:
Fit a bar across the lift.1 - Plate higher than the lift:
Measure the heights (1) , (2) , (3) .
Example: (1) = 6 cm, (2) = 8 cm, (3) = 10 cm.
Calculate the height Wx:
Wx = height (1) + height (3) - height (2) ,
Wx = 8 cm.
2 - Plate lower than the lift:
Measure the heights (1) , (2) , (3) .
Example: (1) = 8 cm, (2) = 10 cm, (3) = 4 cm.
Calculate the height Wx:
Wx = height (1) + height (2) + height (3) ,
Wx = 22 cm.
III - VEHICLE IN RUNNING ORDER POSITION
VODM (Vehicle in working order) position:
-Tank full,
-Empty vehicle (without luggage, etc.).
139112
Note:
For the measurement of W1 and W2, take into
account the height differences between the plates
and the final drive.
Note:
The value of Wx to be entered into the geometry
bench is the average of the W1 heights, right-hand
and left-hand and of the W2 heights, right-hand and
left-hand.
Note:
If the measuring points are located in empty space
(betw een the rails of the lift), use a bar.
126087
126088
Page 30 of 281
30A-26
GENERAL INFORMATION
Underbody heights: Adjustment value
30A
W1 = 158 mm ±± ± ±
8 mm
W2 = 270.7 mm ±± ± ±
12 mm
W1 = 163.5 mm ±± ± ±
8 mm
W2 = 275.1 mm ±± ± ±
12 mm
W1 = 157.7 mm ±± ± ±
8 mm
W2 = 270.3 mm ±± ± ±
12 mm EQUIPMENT LEVEL SPORT, and 16" ALUMIN-
IUM WHEELS
EQUIPMENT LEVEL SPORT, and 17" ALUMIN-
IUM WHEELS, and WITHOUT ADDITIONAL
SPORT PACK
EQUIPMENT LEVEL SPORT, and 17" ALUMIN-
IUM WHEELS, and ADDITIONAL EXTREME PACK
Note:
The position of the vehicle varies according to:
-the weight of the engine,
-the springs and shock absorbers,
-the tyres,
-the amount of fuel in the tank.
Page 31 of 281
30A-27
GENERAL INFORMATION
Front axle system: Tightening torque
30A
119335
119210
119336
119406

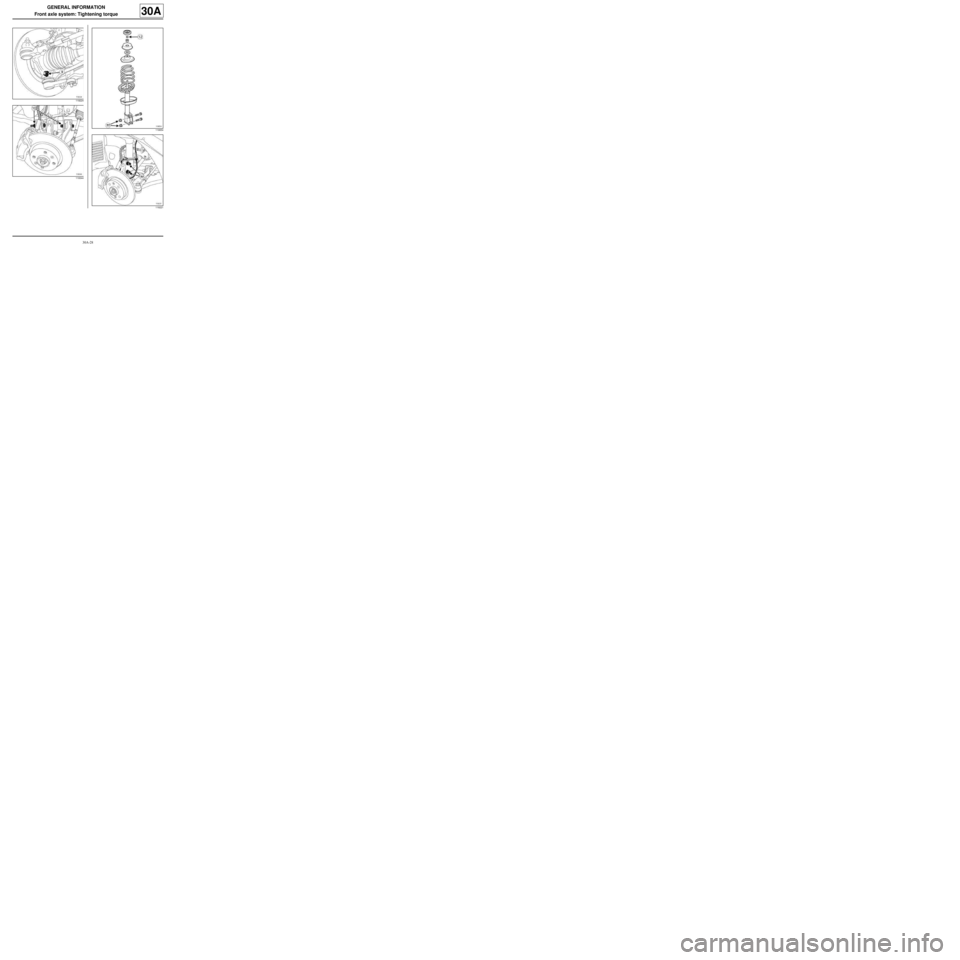

Page 32 of 281
30A-28
GENERAL INFORMATION
Front axle system: Tightening torque
30A
119224
119344
119654
119221
