2009 Peugeot 207 Dag Owner's Manual

!i
158
TOWING THE VEHICLE
Procedure for having your vehicle towed or for towing another vehicle using a removable towing eye.
Access to the tools Towing your vehicle
 On the front bumper, unclip the cover by pressing at the bottom.
 Screw the towing eye in fully.
 Install the towbar.
 Switch on the hazard warning lights on the towed vehicle.
 On the rear bumper, unclip the cover by pressing at the bottom.
 Screw the towing eye in fully.
 Install the towbar.
 Switch on the hazard warning lights on the towed vehicle.
Towing another vehicle
The towing eye is installed in the boot under the fl oor.
To gain access to it:
 open the boot,
 raise the fl oor,
 secure it by hooking its cord on the hook on the shelf support,
 remove the towing eye from the holder.

i
i
159
TOWING A TRAILER, A
CARAVAN, ETC.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer. Driving advice
The maximum towing load on a long
slope depends on the gradient and the
ambient temperature.
In all cases, pay attention to the coolant
temperature.
Distribution of loads

 Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towing load
must be reduced by 10 % and so on for
every 1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towing loads
which apply to your vehicle.
Side wind

 Take into account the increased
sensitivity to side wind. Braking
Towing a trailer increases the braking
distance.
Tyres

 Check the tyre pressures of the
towing vehicle and of the trailer,
observing the recommended pres-
sures.
Lighting

 Check the electrical signalling on
the trailer.
The rear parking assistance will be
deactivated automatically if a gen-
uine PEUGEOT towbar is used.
 If the warning lamp and the

STOP warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
Towbar suitable for the attachment of a
trailer or caravan with additional lighting
and signalling.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.

 To lower the engine speed, reduce
your speed.
We recommend the use of genuine
PEUGEOT towbars and their har-
nesses that have been tested and
approved from the design stage
of your vehicle, and that the fi t-
ting of the towbar is entrusted to a
PEUGEOT dealer.
If the trailer is not fi tted by a
PEUGEOT dealer, it is imperative
that it is fi tted using the electrical
pre-equipment installed at the rear
of the vehicle, in accordance with
the manufacturer's instructions. Driving with a trailer subjects the towing
vehicle to more signifi cant stress and its
driver must be particularly careful.

i
i
!
160
FITTING ROOF BARS (SALOON)
When fi tting transverse roof bars, use the four quick-fi t fi xings provided for this purpose:
 lift the concealing fl aps,
 adjust the roof bar quick-fi t fi xings.
FITTING ROOF BARS (SW)
Consult a PEUGEOT dealer for the installation of longitudinal roof bars.
When fi tting transverse roof bars, ensure that they are positioned correctly as shown by marks on the longitudinal roof bars.
Use accessories recommended by PEUGEOT and follow the accessory manufacturer's fi tting instructions.
In order to place a load on the roof, your vehicle must be fi tted with longitudinal roof bars with transverse roof bars fi tted on top of these.
The longitudinal roof bars cannot be removed.

!
i
161
The fi tting of electrical equipment
or accessories which are not re-
commended by PEUGEOT may
result in a failure of your vehicle's
electronic system.
Please note this specifi c warning.
You are advised to contact a rep-
resentative of the Marque to be
shown the range of recommended
equipment and accessories.
ACCESSORIES
You can obtain a wide range of accesso-
ries and original parts from the PEUGEOT
network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommenda-
tion and warranty.
The product range offered by
PEUGEOT Accessories is structured
around 5 categories: PROTECTION -
TOURING - IN-CAR TECHNOLOGY -
STYLING - UNIVERSAL.

"Protection":
"Touring":

"In-car technology":

"Styling":
"Universal":
You can obtain "Van" conversion kits to
transform a private vehicle into a van.
* To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and secured correctly,
- never fi t one mat on top of another. Depending on the country in which
the vehicle is sold, it is compulsory
to have a safety jacket, warning tri-
angle and spare bulbs available in
the vehicle.
anti-theft alarm, window en-
graving, wheel locks, breath-
alyzer, fi rst aid kit, warning
triangle, safety jacket, stolen
vehicle tracking system, tem-
porary puncture repair kit,
snow chains, anti-skid covers. mats * , boot tray, luggage net,
fi xed coat hook on head re-
straint, lighter, aluminium or
PVC door sills.
For leisure pursuits: roof bars,
bicycle carrier on towbar, bi-
cycle carrier on roof bars,
ski carrier, roof box, booster
seats and child seats, side blinds and
rear blind, front centre armrest, under
shelf storage.
Trailer towbar which must be fi tted by
the PEUGEOT network.
audio systems, satellite navi-
gation systems, hands-free
kit, CD changer, speakers,
DVD player, connection kit for
MP3 player or portable CD
player, USB Box, front and
rear parking assistance.
seat covers compatible with
side air bags, aluminium gear
lever knob, fog lamps, door de-
fl ectors, spoiler, styling strips,
alloy wheels, trims, chromed
mirror shells, body kit. screenwash, interior and exte-
rior maintenance and cleaning
products.

10

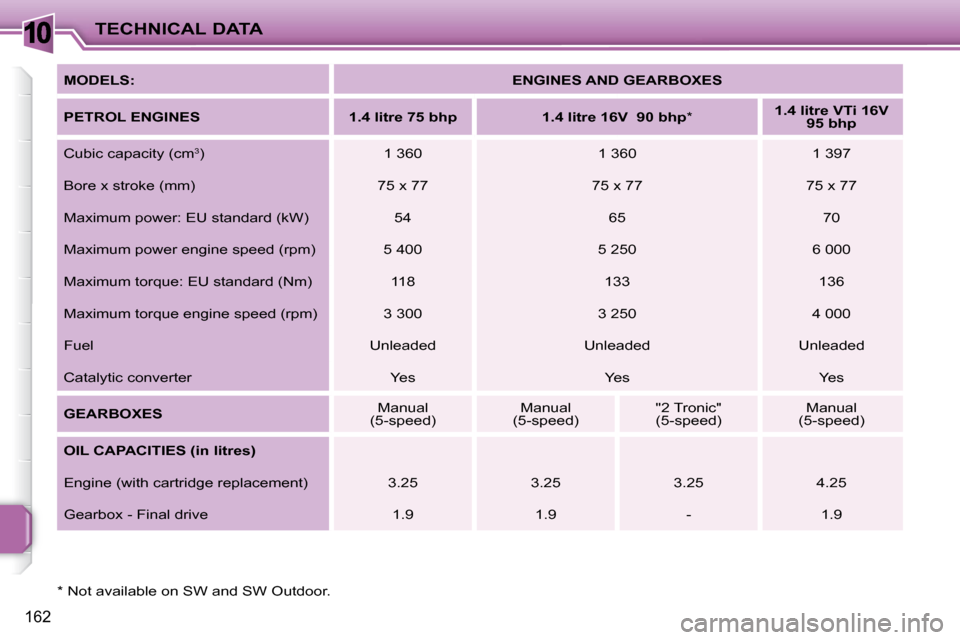

162
TECHNICAL DATA
* Not available on SW and SW Outdoor. MODELS:
ENGINES AND GEARBOXES

PETROL ENGINES 1.4 litre 75 bhp 1.4 litre 16V 90 bhp *
1.4 litre VTi 16V
95 bhp
Cubic capacity (cm 3
) 1 360 1 360 1 397
Bore x stroke (mm) 75 x 77 75 x 77 75 x 77
Maximum power: EU standard (kW) 54 65 70
Maximum power engine speed (rpm) 5 400 5 250 6 000
Maximum torque: EU standard (Nm) 118 133 136
Maximum torque engine speed (rpm) 3 300 3 250 4 000
Fuel Unleaded Unleaded Unleaded
Catalytic converter Yes Yes Yes

GEARBOXES Manual
(5-speed) Manual
(5-speed) "2 Tronic"
(5-speed) Manual
(5-speed)

OIL CAPACITIES (in litres)

Engine (with cartridge replacement) 3.25 3.25 3.25 4.25
Gearbox - Final drive 1.9 1.9 - 1.9

10
163

MODELS: ENGINES AND GEARBOXES

PETROL ENGINES
1.6 litre 16V
110 bhp *
1.6 litre VTi 16V 120 bhp
1.6 litre THP
16V 150 bhp *
1.6 litre THP
16V 175 bhp
Cubic capacity (cm 3
) 1 587 1 598 1 598 1 598
Bore x stroke (mm) 78.5 x 82 77 x 85.8 77 x 85.8 77 x 85.8
Maximum power: EU standard (kW) 80 88 110 128
Maximum power engine speed (rpm) 5 800 6 000 5 800 6 000
Maximum torque: EU standard (Nm) 147 160 240 240
Maximum torque engine speed (rpm) 4 000 4 250 1 400 1 600
Fuel Unleaded Unleaded Unleaded Unleaded **
Catalytic converter Yes Yes Yes Yes

GEARBOXES Manual
(5-speed) Manual
(5-speed) Auto
(4-speed) Manual
(5-speed) Manual
(5-speed)

OIL CAPACITIES (in litres)

Engine (with cartridge replacement) 3.25 4.25 4.25 4.25 4.25
Gearbox - Final drive 1.9 1.9 - 1.9 1.9
* Not available on SW and SW Outdoor.
** PEUGEOT recommends the use of RON 98 unleaded petrol to guarantee optimum performance of the engine.

10
174
TECHNICAL DATA

MODELS:
ENGINES AND GEARBOXES

DIESEL ENGINES
1.4 litre Turbo
HDI 70 bhp *
1.6 litre Turbo HDI 16V 90 bhp 1.6 litre Turbo HDI 16V 110 bhp
Cubic capacity (cm 3
) 1 398 1 560 1 560
Bore x stroke (mm) 73.7 x 82 75 x 88.3 75 x 88.3
Maximum power: EU standard (kW) 50 66 80
Maximum power engine speed (rpm) 4 000 4 000 4 000
Maximum torque: EU standard (Nm) 160 215 240
Maximum torque engine speed (rpm) 2 000 1 750 1 750
Fuel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes
Particle emission fi lter No No Yes No Yes

GEARBOXES Manual
(5-speed) Manual
(5-speed) Manual
(5-speed)

OIL CAPACITIES (in litres)

Engine (with cartridge replacement) 3.75 3.25 3.25
Gearbox - Final drive 1.9 1.9 1.9
* Not available on SW and SW Outdoor.

10
164
TECHNICAL DATA
SALOON CONSUMPTION In accordance with EC directive 80/1268 (as amended)

Petrol engines Gearboxes
Urban driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km) Mixed driving mpg
(litres/100 km)
Emission of
CO 2 by mass
(g/km)

1.4 litre 75 bhp Manual 32.4 (8.7) 56.5 (5.0) 44.1 (6.4) 147

1.4 litre 16V 90 bhp
Manual 33.2 (8.5) 54.3 (5.2) 44.1 (6.4) 152

"2 Tronic" 35.8 (7.9) 54.3 (5.2) 45.6 (6.2) 146

1.4 litre VTi 16V 95 bhp Manual 34.9 (8.1) 56.5 (5.0) 46.3 (6.1) 140
The consumption fi gures shown here correspond to the values co mmunicated at the time of printing.
These consumption values were established in accordance with EC Directive 80/1268 (as amended). They may vary
depending on the style of driving, traffi c conditions, weat her conditions, the load in the vehicle, the maintenance o f the vehicle
and the use of the equipment.
