SAFETY
54
TRAJECTORY CONTROL
SYSTEMS
Anti-skid regulation (ASR) and
electronic stability programme (ESP)
The anti-skid regulation (also known as
Traction Control) optimises traction to
prevent skidding of the wheels, by act-
ing on the brakes of the driving wheels
and on the engine.
The electronic stability programme acts
on the brake of one or more wheels and
on the engine to keep the vehicle on the
t r a j e c t o r y r e q u i r e d b y t h e d r i v e r .
Activation
These systems are activated automati-
cally each time the vehicle is started. They come into operation in
t h e e v e n t o f a g r i p o r t r a j e c t o r y
problem.
T h i s i s i n d i c a t e d b y fl a s h i n g o f
this warning lamp on the instru-
ment panel. Deactivation
In exceptional conditions (starting a ve-
hicle which is bogged down, stuck in
snow, on soft ground...), it may be ad-
visable to deactivate the ASR and ESP
systems, so that the wheels can move
freely and regain grip.
Press the "ESP OFF" button, located
on the left below the steering wheel.
Reactivation
These systems are reactivated automat-
ically each time the ignition is switched
back on or from 30 mph (50 km/h).
Press the "ESP OFF" button again
to reactivate them manually. If this warning lamp comes on
in the instrument panel and the
indicator lamp on the button
comes on, this indicates that the
ASR and ESP systems are deactivated. Operating fault
If this warning lamp comes on,
accompanied by an audible sig-
nal and a message on the multi-
function screen, this indicates a
malfunction of these systems.
Have the systems checked by a
PEUGEOT dealer.
The ESP/ASR systems offer ex-
ceptional safety in normal driving,
but this should not encourage the
driver to take extra risks or drive at
high speed.
The correct functioning of these
systems depends on observation
of the manufacturer's recommen-
dations regarding the wheels (tyres
and rims), the braking components,
the electronic components and the
PEUGEOT assembly and opera-
tion procedures.
After an impact, have these sys-
tems checked by a PEUGEOT
dealer.
Page 58 of 113
55
SEAT BELTS
Driver's seat belt not
fastened/unfastened warning
light *
Front seat belt height adjustment
To lower the attachment point, pull the
control towards you and slide it down-
wards.
To raise the attachment point, slide the
control upwards. Fastening the seat belts
Pull the strap, then insert the tongue
into the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
Unfastening the seat belts
Press the red button on the buckle.
Front seat belts with pre-tensioner
and force limiter *
Safety in the event of front impacts has
been improved by the introduction of
seat belts with pre-tensioner and force
limiter for the front seats. Depending on
the seriousness of the impact, the pre-
tensioning system instantly tightens the
seat belts and pulls them against the
bodies of the occupants. Rear seat belts
T h e r e a r s e a t s a r e fi t t e d w i t h t h r e e - p o i n t
inertia reel seat belts.
The pre-tensioning seat belts are active
when the ignition is on.
The force limiter eases the pressure of
the seat belt against the chest of the oc-
cupant so increasing his protection.
* According to model.
The warning light comes on each time
the ignition is switched on.
The warning light remains on until the
driver fastens his seat belt.
From 12 mph (20 km/h) and for two
m i n u t e s , t h e w a r n i n g l i g h t fl a s h e s a c -
companied by an audible signal which
increases in volume and a message on
the multifunction display.
Once these two minutes have elapsed,
the warning light remains on until the
driver fastens his seat belt.
Page 59 of 113
i
SAFETY
56
The driver must ensure that passen-
gers use the seat belts correctly and
that they are all restrained securely
before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
e v e n f o r s h o r t j o u r n e y s .
Do not invert the seat belt buckles as
t h e y w i l l n o t f u l fi l t h e i r r o l e f u l l y .
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n e r t i a
r e e l p e r m i t t i n g a u t o m a t i c a d j u s t m e n t
of the length of the strap to your size.
The seat belt is stored automatically
when not in use.
Before and after use, ensure that the
seat belt is rolled up correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a n a u -
tomatic locking device which comes
into operation in the event of a colli-
sion, emergency braking or if the ve-
hicle rolls over. You can release the
device by pulling rapidly on the strap
and releasing it. * According to model.
In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one person of adult size only,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement, checking
that it does not twist,
- must not be transformed or modi- fi e d t o a v o i d a l t e r i n g i t s p e r f o r m -
ance.
In accordance with current safety reg-
ulations, all repairs and checks must
be carried out by a PEUGEOT dealer
who guarantees that the work is car-
ried out correctly.
Have your seat belts checked regu-
larly by a PEUGEOT dealer and par-
ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and rolled up correctly. Recommendations for children
Use a suitable child seat if the pas-
senger is less than 12 years old or
s h o r t e r t h a n o n e m e t r e fi f t y .
Never use the same seat belt to
secure more than one person.
Never allow a child to travel on your
lap.
Depending on the nature and se-
riousness of the impacts , the pre-
tensioning device * may be triggered
before and independently of the air
bags. Triggering of the pre-tensioners
is accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
In all cases, the air bag warning light
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a PEUGEOT dealer.
Page 60 of 113
!!
57

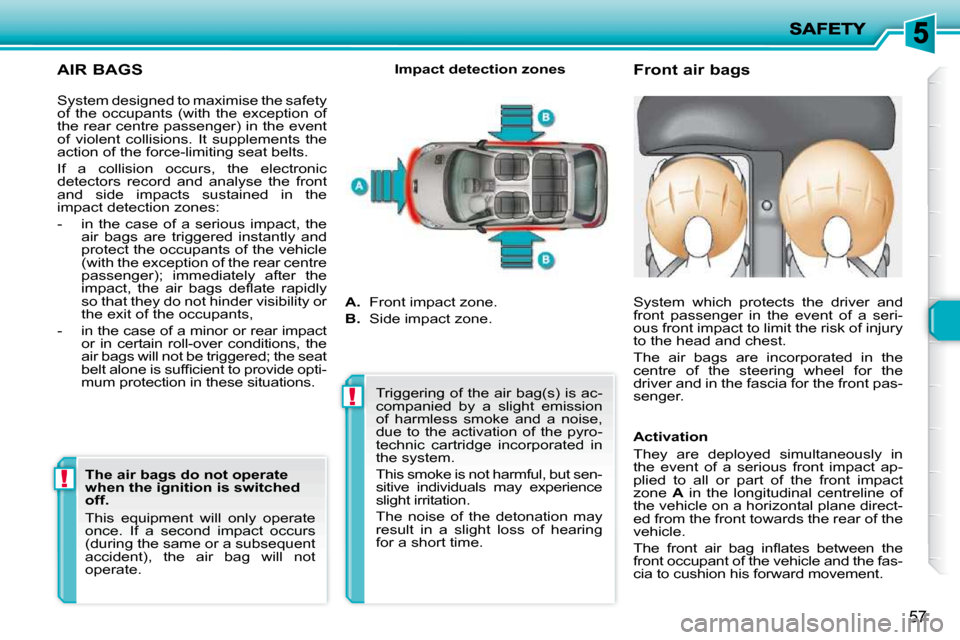

AIR BAGS
Front air bags
Impact detection zones
System designed to maximise the safety
of the occupants (with the exception of
the rear centre passenger) in the event
of violent collisions. It supplements the
action of the force-limiting seat belts.
If a collision occurs, the electronic
detectors record and analyse the front
and side impacts sustained in the
impact detection zones:
- in the case of a serious impact, the air bags are triggered instantly and
protect the occupants of the vehicle
(with the exception of the rear centre
passenger); immediately after the
i m p a c t , t h e a i r b a g s d e fl a t e r a p i d l y
so that they do not hinder visibility or
the exit of the occupants,
- in the case of a minor or rear impact or in certain roll-over conditions, the
air bags will not be triggered; the seat
b e l t a l o n e i s s u f fi c i e n t t o p r o v i d e o p t i -
mum protection in these situations.
The air bags do not operate
when the ignition is switched
off.
This equipment will only operate
once. If a second impact occurs
(during the same or a subsequent
accident), the air bag will not
operate.
A. Front impact zone.
B. Side impact zone. System which protects the driver and
front passenger in the event of a seri-
o u s f r o n t i m p a c t t o l i m i t t h e r i s k o f i n j u r y
to the head and chest.
The air bags are incorporated in the
centre of the steering wheel for the
driver and in the fascia for the front pas-
senger.
Activation
They are deployed simultaneously in
the event of a serious front impact ap-
plied to all or part of the front impact
zone
A in the longitudinal centreline of
the vehicle on a horizontal plane direct-
ed from the front towards the rear of the
vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the fas-
cia to cushion his forward movement.
Triggering of the air bag(s) is ac-
companied by a slight emission
of harmless smoke and a noise,
due to the activation of the pyro-
technic cartridge incorporated in
the system.
This smoke is not harmful, but sen-
sitive individuals may experience
slight irritation.
The noise of the detonation may
result in a slight loss of hearing
for a short time.
Page 61 of 113
SAFETY
58
Operating fault Side air bags Activation
The side air bags are triggered unilater-
ally in the event of a serious side impact
applied to all or part of the side impact
zone
B , perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
occupant of the vehicle and the corre-
sponding door trim pad.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
Disarming the front passenger's
front air bag
To ensure the safety of your child, it is
essential to disarm the passenger air
bag when you install a rear-facing child
seat on the front passenger seat. Other-
wise, the child would risk being seriously
i n j u r e d o r k i l l e d i f t h e a i r b a g w e r e t o i n -
fl a t e .
With the ignition switched off , in-
sert the key into the passenger air
bag disarming switch, turn it to the
"OFF" position, then remove the
key keeping the slot in this position. Reactivation
As soon as the child seat is removed,
turn the air bag slot to the
"ON" posi-
tion to re-activate the air bag and thus
ensure its safety function.
System which protects the driver in the
event of a serious side impact in order
t o l i m i t t h e r i s k o f i n j u r y t o t h e c h e s t .
The side air bag is incorporated in the
seat back frame, on the door side. When the ignition is on, this
warning light remains lit on the
instrument panel for the dura-
tion of disarming.
If this warning light comes on,
accompanied by an audible
signal and a message on the
multifunction display, contact a
PEUGEOT dealer to have the air bags
system checked. In the
"OFF" position, the passenger air
bag will not be triggered in the event of
an impact.
Page 62 of 113
!
59
For the air bags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
W e a r a c o r r e c t l y a d j u s t e d s e a t b e l t .
Do not leave anything between the
occupants and the air bags (a child,
p e t , o b j e c t . . . ) . T h i s c o u l d h a m p e r t h e
o p e r a t i o n o f t h e a i r b a g s o r i n j u r e t h e
occupants.
After an accident or if the vehicle has
been stolen or broken into, have the
air bag systems checked.
All work on the air bag system is strict-
ly forbidden unless it is carried out by
q u a l i fi e d p e r s o n n e l o f t h e P E U G E O T
network.
Even if all of the precautions men-
t i o n e d a r e o b s e r v e d , a r i s k o f i n j u r y
or of minor burns to the head, chest
or arms when an air bag is triggered
cannot be ruled out. In fact, the bag
i n fl a t e s a l m o s t i n s t a n t l y ( w i t h i n a
f e w m i l l i s e c o n d s ) t h e n d e fl a t e s w i t h i n
the same time discharging the hot
gas via openings provided for this
purpose. Front air bags
Do not drive holding the steering wheel by its spokes or resti
ng your hands on
the centre part of the wheel.
Passengers must not place their feet on the fascia.
Smoke as little as possible as deployment of the air bags can ca use burns or
t h e r i s k o f i n j u r y f r o m a c i g a r e t t e o r p i p e .
Never remove or pierce the steering wheel or hit it violently.
Side air bags
Only put approved covers on the seats. These will not hinder the triggering of
the side air bags. Contact a PEUGEOT dealer.
D o n o t fi x o r g l u e a n y t h i n g t o t h e s e a t b a c k s . T h i s c o u l d c a u s e i n j u r y t o t h e
c h e s t o r a r m s w h e n t h e s i d e a i r b a g i n fl a t e s .
Do not sit with the upper part of the body any nea rer to the door than necessary.
Page 63 of 113
SAFETY
58
Operating fault Side air bags Activation
The side air bags are triggered unilater-
ally in the event of a serious side impact
applied to all or part of the side impact
zone
B , perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
occupant of the vehicle and the corre-
sponding door trim pad.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
Disarming the front passenger's
front air bag
To ensure the safety of your child, it is
essential to disarm the passenger air
bag when you install a rear-facing child
seat on the front passenger seat. Other-
wise, the child would risk being seriously
i n j u r e d o r k i l l e d i f t h e a i r b a g w e r e t o i n -
fl a t e .
With the ignition switched off , in-
sert the key into the passenger air
bag disarming switch, turn it to the
"OFF" position, then remove the
key keeping the slot in this position. Reactivation
As soon as the child seat is removed,
turn the air bag slot to the
"ON" posi-
tion to re-activate the air bag and thus
ensure its safety function.
System which protects the driver in the
event of a serious side impact in order
t o l i m i t t h e r i s k o f i n j u r y t o t h e c h e s t .
The side air bag is incorporated in the
seat back frame, on the door side. When the ignition is on, this
warning light remains lit on the
instrument panel for the dura-
tion of disarming.
If this warning light comes on,
accompanied by an audible
signal and a message on the
multifunction display, contact a
PEUGEOT dealer to have the air bags
system checked. In the
"OFF" position, the passenger air
bag will not be triggered in the event of
an impact.
Page 64 of 113
!
59
For the air bags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
W e a r a c o r r e c t l y a d j u s t e d s e a t b e l t .
Do not leave anything between the
occupants and the air bags (a child,
p e t , o b j e c t . . . ) . T h i s c o u l d h a m p e r t h e
o p e r a t i o n o f t h e a i r b a g s o r i n j u r e t h e
occupants.
After an accident or if the vehicle has
been stolen or broken into, have the
air bag systems checked.
All work on the air bag system is strict-
ly forbidden unless it is carried out by
q u a l i fi e d p e r s o n n e l o f t h e P E U G E O T
network.
Even if all of the precautions men-
t i o n e d a r e o b s e r v e d , a r i s k o f i n j u r y
or of minor burns to the head, chest
or arms when an air bag is triggered
cannot be ruled out. In fact, the bag
i n fl a t e s a l m o s t i n s t a n t l y ( w i t h i n a
f e w m i l l i s e c o n d s ) t h e n d e fl a t e s w i t h i n
the same time discharging the hot
gas via openings provided for this
purpose. Front air bags
Do not drive holding the steering wheel by its spokes or resti
ng your hands on
the centre part of the wheel.
Passengers must not place their feet on the fascia.
Smoke as little as possible as deployment of the air bags can ca use burns or
t h e r i s k o f i n j u r y f r o m a c i g a r e t t e o r p i p e .
Never remove or pierce the steering wheel or hit it violently.
Side air bags
Only put approved covers on the seats. These will not hinder the triggering of
the side air bags. Contact a PEUGEOT dealer.
D o n o t fi x o r g l u e a n y t h i n g t o t h e s e a t b a c k s . T h i s c o u l d c a u s e i n j u r y t o t h e
c h e s t o r a r m s w h e n t h e s i d e a i r b a g i n fl a t e s .
Do not sit with the upper part of the body any nea rer to the door than necessary.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
