2009 OPEL ZAFIRA Owners Manual

Service and maintenance

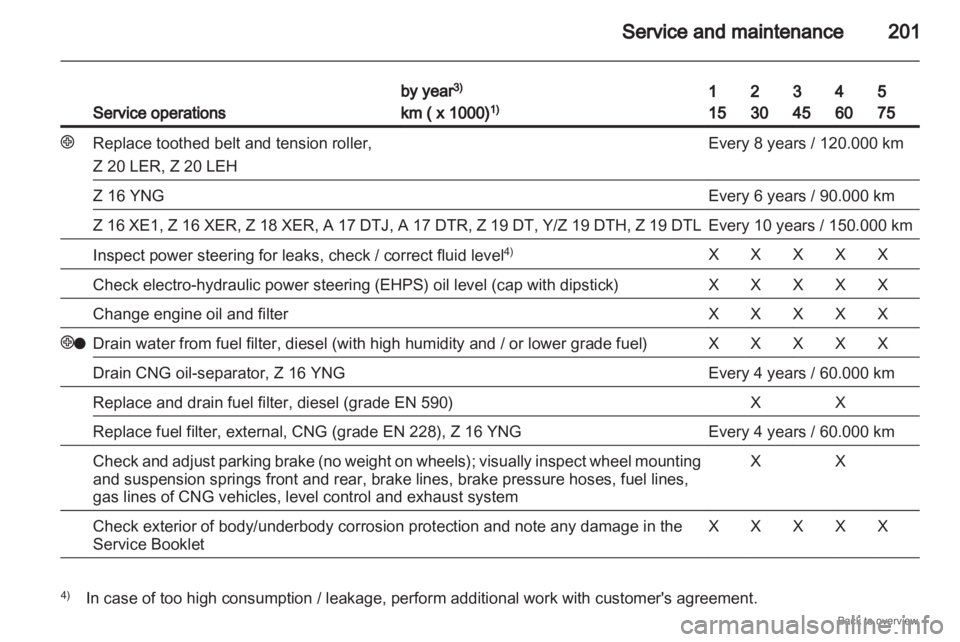

201Service operations by year
3)
km ( x 1000) 1) 1
15 2
30 3
45 4
60 5
75
+ Replace toothed belt and tension roller,
Z 20 LER, Z 20 LEH Every 8 years / 120.000 km
Z 16 YNG Every 6 years / 90.000 km
Z 16 XE1, Z 16 XER, Z 18 XER, A 17 DTJ, A 17 DTR, Z 19 DT, Y/Z 19 DTH, Z 19 DTL Every 10 years / 150.000 km
Inspect power steering for leaks, check / correct fluid level
4) X X X X X
Check electro-hydraulic power steering (EHPS) oil level (cap with dipstick) X X X X X
Change engine oil and filter X X X X X
+o Drain water from fuel filter, diesel (with high humidity and / or lower grade fuel) X X X X X
Drain CNG oil-separator, Z 16 YNG Every 4 years / 60.000 km
Replace and drain fuel filter, diesel (grade EN 590) X X
Replace fuel filter, external, CNG (grade EN 228), Z 16 YNG Every 4 years / 60.000 km
Check and adjust parking brake (no weight on wheels); visually inspect wheel mounting
and suspension springs front and rear, brake lines, brake pressure hoses, fuel lines,
gas lines of CNG vehicles, level control and exhaust system X X
Check exterior of body/underbody corrosion protection and note any damage in the
Service Booklet X X X X X
4)
In case of too high consumption / leakage, perform additional work with customer's agreement.

202
Service and maintenanceService operations by year
3)
km ( x 1000) 1) 1
15 2
30 3
45 4
60 5
75
+o
Visually inspect front and rear wheel brakes
4)
, if a tyre pressure monitoring system is
fitted, do not swap wheels over X X
Annual service check if annual mileage exceeds 20 000 km
Engine, transmission (AT, MT), inspect air-conditioning compressor for leaks
4) X X X X X
Visually inspect folding covers on steering, tie rods and axle drive X X X X X
Tie rod and supporting joint checking X X X X X
+ Change brake and clutch fluid automated manual transmission (MTA) Every 2 years
Undo wheel fastening (take care if tyre pressure monitoring system is present) and
tighten to torque: 110 Nm.
The wheel bolt taper should be greased or oiled lightly during assembly.
Check tyre condition. Check/correct tyre pressure (including spare wheel)
With tyre repair system - check completeness and expiry date of kit. Replace sealant
bottle every 4 years. X X
+
Annual service check if annual mileage exceeds 20 000 km
Visually inspect first-aid kit, (presence in designated stowage compartment,
completeness and expiry date), lashing eyes and warning triangle Every 2 years
Check/correct headlamp adjustment (including auxiliary headlamps) X X
4)
In case of too high consumption / leakage, perform additional work with customer's agreement.

Service and maintenance
203Service operations by year
3)
km ( x 1000) 1) 1
15 2
30 3
45 4
60 5
75
Grease door hinges, door stop, lock cylinder, striker plate, bonnet lock, tailgate hinges,
wipe door stop check strap clean before greasing X X
Test drive, final inspection (check steering and ignition locks, instruments and indicator
lamps,
entire brake system, steering, air conditioning, engine, body and running gear),
reset service interval display with TECH 2) X X X X X
+: Additional operations.
o: Under extreme operating conditions and if required by country-specific conditions, the intervals are reduced.

204
Service and maintenance
Additional servicing
Additional operations +
Additional operations are not required
every service but can be performed in
conjunction with a regular service.
Time allowances for such work are
not included in the scope of regular
services and will be charged for
additionally. It is more economic if
these operations are performed as
part of a scheduled service than
having them performed separately.
Extreme operating conditions o
Extreme operating conditions are
given when at least one of the
following occurs frequently:
■ cold starts,
■ stop and go,
■ trailer towing,
■ gradients and/or high altitudes,
■ poor road surfaces,
■ sand and dust,
■ extreme temperature fluctuations. Police vehicles, taxis and driving
school vehicles are also classified as
operating under extreme conditions.
Under extreme operating conditions,
it may be necessary to have certain
scheduled service work done more
frequently than the scheduled
intervals.
Seek technical advice on the
servicing
requirements dependent on
the specific operating conditions. Recommended fluids,
lubricants and parts
Recommended fluids and
lubricants
Only use products that have been
tested and approved. Damage
resulting from the use of non-
approved materials will not be
covered by the warranty.
9
Warning Operating materials are
hazardous and could be
poisonous. Handle with care. Pay
attention to information given on
the containers.
Engine oil
Engine oil is identified by its quality
and also its viscosity. Quality is more
important than viscosity when
selecting which engine oil to use.

Service and maintenance
205
Engine oil quality for European
service schedules
GM-LL-
A-025 = Petrol engines
GM-LL-
B-025 = Diesel engines
without DPF
ACEA-C3 = Diesel engines with DPF
GM = General Motors Europe
LL = Longlife
A or B = Engine oil quality specification
025 = Validity index
Opel engine oil meets classifications
GM-LL-A-025 and GM-LL-B-025 and
is therefore suitable for both petrol
and diesel engines.
Engine oil quality for international
service schedules
ACEA-A3 = Petrol engines
ACEA-B4 = Diesel engines without diesel particle filter
ACEA-C3 = Diesel engines with diesel particle filter These oil qualities must only be used
with the international service
schedule.
Topping up engine oil
Engine
oils of different manufacturers
and brands can be mixed as long as
they comply with the required engine
oil (quality and viscosity).
If engine oil of the required quality is
not available, a maximum of 1 litre of
ACEA A3/B4 or A3/B3 grade may be
used (only once between each oil
change). The viscosity should be of
the correct rating.
Use of ACEA A1/B1 and A5/B5
engine oil is expressly forbidden,
since they can cause long-term
engine damage under certain
operating conditions.
Engine oil additives
The use of engine oil additives could
cause damage and invalidate the
warranty.
Engine oil viscosity
Use only engine oil viscosities SAE
0W-30, 0W-40, 5W-30 or 5W-40. The SAE viscosity rating defines the
ability of an oil to flow. When cold, oil
is more viscous than when hot.
Multigrade oil is indicated by two
figures. The first figure, followed by
a W, indicates low temperature
viscosity and the second figure the
high temperature viscosity.
Coolant and antifreeze
Use
only silicate-free long life coolant
(LLC) antifreeze.
The system is factory filled with
coolant designed for frost protection
down to approx. -28 °C. This
concentration should be maintained
all year-round.
Coolant additives intended to give
additional corrosion protection or seal
against minor leaks can cause
function problems. Liability for
consequences resulting from the use
of coolant additives will be rejected.

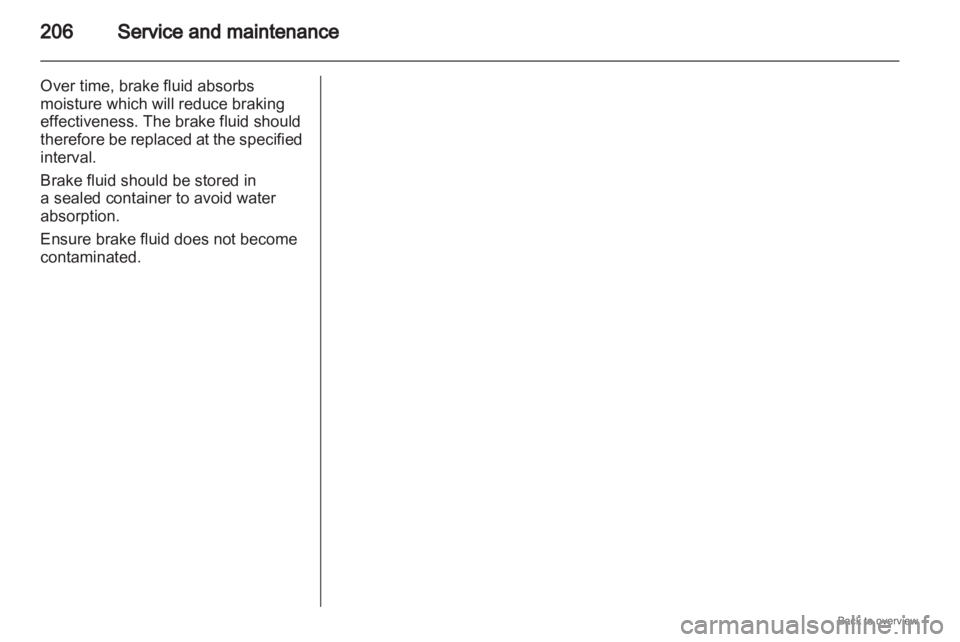

Brake and clutch fluid
Only use DOT4 brake fluid.

206
Service and maintenance
Over time, brake fluid absorbs
moisture which will reduce braking
effectiveness. The brake fluid should
therefore
be replaced at the specified
interval.
Brake fluid should be stored in
a sealed container to avoid water
absorption.
Ensure brake fluid does not become
contaminated.

Technical data
207
Technical data
Vehicle identification ..................207
Vehicle data ............................... 209 Vehicle identification
Vehicle Identification
Number
The vehicle identification number is
stamped on the identification plate
and on the floor pan, under the floor
covering, visible under a cover. The vehicle identification number
may be embossed on the instrument
panel
visible through the windscreen.

208
Technical data
Identification plate The identification plate is located on
the front right door frame. Information on identification plate:
1
= Manufacturer
2 = Type approval number
3 = Vehicle identification number
4 = Permissible gross vehicle
weight rating
5 = Permissible gross train weight
6 = Maximum permissible front axle
load
7 = Maximum permissible rear axle
load
8 = Vehicle-specific or
countryspecific data
The combined total of front and rear
axle loads must not exceed the
permissible
gross vehicle weight. For
example, if the front axle is bearing its
maximum permissible load, the rear
axle can only bear a load that is equal
to the gross vehicle weight minus the
front axle load.
The technical data is determined in
accordance with European
Community standards. We reserve
the right to make modifications.
Specifications in the vehicle
documents always have priority over
those given in this manual.
