2009 OPEL ZAFIRA Owners Manual

Seats, restraints

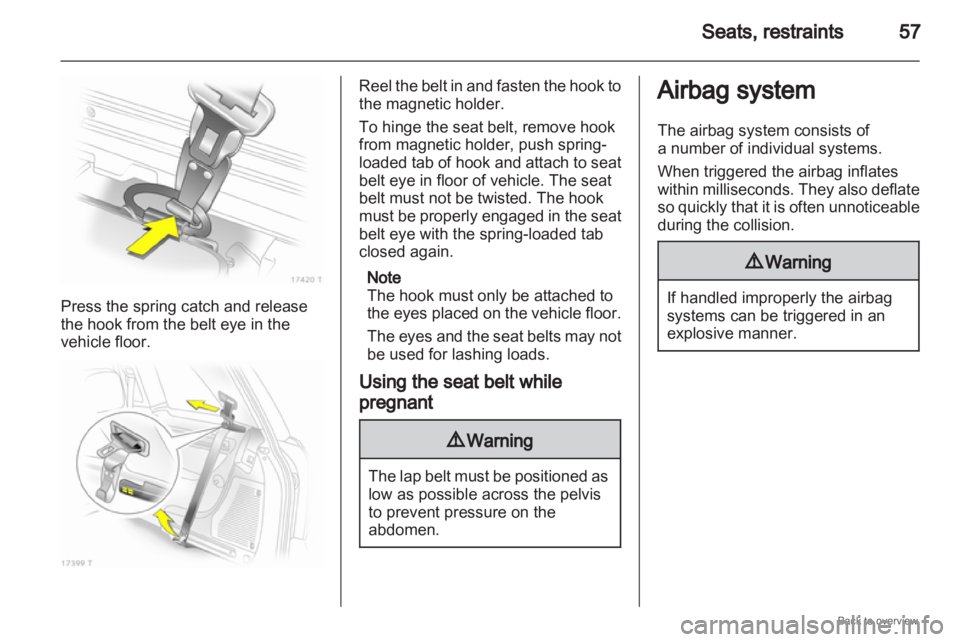

57Press the spring catch and release
the hook from the belt eye in the
vehicle floor. Reel the belt in and fasten the hook to
the magnetic holder.
To hinge the seat belt, remove hook
from magnetic holder, push spring-
loaded
tab of hook and attach to seat
belt eye in floor of vehicle. The seat
belt must not be twisted. The hook
must be properly engaged in the seat
belt eye with the spring-loaded tab
closed again.
Note
The hook must only be attached to
the eyes placed on the vehicle floor.
The eyes and the seat belts may not
be used for lashing loads.
Using the seat belt while
pregnant 9
Warning The lap belt must be positioned as
low as possible across the pelvis
to prevent pressure on the
abdomen. Airbag system
The airbag system consists of
a number of individual systems.
When triggered the airbag inflates
within
milliseconds. They also deflate
so quickly that it is often unnoticeable
during the collision. 9
Warning If handled improperly the airbag
systems can be triggered in an
explosive manner.

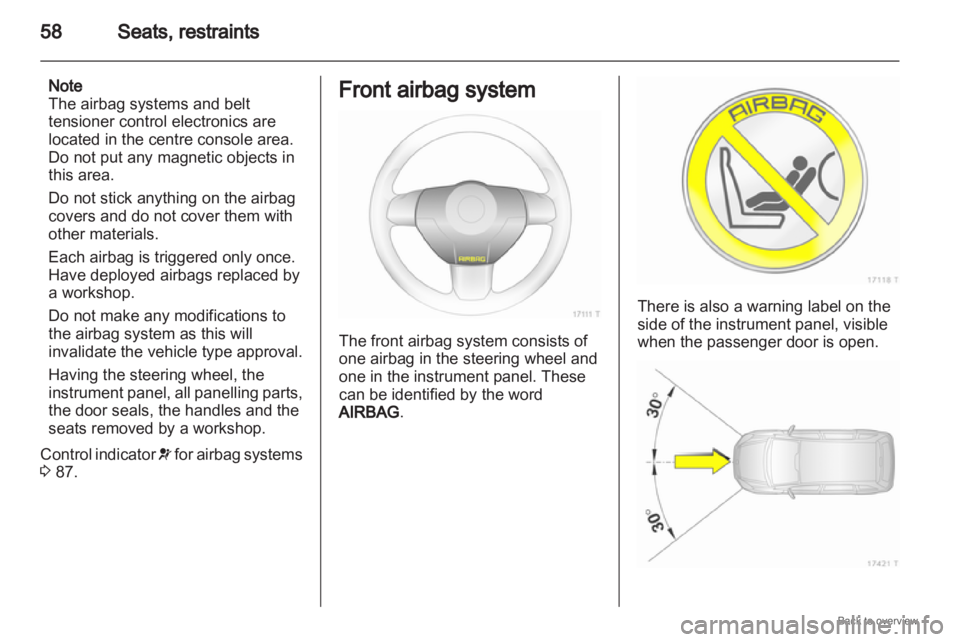

58
Seats, restraints
Note
The airbag systems and belt
tensioner control electronics are
located in the centre console area.
Do not put any magnetic objects in
this area.
Do not stick anything on the airbag
covers and do not cover them with
other materials.
Each airbag is triggered only once.
Have deployed airbags replaced by
a workshop.
Do not make any modifications to
the airbag system as this will
invalidate the vehicle type approval.
Having the steering wheel, the
instrument
panel, all panelling parts,
the door seals, the handles and the
seats removed by a workshop.
Control indicator v for airbag systems
3 87. Front airbag system
The front airbag system consists of
one airbag in the steering wheel and
one in the instrument panel. These
can be identified by the word
AIRBAG. There is also a warning label on the
side of the instrument panel, visible
when the passenger door is open.

Seats, restraints
59
The front airbag system is triggered in
the event of an accident of a certain
severity in the depicted area. The
ignition must be on.
Seat occupancy recognition 3 61.
Opel child restraint system with
transponders 3 65.The forward movement of the front
seat occupants is retarded, thereby
considerably reducing the risk of
injury to the upper body and head. 9
Warning Optimum protection is only
provided when the seat is in the
proper position
3 46.
Keep the area in which the airbag
inflates clear of obstructions.
Wear the seat belt properly
fastened. Only then the airbag is
able to protect. Side airbag system The side airbag system consists of an
airbag in each front seat backrest.
This can be identified by the word
AIRBAG.
The side airbag system is triggered in
the event of an accident of a certain
severity in the depicted area. The
ignition must be on.
Seat occupancy recognition
3 61.
Opel child restraint system with
transponders 3 65.

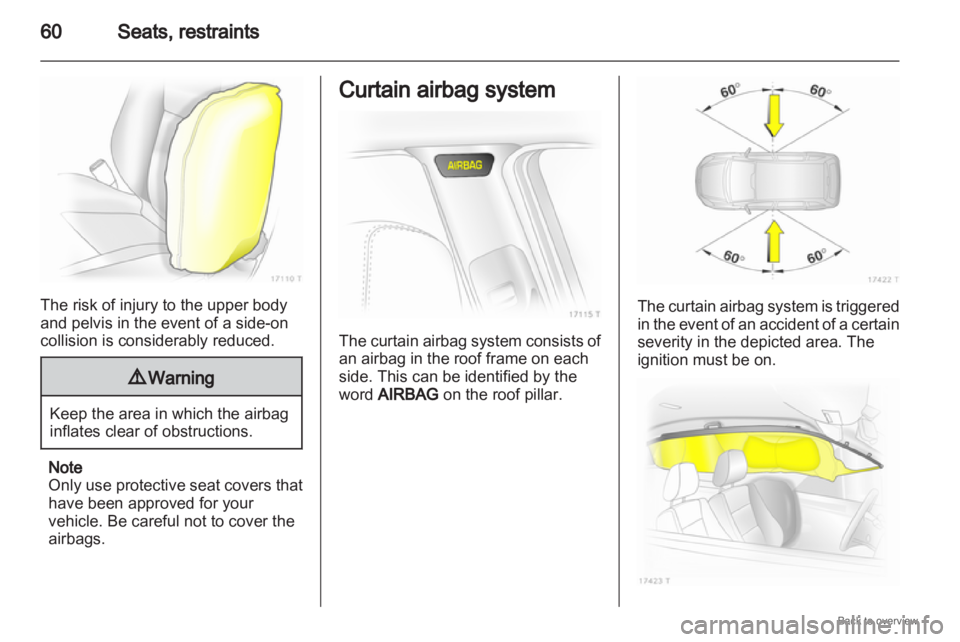

60
Seats, restraintsThe risk of injury to the upper body
and pelvis in the event of a side-on
collision is considerably reduced.
9
Warning Keep the area in which the airbag
inflates clear of obstructions.
Note
Only
use protective seat covers that
have been approved for your
vehicle. Be careful not to cover the
airbags. Curtain airbag system
The curtain airbag system consists of
an airbag in the roof frame on each
side. This can be identified by the
word AIRBAG on the roof pillar. The curtain airbag system is triggered
in

the event of an accident of a certain
severity in the depicted area. The
ignition must be on.

Seats, restraints
61
The risk of injury to the head in the
event of a side impact is considerably
reduced.
The curtain airbag system does not
protect the third row of seats. 9
Warning Keep the area in which the airbag
inflates clear of obstructions.
The hooks on the handles in the
roof frame are only suitable for
hanging up light articles of
clothing,

without coat hangers. Do
not keep any items in these
clothes. Seat occupancy
recognition
Identified by a label on the lower
panel

of the front passenger seat and
by control indicator y, which
illuminates for approx. 4 seconds
when the ignition is switched on.
The seat occupancy recognition
system deactivates the passenger
front and side airbag if the front
passenger seat is not occupied or is
fitted with an Opel child restraint
system with transponders. The
curtain airbag system remains
activated. 9
Warning Only Opel child restraint systems
with transponders should be fitted
on

the front passenger seats. Use
of systems without transponders
poses a risk of fatal injury. Control indicator
3 87.
Note
Anyone weighing less than 35 kg
should only travel on the rear seats.
Do not place any heavy objects on
the front passenger seat. Otherwise
the

seat will register as occupied and
the airbag system for the front
passenger seat will not be
deactivated.
Do not use protective covers or seat
cushions on the front passenger
seat.

62
Seats, restraints
Child restraints
Child restraint systems
Follow the usage instructions for the
child restraint system.
Always comply with local or national
regulations. In some countries, the
use of child restraint systems is
forbidden on certain seats.
Selecting the right system
Your child should travel facing
backwards in the vehicle, until as old
as possible. A child has a very weak
cervical spinal column and in the
event of an accident is less likely to
suffer injury in a rearward-facing,
semi-lying position than if seated
upright.
Children
under 12 years or under 150
cm tall should only travel in an
appropriate child safety seat.
When transporting children, use the
child restraint systems suitable for the
child's weight. Note
Do not stick anything on the child
restraint systems and do not cover
them with any other materials.
A child restraint system which has
been subjected to stress in an
accident must be replaced.

Seats, restraints
63
Child restraint installation locations
Permissible options for fitting a child safety seat
Weight and age class 1) On front passenger
seat On outboard
seats in the
second row On centre seat
in the second
row On the seats
in the third
row
Group 0: up to 10 kg or approx. 10 months
Group 0+: up to 13 kg or approx. 2 years
B
1
, + U, + U X
Group I: 9 to 18 kg or approx. 8 months to 4 years
B
2
, + U, +, ++ U UF
Group II: 15 to 25 kg or approx. 3 to 7 years
Group III: 22 to 36 kg or approx. 6 to 12 years
X U U UF
B
1
= Limited, only with seat occupancy recognition and Opel child restraint system with transponders.
If the child restraint system is being secured using a three-point seat belt, move seat height adjustment to uppermost
position. Move front passenger seat as far back as possible and move front passenger seat belt anchorage point to
lowest position.
B 2
= Limited, only with seat occupancy recognition and Opel child restraint system with transponders.
If
the child restraint system is being secured using a three-point seat belt, move seat height adjustment to uppermost
position. Move front passenger seat as far back as possible so that vehicle safety belt runs from anchorage point
towards the front.
U = Universal suitability in conjunction with three-point seat belt.
UF = Can be used universally for child restraint systems facing the front in combination with a three-point seat belt.
+ = Vehicle seat available with ISOFIX attachments. When attaching using ISOFIX, only the ISOFIX child restraint systems permitted for the vehicle may be used.
1) We recommend the use of each system until the child reaches the upper weight limit.

64
Seats, restraints
++ = Vehicle seat available with ISOFIX attachments. When attaching using ISOFIX and Top-tether, universally permitted
ISOFIX child restraint systems may be used.
X = No child restraint system permitted in this weight class.
