Instruments and controls
It illuminates for a few seconds when
the ignition is switched on.
Flashing during driving
The system has kicked in. Engine
output may be reduced and the
vehicle may be braked automatically
to a small degree 3 142.
Illuminates while driving
The system is switched off or a fault
is present. Continued driving is
possible. Driving stability, however,
may deteriorate depending on road
surface conditions.
Have the cause of the fault remedied
by a workshop.
ESP® Plus
3 142.
Engine coolant
temperature
W illuminates red.
Illuminates when the engine is
running
Stop, switch off engine. Caution
Coolant temperature too high.
Check coolant level immediately
3 157.
If there is sufficient coolant, consult
a workshop.
Preheating and diesel
particle filter
!
illuminates or flashes yellow.
Illuminated
Preheating activated. Only activates
when outside temperature is low.
Flashes
( in
vehicles fitted with a diesel particle
filter).
Control indicator ! flashes if the filter
requires cleaning and previous
driving conditions did not permit
automatic cleaning. Continue driving
and if possible do not allow engine
speed to drop below 2000 rpm. The control indicator
! goes off as
soon
as the self-cleaning operation is
complete.
Diesel particle filter 3 129.
Deflation detection system
and tyre pressure
monitoring system
w illuminates or flashes red or yellow.
Control indicator lights red
Tyre pressure loss. Stop immediately
and check tyre pressure. A maximum
speed of 80 km/h is permitted for run-
flat tyres 3 174.
Control indicator lights yellow
Fault in system or tyre without
pressure sensor mounted (e. g. spare
wheel). Consult a workshop.
Flashes
Flashes three times to indicate
system initialisation.
Deflation detection system 3 177,
tyre pressure monitoring system
3 176.

Instruments and controls
101
Brake light switch
Brake light does not come on during
braking. Have the cause of the fault
remedied immediately by
a workshop.
Engine cooling level Low fluid level in engine cooling
system. Check coolant immediately
3 157. Drain diesel fuel filter
If
there is water in the diesel fuel filter,
the message InSP4 appears in the
instrument panel. Consult
a workshop.
Lighting
Important exterior lighting lamps,
including cables and fuses, are
monitored. In trailer mode, trailer
lighting is also monitored. Trailers
with LED lighting must have an
adapter that enables lamp monitoring
as with conventional bulbs. The failed lighting will be indicated in
the information display or the
message InSP2 will appear in the
instrument panel display.
Anti-theft alarm system
System fault in anti-theft alarm
system. Have the cause of the fault
remedied by a workshop.
Tyre pressure On vehicles with tyre pressure
monitoring

system, if there is low tyre
pressure, information on which tyre to
check appears on the display.

124
Climate control
In the Climate menu, select menu
item Auto recirc and activate or
deactivate.
Switch to manual air recirculation as
necessary.
Manual air recirculation mode
The manual air recirculation mode is
operated with the 4 button. 9
Warning The exchange of fresh air is
reduced in air recirculation mode.
In
operation without cooling the air
humidity increases, so the
windows may mist up. The quality
of the passenger compartment air
deteriorates, which may cause the
vehicle occupants to feel drowsy. Air conditioning with the engine
not running
When

ignition is off, the residual heat
or cooling in the system can be used
for climate control in passenger
compartment. Press the AUTO button with the
ignition off. Residual air conditioning
on will appear briefly in the display.
Residual climate control can only
operate

for a limited period of time. To
cancel, press the AUTO button.
Auxiliary heater
Air heater
Quickheat is an electric auxiliary air
heater which warms up the
passenger compartment more
quickly.
Coolant heater
Diesel-engined vehicles have a fuel-
powered auxiliary coolant heater
which warms up the engine coolant
when the engine is running. Air vents
Adjustable air vents
At least one air vent must be open
while
cooling is on in order to prevent
the evaporator from icing up due to
lack of air movement.
Air vents with adjuster wheel To open or close the vent, turn the
adjuster wheel.

154
Vehicle care
Vehicle care
General Information ...................154
Vehicle checks ........................... 155
Bulb replacement .......................160
Electrical system ........................167
Vehicle tools .............................. 173
Wheels and tyres .......................174
Jump starting ............................. 185
Towing ....................................... 187
Appearance care .......................189 General Information
Accessories and vehicle
modifications
We
recommend to use Genuine Parts
and Accessories and factory
approved parts specific for your
vehicle type. We cannot assess or
guarantee for other products - even if
they have a regulatory or otherwise
granted approval.
Do not make any modifications to the
electrical system, e. g. changes of
electronic control units (chip tuning).
Vehicle storage
Storage for a long period of time
Following must be done if the vehicle
should be stored for several months:
■ Wash and wax the vehicle.
■ Have the wax in the engine compartment and underbody
checked.
■ Clean and preserve rubber seals.
■ Change engine oil. ■ Drain washer fluid reservoir.
■
Check coolant anti-freeze andcorrosion protection.
■ Adjust tyre pressure to the value specified for full load.
■ Park vehicle in dry, well ventilated place. Engage first or reverse gear
or set selector lever to P. Prevent
the vehicle from rolling.
■ Do not apply hand brake.
■ Open bonnet, close all doors and lock the vehicle.
■ Disconnect the clamp from the negative terminal of the vehicle
battery. Beware that all systems are
not functional, e.g. anti-theft alarm
system.
Putting back into operation
Following must be done if the vehicle
is putting back into operation: ■ Connect the clamp to the negative terminal of the vehicle battery.
Activate the electronic of the power
windows.
■ Check tyre pressure.
■ Fill up the washer fluid reservoir.

Vehicle care
155
■ Check the engine oil level.
■ Check the coolant level.
■ Fit the number plate if necessary.
End-of-life vehicle
recovery
Information on end-of-life vehicle
recovery centres and the recycling of
end-of-life vehicles is available on our
website www.opel.com. Only entrust
this work to an authorised recycling
centre. Vehicle checks
Performing work
9
Warning Only perform engine compartment
checks when the ignition is off.
The cooling fan may start
operating

even if the ignition is off. 9
Danger The ignition system and Xenon
headlamps use extremely high
voltage. Do not touch.
The caps for topping up the engine oil,
the

coolant, the washing fluid and the
oil dipstick handle are yellow for ease
of identification.
Bonnet
Opening

Vehicle care

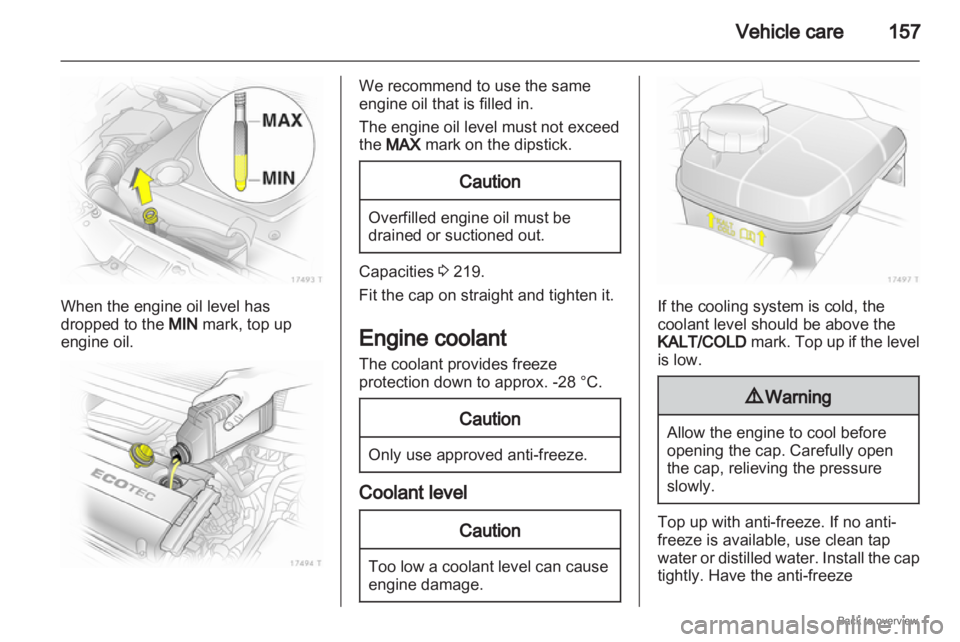

157When the engine oil level has
dropped to the
MIN mark, top up
engine oil. We recommend to use the same
engine oil that is filled in.
The engine oil level must not exceed
the MAX mark on the dipstick.
Caution
Overfilled engine oil must be
drained or suctioned out.
Capacities
3 219.
Fit the cap on straight and tighten it.
Engine coolant
The coolant provides freeze
protection down to approx. -28 °C. Caution
Only use approved anti-freeze.
Coolant level
Caution
Too low a coolant level can cause
engine damage. If the cooling system is cold, the
coolant level should be above the
KALT/COLD
mark. Top up if the level
is low. 9
Warning Allow the engine to cool before
opening the cap. Carefully open
the cap, relieving the pressure
slowly.
Top up with anti-freeze. If no anti-
freeze is available, use clean tap
water

or distilled water. Install the cap
tightly. Have the anti-freeze

Service and maintenance
205

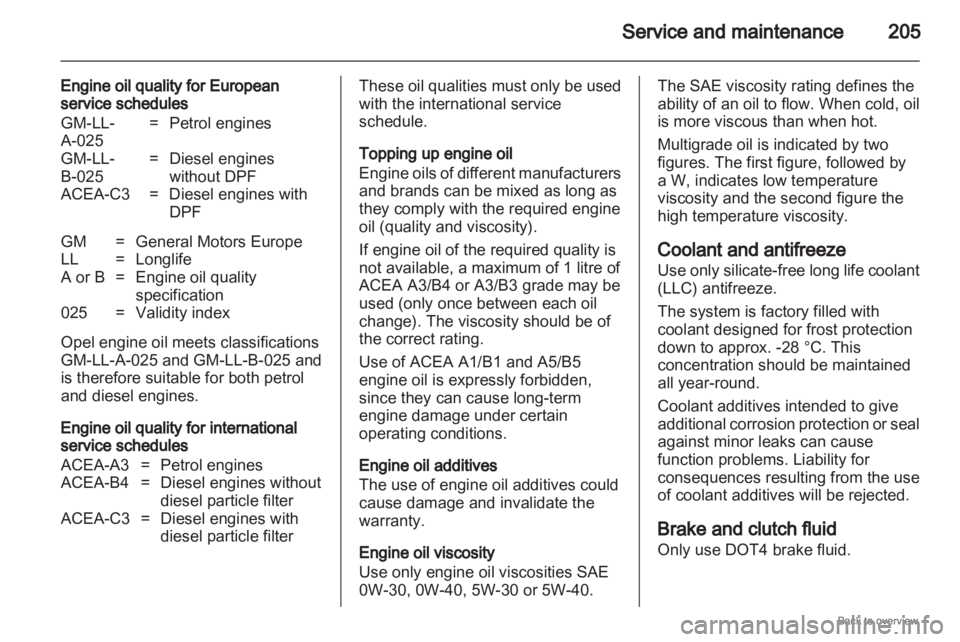

Engine oil quality for European
service schedules
GM-LL-
A-025 = Petrol engines
GM-LL-
B-025 = Diesel engines
without DPF
ACEA-C3 = Diesel engines with DPF
GM = General Motors Europe
LL = Longlife
A or B = Engine oil quality specification
025 = Validity index
Opel engine oil meets classifications
GM-LL-A-025 and GM-LL-B-025 and
is therefore suitable for both petrol
and diesel engines.
Engine oil quality for international
service schedules
ACEA-A3 = Petrol engines
ACEA-B4 = Diesel engines without diesel particle filter
ACEA-C3 = Diesel engines with diesel particle filter These oil qualities must only be used
with the international service
schedule.
Topping up engine oil
Engine
oils of different manufacturers
and brands can be mixed as long as
they comply with the required engine
oil (quality and viscosity).
If engine oil of the required quality is
not available, a maximum of 1 litre of
ACEA A3/B4 or A3/B3 grade may be
used (only once between each oil
change). The viscosity should be of
the correct rating.
Use of ACEA A1/B1 and A5/B5
engine oil is expressly forbidden,
since they can cause long-term
engine damage under certain
operating conditions.
Engine oil additives
The use of engine oil additives could
cause damage and invalidate the
warranty.
Engine oil viscosity
Use only engine oil viscosities SAE
0W-30, 0W-40, 5W-30 or 5W-40. The SAE viscosity rating defines the
ability of an oil to flow. When cold, oil
is more viscous than when hot.
Multigrade oil is indicated by two
figures. The first figure, followed by
a W, indicates low temperature
viscosity and the second figure the
high temperature viscosity.
Coolant and antifreeze
Use
only silicate-free long life coolant
(LLC) antifreeze.
The system is factory filled with
coolant designed for frost protection
down to approx. -28 °C. This
concentration should be maintained
all year-round.
Coolant additives intended to give
additional corrosion protection or seal
against minor leaks can cause
function problems. Liability for
consequences resulting from the use
of coolant additives will be rejected.
Brake and clutch fluid
Only use DOT4 brake fluid.

225

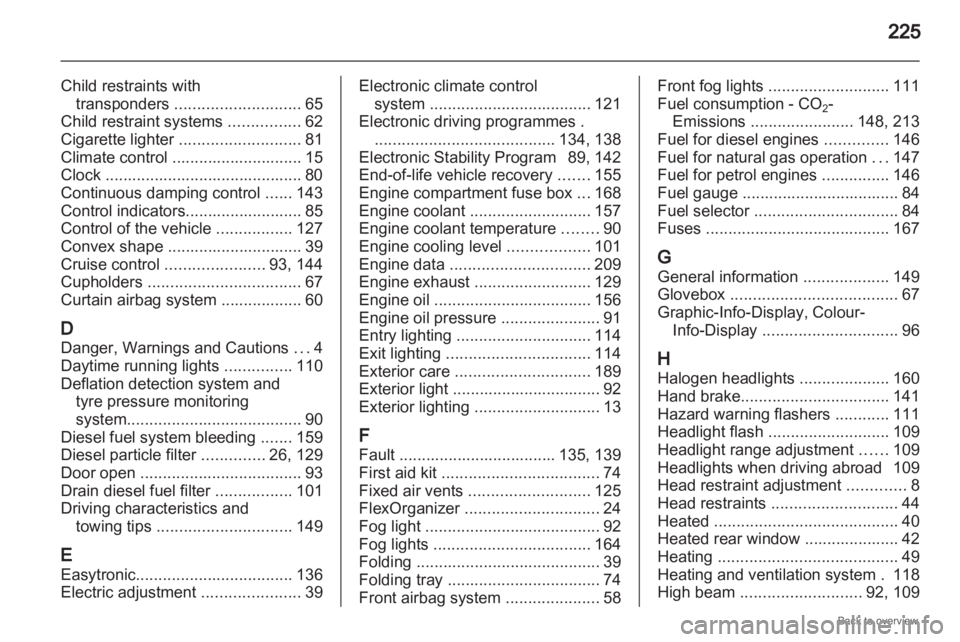

Child restraints with transponders ............................ 65
Child restraint systems ................62
Cigarette lighter ........................... 81
Climate control .............................
15
Clock ............................................ 80
Continuous damping control ......143
Control indicators.......................... 85
Control of the vehicle .................127
Convex shape .............................. 39
Cruise control ...................... 93, 144
Cupholders .................................. 67
Curtain airbag system .................. 60
D
Danger, Warnings and Cautions ... 4
Daytime running lights ...............110
Deflation detection system and tyre pressure monitoring
system....................................... 90
Diesel fuel system bleeding .......159
Diesel particle filter ..............26, 129
Door open .................................... 93
Drain diesel fuel filter .................101
Driving characteristics and towing tips .............................. 149
E
Easytronic................................... 136
Electric adjustment ......................39 Electronic climate control
system .................................... 121
Electronic driving programmes
.
........................................ 134, 138
Electronic Stability Program 89, 142
End-of-life vehicle recovery .......155
Engine compartment fuse box ...168
Engine coolant ........................... 157
Engine coolant temperature ........90
Engine cooling level ..................101
Engine data ............................... 209
Engine exhaust .......................... 129
Engine oil ................................... 156
Engine oil pressure ......................91
Entry lighting .............................. 114
Exit lighting ................................ 114
Exterior care .............................. 189
Exterior light ................................. 92
Exterior lighting ............................ 13
F
Fault ................................... 135, 139
First aid kit ................................... 74
Fixed air vents ........................... 125
FlexOrganizer .............................. 24
Fog light ....................................... 92
Fog lights ................................... 164
Folding ......................................... 39
Folding tray .................................. 74
Front airbag system ..................... 58 Front fog lights ...........................
111
Fuel consumption - CO 2-
Emissions ....................... 148, 213
Fuel for diesel engines ..............146
Fuel for natural gas operation ...147
Fuel for petrol engines ...............146
Fuel gauge ...................................
84
Fuel selector ................................ 84
Fuses ......................................... 167
G
General information ...................149
Glovebox ..................................... 67
Graphic-Info-Display, Colour- Info-Display .............................. 96
H
Halogen headlights ....................160
Hand brake ................................. 141
Hazard warning flashers ............111
Headlight flash ........................... 109
Headlight range adjustment ......109
Headlights when driving abroad 109
Head restraint adjustment ............. 8
Head restraints ............................ 44
Heated ......................................... 40
Heated rear window ..................... 42
Heating ........................................ 49
Heating and ventilation system . 118
High beam ........................... 92, 109
