2009 OPEL ZAFIRA Owners Manual

In brief 9
Mirror adjustment
Interior mirror Swivel the lever on the underside to
reduce dazzle.
Interior mirror 3 40, Automatic anti-
dazzle interior mirror
3 40. Exterior mirrors
Select the relevant exterior mirror and
adjust.
Electric adjustment
3 39, Convex
exterior mirrors 3 39, Folding
exterior mirrors 3 39, Heated
exterior mirrors 3 40. Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is
fully locked. Do not adjust steering
wheel
unless vehicle is stationary and
steering wheel lock has been
released.
Airbag system 3 57, Ignition
positions 3 128

10
In brief

In brief
11

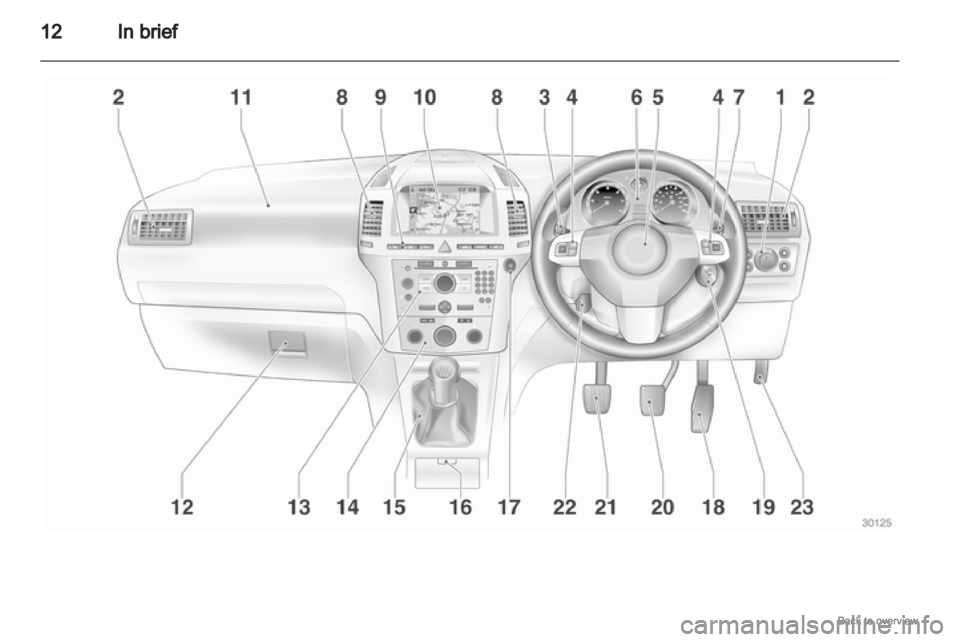

Instrument panel overview
1 Light switch ........................ 108
Instrument illumination .......113
Rear fog light
....................... 112
Front fog lights ...................111
Headlight range
adjustment ......................... 109
2 Side air vents ...................... 124
3 Turn signals, headlight
flash, low beam and high
beam .................................. 111
Exit lighting .......................... 114
Parking light ........................ 112
Cruise control ....................... 93
4 Remote control on
steering wheel ......................77
5 Horn ...................................... 78
Driver's airbag ....................... 58
6 Instruments .......................... 83
7 Windscreen wipers,
windscreen washer
system, headlight washer
system .................................. 78
8 Centre air vents ................... 124 9
Left heated seat ....................49
Deflation detection system ..177
Tyre pressure monitoring
system
................................. 176
Ultrasonic parking sensors ... 89
Hazard warning flashers .....111
Central locking system ..........32
Sport mode ........................... 89
Right heated seat ..................49
Fuel selector ........................ 84
10 Info-Display ........................... 93
Trip computer ...................... 102
Electronic climate control
system ................................. 121
11 Front passenger airbag .........58
12 Glovebox .............................. 67
13 Infotainment system ............115
14 Climate control system ........ 118
15 Selector lever, manual
transmission ....................... 136
Manual transmission
automated ........................... 136
Automatic transmission .......131
16 Ashtray .................................. 82
17 Start/Stop button ..................29
18 Accelerator pedal ................127 19
Ignition switch with
steering wheel lock .............128
Sensor panel for
emergency operation of
Open&Start system ...............29
20 Brake pedal ......................... 140
21 Clutch pedal ........................ 127
22 Steering wheel adjustment ...77
23 Bonnet release lever ...........155

12
In brief

In brief
13
Exterior lighting Turn
7
= Off
8 = Parking lights
9 = Headlights
AUTO = Automatic light control
Press
> = Front fog lights
r = Rear fog light
Lighting 3 108, Headlight warning
device 3 100. Headlight flash, high beam and
low beam
Headlight flash = Pull lever
High beam = Push lever
Low beam = Push or pull lever
High beam
3 109, Headlight flash
3 109. Turn signals
To the right = Lever up
To the left = Lever down
Turn and lane change signals
3 111.

14
In brief
Hazard warning flashers Operated with the ¨ button.
Hazard warning flashers
3 111. Horn
Press j. Washer and wiper systems
Windscreen wipers
&
=
fast
% = slow
$ = timed interval wipe or
automatic wiping with rain
sensor
§ = off
For a single swipe when the
windscreen wipers are off, press the
lever down.
Windscreen wipers 3 78, Wiper
replacement 3 159.

In brief
15
Windscreen and headlamp
washer systems Pull lever.
Windscreen and headlamp washer
system 3 78, Washer fluid 3 158. Rear window wiper and washer
system
Wipers on = push lever
Wipers off = push lever again
Wash = push lever and hold
Rear window wipers and washer
system 3 79, Wiper blade
replacement
3 159, Washer fluid
3 158. Climate control
Heated rear window, heated
exterior mirrors
Heating is operated by pressing the
Ü button.
Heated rear window
3 42.

16
In brief
Demisting and defrosting the
windows Air distribution to
l.
Set temperature control to warmest
level.
Set
fan speed to highest level or to A.
Cooling n on.
Press button V.
Climate control system 3 118. Transmission
Manual transmission
Reverse: with the vehicle stationary,
wait 3 seconds after declutching and
then
pull up the button on the selector
lever and engage the gear.
If the gear does not engage, set the
lever in neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 136. Manual transmission automated
N
=neutral
o = drive
+ = higher gear
- = lower gear
A = switch between Automatic and
Manual mode
R = reverse gear (with selector
lever lock)
Manual transmission automated
3 136.
