•Use MOPARTouch-Up Paint or equivalent on
scratches or chips as soon as possible. Your authorized
dealer has touch-up paint to match the color of your
vehicle.
Wheel and Wheel Trim Care
All wheels and wheel trim, especially aluminum and
chrome-plated wheels, should be cleaned regularly with
a mild soap and water to prevent corrosion. To remove
heavy soil, use MOPAR Wheel Cleaner or equivalent, or
select a nonabrasive, non-acidic cleaner. Do not use
scouring pads, steel wool, a bristle brush or metal pol-
ishes. Only MOPAR cleaners or equivalent are recom-
mended. Do not use oven cleaner. Avoid automatic car
washes that use acidic solutions or harsh brushes that
may damage the wheels’ protective finish.
Stain Repel Fabric Cleaning Procedure — If
Equipped
Stain Repel seats may be cleaned in the following man-
ner:
•Remove as much of the stain as possible by blotting
with a clean, dry towel.
•Blot any remaining stain with a clean, damp towel.
•For tough stains, apply MOPAR Total Clean or
equivalent, or a mild soap solution to a clean, damp
cloth and remove the stain. Use a fresh, damp towel to
remove soap residue.
•For grease stains, apply MOPAR Multi-Purpose
Cleaner or equivalent to a clean, damp cloth and
remove the stain. Use a fresh, damp towel to remove
soap residue.
•Do not use any harsh solvents or any other form of
protectants on Stain Repel products.
7
MAINTAINING YOUR VEHICLE 431

Interior Care
Use MOPARTotal Clean or equivalent to clean fabric
upholstery and carpeting.
Interior Trim should be cleaned starting with a damp
cloth, a damp cloth with MOPAR Total Clean or equiva-
lent, then MOPAR Spot & Stain Remover or equivalent
if absolutely necessary. Do not use harsh cleaners or
Armor All. Use MOPAR Total Clean or equivalent to
clean vinyl upholstery.
WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable and, if used in
closed areas, they may cause respiratory harm.
CAUTION!
When installing hanging air fresheners in your ve-
hicle, read the installation instructions carefully.
Some air fresheners will damage the finish of
painted or decorated parts if allowed to directly
contact any surface.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPAR Glass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive-type
cleaner. Use caution when cleaning inside rear windows
equipped with electric defrosters. Do not use scrapers or
other sharp instruments which may scratch the elements.
When cleaning the rearview mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
432 MAINTAINING YOUR VEHICLE

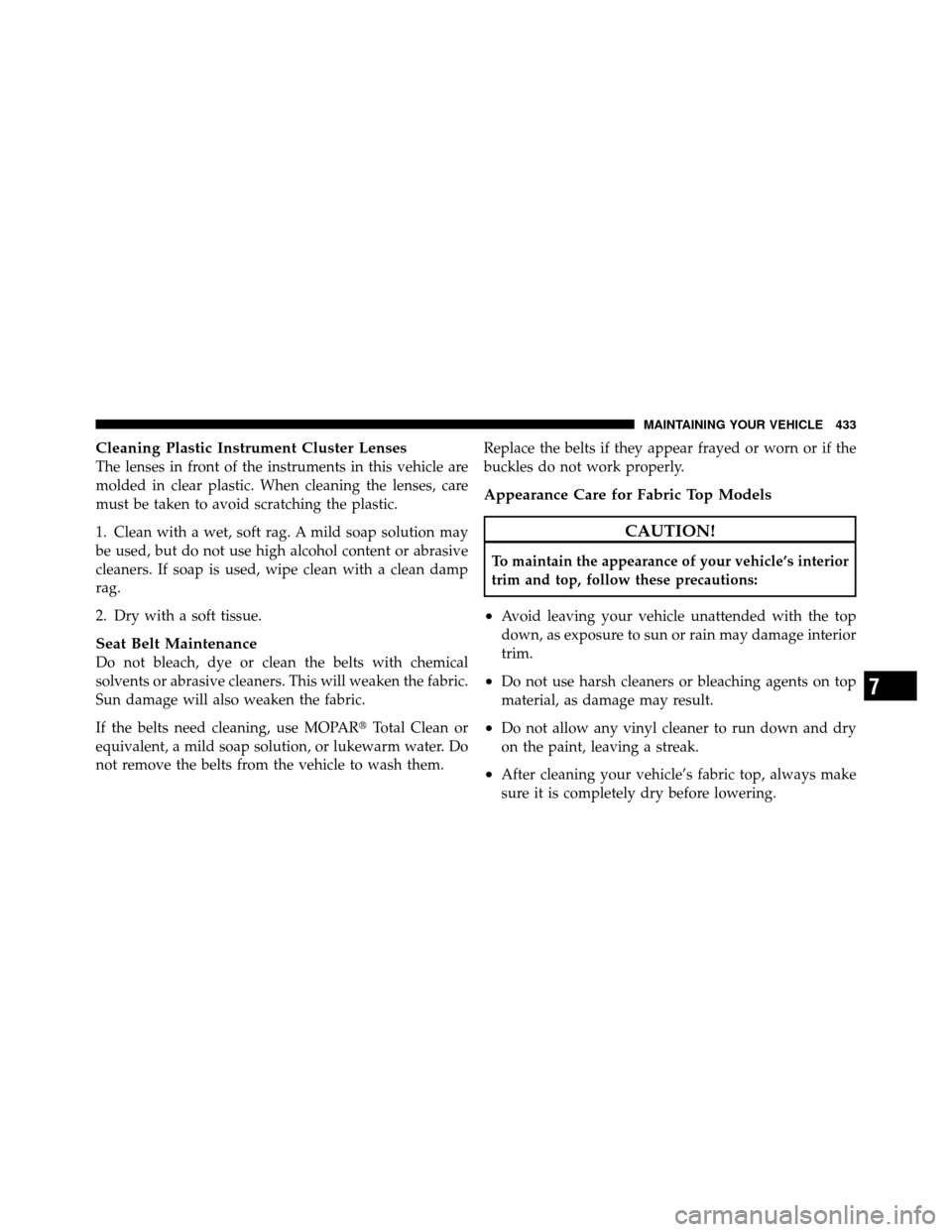

Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet, soft rag. A mild soap solution may
be used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft tissue.
Seat Belt Maintenance
Do not bleach, dye or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage will also weaken the fabric.
If the belts need cleaning, use MOPARTotal Clean or
equivalent, a mild soap solution, or lukewarm water. Do
not remove the belts from the vehicle to wash them. Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
Appearance Care for Fabric Top Models
CAUTION!
To maintain the appearance of your vehicle’s interior
trim and top, follow these precautions:
•Avoid leaving your vehicle unattended with the top
down, as exposure to sun or rain may damage interior
trim.
•Do not use harsh cleaners or bleaching agents on top
material, as damage may result.
•Do not allow any vinyl cleaner to run down and dry
on the paint, leaving a streak.
•After cleaning your vehicle’s fabric top, always make
sure it is completely dry before lowering.
7
MAINTAINING YOUR VEHICLE 433

•Be especially careful when washing the windows by
following the directions for “Care of Fabric Top
Windows.”
WASHING — Use MOPARCar Wash or equivalent, or
mild soap suds, lukewarm water, and a brush with soft
bristles. If extra cleaning is required, use MOPAR Con-
vertible Cloth Top Cleaner or equivalent, or a mild
foaming cleaner on the entire top, but support the top
from underneath.
RINSING — Be sure to remove all traces of cleaner by
rinsing the top thoroughly with clean water. Remember
to allow the top to dry before lowering it.
CAUTION!
Failure to follow these cautions may cause interior
water damage, stains or mildew on the top material:
(Continued)
CAUTION! (Continued)
•Avoid high-pressure car washes, as they can dam-
age the top material. Also, increased water pres-
sure may force past the weather strips.
•It is recommended that the top be free of water
prior to opening it. Operating the top, opening a
door or lowering a window while the top is wet
may allow water to drip into the vehicle’s interior.
•Use care when washing the vehicle, water pressure
directed at the weather strip seals may cause water
to leak into the vehicle’s interior.
•Careless handling and storage of the removable
roof panels may damage the seals, causing water to
leak into the vehicle’s interior.
•The front panel(s) must be positioned properly to
ensure sealing. Improper installation can cause
water to leak into the vehicle’s interior.
434 MAINTAINING YOUR VEHICLE

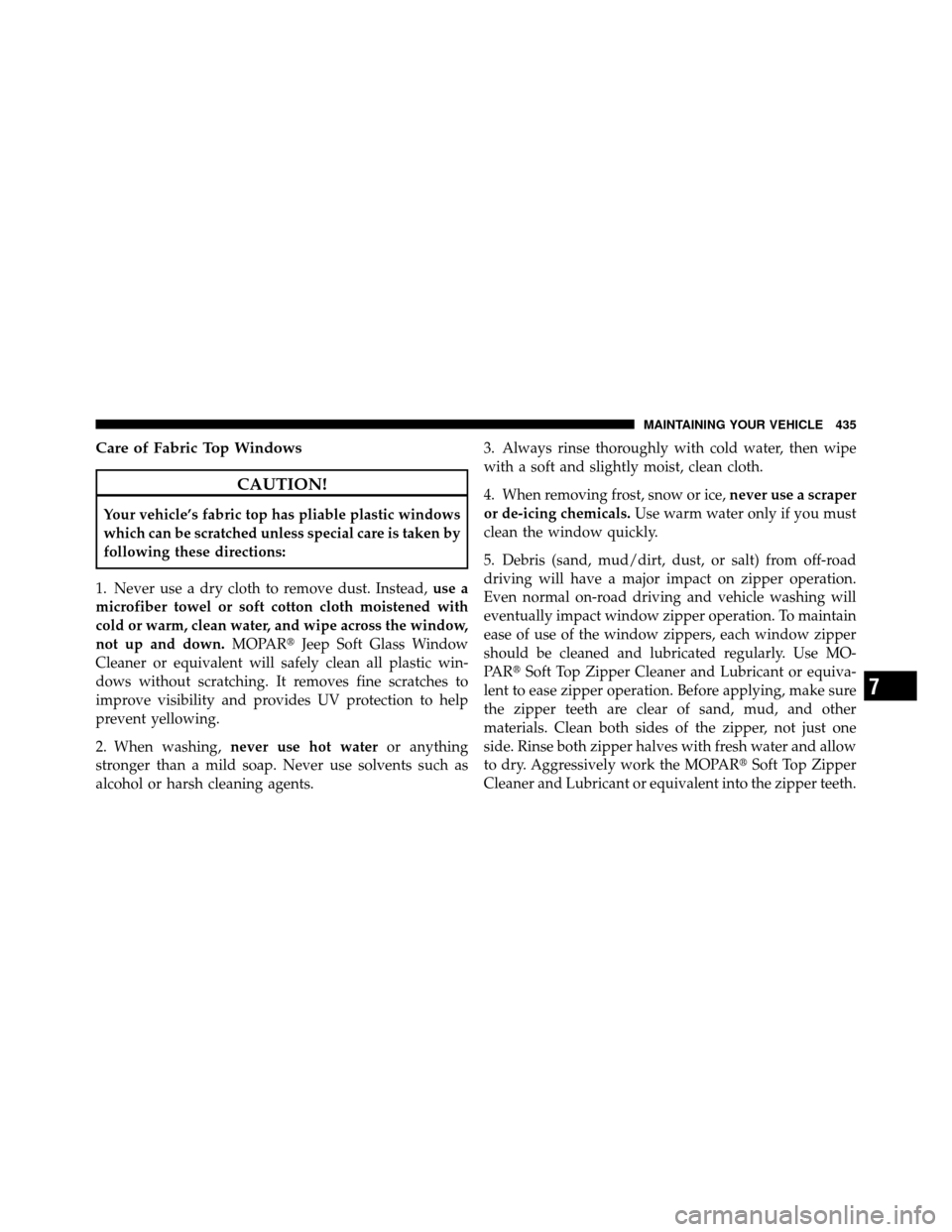

Care of Fabric Top Windows
CAUTION!
Your vehicle’s fabric top has pliable plastic windows
which can be scratched unless special care is taken by
following these directions:
1. Never use a dry cloth to remove dust. Instead, use a
microfiber towel or soft cotton cloth moistened with
cold or warm, clean water, and wipe across the window,
not up and down. MOPARJeep Soft Glass Window
Cleaner or equivalent will safely clean all plastic win-
dows without scratching. It removes fine scratches to
improve visibility and provides UV protection to help
prevent yellowing.
2. When washing, never use hot water or anything
stronger than a mild soap. Never use solvents such as
alcohol or harsh cleaning agents. 3. Always rinse thoroughly with cold water, then wipe
with a soft and slightly moist, clean cloth.
4. When removing frost, snow or ice,
never use a scraper
or de-icing chemicals. Use warm water only if you must
clean the window quickly.
5. Debris (sand, mud/dirt, dust, or salt) from off-road
driving will have a major impact on zipper operation.
Even normal on-road driving and vehicle washing will
eventually impact window zipper operation. To maintain
ease of use of the window zippers, each window zipper
should be cleaned and lubricated regularly. Use MO-
PA R Soft Top Zipper Cleaner and Lubricant or equiva-
lent to ease zipper operation. Before applying, make sure
the zipper teeth are clear of sand, mud, and other
materials. Clean both sides of the zipper, not just one
side. Rinse both zipper halves with fresh water and allow
to dry. Aggressively work the MOPAR Soft Top Zipper
Cleaner and Lubricant or equivalent into the zipper teeth.
7
MAINTAINING YOUR VEHICLE 435

If a stuck zipper slide is experienced, work the MOPAR
Soft Top Zipper Cleaner and Lubricant or equivalent into
the zipper slide. Several applications may be required
before the zipper comes free.
6. Never paste stickers, gummed labels or any tape to the
windows. Adhesives are hard to remove and may dam-
age the windows.
FUSES
Totally Integrated Power Module
The Totally Integrated Power Module (TIPM) is located
in the engine compartment near the battery. This center
contains cartridge fuses, mini fuses and relays. A label
that identifies each component is printed on the inside of
the cover.
Cavity CartridgeFuseMini
Fuse Description
J1 — —
J2 30 Amp Pink Transfer Case Module
J3 — —
Totally Integrated Power Module (TIPM)
436 MAINTAINING YOUR VEHICLE

Cavity CartridgeFuseMini
Fuse Description
J4 25 Amp Natural Driver Door Node
J5 25 Amp Natural Passenger Door Node
J6 40 Amp Green Anti-Lock Brake Sys-
tem (ABS) Pump
Feed/ESP
J7 30 Amp Pink Anti-Lock Brake Sys-
tem (ABS) Valve
Feed/ESP
J8 — —
J9 40 Amp Green PZEV Sec Motor
Feed/Flex Fuel
J10 30 Amp Pink Headlamp Wash
Relay/Manifold Tun-
ing ValveCavity Cartridge
FuseMini
Fuse Description
J11 30 Amp Pink Sway Bar
J13 60 Amp Yellow Ignition Off Draw
(IOD) — Main
J14 40 Amp Green EBL (Rear Window
Defogger)
J15 30 Amp Pink Rear Blower
J17 40 Amp Green Starter Solenoid
J18 20 Amp Blue Powertrain Control
Module (PCM) Trans
Range
J19 60 Amp Yellow Radiator Fan
J20 30 Amp Pink Front Wiper LO/HI
7
MAINTAINING YOUR VEHICLE 437

Cavity CartridgeFuseMini
Fuse Description
J21 20 Amp Blue Front/Rear Washer
J22 — Spare
M1 15 Amp
Blue Center High-Mounted
Stop Light (CHMSL)/
Switch Stop Lamp
Feed
M2 20 Amp
Yellow Relay Trailer Lighting
(Stop)
M3 20 Amp
Yellow Frt/Rear Axle Locker
Relay
M4 — —
M5 — —
M6 20 Amp
Yellow Power Outlet #1/Rain
SensorCavity Cartridge
FuseMini
Fuse Description
M7 20 Amp YellowPower Outlet #2
(BATT/ACC SELECT)
M8 20 Amp
Yellow Front Heated Seat
M9 20 Amp
Yellow Rear Heated Seat (If
Equipped)
M10 20 Amp
Yellow Ignition Off Draw —
Vehicle Entertainment
System (IOD-VES),
Satellite Digital Audio
Receiver (SDARS),
DVD, Hands-Free
Module (HFM), RA-
DIO, Antenna (ANT),
Universal Garage
Door Opener
(UGDO), Vanity
Lamp (VANITY LP)
