2009 JEEP WRANGLER Owners Manual

Parking Lights, Instrument Panel Lights and
Headlights
Turn the end of the multifunction lever to the first detent
for parking lights and instrument panel lights. Turn to
the second detent for headlight operation.To change the brightness of the instrument panel lights,
rotate the center portion of the multifunction lever up or
down.
NOTE:
•Lens fogging can occur under certain atmospheric
conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
•If the driver’s door is left open, and the headlights or
parking lights are left on, the high Beam Indicator
Light will remain illuminated and a chime will sound.
Lights-On Reminder
If the headlights or parking lights are on after the ignition
is turned OFF, a chime will sound when the driver’s door
is opened.
Headlight Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

Headlight Dimmer Switch
Push the multifunction lever away from you to switch
the headlights to high beam. Pull the lever toward you to
switch the headlights back to low beam.
Flash-To-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward the steer-
ing wheel. This will turn on the high beam headlights
until the lever is released.
Front Fog Lights — If Equipped
The front fog light switch is located on the multi-
function lever. To activate the front fog lights, turn
on the parking or low beam headlights and pull
out the end of the lever.
NOTE: The fog lights will only operate with the parking
lights or the headlights on low beam. Selecting high
beam headlights will turn off the fog lights.
Turn Signals
Move the multifunction lever up or down, and the
arrows on each side of the instrument cluster flash, to
show proper operation of the front and rear turn signal
lights.
If either light has a very fast flash rate, check for a
defective outside light bulb. If an indicator fails to light
when the lever is moved, it would suggest that the fuse
or indicator is defective or there may be a circuit failure.
NOTE: A tone will chime if the turn signals are left on
for more than 1 mile (2 km).
Lane Change Assist
Tap the lever up or down once without moving beyond
the detent and the turn signal (right or left) will flash
three times the automatically turn off.
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Daytime Running Lights — If Equipped
The headlights come on at a low intensity level after the
vehicle has been driven approximately 3 ft (1 m). They
will turn off when the vehicle is turned off or when the
headlights are switched on.
Interior Lights
The overhead light will come on when a door is opened.
It may also be turned on by rotating the control for the
dimmer switch on the multifunction lever fully upward.
The overhead light will automatically turn off in approxi-
mately 20 minutes if a door is left open or the dimmer
control is left in the dome light position. Turn the ignition
switch ON to restore the overhead light operation.
Cargo Lamp
The courtesy and dome lights will turn on when the front
doors are opened, when the dimmer control (rotating
wheel on the right side of the switch) is rotated to theupward detent position, or if equipped, when the UN-
LOCK button is pressed on the Remote Keyless Entry
(RKE) transmitter.
Also, the rear cargo lamp may be turned on by pressing
the lens. Press the lens a second time to turn the light off.
Cargo Lamp
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97

When a door is open and the interior lights are on,
rotating the dimmer control all the way down to the off
detent will cause all the interior lights to turn off. This is
also known as thePartymode because it allows the
doors to stay open for extended periods of time without
discharging the vehicle’s battery.Daytime Brightness Feature
Certain instrument panel components (instrument clus-
ter, radio display) can be illuminated at full brightness
during the daytime. This can be helpful when driving
with your headlights on during the daytime, such as in a
parade or a funeral procession. To activate this feature,
rotate the left stalk one detent lower than the dome light.
WINDSHIELD WIPERS AND WASHERS
Windshield Wiper Operation
The windshield wiper/washer control lever operates the
windshield wipers and washers when the ignition switch
is in the ON position. The lever is located on the right
side of the steering column.
Rotate the end of the control lever upward to the second
detent for low-speed wiper operation, or to the third
detent for high-speed operation.
Rear Cargo Lamp (Four-Door Models)
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
In cold weather, always turn off the wiper switch and
allow the wipers to return to the park position before
turning off the engine. If the wiper switch is left on
and the wipers freeze to the windshield, damage to
the wiper motor may occur when the vehicle is
restarted.
High/Low Speed
1 — Low-Speed Operation
2 — High-Speed Operation
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99

Intermittent Wiper System
Use the intermittent wiper when weather conditions
make a single wiping cycle, with a variable pause be-
tween cycles, desirable. Move the lever to the delay
position, then select the delay interval by turning the end
of the lever. The delay can be regulated between 2 to
30 seconds between cycles.
Intermittent Settings
1 — Minimum Delay
2 — Maximum Delay
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Windshield Washers
To use the washer, pull the lever toward you and hold
while spray is desired. If the lever is pulled while in the
delay range, the wiper will operate for two wipe cycles
after the lever is released, and then resume the intermit-
tent interval previously selected.
If the lever is pulled while in the off position, the wipers
will operate for as long as the lever is held plus one wipe
cycle, then turn off.
Mist Feature
Push down on the wiper lever to activate a single wipe to
clear off road mist or spray from a passing vehicle. As
long as the lever is held down, the wipers will continue
to operate.NOTE:
The mist feature does not activate the washer
pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.
TILT STEERING COLUMN
This feature allows you to tilt the steering column
upward or downward. The tilt lever is located on the
steering column, below the turn signal lever.3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101

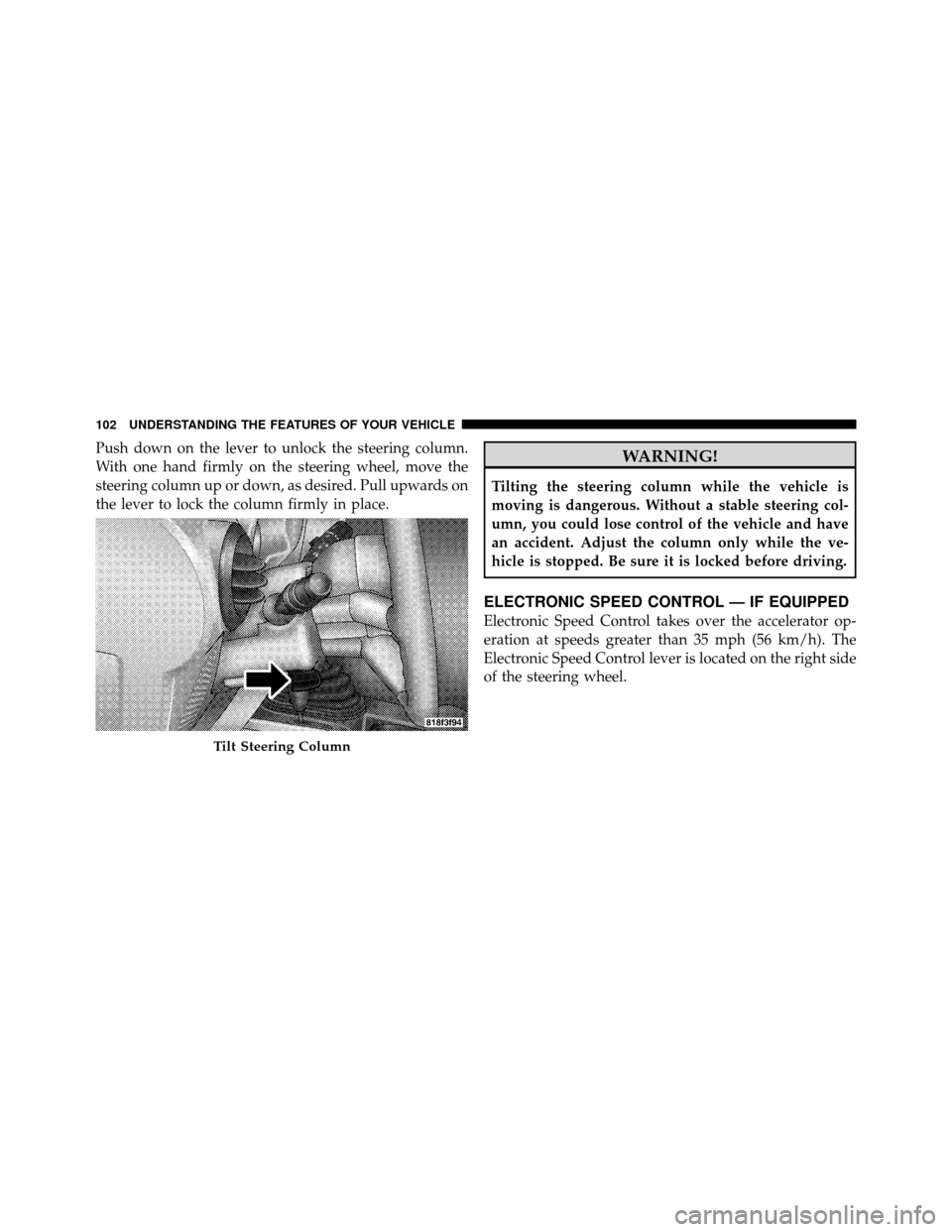

Push down on the lever to unlock the steering column.
With one hand firmly on the steering wheel, move the
steering column up or down, as desired. Pull upwards on
the lever to lock the column firmly in place.WARNING!
Tilting the steering column while the vehicle is
moving is dangerous. Without a stable steering col-
umn, you could lose control of the vehicle and have
an accident. Adjust the column only while the ve-
hicle is stopped. Be sure it is locked before driving.
ELECTRONIC SPEED CONTROL — IF EQUIPPED
Electronic Speed Control takes over the accelerator op-
eration at speeds greater than 35 mph (56 km/h). The
Electronic Speed Control lever is located on the right side
of the steering wheel.
Tilt Steering Column
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
