2009 JEEP WRANGLER Owners Manual

NOTE:In order to ensure proper operation, the Elec-
tronic Speed Control System has been designed to shut
down if multiple Speed Control functions are operated simultaneously. If this occurs, the Electronic Speed Con-
trol System can be reactivated by pushing the Electronic
Speed Control ON/OFF button and resetting the desired
vehicle set speed.
To Activate
Push the ON/OFF button. The Cruise Indicator Light in
the instrument cluster will illuminate. To turn the Elec-
tronic Speed Control system off, push the ON/OFF
button a second time. The cruise indicator light will turn
off. The Electronic Speed Control system should be
turned off when not in use.
Electronic Speed Control Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103

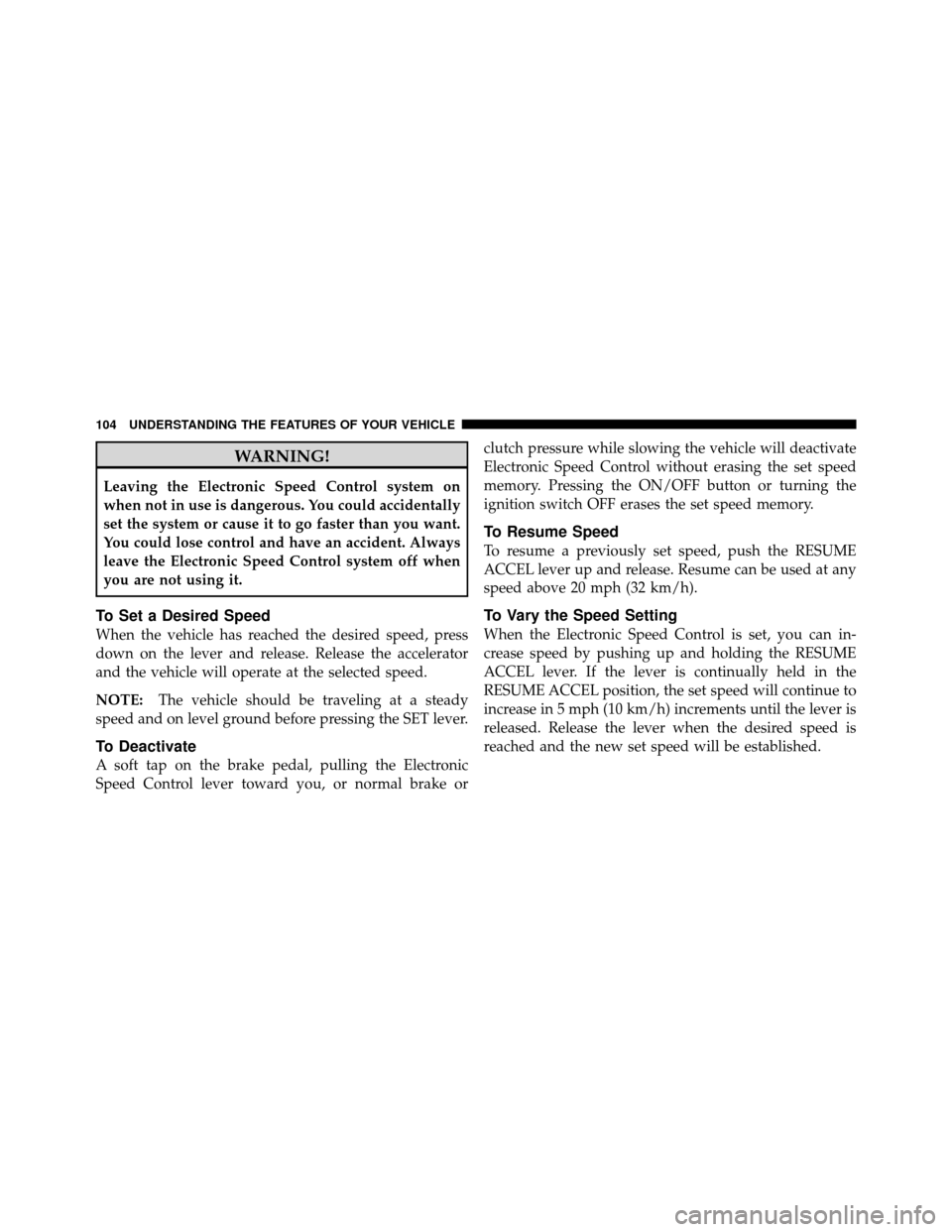

WARNING!
Leaving the Electronic Speed Control system on
when not in use is dangerous. You could accidentally
set the system or cause it to go faster than you want.
You could lose control and have an accident. Always
leave the Electronic Speed Control system off when
you are not using it.
To Set a Desired Speed
When the vehicle has reached the desired speed, press
down on the lever and release. Release the accelerator
and the vehicle will operate at the selected speed.
NOTE:The vehicle should be traveling at a steady
speed and on level ground before pressing the SET lever.
To Deactivate
A soft tap on the brake pedal, pulling the Electronic
Speed Control lever toward you, or normal brake or clutch pressure while slowing the vehicle will deactivate
Electronic Speed Control without erasing the set speed
memory. Pressing the ON/OFF button or turning the
ignition switch OFF erases the set speed memory.
To Resume Speed
To resume a previously set speed, push the RESUME
ACCEL lever up and release. Resume can be used at any
speed above 20 mph (32 km/h).
To Vary the Speed Setting
When the Electronic Speed Control is set, you can in-
crease speed by pushing up and holding the RESUME
ACCEL lever. If the lever is continually held in the
RESUME ACCEL position, the set speed will continue to
increase in 5 mph (10 km/h) increments until the lever is
released. Release the lever when the desired speed is
reached and the new set speed will be established.
104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

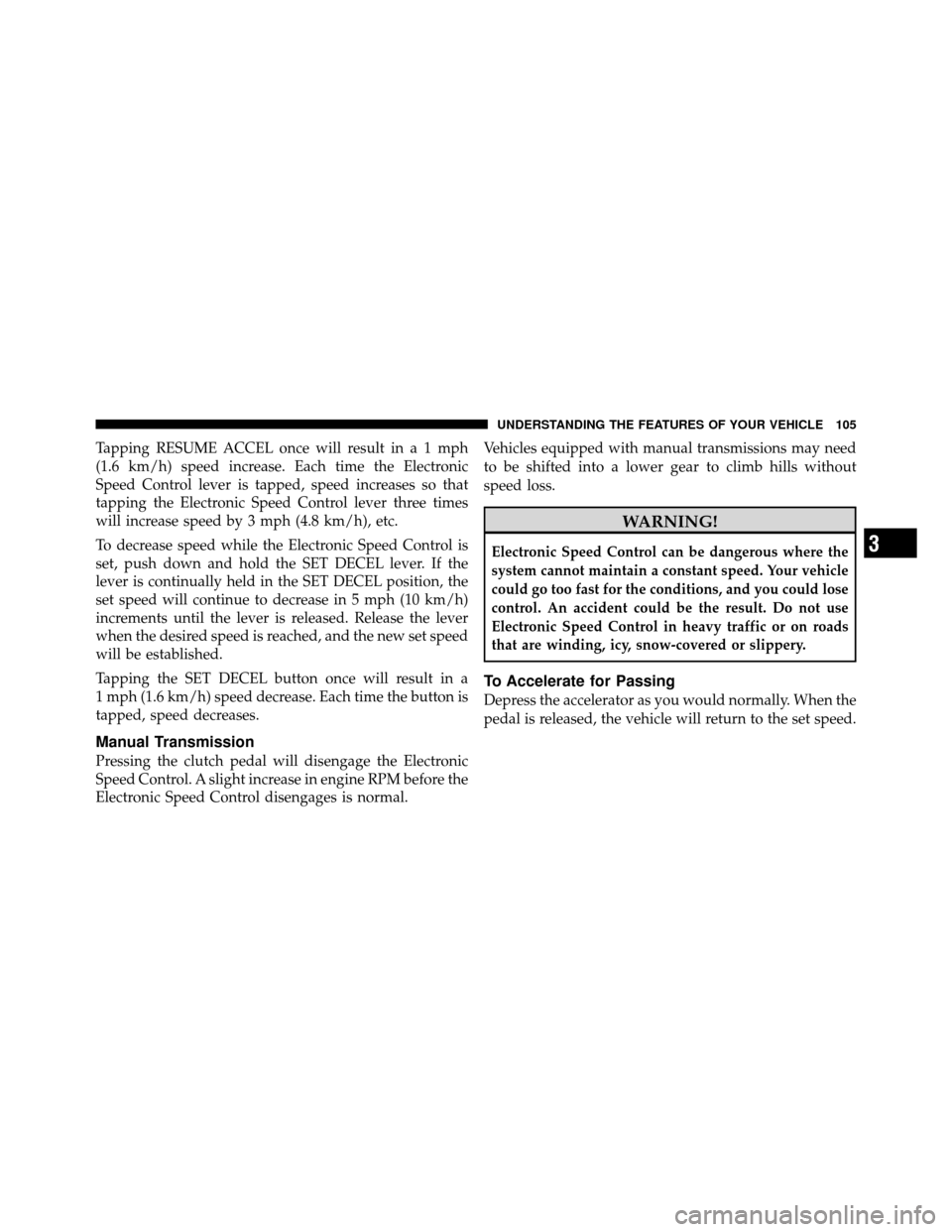

Tapping RESUME ACCEL once will result ina1mph
(1.6 km/h) speed increase. Each time the Electronic
Speed Control lever is tapped, speed increases so that
tapping the Electronic Speed Control lever three times
will increase speed by 3 mph (4.8 km/h), etc.
To decrease speed while the Electronic Speed Control is
set, push down and hold the SET DECEL lever. If the
lever is continually held in the SET DECEL position, the
set speed will continue to decrease in 5 mph (10 km/h)
increments until the lever is released. Release the lever
when the desired speed is reached, and the new set speed
will be established.
Tapping the SET DECEL button once will result in a
1 mph (1.6 km/h) speed decrease. Each time the button is
tapped, speed decreases.
Manual Transmission
Pressing the clutch pedal will disengage the Electronic
Speed Control. A slight increase in engine RPM before the
Electronic Speed Control disengages is normal.Vehicles equipped with manual transmissions may need
to be shifted into a lower gear to climb hills without
speed loss.
WARNING!
Electronic Speed Control can be dangerous where the
system cannot maintain a constant speed. Your vehicle
could go too fast for the conditions, and you could lose
control. An accident could be the result. Do not use
Electronic Speed Control in heavy traffic or on roads
that are winding, icy, snow-covered or slippery.
To Accelerate for Passing
Depress the accelerator as you would normally. When the
pedal is released, the vehicle will return to the set speed.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105

Using Electronic Speed Control On Hills
NOTE:The Electronic Speed Control system maintains
speed up and down hills. A slight speed change on
moderate hills is normal.
On steep hills, a greater speed loss or gain and/or more
frequent downshifts (auto transmission only) may occur
so it may be preferable to drive without Electronic Speed
Control.
ELECTRICAL POWER OUTLET
There are two 12-Volt (DC) auxiliary power outlets that can
provide up to 160 Watts (13 Amps) of current for accesso-
ries designed for use with the standard power outlet
adapters. The power outlet, located in the lower portion of
the instrument panel, has a snap-on plastic cap so that it
can be covered when not in use. When the optional cigar
lighter heating element is used in the left-side power outlet,
it heats when pushed in and pops out automatically when ready for use.
To preserve the heating element, do not
hold the lighter in the heating position.
NOTE: Do not exceed the maximum power of 160 Watts
(13 Amps) at 12-Volts.
The left-side power outlet is powered when the key is in
the ON or ACC positions.
Power Outlets
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

The right-side power outlet is powered directly from the
battery (power available at all times). Items plugged into
this power outlet may discharge the battery and/or
prevent the engine from starting.
WARNING!
To avoid serious injury or death:
•Only connectors designed for use in this type of
outlet should be inserted into any 12 Volt outlet.
•Do not touch with wet hands.
•Close the lid when not in use and while driving
the vehicle.
•If this outlet is mishandled, it may cause an
electric shock and failure.
CAUTION!
•Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent the engine from starting.
•Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.), will degrade the
battery even more quickly. Only use these inter-
mittently and with greater caution.
•After the use of high-power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
alternator to recharge the vehicle’s battery.(Continued)
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107

CAUTION! (Continued)
•Power outlets are designed for accessory plugs
only. Do not hang any type of accessory or acces-
sory bracket from the plug.
CUPHOLDERS
Front Cupholders
The front cupholders are located in the center console.NOTE:The front cupholder insert is removable for
cleaning.
Front Cupholders
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Rear Cupholders
The rear cupholders are located on the back of the center
console.
STORAGE
Console Storage Compartment
To lock or unlock the storage compartment, insert igni-
tion the key and turn. To open the storage compartment,
press the latch and lift the cover.
Rear Cupholders
Center Console
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109

Rear Storage Compartment
The rear storage compartment cover is held by a spring-
loaded latch. In order to remove the rear storage com-
partment cover, use the following procedure:
NOTE: The rear storage compartment latch should not
be used as cargo tie-down.
1. Flip up the pull loop so it is perpendicular (straight
up) to the top surface of the tray.
2. Pull up on the loop and twist it 90 degrees, so it is
parallel to the slotted hole in the tray.
3. Open the rear compartment cover.
DUAL TOP — IF EQUIPPED
If your vehicle is equipped with a Dual Top,you must
remove one of the tops from the vehicle. If the soft top
is removed, the pivot brackets must also be removed
from the sport bar. The soft top was installed at the
factory for shipping purposes only. The soft top and the
Rear Storage Cover
