2009 JEEP WRANGLER Owners Manual

Putting Up The Soft Top
1 — Header Bow6 — Body Side Retainer
2 — 2– Bow 7 — Quarter Window
3 — 3–Bow 8 — Check Strap
4 — Sail Panel 9 — Front Retainer — Quarter Window
5 — Plastic Retainer 10 — Bottom Retainer — Quarter Window
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143

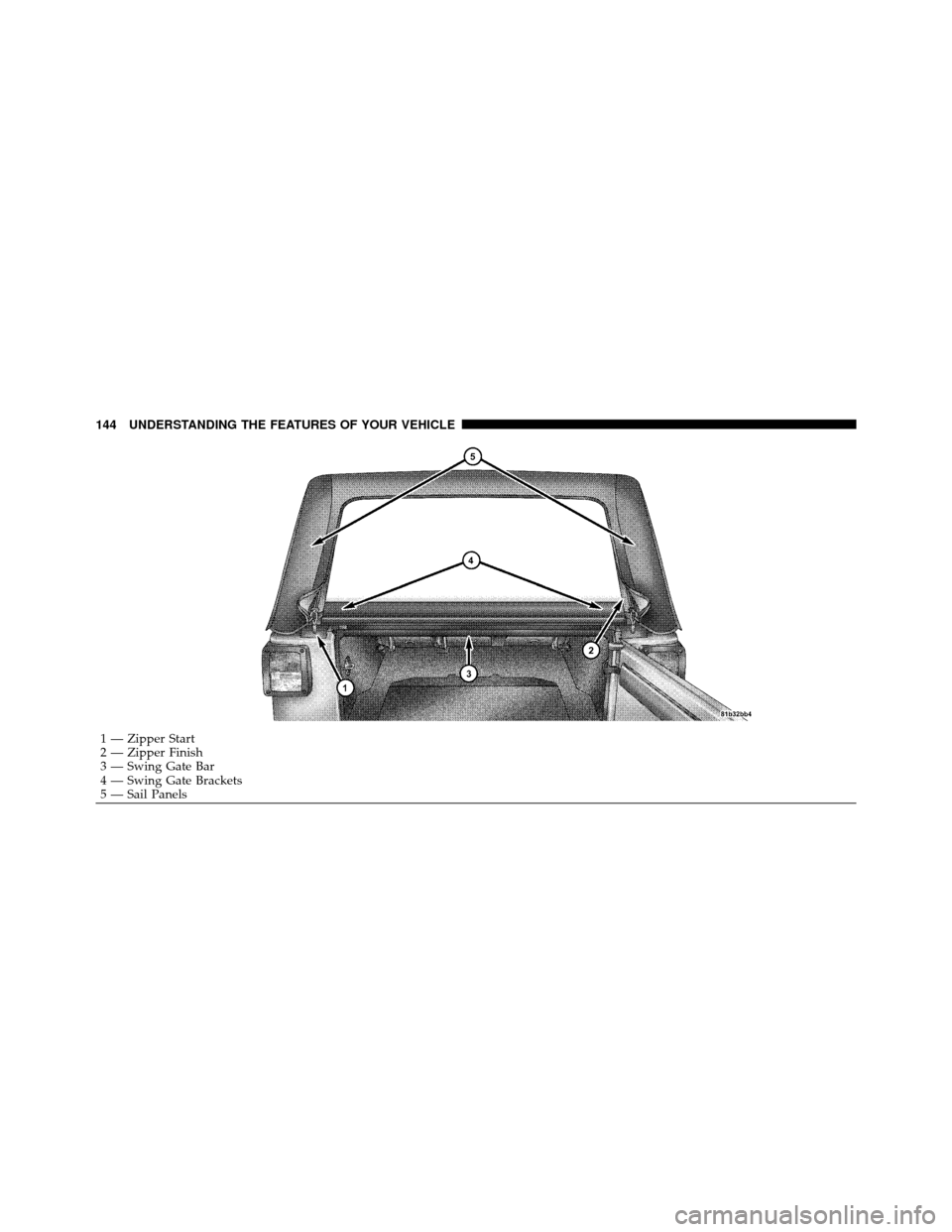

1 — Zipper Start
2 — Zipper Finish
3 — Swing Gate Bar
4 — Swing Gate Brackets
5 — Sail Panels
144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

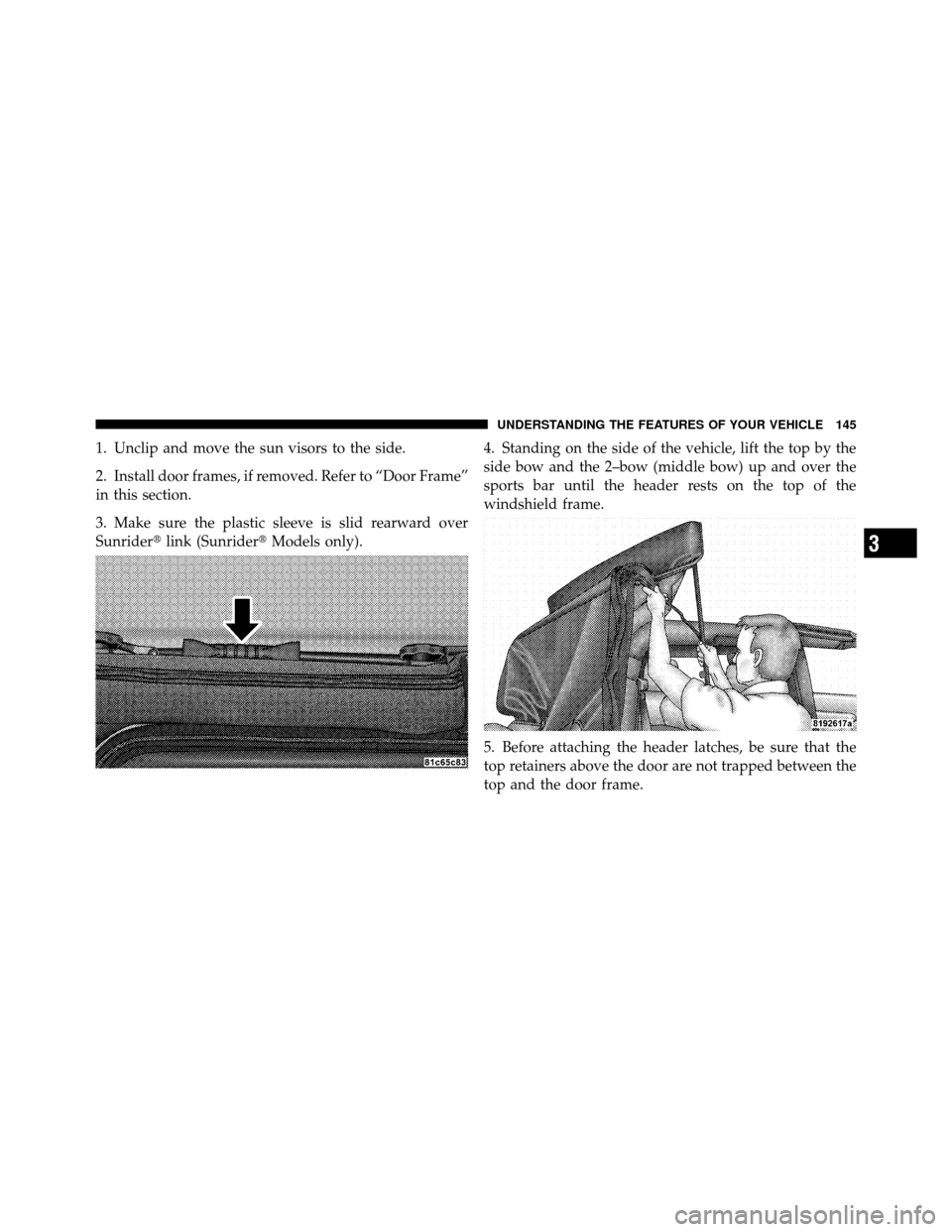

1. Unclip and move the sun visors to the side.
2. Install door frames, if removed. Refer to “Door Frame”
in this section.
3. Make sure the plastic sleeve is slid rearward over
Sunriderlink (Sunrider Models only). 4. Standing on the side of the vehicle, lift the top by the
side bow and the 2–bow (middle bow) up and over the
sports bar until the header rests on the top of the
windshield frame.
5. Before attaching the header latches, be sure that the
top retainers above the door are not trapped between the
top and the door frame.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 145

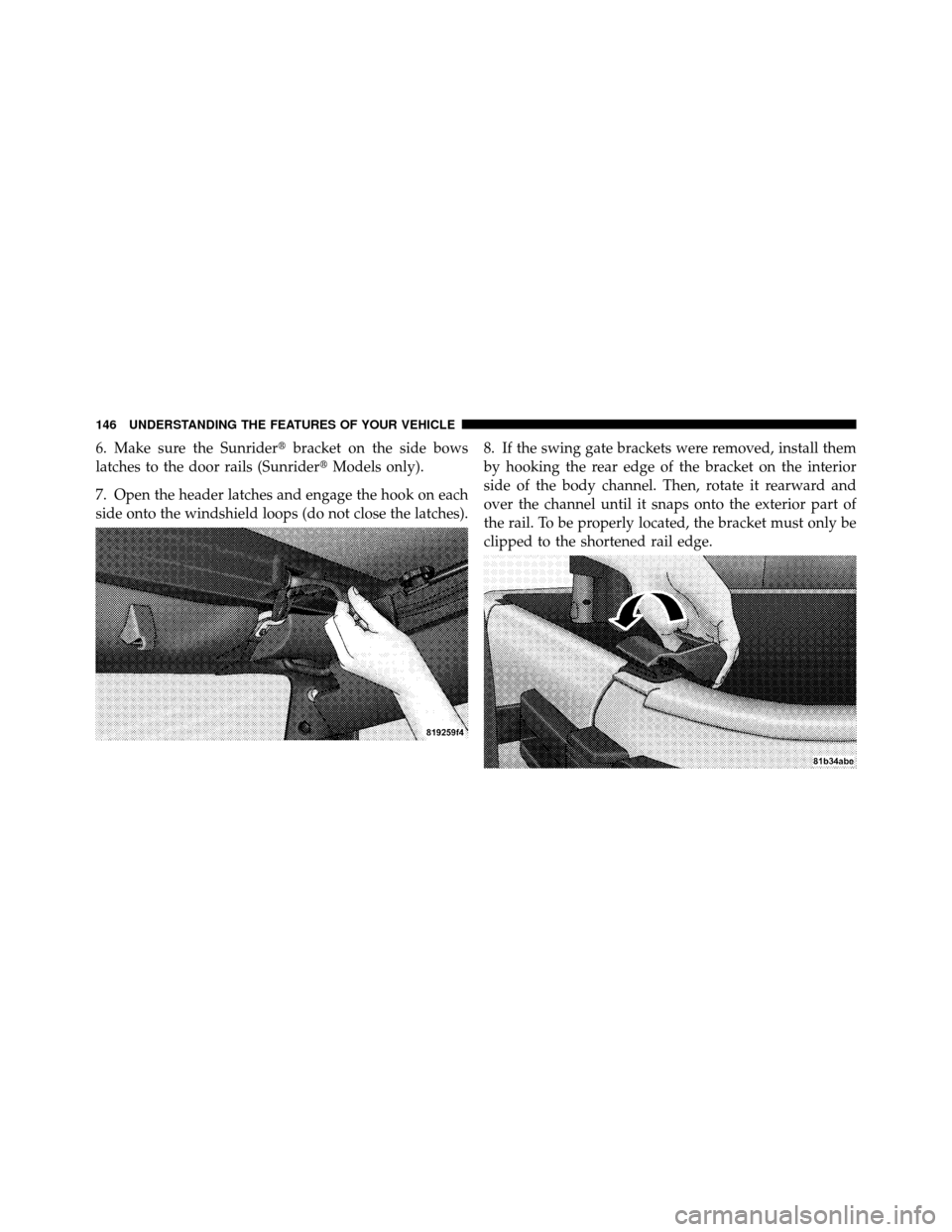

6. Make sure the Sunriderbracket on the side bows
latches to the door rails (Sunrider Models only).
7. Open the header latches and engage the hook on each
side onto the windshield loops (do not close the latches). 8. If the swing gate brackets were removed, install them
by hooking the rear edge of the bracket on the interior
side of the body channel. Then, rotate it rearward and
over the channel until it snaps onto the exterior part of
the rail. To be properly located, the bracket must only be
clipped to the shortened rail edge.
146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

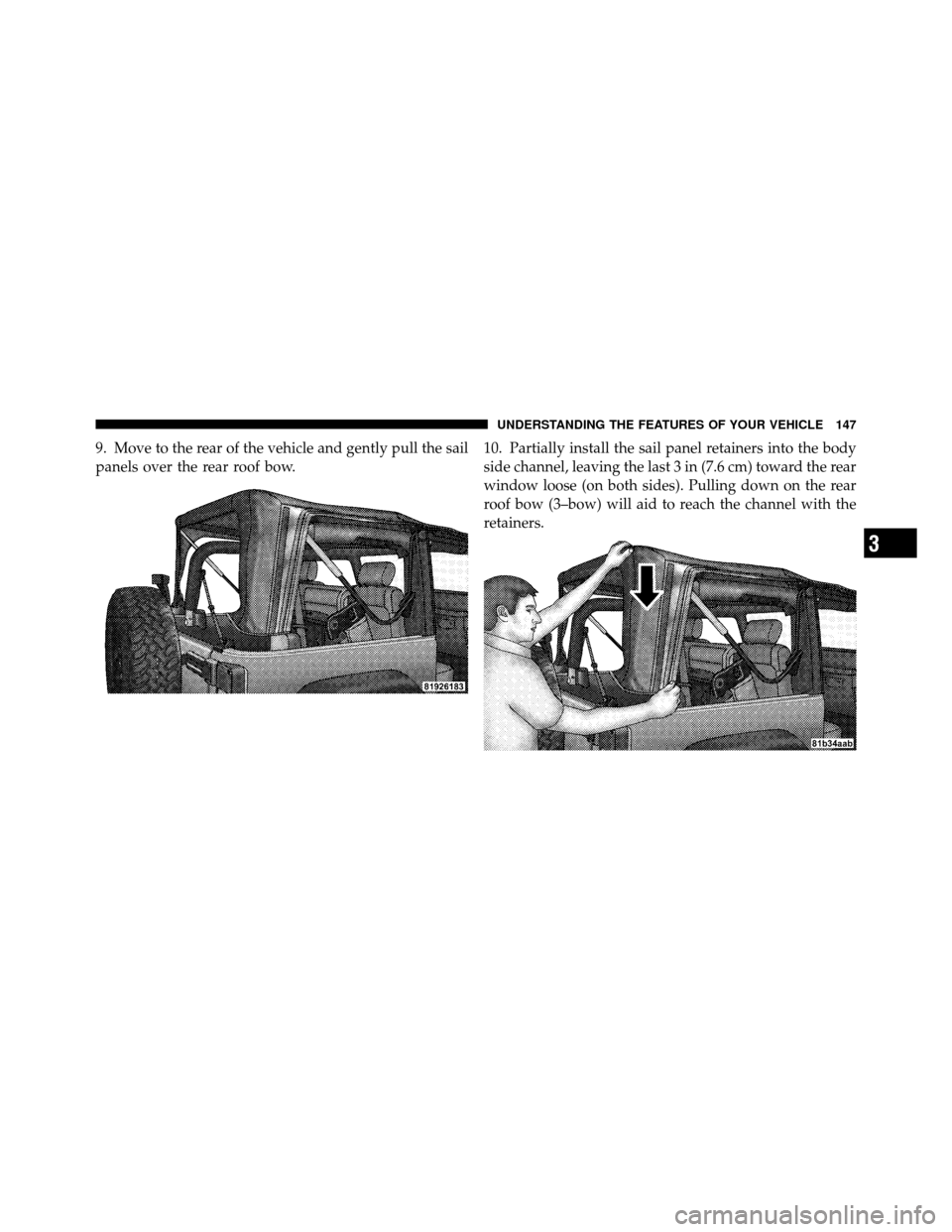

9. Move to the rear of the vehicle and gently pull the sail
panels over the rear roof bow.10. Partially install the sail panel retainers into the body
side channel, leaving the last 3 in (7.6 cm) toward the rear
window loose (on both sides). Pulling down on the rear
roof bow (3–bow) will aid to reach the channel with the
retainers.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 147

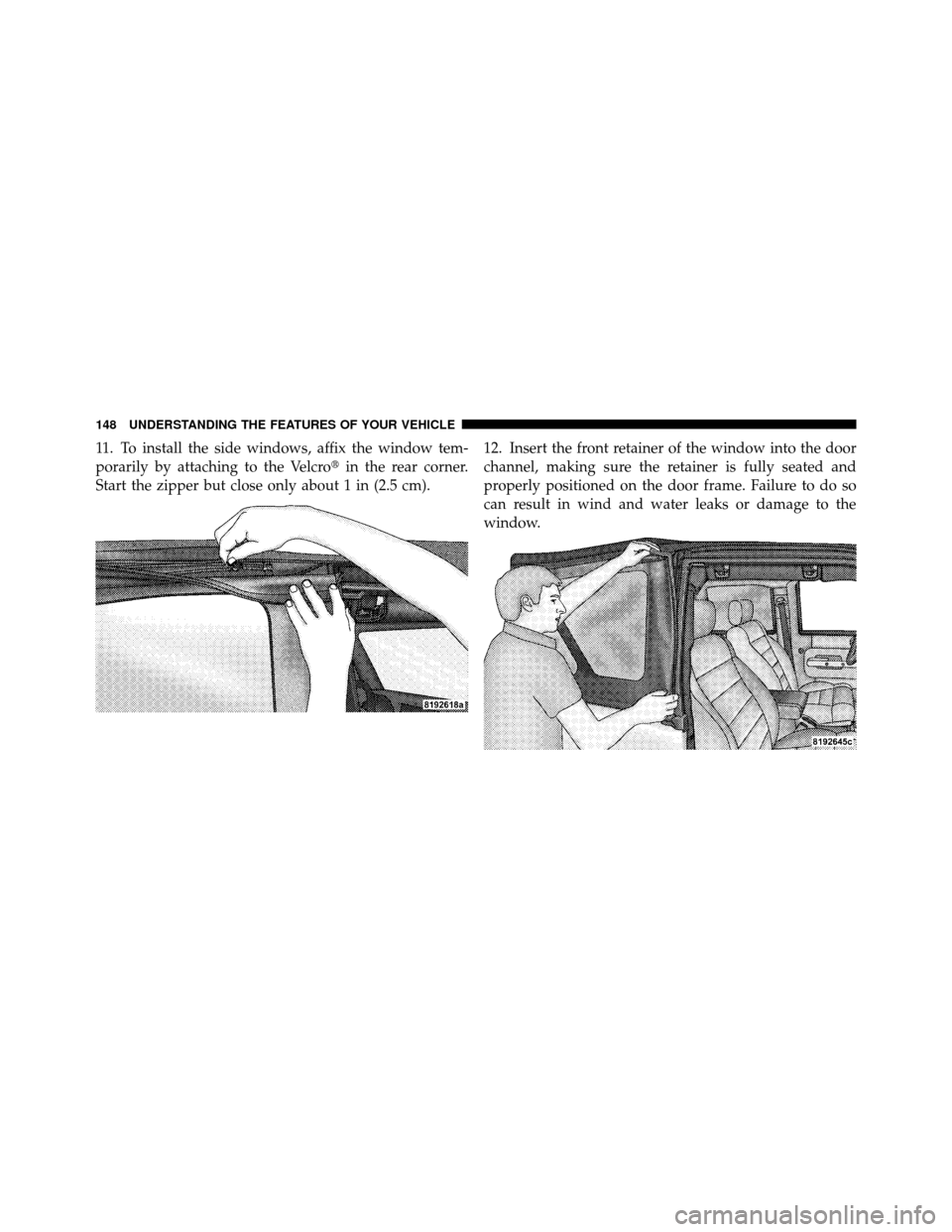

11. To install the side windows, affix the window tem-
porarily by attaching to the Velcroin the rear corner.
Start the zipper but close only about 1 in (2.5 cm). 12. Insert the front retainer of the window into the door
channel, making sure the retainer is fully seated and
properly positioned on the door frame. Failure to do so
can result in wind and water leaks or damage to the
window.
148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

13. Insert the retainer along the bottom edge of the
window into the bottom side channel, beginning at the
front and working to the rear of the vehicle. Finish byclosing the zipper completely and attaching the Velcro

along the top and rear of the window. Repeat this step for
the opposite side.
1 — Incorrect Insertion
2 — Correct Insertion
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 149

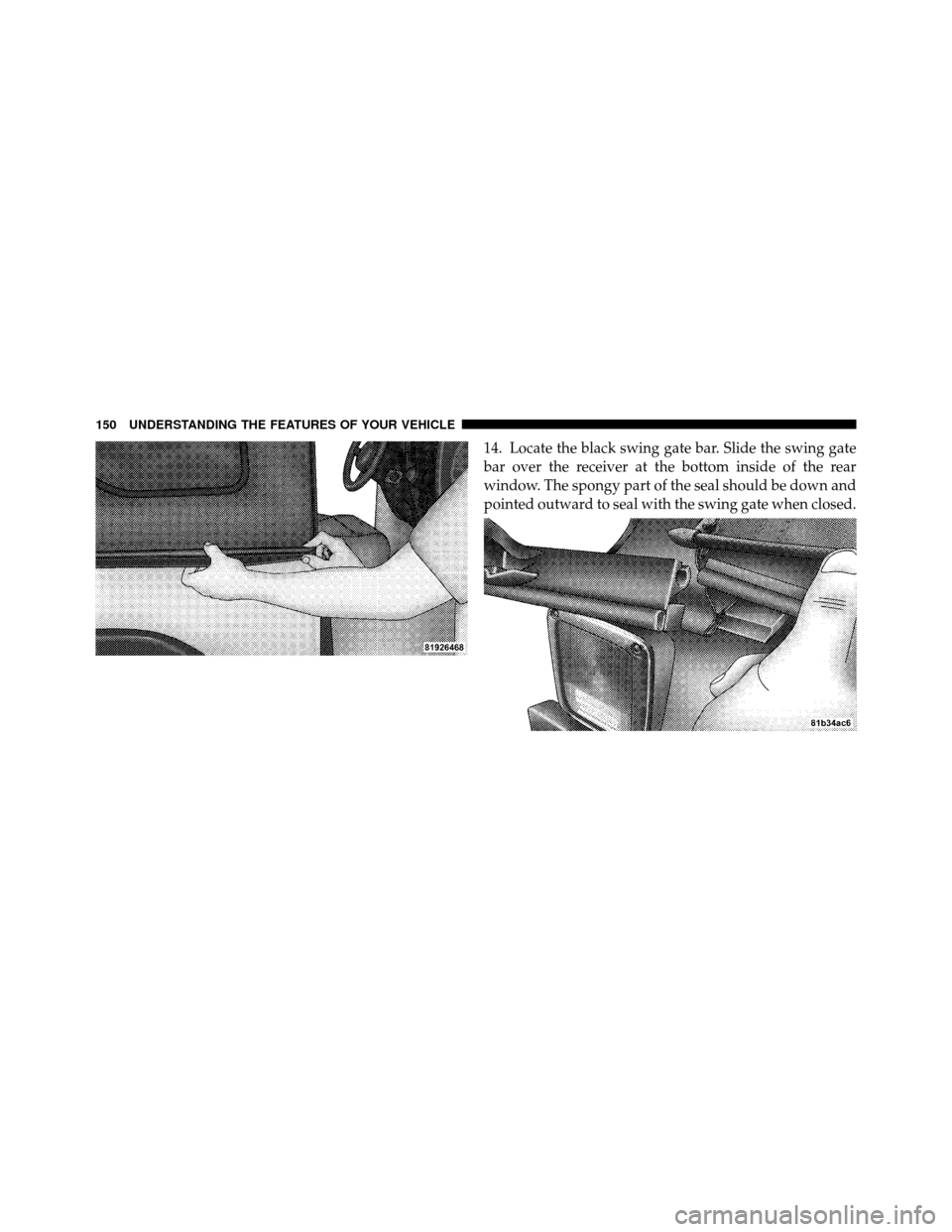

14. Locate the black swing gate bar. Slide the swing gate
bar over the receiver at the bottom inside of the rear
window. The spongy part of the seal should be down and
pointed outward to seal with the swing gate when closed.
