2009 JEEP WRANGLER Owners Manual

1. To return the seat to a sitting position, rotate the
seatback upright until it locks.
2. Push the seat rearward until the track locks.
NOTE:
•The front driver seat has a full recliner memory, which
will allow the seatback to be returned to its originalposition. If equipped with combination lever the seat-
back will return to its first locked position. The recliner
handle will have to be actuated to adjust the seatback
to the desired reclined position.
•The front passenger seats have a track memory, which
returns the seat to just past the halfway point of the
track regardless of its original position.
•The recliner and easy entry levers should not be used
during the automatic returning of the seat to its sitting
position.
Head Restraints
Head restraints can reduce the risk of whiplash injury in
the event of a rear impact. Adjustable head restraints
should be adjusted so that the upper edge is as high as
practical. The front head restraints have a locking button
that must be pushed inward to lower the head restraint.Easy Entry Seat With Combination Lever — If Equipped
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87

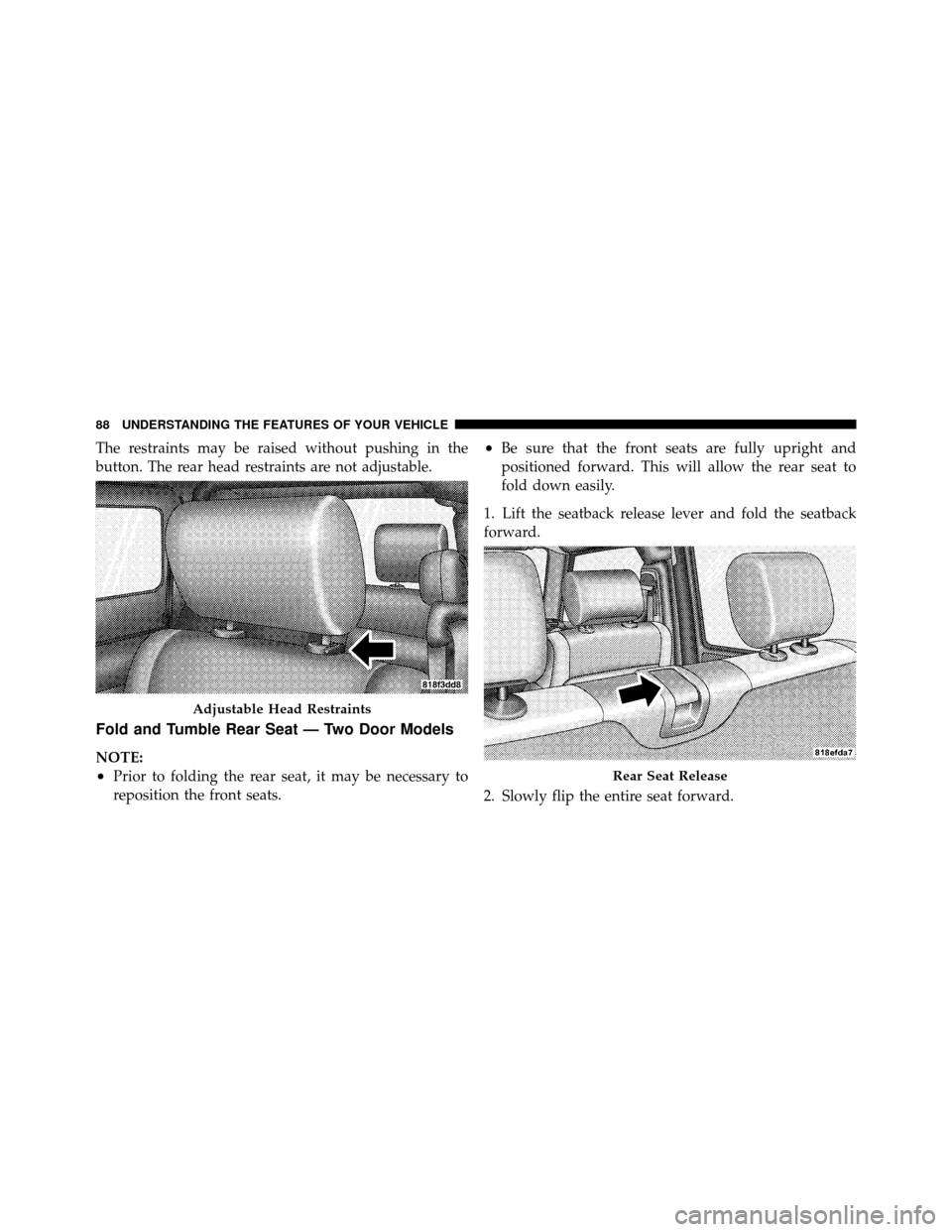

The restraints may be raised without pushing in the
button. The rear head restraints are not adjustable.
Fold and Tumble Rear Seat — Two Door Models
NOTE:
•Prior to folding the rear seat, it may be necessary to
reposition the front seats.
•Be sure that the front seats are fully upright and
positioned forward. This will allow the rear seat to
fold down easily.
1. Lift the seatback release lever and fold the seatback
forward.
2. Slowly flip the entire seat forward.
Adjustable Head Restraints
Rear Seat Release
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

3. Return the seat to the normal position.
4. Raise the rear seatback using the assist strap and
firmly lock the seat into position.
Removing the Rear Seat — Two Door Models
WARNING!
•It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
•In a collision, you or others in your vehicle could
be injured if seats are not properly latched to their
floor attachments. Always be sure that the seats
are fully latched.
Folding Rear Seat
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89

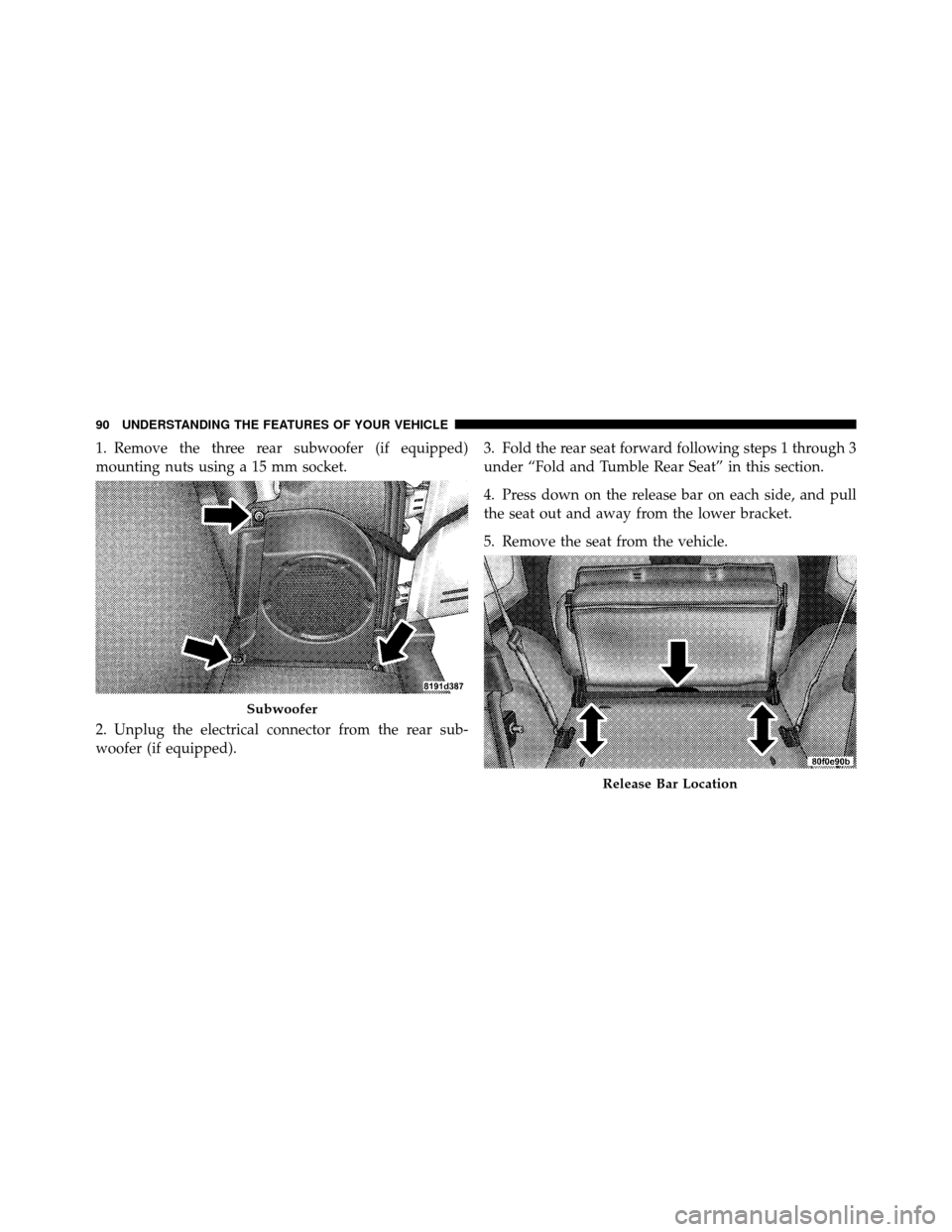

1. Remove the three rear subwoofer (if equipped)
mounting nuts using a 15 mm socket.
2. Unplug the electrical connector from the rear sub-
woofer (if equipped).3. Fold the rear seat forward following steps 1 through 3
under “Fold and Tumble Rear Seat” in this section.
4. Press down on the release bar on each side, and pull
the seat out and away from the lower bracket.
5. Remove the seat from the vehicle.
Subwoofer
Release Bar Location
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

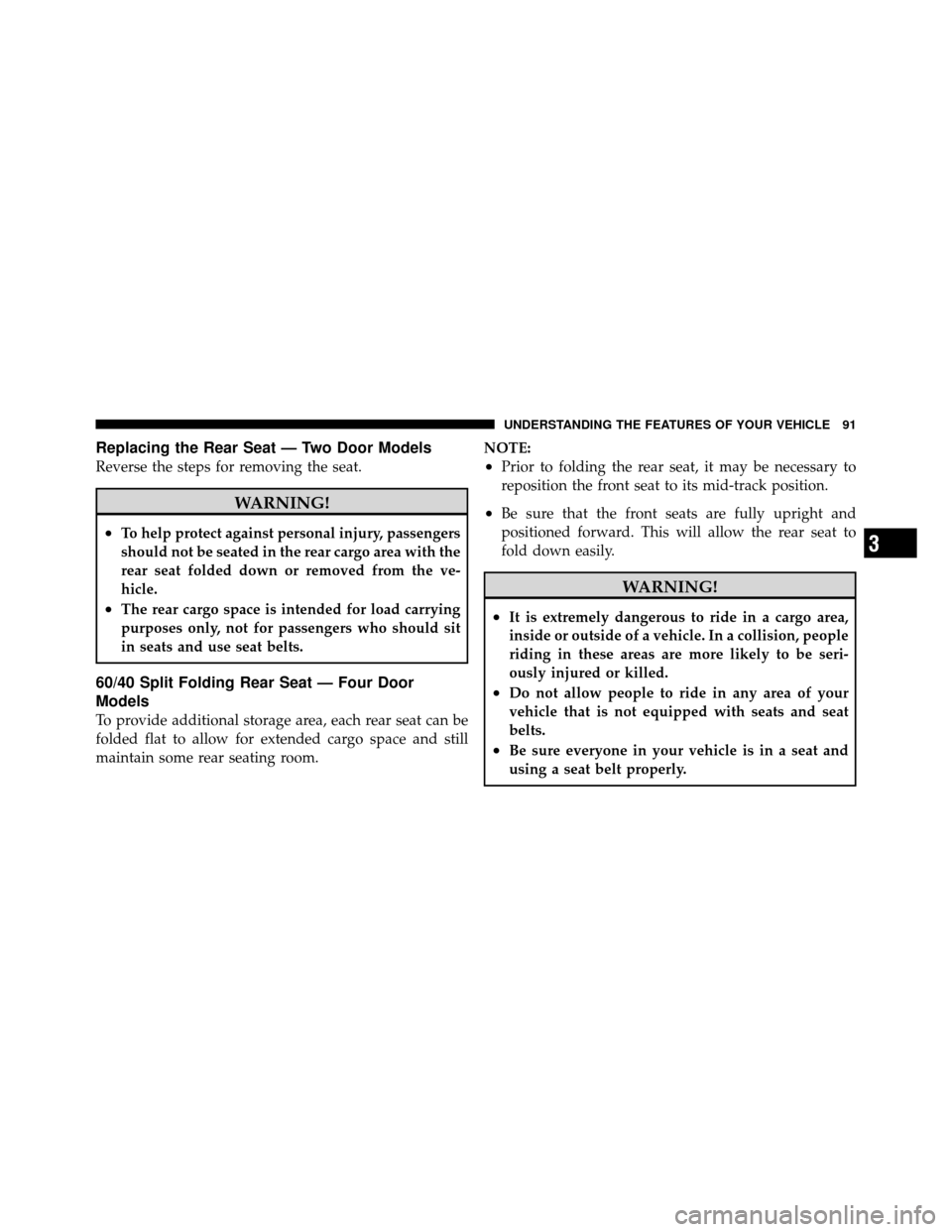

Replacing the Rear Seat — Two Door Models
Reverse the steps for removing the seat.
WARNING!
•To help protect against personal injury, passengers
should not be seated in the rear cargo area with the
rear seat folded down or removed from the ve-
hicle.
•The rear cargo space is intended for load carrying
purposes only, not for passengers who should sit
in seats and use seat belts.
60/40 Split Folding Rear Seat — Four Door
Models
To provide additional storage area, each rear seat can be
folded flat to allow for extended cargo space and still
maintain some rear seating room.NOTE:
•Prior to folding the rear seat, it may be necessary to
reposition the front seat to its mid-track position.
•Be sure that the front seats are fully upright and
positioned forward. This will allow the rear seat to
fold down easily.
WARNING!
•It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91

To Fold Down the Rear Seat
Locate the pull strap (lower outboard side of seat), and
pull it toward you until the seatback releases.
To Raise the Rear Seat
Raise the seatback and lock it into place. If interference
from the cargo area prevents the seatback from fully
locking, you will have difficulty returning the seat to its
proper position.
NOTE:If the rear seatback is not fully latched, the
center shoulder belt will not be able to be extended for
use. If you cannot extend the center shoulder belt, make
sure your seatback is fully latched.
WARNING!
Be certain that the seatback is securely locked into
position. If the seatback in not securely locked into
position the seat will not provide the proper stability
for child seats and/or passengers. An improperly
latched seat could cause serious injury.
Pull Strap
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

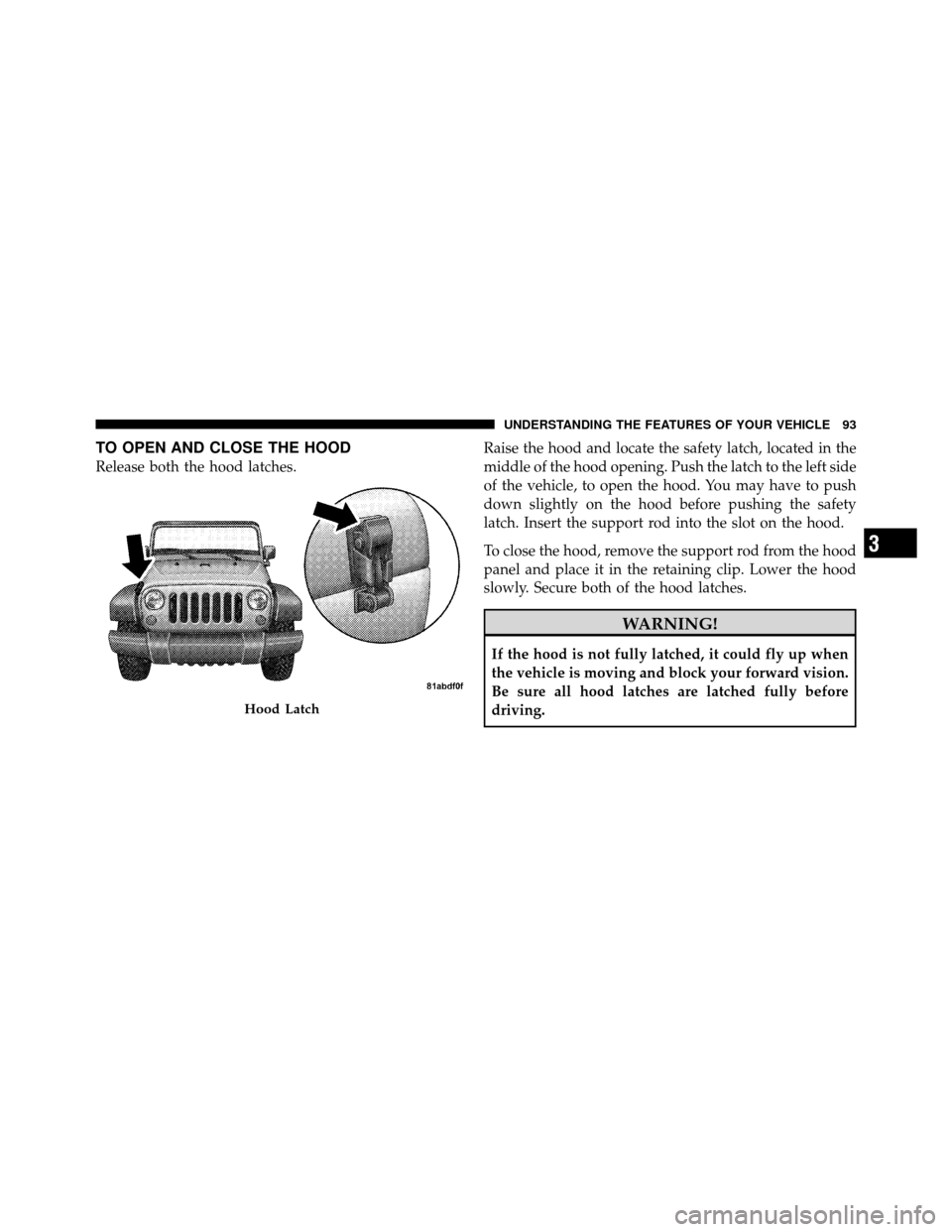

TO OPEN AND CLOSE THE HOOD
Release both the hood latches.Raise the hood and locate the safety latch, located in the
middle of the hood opening. Push the latch to the left side
of the vehicle, to open the hood. You may have to push
down slightly on the hood before pushing the safety
latch. Insert the support rod into the slot on the hood.
To close the hood, remove the support rod from the hood
panel and place it in the retaining clip. Lower the hood
slowly. Secure both of the hood latches.
WARNING!
If the hood is not fully latched, it could fly up when
the vehicle is moving and block your forward vision.
Be sure all hood latches are latched fully before
driving.
Hood Latch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93

LIGHTS
Multifunction Lever
The multifunction lever controls the operation of the
parking lights, headlights, headlight beam selection,
passing light, fog lights, instrument panel light dimming
and turn signals. The lever is located on the left side of
the steering column.
Multifunction Lever
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
