Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key, contact your
authorized dealer for details.
NOTE:
If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the system’s
memory. This will prevent the lost key from starting your
vehicle. The remaining keys must then be reprogrammed.
All vehicle keys must be taken to an authorized dealer at
the time of service to be reprogrammed.
General Information
The Sentry Key system complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the vehicle doors,
swing gate, and ignition for unauthorized operation. The
Vehicle Security Alarm provides both audible and visible
signals when activated. The horn will sound, the head-
lights, park lamps and/or turn signals will flash repeat-
edly for three minutes. If disturbance is still present
(driver’s door, passenger door, other doors, ignition) after
three minutes, the headlights, park lamps and/or turn
signals will flash for an additional 15 minutes.
NOTE: The Panic Alarm and the Vehicle Security Alarm
are quite different. Please take a moment to activate the
Panic Alarm and the Vehicle Security Alarm to hear the
differences in the horn. In case one should go off in the
future, you will need to know which mode has been
activated in order to deactivate it.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

Rearming The System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn off the
horn after three minutes, turn off all of the visual signals
after 15 minutes, and then the Vehicle Security Alarm will
rearm itself.
To Set the Alarm
The Vehicle Security Alarm will set when you use the
Remote Keyless Entry (RKE) transmitter to lock the doors
and swing gate, or when you use the power door lock
switch while the door is open. After all the doors are
locked and closed, the Vehicle Security Light (located on
the instrument cluster) will flash rapidly for about 16 sec-
onds to signal that the Vehicle Security Alarm is arming.
During this 16 second arming period, opening any door
or the swing gate will cancel the arming. If the Vehicle
Security Alarm successfully arms, the Vehicle Security
Light will flash at a slower rate to indicate the Vehicle
Security Alarm is set.
To Disarm the System
To disarm the Vehicle Security Alarm, you will need to
press the UNLOCK button on the RKE transmitter, or
turn the ignition key to the ON position. If something has
triggered the Vehicle Security Alarm in your absence, the
horn will sound three times when you unlock the doors.
Check the vehicle for tampering.
The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
Vehicle Security Alarm will arm unexpectedly. If you
remain in the vehicle and lock the doors with the RKE
transmitter, once the Vehicle Security Alarm is armed
(after 16 seconds), when you pull the door handle to exit,
the alarm will sound. If this occurs, press the UNLOCK
button on the RKE transmitter to disarm the Vehicle
Security Alarm. You may also accidentally disarm the
Vehicle Security Alarm by unlocking the driver’s door
with the key and then locking it. The door will be locked
but the Vehicle Security Alarm will not arm.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To Lock the Doors and Swing Gate
Press and release the LOCK button on the RKE transmit-
ter to lock all doors. The turn signals will flash and the
horn will chirp once to acknowledge the lock signal. If
desired, the “Sound Horn On Lock” feature can be
turned on or off using the following steps:
1. Press the RKE transmitter LOCK button for 4 to
10 seconds.
2. While the LOCK button is pressed (after four seconds),
press the RKE transmitter PANIC button. Release both
buttons.
The “Sound Horn On Lock” feature can be reactivated by
repeating this procedure.
Using The Panic Alarm
To turn the Panic Alarm feature on or off, press and hold
the PANIC button on the RKE transmitter for at least one
second and release. When the Panic Alarm is activated,the headlights and park lights will flash, the horn will
pulse on and off and the interior lights will turn on.
The Panic Alarm will stay on for three minutes unless
you turn it off by pressing the PANIC button a second
time, or if the vehicle speed is 5 mph (8 km/h) or greater.
NOTE:
When you turn off the Panic Alarm by pressing
the PANIC button a second time, you may have to be
closer to the vehicle due to the radio frequency noises of
the system.
To Turn Off “Flash Lights With Lock”
NOTE: The “Flash Lights With Lock” feature can be
turned on or off using the following steps:
1. Press the RKE transmitter UNLOCK button for 4 to
10 seconds.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

To Enter Remote Start
Press and release the REMOTE START button
on the RKE transmitter twice, within five sec-
onds. The parking lights will flash and the horn
will chirp twice (if programmed). Then, the
engine will start and the vehicle will remain in the
Remote Start mode for a 15-minute cycle.
NOTE:
•The park lamps will turn on and remain on during
Remote Start mode.
•For security, power window operation is disabled
when the vehicle is in the Remote Start mode.
•The engine can be started two consecutive times (two
15-minute cycles) with the RKE transmitter. However,
the ignition switch must be cycled to the ON position
before you can repeat the start sequence for a third
cycle. Remote start will also cancel if any of the following occur:
•The engine stalls or RPM exceeds 2500
•Any engine warning lamps come on
•The hood is opened
•The hazard switch is pressed
•The transmission is moved out of PARK
•The brake pedal is pressed
To Exit Remote Start Mode without Driving the
Vehicle
Press and release the REMOTE START button one time,
or allow the engine to run for the entire 15-minute cycle.
NOTE:
To avoid unintentional shut downs, the system
will disable the one time press of the REMOTE START
button for two seconds after receiving a valid Remote
Start request.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25

INSTRUMENT PANEL FEATURES
1 — Air Outlet6 — Climate Controls
2 — Instrument Cluster 7 — Power Outlet
3 — Horn 8 — Lower Switch Bank
4 — Radio 9 — Auxiliary Power Outlet / Cigar Lighter
5 — Glove Compartment

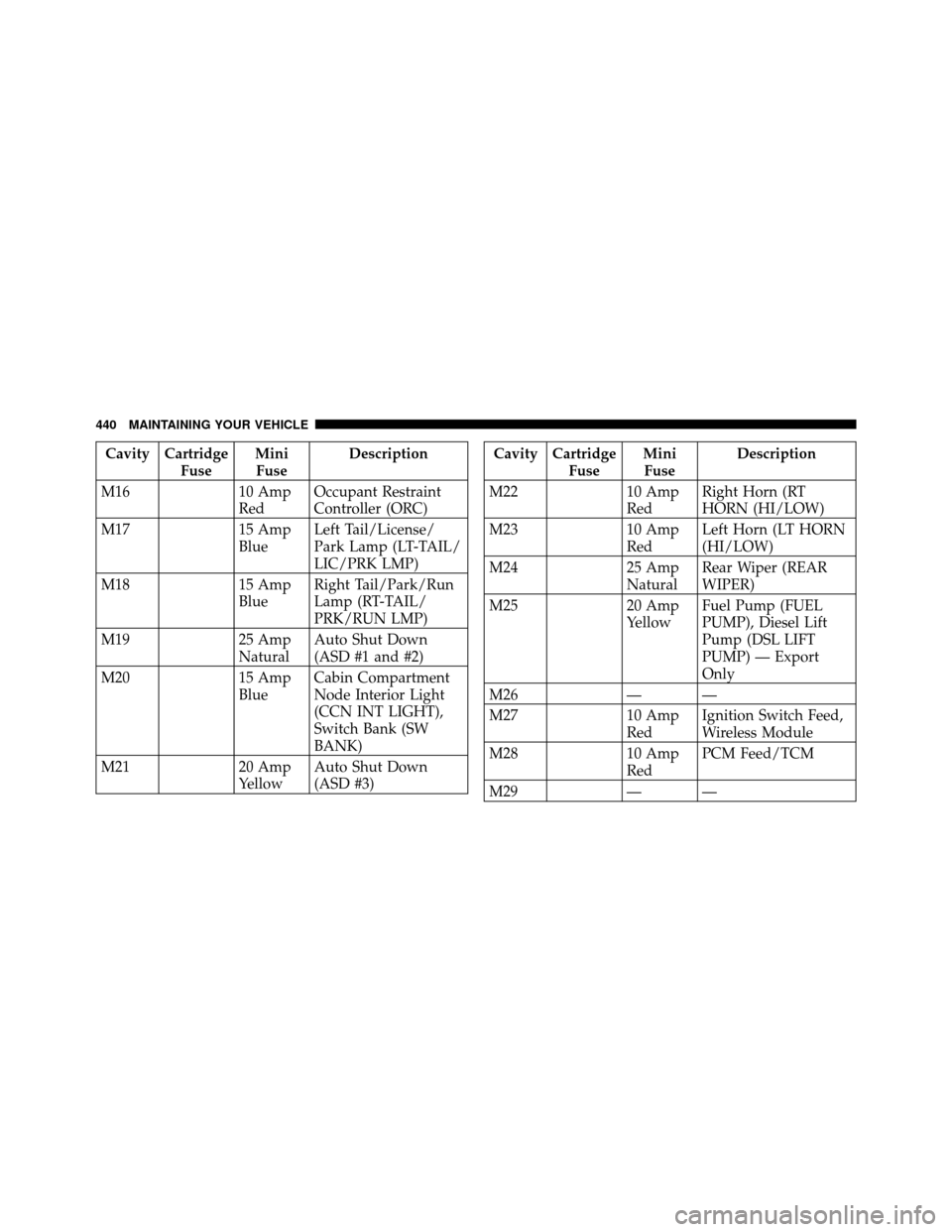

198 UNDERSTANDING YOUR INSTRUMENT PANEL

Cavity CartridgeFuseMini
Fuse Description
M16 10 Amp
Red Occupant Restraint
Controller (ORC)
M17 15 Amp
Blue Left Tail/License/
Park Lamp (LT-TAIL/
LIC/PRK LMP)
M18 15 Amp
Blue Right Tail/Park/Run
Lamp (RT-TAIL/
PRK/RUN LMP)
M19 25 Amp
Natural Auto Shut Down
(ASD #1 and #2)
M20 15 Amp
Blue Cabin Compartment
Node Interior Light
(CCN INT LIGHT),
Switch Bank (SW
BANK)
M21 20 Amp
Yellow Auto Shut Down
(ASD #3)Cavity Cartridge
FuseMini
Fuse Description
M22 10 Amp RedRight Horn (RT
HORN (HI/LOW)
M23 10 Amp
Red Left Horn (LT HORN
(HI/LOW)
M24 25 Amp
Natural Rear Wiper (REAR
WIPER)
M25 20 Amp
Yellow Fuel Pump (FUEL
PUMP), Diesel Lift
Pump (DSL LIFT
PUMP) — Export
Only
M26 — —
M27 10 Amp
Red Ignition Switch Feed,
Wireless Module
M28 10 Amp
Red PCM Feed/TCM
M29 — —
440 MAINTAINING YOUR VEHICLE
