2009 JEEP WRANGLER Owners Manual

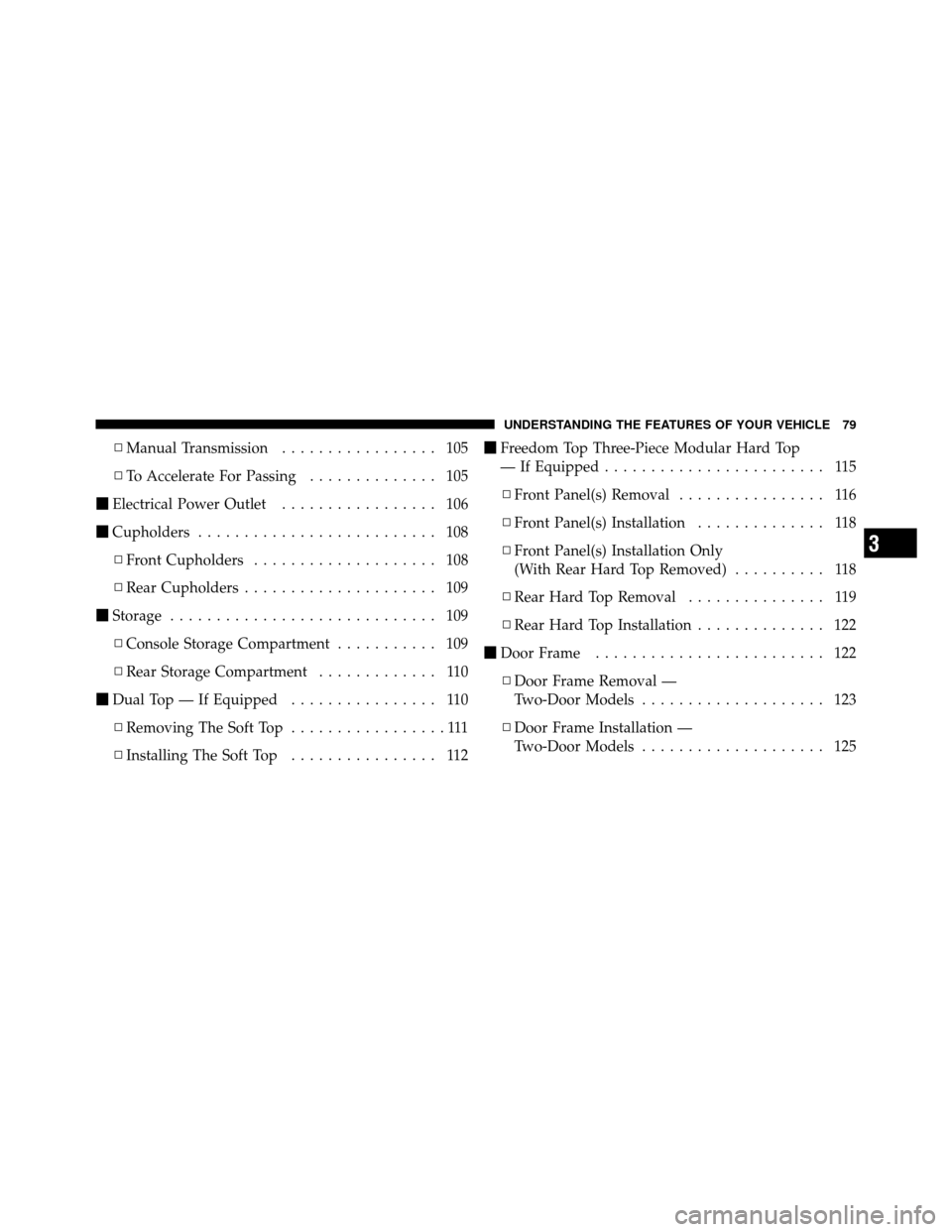

▫Manual Transmission ................. 105
▫ To Accelerate For Passing .............. 105
 Electrical Power Outlet ................. 106
 Cupholders .......................... 108
▫ Front Cupholders .................... 108
▫ Rear Cupholders ..................... 109
 Storage ............................. 109
▫ Console Storage Compartment ........... 109
▫ Rear Storage Compartment ............. 110
 Dual Top — If Equipped ................ 110
▫ Removing The Soft Top .................111
▫ Installing The Soft Top ................ 112
Freedom Top Three-Piece Modular Hard Top
— If Equipped ........................ 115
▫ Front Panel(s) Removal ................ 116
▫ Front Panel(s) Installation .............. 118
▫ Front Panel(s) Installation Only
(With Rear Hard Top Removed) .......... 118
▫ Rear Hard Top Removal ............... 119
▫ Rear Hard Top Installation .............. 122
 Door Frame ......................... 122
▫ Door Frame Removal —
Two-Door Models .................... 123
▫ Door Frame Installation —
Two-Door Models .................... 125
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 79

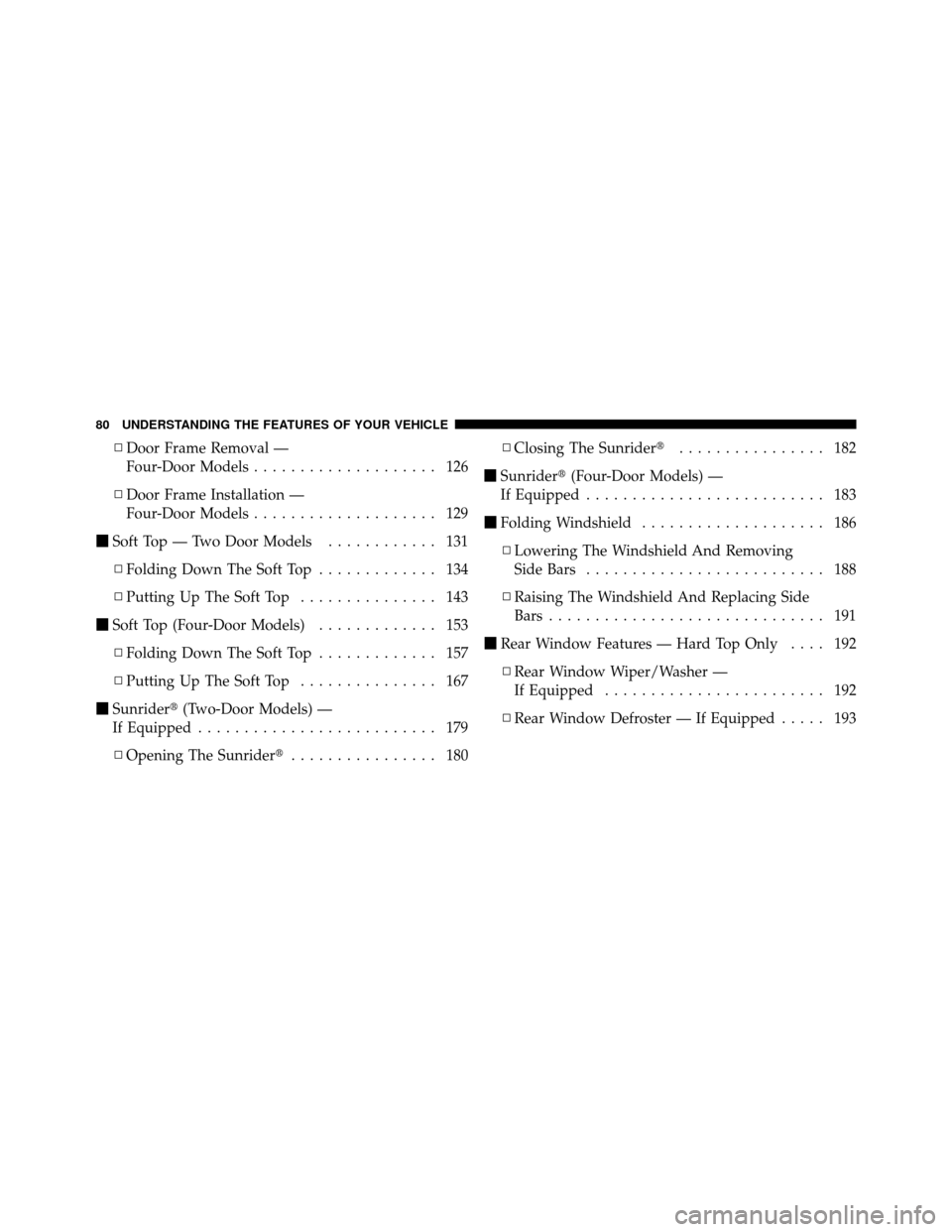

▫Door Frame Removal —
Four-Door Models .................... 126
▫ Door Frame Installation —
Four-Door Models .................... 129
 Soft Top — Two Door Models ............ 131
▫ Folding Down The Soft Top ............. 134
▫ Putting Up The Soft Top ............... 143
 Soft Top (Four-Door Models) ............. 153
▫ Folding Down The Soft Top ............. 157
▫ Putting Up The Soft Top ............... 167
 Sunrider (Two-Door Models) —
If Equipped .......................... 179
▫ Opening The Sunrider ................ 180 ▫
Closing The Sunrider ................ 182
 Sunrider (Four-Door Models) —
If Equipped .......................... 183
 Folding Windshield .................... 186
▫ Lowering The Windshield And Removing
Side Bars .......................... 188
▫ Raising The Windshield And Replacing Side
Bars .............................. 191
 Rear Window Features — Hard Top Only .... 192
▫ Rear Window Wiper/Washer —
If Equipped ........................ 192
▫ Rear Window Defroster — If Equipped ..... 193
80 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

MIRRORS
Inside Day/Night Mirror
A two-point pivot system allows for horizontal and
vertical adjustment of the mirror. The mirror should be
adjusted to center on the view through the rear window.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of the vehicle). The mirror should be adjusted while
set in the day position (toward the windshield).
Adjusting Rearview Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 81

Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic with a slight
overlap of the view obtained on the inside mirror.WARNING!
Vehicles and other objects seen in the passenger-side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger-side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror when judging the size or distance of a vehicle
seen in the passenger-side mirror.
uconnectphone
This feature is not available on two–door or four–door
models.
Outside Rearview Mirror
82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Voice Recognition Button (uconnectphone)
When you press this button, a “Not Equipped with
uconnect” message will display on your radio screen.
Phone Button (uconnect phone)
When you press this button, a “Not Equipped with
uconnect” message will display on your radio screen.
SEATS
Front Seat Adjustment
Move the seat forward or rearward by lifting the lever. Be
sure the latch is fully engaged.
Manual Seat Adjustment
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83

WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
properly adjusted and you could be injured. Only
adjust a seat while the vehicle is parked.
Manual Seat Height Adjustment — If Equipped
The driver’s seat height can be raised or lowered by using
the ratcheting handle, located on the outboard side of the
seat. Pull upward on the handle to raise the seat; push
downward on the handle to lower the seat.
Seat Height Adjustment
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Front Seatback Recline
Lean forward before lifting the handle, then lean back to
the desired position and release the handle. Lift the
handle to return the seatback to an upright position.
Front Easy Entry Seats — Two Door Models
Push the lever on the seatback rearward (toward the rear
of the vehicle) to tilt the entire seat forward.
Recline Lever
Easy Entry Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85

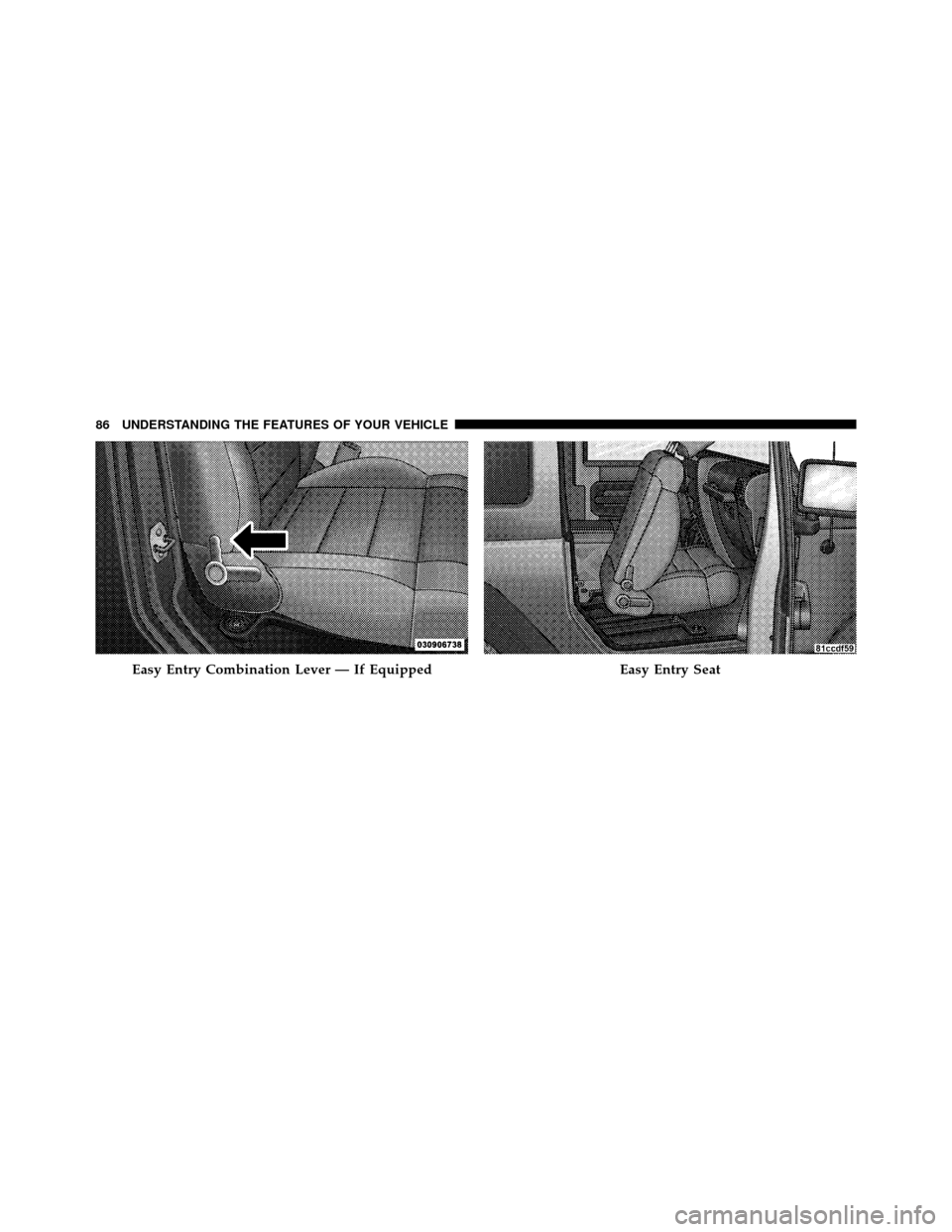

Easy Entry Combination Lever — If EquippedEasy Entry Seat
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
