2009 JEEP WRANGLER window

WARNINGS AND CAUTIONS
This Owner’s Manual containsWARNINGSagainst op-
erating procedures that could result in an accident or
bodily injury. It also contains CAUTIONSagainst proce-
dures that could result in damage to your vehicle. If you
do not read this entire manual, you may miss important
information. Observe all Warnings and Cautions.
VEHICLE IDENTIFICATION NUMBER
The Vehicle Identification Number (VIN) is found on the
left front corner of the instrument panel pad, visible from
outside of the vehicle through the windshield. This
number also appears on the Automobile Information
Disclosure Label affixed to a window on your vehicle.
Save this label for a convenient record of your vehicle
identification number and optional equipment.
NOTE: It is illegal to remove or alter the VIN plate.
VEHICLE MODIFICATIONS/ALTERATIONS
WARNING!
Any modifications or alterations to this vehicle could
seriously affect its roadworthiness and safety and
may lead to an accident resulting in serious injury or
death.
8 INTRODUCTION

▫To Lock The Doors And Swing Gate ........ 21
▫ Using The Panic Alarm ................. 21
▫ To Turn Off “Flash Lights With Lock” ....... 21
▫ Programming Additional Transmitters ...... 22
▫ General Information ................... 22
▫ Transmitter Battery Replacement .......... 23
 Remote Starting System — If Equipped ....... 24
▫ How To Use Remote Start ............... 24
 Doors ............................... 26
▫ Upper Half Door Window Removal —
If Equipped ......................... 26
▫ Upper Half Door Window Installation —
If Equipped ......................... 27 ▫
Front Door Removal ................... 27
▫ Rear Door Removal (Four-Door Models) ..... 29
 Door Locks ........................... 30
▫ Manual Door Locks ................... 30
▫ Power Door Locks — If Equipped ......... 32
▫ Automatic Unlock Doors On Exit .......... 33
▫ Automatic Door Locks ................. 34
 Windows ............................ 35
▫ Power Windows — If Equipped ........... 35
▫ Rear Power Windows
(Four-Door Models Only) ............... 36
▫ Wind Buffeting ....................... 37
 Rear Swing Gate ....................... 37
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Manual Transmission — If Equipped
1. Turn the ignition switch to the ACC (ACCESSORY)
position.
2. Push the ignition key inward.
3. Turn the ignition key to the LOCK position, and
remove the key.
WARNING!
Leaving unattended children in a vehicle is danger-
ous for a number of reasons. A child or others could
be injured. Children should be warned not to touch
the parking brake, brake pedal, or the shift lever. Do
not leave the key in the ignition. A child could
operate power windows, other controls, or move the
vehicle.
CAUTION!
An unlocked vehicle is an invitation to thieves.
Always remove the key from the ignition, and lock
all doors when leaving the vehicle unattended.
Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition,
sounds a signal to remind you to remove the key.
STEERING WHEEL LOCK
Your vehicle may be equipped with a passive steering
wheel lock. This lock prevents steering the vehicle with-
out the ignition key. If the steering wheel is moved
approximately a half turn in either direction, and the key
is not in the ignition, the steering wheel will lock.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

NOTE:If the RKE transmitter is equipped with a screw,
reinstall and tighten the screw until snug.
REMOTE STARTING SYSTEM — IF EQUIPPED
This system uses the Remote Keyless Entry
(RKE) transmitter to start the engine conve-
niently from outside the vehicle while still
maintaining security. The system has a range of
approximately 328 ft (100 m).
NOTE: The vehicle must be equipped with an auto-
matic transmission to be equipped with Remote Start.
How to Use Remote Start
All of the following conditions must be met before the
engine will remote start:
•Shift lever in PARK
•Doors closed
•Hood closed
•Hazard switch off
•Brake switch inactive (brake pedal not pressed)
•Ignition key removed from ignition switch
•Battery at an acceptable charge level
•RKE PANIC button not pressed
WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Mon-
oxide (CO) which is odorless and colorless. Car-
bon monoxide is poisonous and can cause serious
injury or death when inhaled.
•Keep Remote Keyless Entry (RKE) transmitters
away from children. Operation of the Remote Start
System, windows, door locks or other controls
could cause serious injury or death.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To Enter Remote Start
Press and release the REMOTE START button
on the RKE transmitter twice, within five sec-
onds. The parking lights will flash and the horn
will chirp twice (if programmed). Then, the
engine will start and the vehicle will remain in the
Remote Start mode for a 15-minute cycle.
NOTE:
•The park lamps will turn on and remain on during
Remote Start mode.
•For security, power window operation is disabled
when the vehicle is in the Remote Start mode.
•The engine can be started two consecutive times (two
15-minute cycles) with the RKE transmitter. However,
the ignition switch must be cycled to the ON position
before you can repeat the start sequence for a third
cycle. Remote start will also cancel if any of the following occur:
•The engine stalls or RPM exceeds 2500
•Any engine warning lamps come on
•The hood is opened
•The hazard switch is pressed
•The transmission is moved out of PARK
•The brake pedal is pressed
To Exit Remote Start Mode without Driving the
Vehicle
Press and release the REMOTE START button one time,
or allow the engine to run for the entire 15-minute cycle.
NOTE:
To avoid unintentional shut downs, the system
will disable the one time press of the REMOTE START
button for two seconds after receiving a valid Remote
Start request.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25

To Exit Remote Start Mode and Drive the Vehicle
Before the end of the 15-minute cycle, press and release
the UNLOCK button on the RKE transmitter to unlock
the doors and disarm the Vehicle Security Alarm (if
equipped). Then, prior to the end of the 15-minute cycle,
insert the key into the ignition switch and turn the switch
to the ON position.
NOTE:The ignition switch must be in the ON position
in order to drive the vehicle.
DOORS
CAUTION!
Careless handling and storage of the removable door
panels may damage the seals, causing water to leak
into the vehicles interior.
Upper Half Door Window Removal — If Equipped
1. Grasp the half door window and pull upward.
Upper Half Door Window
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

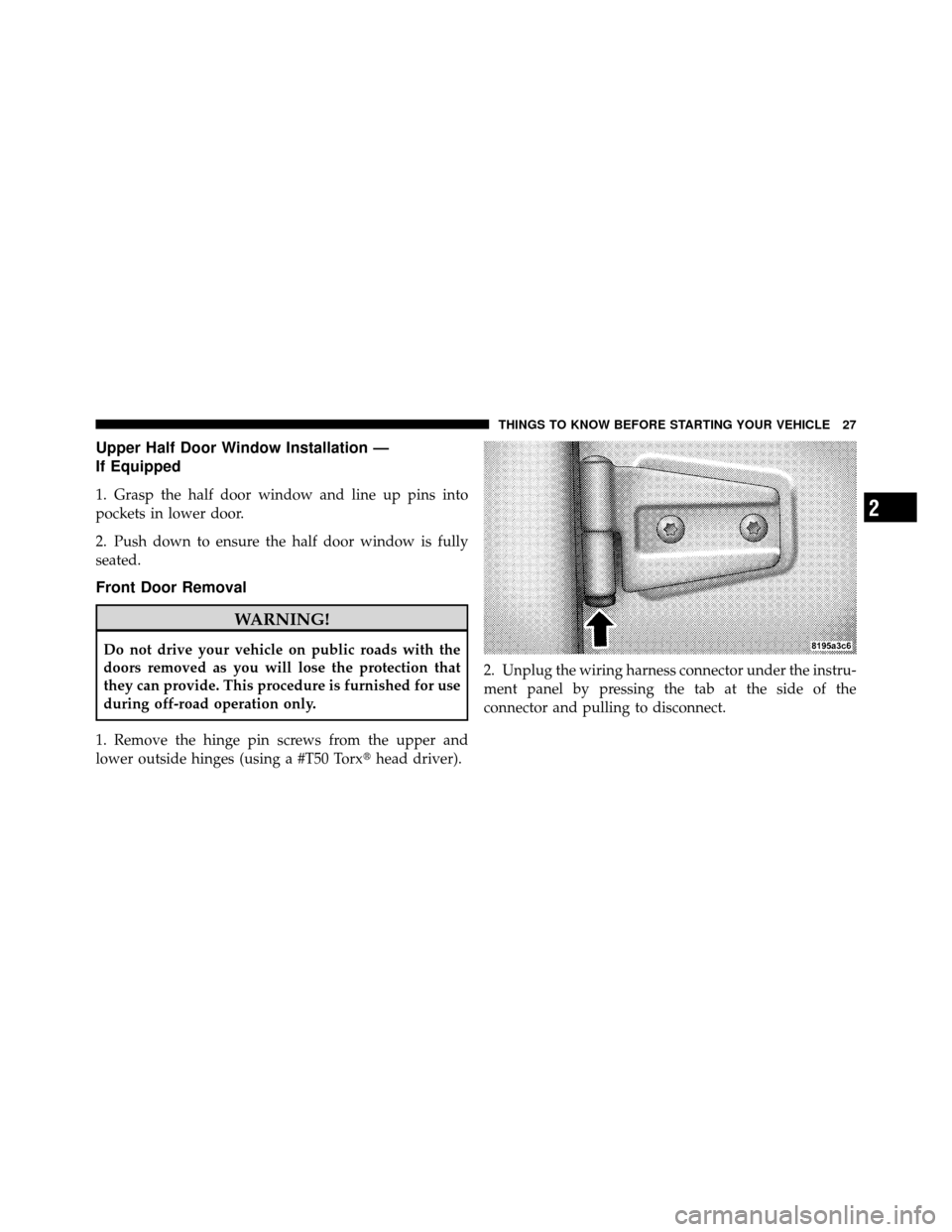

Upper Half Door Window Installation —
If Equipped
1. Grasp the half door window and line up pins into
pockets in lower door.
2. Push down to ensure the half door window is fully
seated.
Front Door Removal
WARNING!
Do not drive your vehicle on public roads with the
doors removed as you will lose the protection that
they can provide. This procedure is furnished for use
during off-road operation only.
1. Remove the hinge pin screws from the upper and
lower outside hinges (using a #T50 Torx head driver).2. Unplug the wiring harness connector under the instru-
ment panel by pressing the tab at the side of the
connector and pulling to disconnect.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27

WINDOWS
Power Windows — If Equipped
The power window switches are located on the instru-
ment panel center stack (below the radio). The top left
switch controls the left front window and the top right
switch controls the right front window. The lower left
switch controls the left rear passenger window (four-
door models), and the lower right switch controls the
right rear passenger window (four-door models). The
switches will continue to function for up to two minutes
after the ignition key has been removed, or until a front
door is opened.
Window Lockout Switch (Four-Door Models Only)
The window lockout switch (located between the win-
dow switches) allows you to disable the rear window
switches that are located on the back of the center floor
console. To disable the window controls, press the win-
dow lockout button downward. To enable the window
controls, press the window lockout button upward.
Power Window Switches
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35
