2009 CHEVROLET HHR Owners Manual

{CAUTION:
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack, you
could be badly injured or killed. Never get under a
vehicle when it is supported only by a jack.
{CAUTION:
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even make
the vehicle fall. To help avoid personal injury and
vehicle damage, be sure to t the jack lift head into
the proper location before raising the vehicle.4. Raise the vehicle by turning the jack handle
clockwise. Raise the vehicle far enough off the
ground so there is enough room for the tire.
5-91

5. Remove all the wheel
nuts and take off the
at tire.
6. Install the tire.
{CAUTION:
Rust or dirt on a wheel, or on the parts to which it is
fastened, can make wheel nuts become loose after
time. The wheel could come off and cause an
accident. When changing a wheel, remove any rust
or dirt from places where the wheel attaches to the
vehicle. In an emergency, use a cloth or a paper
towel to do this; but be sure to use a scraper or wire
brush later, if needed, to get all the rust or dirt off.
SeeChanging a Flat Tire on page 5-76.
5-92

7. Remove any rust or dirt
from the wheel bolts,
mounting surfaces, and
wheel.
8. Place the tire on the wheel mounting surface.
9. Reinstall the wheel nuts with the rounded end of
the nuts toward the wheel. Tighten each by hand
until the wheel is held against the hub.
{CAUTION:
Never use oil or grease on bolts or nuts because
the nuts might come loose. The vehicle’s wheel
could fall off, causing a crash.10. Lower the vehicle by turning the jack handle
counterclockwise. Lower the jack completely.
5-93

{CAUTION:
Wheel nuts that are improperly or incorrectly
tightened can cause the wheels to become loose
or come off. The wheel nuts should be tightened
with a torque wrench to the proper torque
specication after replacing. Follow the torque
specication supplied by the aftermarket
manufacturer when using accessory locking wheel
nuts. SeeCapacities and Specifications on
page 5-114for original equipment wheel nut
torque specications.
Notice:Improperly tightened wheel nuts can lead
to brake pulsation and rotor damage. To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper
torque specication. SeeCapacities and
Specifications on page 5-114for the wheel nut
torque specication.11. Tighten the wheel nuts
rmly in a crisscross
sequence, as shown.
Storing a Flat or Spare Tire and
Tools
{CAUTION:
Storing a jack, a tire, or other equipment in the
passenger compartment of the vehicle could
cause injury. In a sudden stop or collision, loose
equipment could strike someone. Store all these in
the proper place.
5-94

Storing the Flat Tire and Tools
To store the at tire:
1. Open the liftgate. SeeLiftgate on page 2-12for
more information.
2. Put back all tools as they were stored in the rear
storage compartment and put the compartment
cover back on. For more information, see “Storing
the Compact Spare Tire and Tools” next in this
section.
3. Install the cargo cover. For more information, see
Rear Compartment Storage Panel/Cover on
page 2-52.
4. Place the tire, lying at, in the rear storage
compartment.
If there is a loop on the end of the strap used to
secure the at tire, go to Step 5. If there is not
a loop, go to Step 8.5. Route the loop end of
the strap (C) through
one of the cargo
tie-downs (A) located in
the rear of the vehicle.
6. Route the hook (B) through the loop (C).
7. Pull the strap to tighten it around the cargo
tie-down (A).
5-95

8. Route the hook end of the strap through the wheel. Aluminum Wheel
Steel Wheel
5-96

9. Attach the strap to the
cargo tie-downs in the
rear of the vehicle.
10. Slide the buckle to tighten the tie-down strap.
Storing the Compact Spare Tire
and Tools
Use the diagram as a guide for storing the compact
spare tire once you are done using it.A. Retainer
B. Cover
C. Spare Tire
D. Wing NutE. Jack and Wheel
Wrench
F. Strap
G. Bolt
1. Open the liftgate. SeeLiftgate on page 2-12for
more information.
2. Install the strap (F) on the oor of the spare tire
compartment.
3. Place the jack and wheel wrench (E) over the
bolt (G), making sure the strap is securely
stored, under the jack and wheel wrench.
5-97

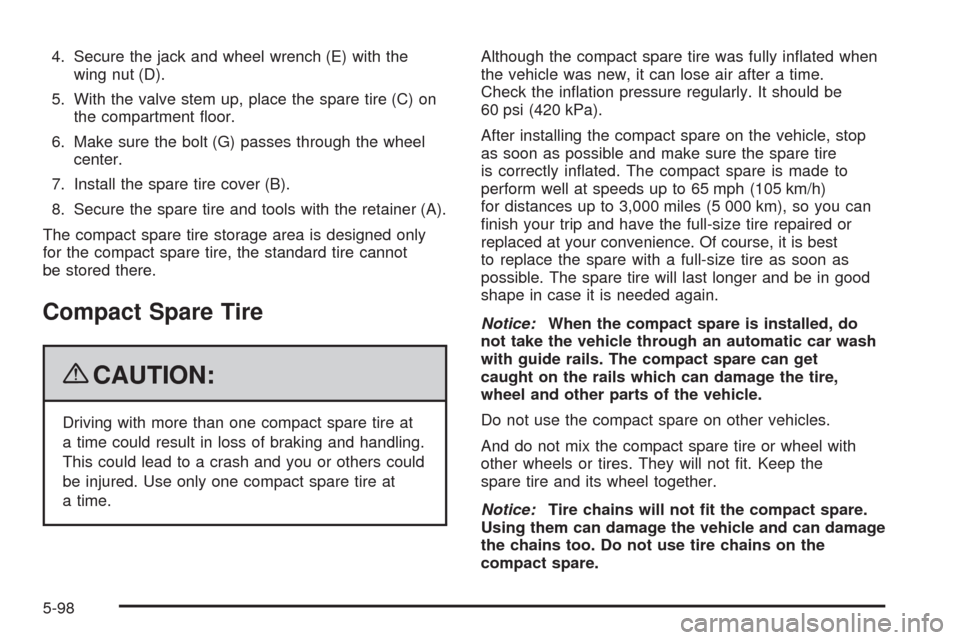

4. Secure the jack and wheel wrench (E) with the
wing nut (D).
5. With the valve stem up, place the spare tire (C) on
the compartment oor.
6. Make sure the bolt (G) passes through the wheel
center.
7. Install the spare tire cover (B).
8. Secure the spare tire and tools with the retainer (A).
The compact spare tire storage area is designed only
for the compact spare tire, the standard tire cannot
be stored there.
Compact Spare Tire
{CAUTION:
Driving with more than one compact spare tire at
a time could result in loss of braking and handling.
This could lead to a crash and you or others could
be injured. Use only one compact spare tire at
a time.Although the compact spare tire was fully inated when
the vehicle was new, it can lose air after a time.
Check the ination pressure regularly. It should be
60 psi (420 kPa).
After installing the compact spare on the vehicle, stop
as soon as possible and make sure the spare tire
is correctly inated. The compact spare is made to
perform well at speeds up to 65 mph (105 km/h)
for distances up to 3,000 miles (5 000 km), so you can
nish your trip and have the full-size tire repaired or
replaced at your convenience. Of course, it is best
to replace the spare with a full-size tire as soon as
possible. The spare tire will last longer and be in good
shape in case it is needed again.
Notice:When the compact spare is installed, do
not take the vehicle through an automatic car wash
with guide rails. The compact spare can get
caught on the rails which can damage the tire,
wheel and other parts of the vehicle.
Do not use the compact spare on other vehicles.
And do not mix the compact spare tire or wheel with
other wheels or tires. They will not t. Keep the
spare tire and its wheel together.
Notice:Tire chains will not t the compact spare.
Using them can damage the vehicle and can damage
the chains too. Do not use tire chains on the
compact spare.
5-98
