2009 CHEVROLET HHR Owners Manual

Reclining Seatbacks
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle is
moving. The sudden movement could startle and
confuse you, or make you push a pedal when you
do not want to. Adjust the driver’s seat only when
the vehicle is not moving.
{CAUTION:
If either seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatbacks to be sure they
are locked.The seats have reclining seatbacks. The lever used to
operate them is located on the outboard side of the
seats. Lift the lever to release the seatback. Move the
seatback to where you want it and release the lever
to lock the seatback in place. Press rearward on
the seatback to be sure it is locked into place.Passenger’s Side Reclining Lever shown, Driver’s
Side similar
1-5

{CAUTION:
Sitting in a reclined position when the vehicle is in
motion can be dangerous. Even when buckled up,
the safety belts cannot do their job when reclined
like this.
The shoulder belt cannot do its job because it will
not be against your body. Instead, it will be in front
of you. In a crash, you could go into it, receiving
neck or other injuries.
The lap belt cannot do its job either. In a crash,
the belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit well
back in the seat and wear the safety belt properly.
Do not have a seatback reclined if your vehicle is
moving.
1-6

Head Restraints
Adjust the head restraint so that the top of the
restraint is at the same height as the occupant’s
head. This position reduces the chance of a neck
injury in a crash.Pull the head restraint up
to raise it. To lower the
head restraint, press
the button, located on
the top of the seatback,
and push the restraint
down. Only the front head
restraints are adjustable.
Both the front and rear head restraints can be removed.
Press the button, located on the top of the seatback, and
pull the restraint out from the seatback. Do not remove
the head restraint if someone will be sitting in that seat
while the vehicle is moving.
1-7

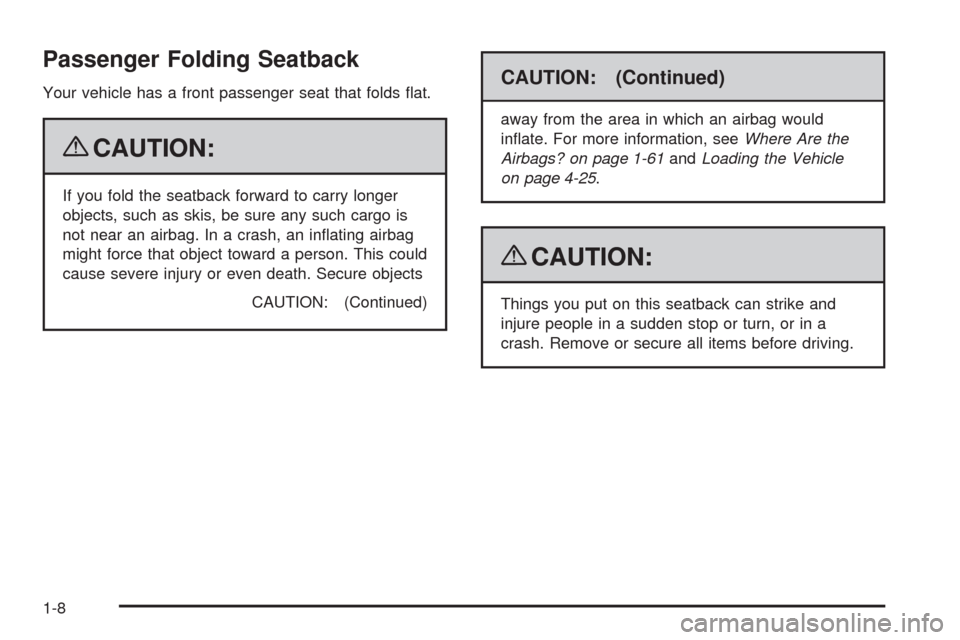

Passenger Folding Seatback
Your vehicle has a front passenger seat that folds at.
{CAUTION:
If you fold the seatback forward to carry longer
objects, such as skis, be sure any such cargo is
not near an airbag. In a crash, an inating airbag
might force that object toward a person. This could
cause severe injury or even death. Secure objects
CAUTION: (Continued)
CAUTION: (Continued)
away from the area in which an airbag would
inate. For more information, seeWhere Are the
Airbags? on page 1-61andLoading the Vehicle
on page 4-25.
{CAUTION:
Things you put on this seatback can strike and
injure people in a sudden stop or turn, or in a
crash. Remove or secure all items before driving.
1-8

To fold the seatback, do the following:
1. Move the front passenger seat rearward to ensure
there is enough room to fold the seatback forward.
SeeManual Seats on page 1-2for more information.
The head restraint may need to be removed if
the seat is not able to be moved fully rearward.
If removing the head restraint, store it so that it
will not move while the vehicle is in motion.
2. Make sure that the seatback is in an upright position.
Use the recliner lever located on the outboard side of
the seat to move the seatback to the upright position.
3. To fold the seat at, pull up on either lever located
toward the rear of the seatback. Fold the seat
forward until the seatback disengages.
4. Continue to fold the seat forward until it locks in the
folded position. Pull up on the seatback to be sure
it is locked.
1-9

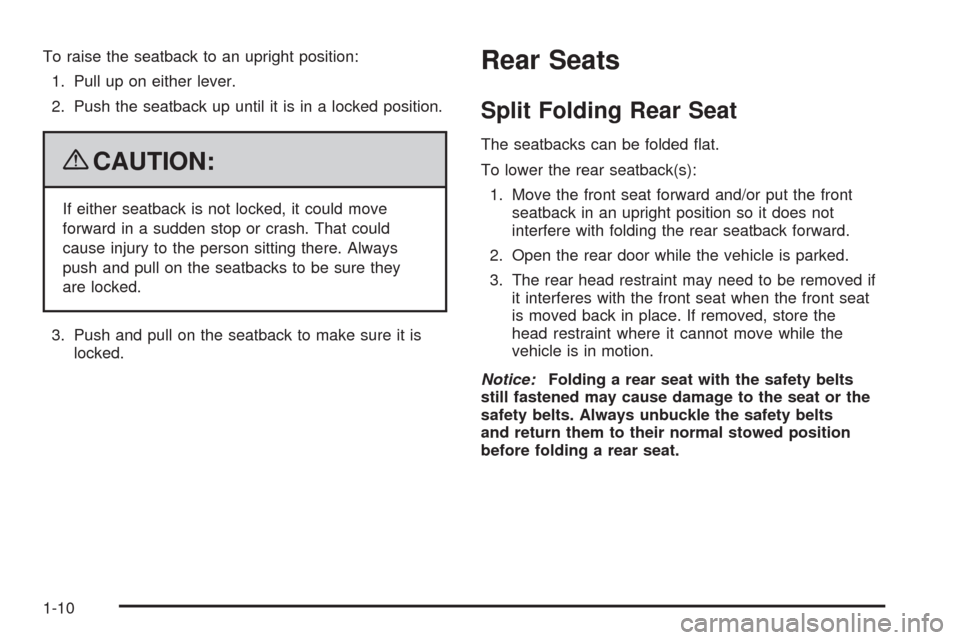

To raise the seatback to an upright position:
1. Pull up on either lever.
2. Push the seatback up until it is in a locked position.
{CAUTION:
If either seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatbacks to be sure they
are locked.
3. Push and pull on the seatback to make sure it is
locked.
Rear Seats
Split Folding Rear Seat
The seatbacks can be folded at.
To lower the rear seatback(s):
1. Move the front seat forward and/or put the front
seatback in an upright position so it does not
interfere with folding the rear seatback forward.
2. Open the rear door while the vehicle is parked.
3. The rear head restraint may need to be removed if
it interferes with the front seat when the front seat
is moved back in place. If removed, store the
head restraint where it cannot move while the
vehicle is in motion.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
1-10

4. Move the safety belt out of the way before lowering
the seatback. Do not let the safety belt get caught
between the seatback and seat cushion as the
seatback is folded.5. Pull up on the knob
located on the top of
the seatback on
the outboard side to
release the seatback.
1-11

To raise the rear seatback(s):
{CAUTION:
A safety belt that is improperly routed, not properly
attached, or twisted will not provide the protection
needed in a crash. The person wearing the belt
could be seriously injured. After raising the rear
CAUTION: (Continued)
CAUTION: (Continued)
seatback, always check to be sure that the
safety belts are properly routed and attached, and
are not twisted.
6. Lift the seatback up and push rearward until you
hear a click. Keep the safety belt clear of the seat
and not twisted.
The release knob on the top of the seatback has a
red ring. If the seatback is not fully latched this
ring will be visible. Push on the seatback until the
ring is not visible.
{CAUTION:
If the seatback is not locked, it could move forward
in a sudden stop or crash. That could cause injury
to the person sitting there. Always pull forward on
the top of the seatback at the area of the latch to be
sure it is locked.
7. Push and pull on the seatback to make sure it is
locked in place.
1-12
