2009 CHEVROLET HHR Owners Manual

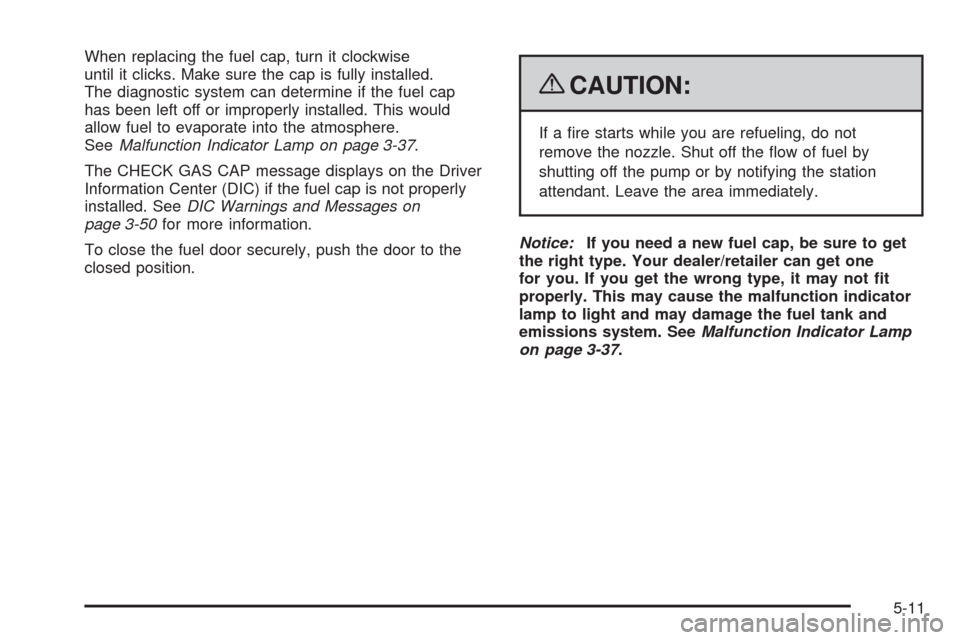

When replacing the fuel cap, turn it clockwise
until it clicks. Make sure the cap is fully installed.
The diagnostic system can determine if the fuel cap
has been left off or improperly installed. This would
allow fuel to evaporate into the atmosphere.
SeeMalfunction Indicator Lamp on page 3-37.
The CHECK GAS CAP message displays on the Driver
Information Center (DIC) if the fuel cap is not properly
installed. SeeDIC Warnings and Messages on
page 3-50for more information.
To close the fuel door securely, push the door to the
closed position.
{CAUTION:
If a re starts while you are refueling, do not
remove the nozzle. Shut off the ow of fuel by
shutting off the pump or by notifying the station
attendant. Leave the area immediately.
Notice:If you need a new fuel cap, be sure to get
the right type. Your dealer/retailer can get one
for you. If you get the wrong type, it may not t
properly. This may cause the malfunction indicator
lamp to light and may damage the fuel tank and
emissions system. SeeMalfunction Indicator Lamp
on page 3-37.
5-11

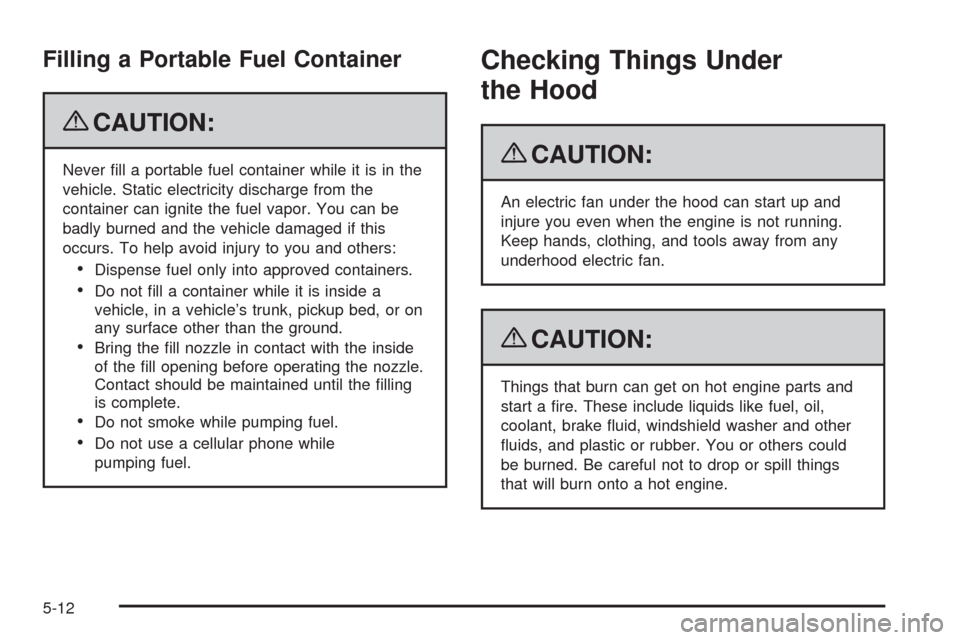

Filling a Portable Fuel Container
{CAUTION:
Never ll a portable fuel container while it is in the
vehicle. Static electricity discharge from the
container can ignite the fuel vapor. You can be
badly burned and the vehicle damaged if this
occurs. To help avoid injury to you and others:
Dispense fuel only into approved containers.
Do not ll a container while it is inside a
vehicle, in a vehicle’s trunk, pickup bed, or on
any surface other than the ground.
Bring the ll nozzle in contact with the inside
of the ll opening before operating the nozzle.
Contact should be maintained until the lling
is complete.
Do not smoke while pumping fuel.
Do not use a cellular phone while
pumping fuel.
Checking Things Under
the Hood
{CAUTION:
An electric fan under the hood can start up and
injure you even when the engine is not running.
Keep hands, clothing, and tools away from any
underhood electric fan.
{CAUTION:
Things that burn can get on hot engine parts and
start a re. These include liquids like fuel, oil,
coolant, brake uid, windshield washer and other
uids, and plastic or rubber. You or others could
be burned. Be careful not to drop or spill things
that will burn onto a hot engine.
5-12

Hood Release
To open the hood, do the following.
1. Pull the interior hood
release lever with
this symbol on it. It is
located to the left of the
instrument panel on
the driver’s side of the
vehicle.2. Then go to the front of
the vehicle and push
the secondary hood
release lever to the left.
It is located under the
front center of the
grille.
3. After you have partially lifted the hood, gas struts
will automatically take over to lift and hold the
hood in the fully open position.
Before closing the hood, be sure all the ller caps
are on properly. Lower the hood until the lifting force
of the struts is reduced, then release the hood
to latch fully. Check to make sure the hood is
closed and repeat the process if necessary.
5-13

Engine Compartment Overview
When you open the hood on the 2.4L engine (2.2L engine similar), here is what you will see:
5-14

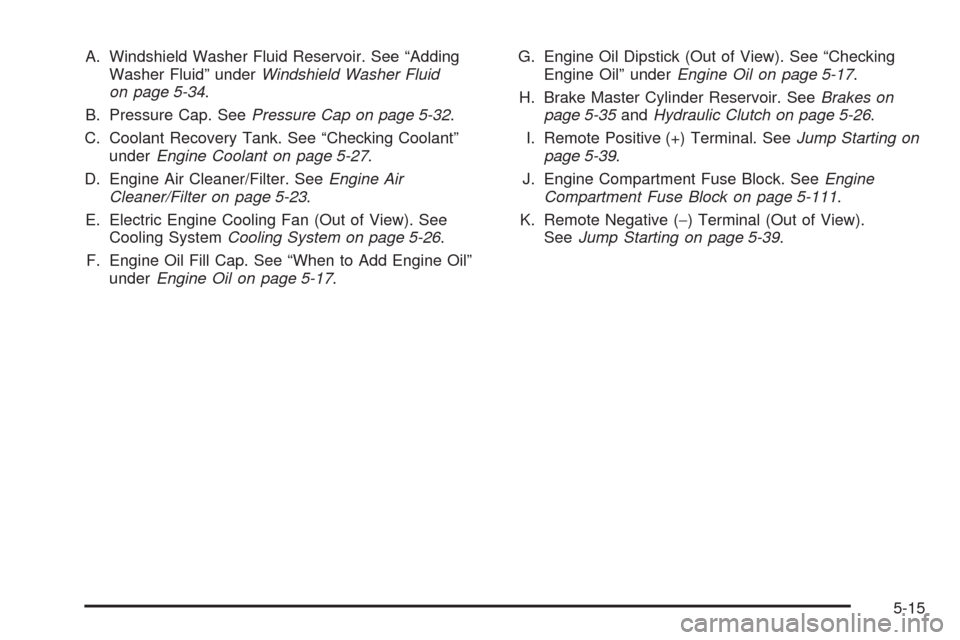

A. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 5-34.
B. Pressure Cap. SeePressure Cap on page 5-32.
C. Coolant Recovery Tank. See “Checking Coolant”
underEngine Coolant on page 5-27.
D. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-23.
E. Electric Engine Cooling Fan (Out of View). See
Cooling SystemCooling System on page 5-26.
F. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-17.G. Engine Oil Dipstick (Out of View). See “Checking
Engine Oil” underEngine Oil on page 5-17.
H. Brake Master Cylinder Reservoir. SeeBrakes on
page 5-35andHydraulic Clutch on page 5-26.
I. Remote Positive (+) Terminal. SeeJump Starting on
page 5-39.
J. Engine Compartment Fuse Block. SeeEngine
Compartment Fuse Block on page 5-111.
K. Remote Negative (−) Terminal (Out of View).
SeeJump Starting on page 5-39.
5-15

When you open the hood on the 2.0L L4 engine, this is what you will see:
5-16

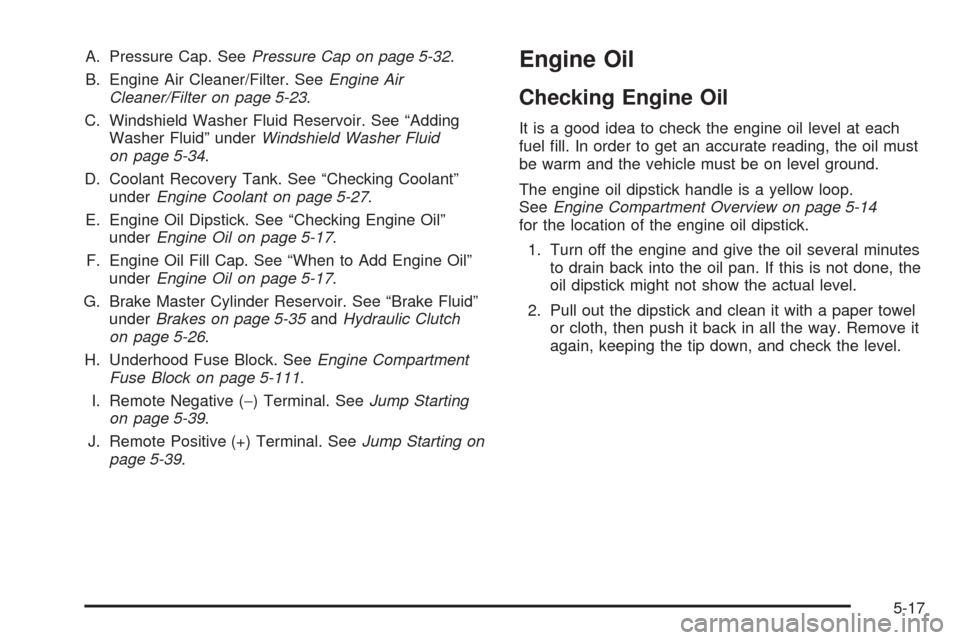

A. Pressure Cap. SeePressure Cap on page 5-32.
B. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-23.
C. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 5-34.
D. Coolant Recovery Tank. See “Checking Coolant”
underEngine Coolant on page 5-27.
E. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 5-17.
F. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-17.
G. Brake Master Cylinder Reservoir. See “Brake Fluid”
underBrakes on page 5-35andHydraulic Clutch
on page 5-26.
H. Underhood Fuse Block. SeeEngine Compartment
Fuse Block on page 5-111.
I. Remote Negative (−) Terminal. SeeJump Starting
on page 5-39.
J. Remote Positive (+) Terminal. SeeJump Starting on
page 5-39.Engine Oil
Checking Engine Oil
It is a good idea to check the engine oil level at each
fuel ll. In order to get an accurate reading, the oil must
be warm and the vehicle must be on level ground.
The engine oil dipstick handle is a yellow loop.
SeeEngine Compartment Overview on page 5-14
for the location of the engine oil dipstick.
1. Turn off the engine and give the oil several minutes
to drain back into the oil pan. If this is not done, the
oil dipstick might not show the actual level.
2. Pull out the dipstick and clean it with a paper towel
or cloth, then push it back in all the way. Remove it
again, keeping the tip down, and check the level.
5-17

When to Add Engine Oil
If the oil is below the MIN (minimum) mark, add at least
one quart/liter of the recommended oil. This section
explains what kind of oil to use. For engine oil crankcase
capacity, seeCapacities and Specifications on
page 5-114.
Notice:Do not add too much oil. If the engine
has so much oil that the oil level gets above the
upper mark that shows the proper operating range,
the engine could be damaged.SeeEngine Compartment Overview on page 5-14for
the location of the engine oil ll cap.
Add enough oil to put the level somewhere in the proper
operating range. Push the dipstick all the way back in
when through.2.2L L4 Engine and
2.4L L4 Engine2.0L L4 Engine
5-18
