Downloaded from www.Manualslib.com manuals search engine 7.DETECT MALFUNCTIONING PART
• Check the following:
Body fuse and relay box
Fuse F17 (10A), fuse F26 (10A)
Harness between battery and body fuse and relay box
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace damaged components.
8.REPLACE AND PROGRAM THE IMMOBILIZER CONTROL MODULE
• With the X-431 scan tool, view active DTCs in the Immobilizer control module.
• Refer to DTC Confirmation Procedure.
Is DTC B3050 or B3053 still present?
Ye s>>Replace and program Immobilizer control module.
No
>>The system is now operating properly.
Reassemble the vehicle and verify the customers complaint is repaired.
DIAGNOSIS & TESTING
15
15–131Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine WIRING
16
CONTENTSpage
Wiring Information ................................................................... 16-1
Vehicle Power Distribution ............................................................ 16-12
Vehicle Ground Distribution ........................................................... 16-27
Vehicle Fuse Box Information ......................................................... 16-37
Vehicle Wiring Harness Layout ........................................................ 16-44
WIRING INFORMATION
GENERAL INFORMATION16-2
Description 16-2
Electrical Schematics 16-2
International Symbols 16-3
ELECTRICAL TROUBLESHOOTING16-5
Troubleshooting Wiring Problems 16-5
Testing For Voltage 16-5
Testing For Continuity 16-5
Testing For A Short To Ground 16-5
Intermittent and Poor Connections 16-5
ELECTRICAL TROUBLESHOOTING TOOLS
16-6
Jumper Wires 16-6 Voltmeter 16-6
Ohmmeter 16-7
ELECTRICAL REPAIR16-8
Wire Repair 16-8
Fuse Replacement 16-8
ELECTRICAL COMPONENTS16-9
Battery Cable 16-9
Sensors, Switches, and Relays 16-9
Connectors 16-10
16
16–1Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Below is a list of the symbols and their definitions that are used in the electrical schematics.
NUMBERITEM DESCRIPTION
1 Power source This represents the condition when the system receives battery
positive voltage.
2 Fuse The single line represents that this is a fuse.
3 Current rating This represents the current rating of the fuse.
4 Fuse location This represents the location of the fuse in the Power Fuse Box or
Front Fuse and Relay Box.
5 Connectors This represents connector E-101 is female and connector C-101 is
male.
6 Terminal number This represents the terminal number of a connector.
7 Component name This represents the name of a component.
8 Connector number This represents the connector number.
The letter represents which harness the connector is located in.
9 Splice The shaded circle represents that the splice is always on the
vehicle.
10 Optional splice The open circle represents that the splice is optional depending on
vehicle application.
11 Option abbreviation This represents that the circuit is optional depending on vehicle
application.
12 Ground (GND) This represents the ground connection. (See Ground Distribution in
Section 16 Wiring).
Ground connector number has no view face.
13 Page crossing This arrow represents that the circuit continues to an adjacent page.
The
Acorresponds with the Aon the adjoining page of the
electrical schematic.
14 Data linkThis represents that the system branches to another system
identified by cell data code.
15 Option description This represents a description of the option abbreviation used on the
page.
16 Connector views This represents the connector information.
This component side is described by the connector symbols.
17 Connector color This shows a code for the color of the connector:
B = Black
W = White
R = Red
G = Green
L = Blue
Y = Yellow
BR = Brown
O = Orange
GR = Gray
18 Shielded line The line enclosed by broken line circle represents shielded wire.
19 Light-emitting diodes As an illumination tool, in the circuit and instrument cluster.
GENERAL INFORMATION
16–4Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
Description
The power distribution system is designed to provide safe, reliable, centralized and convenient access to the distri-
bution of the electrical power required to operate all vehicle electrical and electronic systems.
The following components are used for power distribution:
•Battery
• Power Fuse Box
• Body Fuse and Relay Box
• Front Fuse and Relay Box
• Ignition Switch
• Fuses
• Circuit Breakers
• Relays
Operation
The power distribution system operates all electrical and electronic engine, transmission, chassis, safety, comfort and
convenience systems.
16
16–13Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine VEHICLE FUSE BOX INFORMATION
GENERAL INFORMATION16-38
Description 16-38
Operation 16-38
Power Fuse Box 16-38
Description 16-38
Operation 16-38
Overview 16-39 Front Fuse and Relay Box
16-40
Description 16-40
Operation 16-40
Overview 16-41
Body Fuse and Relay Box 16-42
Description 16-42
Operation 16-42
Overview 16-43
16
16–37Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
Description
In order to ensure the normal operation of the system, every electrical system is equipped with fuses and relays. The
fuses and relays are stored in the fuse boxes.
The vehicle fuses and relays are located in the following locations:
•Power Fuse Box
• Front Fuse and Relay Box
• Body Fuse and Relay Box
Operation
When replacing a open fuse, it is important to use only a fuse having the correct amperage rating. The use of a fuse
with a rating other than indicated may result in a dangerous electrical system overload. If a properly rated fuse con-
tinues to open, it indicates a problem in the circuit that must be corrected.
Power Fuse Box
Description
The power fuse box is located on the side of the battery. All of the electrical current distributed throughout the vehicle
is directed through the power fuse box. The power fuse box houses five maxi-type bolt in fuses.
Operation
All of the current from the battery and the generator output enters the power fuse box through the cable and eyelet
that are secured with a nut to the power fuse box B(+) terminal stud located on one end of the power fuse box
housing. The power fuse box terminal stud cover is unlatched and opened to access the fuses.
16–38Chery Automobile Co., Ltd.

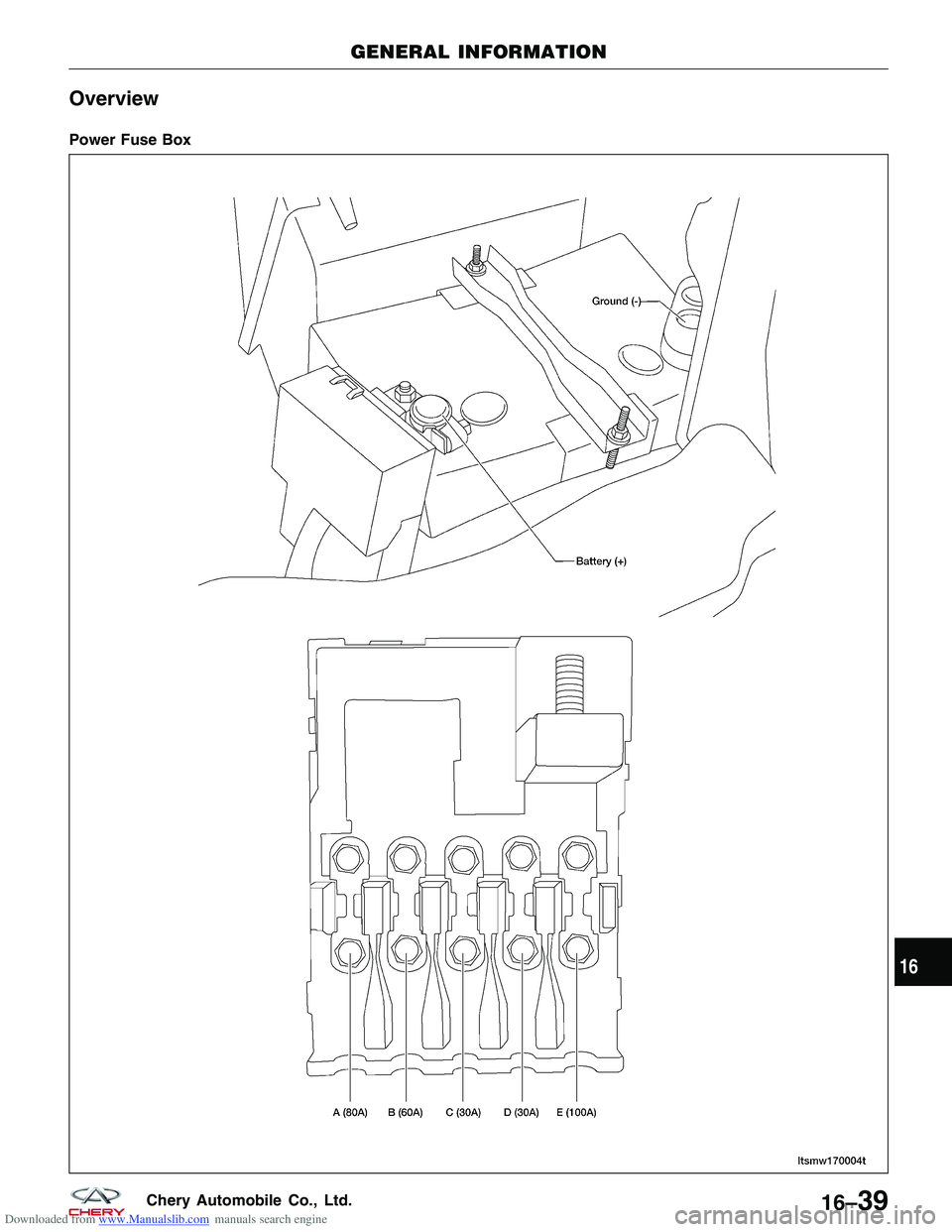

Downloaded from www.Manualslib.com manuals search engine Overview
