2009 CHERY TIGGO sensor

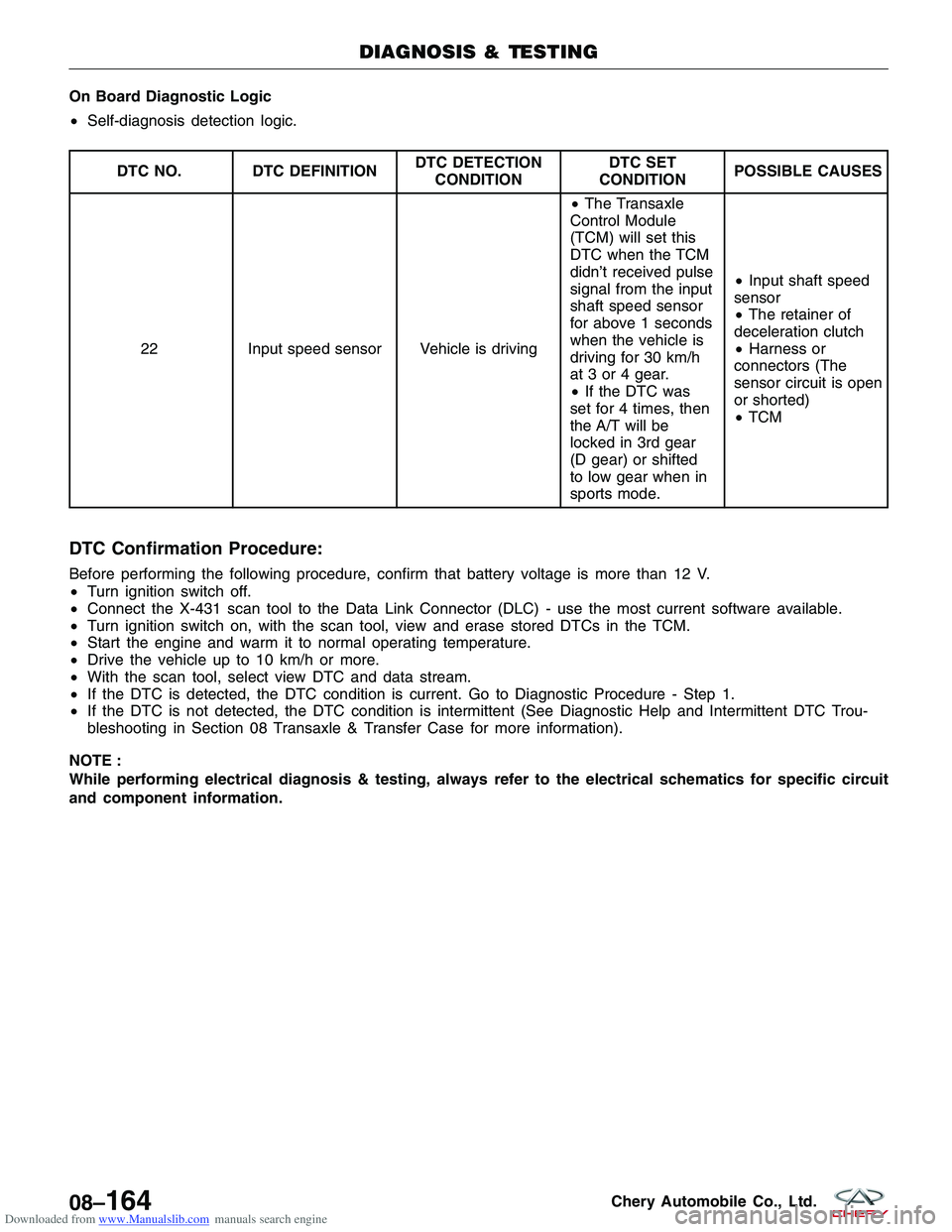

Downloaded from www.Manualslib.com manuals search engine On Board Diagnostic Logic
•Self-diagnosis detection logic.
DTC NO. DTC DEFINITION DTC DETECTION
CONDITION DTC SET
CONDITION POSSIBLE CAUSES
22 Input speed sensor Vehicle is driving •
The Transaxle
Control Module
(TCM) will set this
DTC when the TCM
didn’t received pulse
signal from the input
shaft speed sensor
for above 1 seconds
when the vehicle is
driving for 30 km/h
at 3 or 4 gear.
• If the DTC was
set for 4 times, then
the A/T will be
locked in 3rd gear
(D gear) or shifted
to low gear when in
sports mode. •
Input shaft speed
sensor
• The retainer of
deceleration clutch
• Harness or
connectors (The
sensor circuit is open
or shorted)
• TCM
DTC Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
• Turn ignition switch off.
• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.
• Turn ignition switch on, with the scan tool, view and erase stored DTCs in the TCM.
• Start the engine and warm it to normal operating temperature.
• Drive the vehicle up to 10 km/h or more.
• With the scan tool, select view DTC and data stream.
• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 08 Transaxle & Transfer Case for more information).
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
DIAGNOSIS & TESTING
08–164Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Diagnostic Procedure
1.CHECK A/T INPUT SIGNAL
• With the scan tool, select view DTC and data stream for A/T.
• Vehicle start and read out the value of INPUT SPEED SENSOR.
ITEM CONDITIONDISPLAY
VALUE
Input speed sensor During driving
(lock-up ON) Approximately
matches the
engine speed.
Is the check result normal?
Ye s>>The condition that caused this DTC is intermittent (See Diagnostic Help in Section 08 Transaxle &
Transfer Case).
No
>>Go to the next step.
2.CHECK INPUT SHAFT SPEED SENSOR POWER SUPPLY
• Stop the vehicle and turn ignition switch off.
• Disconnect input shaft speed sensor electrical connector.
• Turn the ignition switch on.
• Check sensor power supply between sensor termi-
nal 3 and ground in the sensor electrical connector
E-088.
• Voltage should be more than 12 V.
Is the check result normal?
Ye s>>Go to step 4.
No
>>Go to the next step.
DIAGNOSIS & TESTING
LTSMD080004
08
08–165Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 3.DETECT MALFUNCTIONING PART
• Check the following:
Harness connectors A-102, E-105
Body fuse and relay box H13
Fuse 3 (10A)
Harness open or short between input shaft speed sensor and fuse
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the open circuit or short to ground or short to power in harness or connectors.
4.CHECK INPUT SHAFT SPEED SENSOR SIGNAL CIRCUIT
• Check sensor signal circuit between sensor terminal 2 and ground in the sensor electrical connector E-088.
• 5 V should exist.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace open circuit or short to
power or short to ground.
5.CHECK INPUT SHAFT SPEED SENSOR GROUND CIRCUIT
• Turn the ignition switch off.
• Disconnect TCM connector.
• Check for harness continuity between the following terminals:
INPUT SPEED
SENSOR
CONNECTOR TERMINAL TCM
CONNECTOR TERMINAL CONTINUITY
13
9Yes
• Check the harness for short to power and short to ground.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace open circuit or short to power or short to ground.
DIAGNOSIS & TESTING
LTSMD080061
08–166Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 6.CHECK INPUT SHAFT SPEED SENSOR SIGNAL
• Connect the TCM and sensor electrical connector.
• Start the vehicle and perform the following:
Engine: 2000 RPM
Vehicle: 50 km/h
Gear: 3
• Check sensor signal between sensor terminal 2 and ground in the sensor electrical connector E-088 with the
X-431 or oscilloscope.
• Make sure the wave shape is normal and signal voltage is fluctuating from0-5V.
Is the check result normal?
Ye s>>Go to step 9.
No
>>Go to the next step.
7.CHECK INPUT SHAFT SPEED SENSOR
• Perform the following:
Loosen the bolt of the sensor.
Remove the sensor.
Visually inspect the sensor for missing or chipped teeth.
Is the check result normal?
Ye s>>Replace the input speed sensor.
Monitor the input speed sensor signal on the X-431 or oscilloscope.
If the input speed sensor signals were normal, the system is OK.
If the input speed sensor signals were still irregular or missing, go to step 8.
No
>>Replace input speed sensor.
8.CHECK THE RETAINER OF DECELERATION CLUTCH
• Disassemble and inspect the A/T and replace the retainer for the deceleration clutch.
• Check for a chipped and damaged signal retainer for the deceleration clutch.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Replace the retainer for the deceleration clutch.
Monitor the input speed sensor signal on the X-431 or oscilloscope.
If the signal pulse is not normal, repair the noise interference.
9.CHECK DTC
• With the X-431 scan tool, read TCM DTCs.
• Refer to DTC Confirmation Procedure.
Is the check result normal?
Ye s>>The system is now operating properly.
Reassemble the vehicle and road test to verify the customers complaint is repaired.
No
>>Replace the TCM.
DIAGNOSIS & TESTING
08
08–167Chery Automobile Co., Ltd.

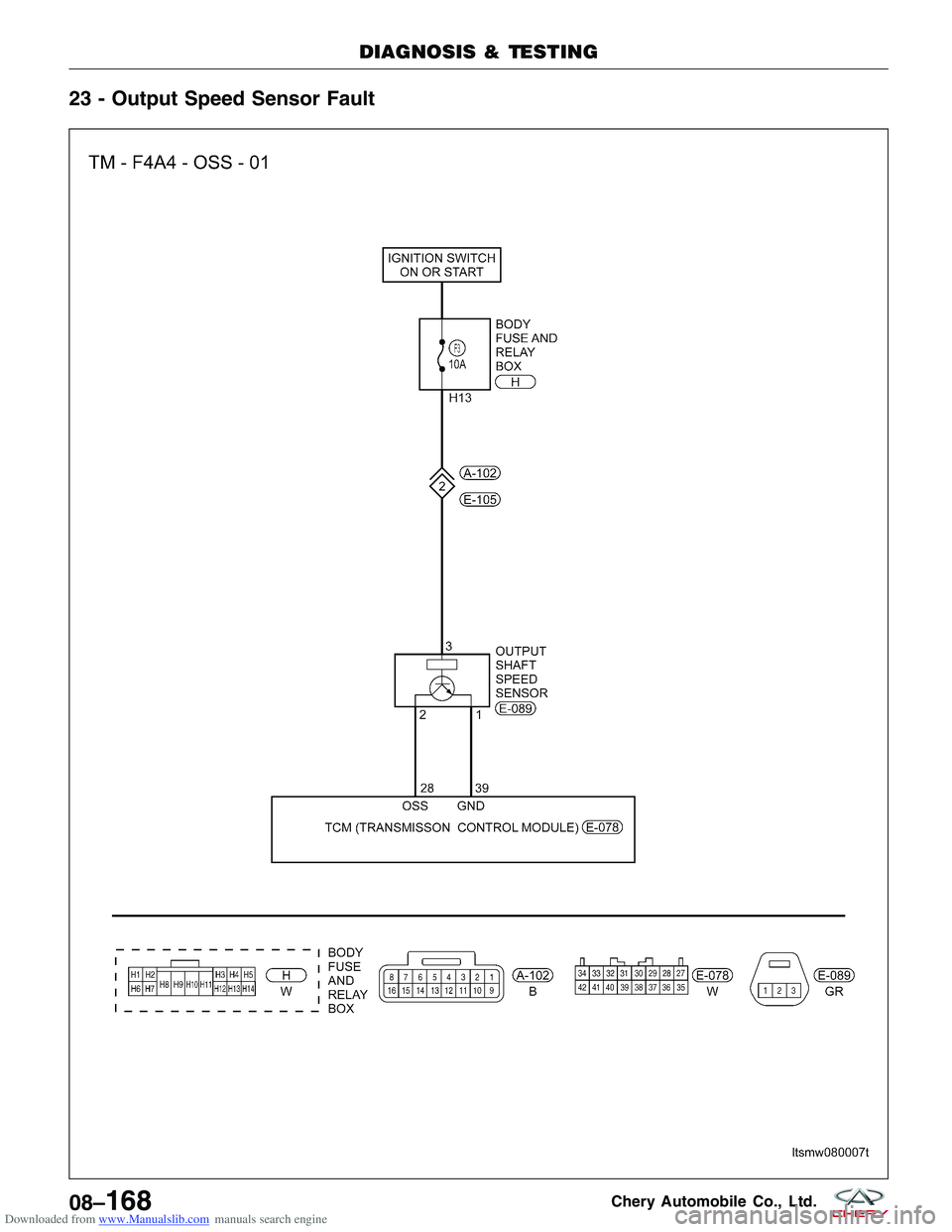

Downloaded from www.Manualslib.com manuals search engine 23 - Output Speed Sensor Fault
DIAGNOSIS & TESTING
LTSMW080007T
08–168Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine On Board Diagnostic Logic
•Self-diagnosis detection logic.
DTC NO. DTC DEFINITION DTC DETECTION
CONDITION DTC SET
CONDITION POSSIBLE CAUSE
23 Output speed
sensor Vehicle is driving •
The Transaxle
Control Module
(TCM) will set this
DTC when the TCM
didn’t received pulse
signal from the
output shaft speed
sensor for above 1
seconds when the
vehicle is driving for
30 km/h at 3 or 4
gear.
• If the DTC was
set for 4 times, then
the A/T will be
locked in 3rd gear
(D gear) or shifted
to low gear when in
sports mode. •
Output shaft speed
sensor
• Harness or
connectors (The
sensor circuit is open
or shorted)
• Transfer case
driven and drive gear
• TCM
DTC Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
• Turn ignition switch off.
• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.
• Turn ignition switch on, with the scan tool, view and erase stored DTCs in the TCM.
• Start engine and warm it to normal operating temperature, then select Dposition.
• Drive the vehicle up to 30 km/h or more at 3 or 4 gear.
• Driving the vehicle uphill will help maintain the driving conditions required for this test.
• With the scan tool, select view DTC and data stream.
• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 08 Transaxle & Transfer Case for more information).
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
DIAGNOSIS & TESTING
08
08–169Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Diagnostic Procedure
1.CHECK A/T OUTPUT SIGNAL
• With the scan tool, select view DTC and data stream for A/T.
• Vehicle start and read out the value of OUTPUT SPEED SENSOR.
ITEM CONDITIONDISPLAY
VALUE
Output speed sensor During driving Approximately
matches the
speedometer reading.
Is the check result normal?
Ye s>>The condition that caused this DTC is intermittent (See Diagnostic Help in Section 08 Transaxle &
Transfer Case).
No
>>Go to the next step.
2.CHECK OUTPUT SHAFT SPEED SENSOR POWER SUPPLY
• Stop vehicle and turn ignition switch off.
• Disconnect output shaft speed sensor connector.
• Turn ignition switch on.
• Check sensor power supply between sensor termi-
nal 3 and ground in the sensor electrical connector
E-089.
• Voltage should be more than 12 V.
Is the check result normal?
Ye s>>Go to step 4.
No
>>Go to the next step.
DIAGNOSIS & TESTING
LTSMD080006
08–170Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 3.DETECT MALFUNCTIONING PART
• Check the following:
Harness connectors A-102, E-105
Body fuse and relay box H13
Fuse 3 (10A)
Harness for an open or short between output shaft speed sensor and fuse
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the open circuit or short to ground or short to power in harness or connectors.
4.CHECK OUTPUT SHAFT SPEED SENSOR SIGNAL CIRCUIT
• Check sensor signal circuit between sensor terminal 2 and ground in the sensor electrical connector E-088.
• 5 V should exist.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the open circuit or short
to power or short to ground.
5.CHECK OUTPUT SHAFT SPEED SENSOR GROUND CIRCUIT
• Turn ignition switch off.
• Disconnect TCM connector.
• Check for harness continuity between the following terminals:
OUTPUT
SPEED
SENSOR
CONNECTOR TERMINAL TCM
CONNECTOR TERMINAL CONTINUITY
13
9Yes
• Check the harness for short to power and short to ground.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace circuit for an open or short to power or short to ground.
DIAGNOSIS & TESTING
LTSMD080061
08
08–171Chery Automobile Co., Ltd.
