2009 CHERY TIGGO sensor

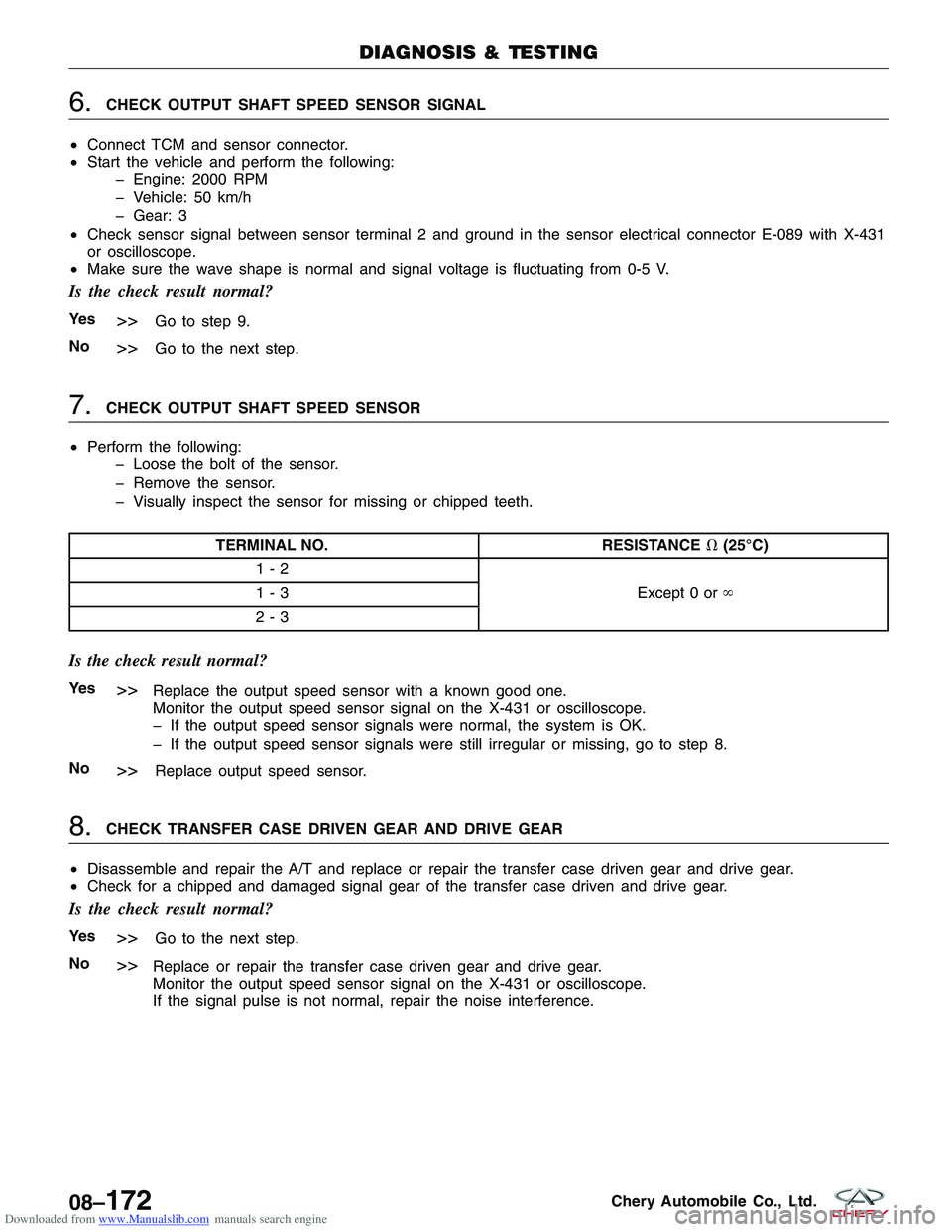

Downloaded from www.Manualslib.com manuals search engine 6.CHECK OUTPUT SHAFT SPEED SENSOR SIGNAL
• Connect TCM and sensor connector.
• Start the vehicle and perform the following:
Engine: 2000 RPM
Vehicle: 50 km/h
Gear: 3
• Check sensor signal between sensor terminal 2 and ground in the sensor electrical connector E-089 with X-431
or oscilloscope.
• Make sure the wave shape is normal and signal voltage is fluctuating from 0-5 V.
Is the check result normal?
Ye s>>Go to step 9.
No
>>Go to the next step.
7.CHECK OUTPUT SHAFT SPEED SENSOR
• Perform the following:
Loose the bolt of the sensor.
Remove the sensor.
Visually inspect the sensor for missing or chipped teeth.
TERMINAL NO. RESISTANCE(25°C)
1-2 Except 0 or
1-3
2-3
Is the check result normal?
Ye s>>Replace the output speed sensor with a known good one.
Monitor the output speed sensor signal on the X-431 or oscilloscope.
If the output speed sensor signals were normal, the system is OK.
If the output speed sensor signals were still irregular or missing, go to step 8.
No
>>Replace output speed sensor.
8.CHECK TRANSFER CASE DRIVEN GEAR AND DRIVE GEAR
• Disassemble and repair the A/T and replace or repair the transfer case driven gear and drive gear.
• Check for a chipped and damaged signal gear of the transfer case driven and drive gear.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Replace or repair the transfer case driven gear and drive gear.
Monitor the output speed sensor signal on the X-431 or oscilloscope.
If the signal pulse is not normal, repair the noise interference.
DIAGNOSIS & TESTING
08–172Chery Automobile Co., Ltd.

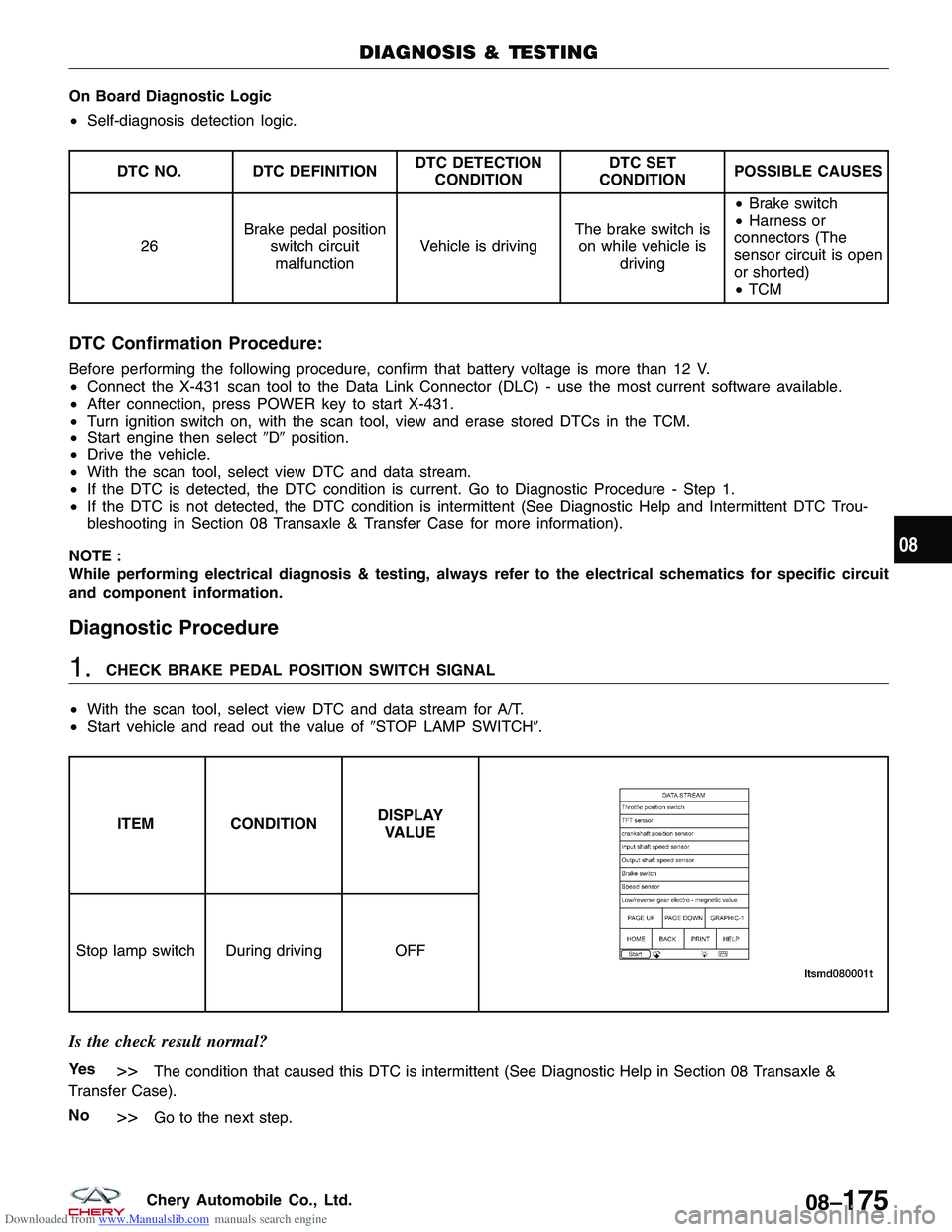

Downloaded from www.Manualslib.com manuals search engine On Board Diagnostic Logic
•Self-diagnosis detection logic.
DTC NO. DTC DEFINITION DTC DETECTION
CONDITION DTC SET
CONDITION POSSIBLE CAUSES
26 Brake pedal position
switch circuitmalfunction Vehicle is driving The brake switch is
on while vehicle is driving •
Brake switch
• Harness or
connectors (The
sensor circuit is open
or shorted)
• TCM
DTC Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.
• After connection, press POWER key to start X-431.
• Turn ignition switch on, with the scan tool, view and erase stored DTCs in the TCM.
• Start engine then select Dposition.
• Drive the vehicle.
• With the scan tool, select view DTC and data stream.
• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 08 Transaxle & Transfer Case for more information).
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
Diagnostic Procedure
1.CHECK BRAKE PEDAL POSITION SWITCH SIGNAL
• With the scan tool, select view DTC and data stream for A/T.
• Start vehicle and read out the value of STOP LAMP SWITCH.
ITEM CONDITIONDISPLAY
VALUE
Stop lamp switch During driving OFF
Is the check result normal?
Ye s>>The condition that caused this DTC is intermittent (See Diagnostic Help in Section 08 Transaxle &
Transfer Case).
No
>>Go to the next step.
DIAGNOSIS & TESTING
08
08–175Chery Automobile Co., Ltd.

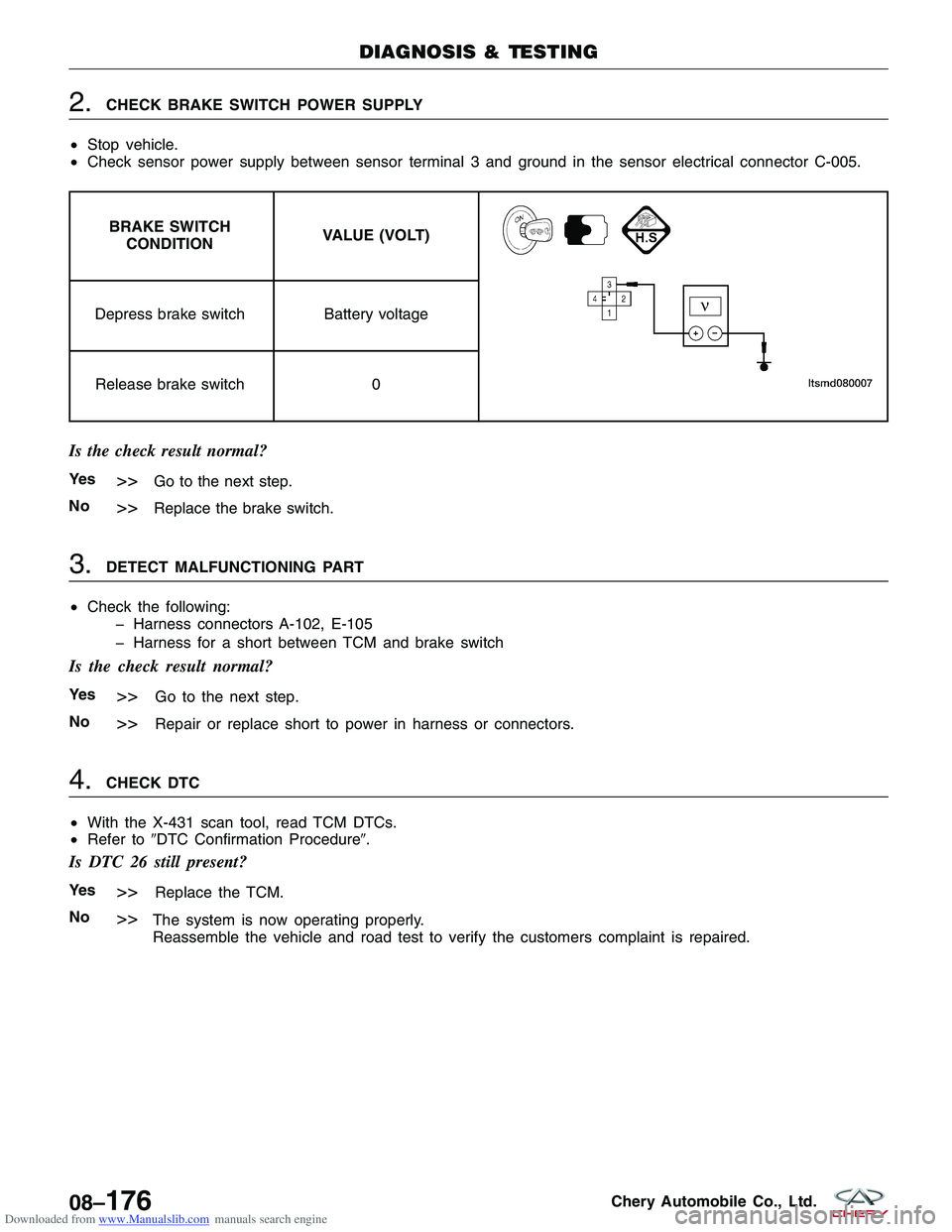

Downloaded from www.Manualslib.com manuals search engine 2.CHECK BRAKE SWITCH POWER SUPPLY
• Stop vehicle.
• Check sensor power supply between sensor terminal 3 and ground in the sensor electrical connector C-005.
BRAKE SWITCH
CONDITION VALUE (VOLT)
Depress brake switch
Battery voltage
Release brake switch 0
Is the check result normal?
Ye s>>Go to the next step.
No
>>Replace the brake switch.
3.DETECT MALFUNCTIONING PART
• Check the following:
Harness connectors A-102, E-105
Harness for a short between TCM and brake switch
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace short to power in harness or connectors.
4.CHECK DTC
• With the X-431 scan tool, read TCM DTCs.
• Refer to DTC Confirmation Procedure.
Is DTC 26 still present?
Ye s>>Replace the TCM.
No
>>The system is now operating properly.
Reassemble the vehicle and road test to verify the customers complaint is repaired.
DIAGNOSIS & TESTING
08–176Chery Automobile Co., Ltd.

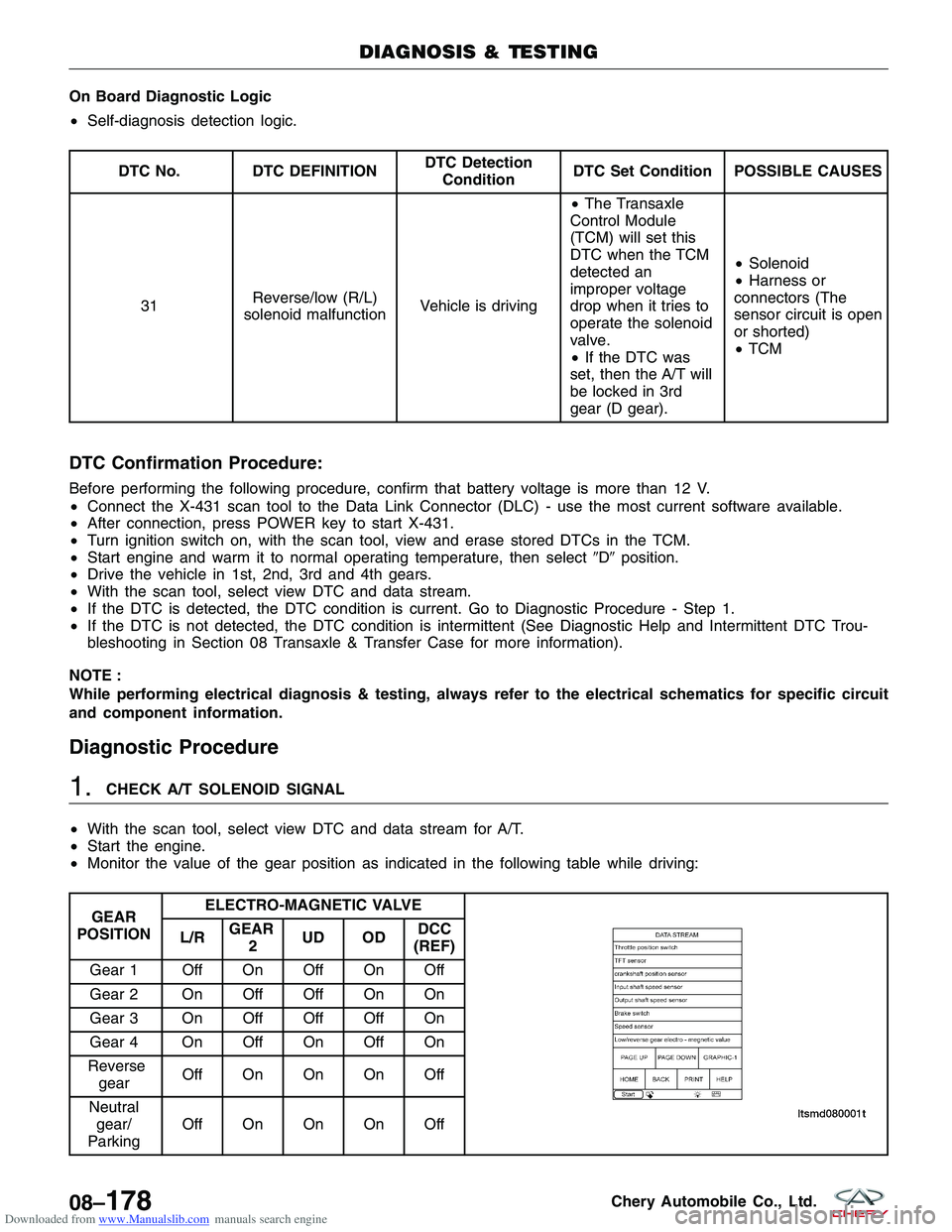

Downloaded from www.Manualslib.com manuals search engine On Board Diagnostic Logic
•Self-diagnosis detection logic.
DTC No. DTC DEFINITION DTC Detection
Condition DTC Set Condition POSSIBLE CAUSES
31 Reverse/low (R/L)
solenoid malfunction Vehicle is driving•
The Transaxle
Control Module
(TCM) will set this
DTC when the TCM
detected an
improper voltage
drop when it tries to
operate the solenoid
valve.
• If the DTC was
set, then the A/T will
be locked in 3rd
gear (D gear). •
Solenoid
• Harness or
connectors (The
sensor circuit is open
or shorted)
• TCM
DTC Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.
• After connection, press POWER key to start X-431.
• Turn ignition switch on, with the scan tool, view and erase stored DTCs in the TCM.
• Start engine and warm it to normal operating temperature, then select Dposition.
• Drive the vehicle in 1st, 2nd, 3rd and 4th gears.
• With the scan tool, select view DTC and data stream.
• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 08 Transaxle & Transfer Case for more information).
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
Diagnostic Procedure
1.CHECK A/T SOLENOID SIGNAL
• With the scan tool, select view DTC and data stream for A/T.
• Start the engine.
• Monitor the value of the gear position as indicated in the following table while driving:
GEAR
POSITION ELECTRO-MAGNETIC VALVE
L/R
GEAR
2 UD OD DCC
(REF)
Gear 1 Off On Off On Off
Gear 2 On Off Off On On
Gear 3 On Off Off Off On
Gear 4 On Off On Off On
Reverse gear OffOnOnOnOff
Neutral gear/
Parking OffOnOnOnOff
DIAGNOSIS & TESTING
08–178Chery Automobile Co., Ltd.

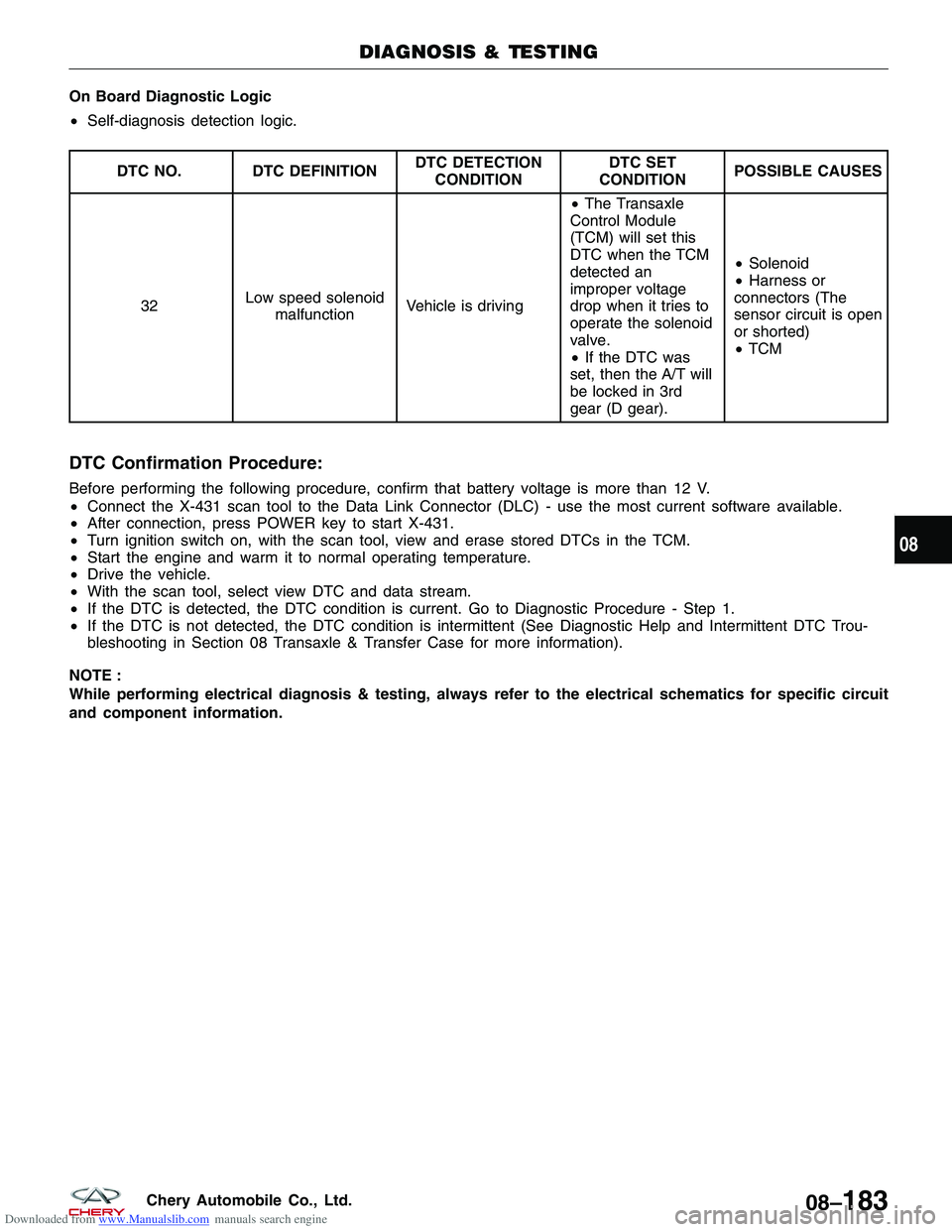

Downloaded from www.Manualslib.com manuals search engine On Board Diagnostic Logic
•Self-diagnosis detection logic.
DTC NO. DTC DEFINITION DTC DETECTION
CONDITION DTC SET
CONDITION POSSIBLE CAUSES
32 Low speed solenoid
malfunction Vehicle is driving •
The Transaxle
Control Module
(TCM) will set this
DTC when the TCM
detected an
improper voltage
drop when it tries to
operate the solenoid
valve.
• If the DTC was
set, then the A/T will
be locked in 3rd
gear (D gear). •
Solenoid
• Harness or
connectors (The
sensor circuit is open
or shorted)
• TCM
DTC Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.
• After connection, press POWER key to start X-431.
• Turn ignition switch on, with the scan tool, view and erase stored DTCs in the TCM.
• Start the engine and warm it to normal operating temperature.
• Drive the vehicle.
• With the scan tool, select view DTC and data stream.
• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 08 Transaxle & Transfer Case for more information).
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
DIAGNOSIS & TESTING
08
08–183Chery Automobile Co., Ltd.

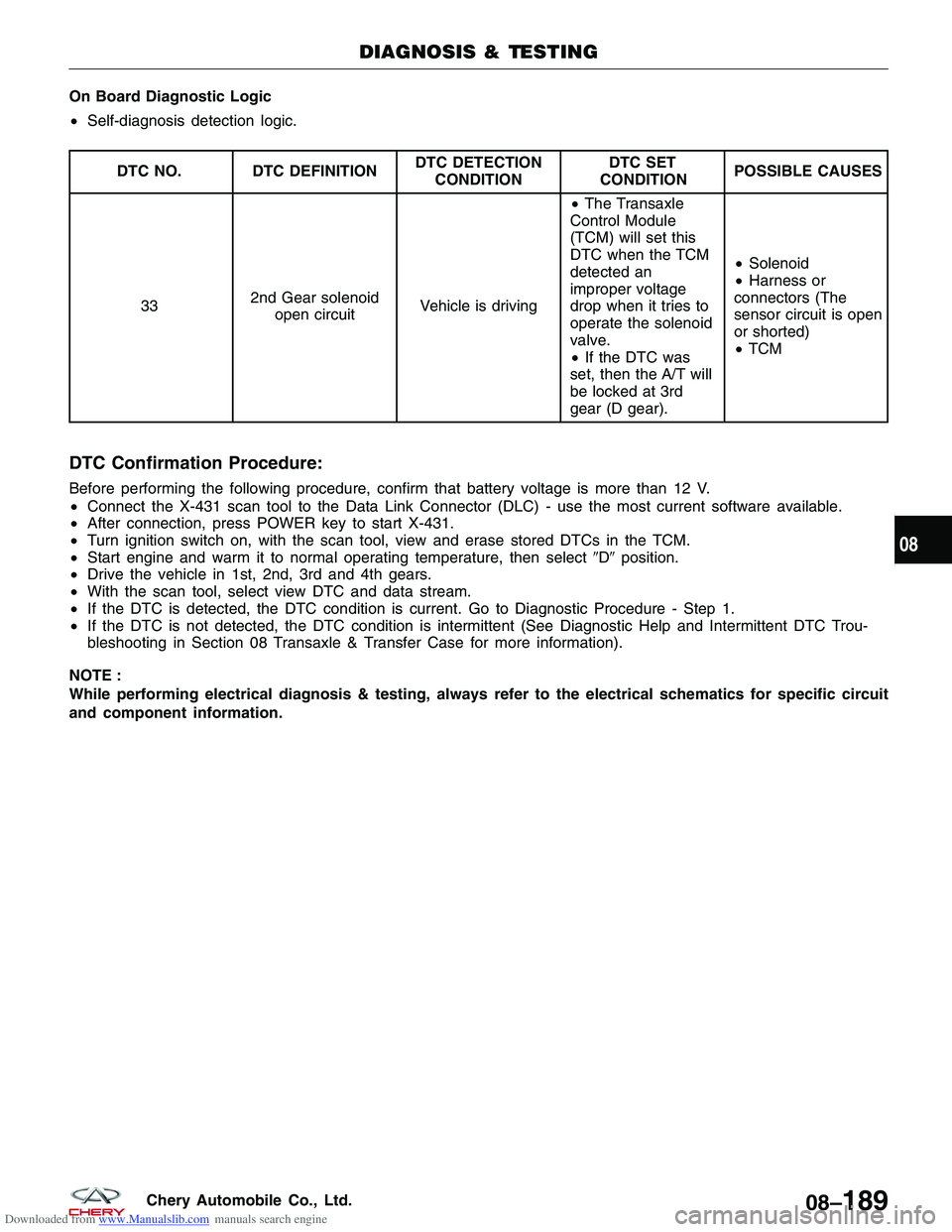

Downloaded from www.Manualslib.com manuals search engine On Board Diagnostic Logic
•Self-diagnosis detection logic.
DTC NO. DTC DEFINITION DTC DETECTION
CONDITION DTC
SET
CONDITION POSSIBLE CAUSES
33 2nd Gear
solenoid
open circuit Vehicle
is driving•
The Transaxle
Control Module
(TCM) will set this
DTC when the TCM
detected an
improper voltage
drop when it tries to
operate the solenoid
valve.
• If the DTC was
set, then the A/T will
be locked at 3rd
gear (D gear). •
Solenoid
• Harness or
connectors (The
sensor circuit is open
or shorted)
• TCM
DTC Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.
• After connection, press POWER key to start X-431.
• Turn ignition switch on, with the scan tool, view and erase stored DTCs in the TCM.
• Start engine and warm it to normal operating temperature, then select Dposition.
• Drive the vehicle in 1st, 2nd, 3rd and 4th gears.
• With the scan tool, select view DTC and data stream.
• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 08 Transaxle & Transfer Case for more information).
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
DIAGNOSIS & TESTING
08
08–189Chery Automobile Co., Ltd.

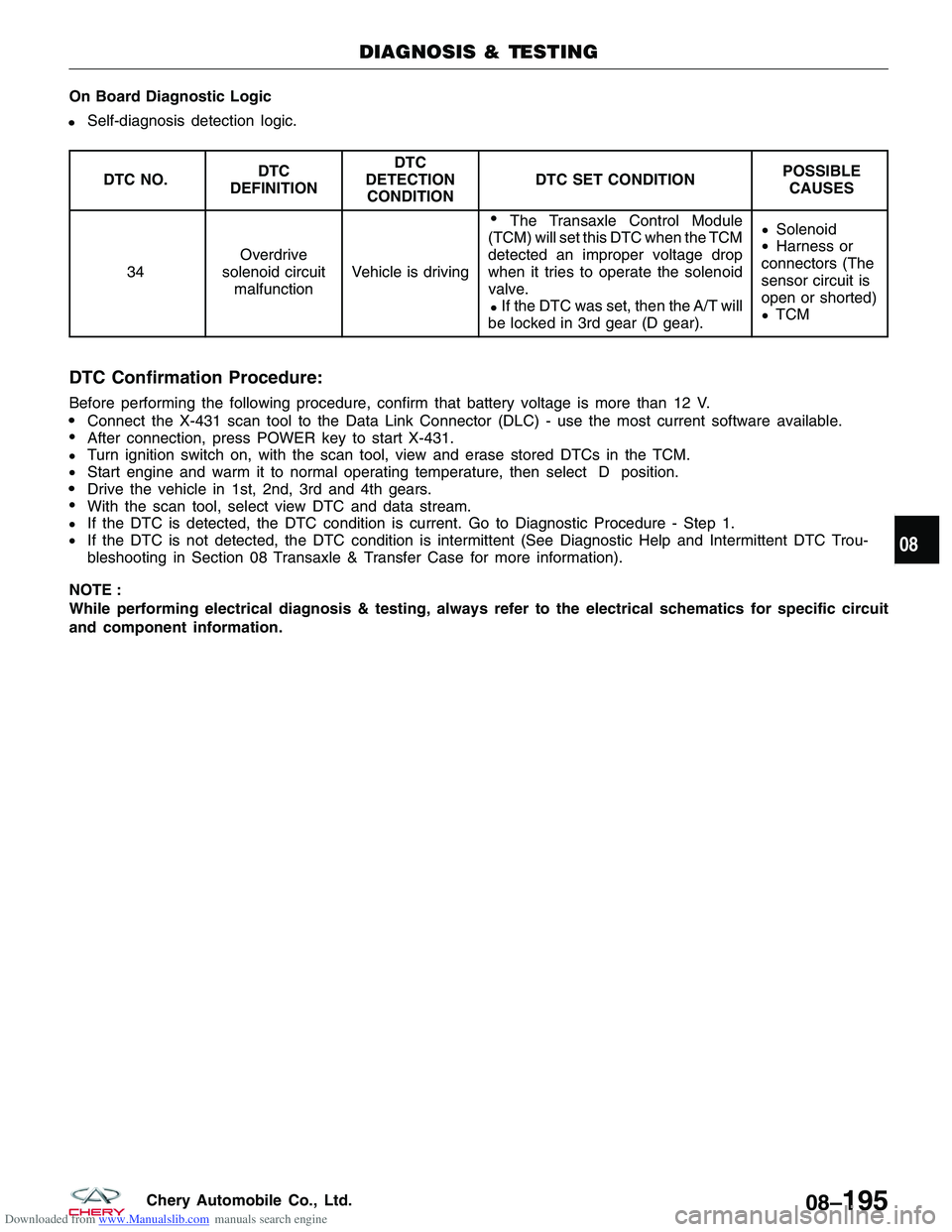

Downloaded from www.Manualslib.com manuals search engine OnBoardDiagnosticLogic
Self-diagnosisdetectionlogic.
DTCNO.DTC
DEFINITION
DTC
DETECTION
CONDITION
DTCSETCONDITIONPOSSIBLE
CAUSES
34
Overdrive
solenoidcircuit
malfunction
Vehicleisdriving
TheTransaxleControlModule
(TCM)willsetthisDTCwhentheTCM
detectedanimpropervoltagedrop
whenittriestooperatethesolenoid
valve.
IftheDTCwasset,thentheA/Twill
belockedin3rdgear(Dgear).


Solenoid
Harnessor
connectors(The
sensorcircuitis
openorshorted)
TCM
DTCConfirmationProcedure:
Beforeperformingthefollowingprocedure,confirmthatbatteryvoltageismorethan12V.
ConnecttheX-431scantooltotheDataLinkConnector(DLC)-usethemostcurrentsoftwareavailable.
Afterconnection,pressPOWERkeytostartX-431.
Turnignitionswitchon,withthescantool,viewanderasestoredDTCsintheTCM.
Startengineandwarmittonormaloperatingtemperature,thenselectDposition.
Drivethevehiclein1st,2nd,3rdand4thgears.
Withthescantool,selectviewDTCanddatastream.
IftheDTCisdetected,theDTCconditioniscurrent.GotoDiagnosticProcedure-Step1.
IftheDTCisnotdetected,theDTCconditionisintermittent(SeeDiagnosticHelpandIntermittentDTCTrou-
bleshootinginSection08Transaxle&TransferCaseformoreinformation).
NOTE:
Whileperformingelectricaldiagnosis&testing,alwaysrefertotheelectricalschematicsforspecificcircuit
andcomponentinformation.
DIAGNOSIS&TESTING
08
08–195CheryAutomobileCo.,Ltd.

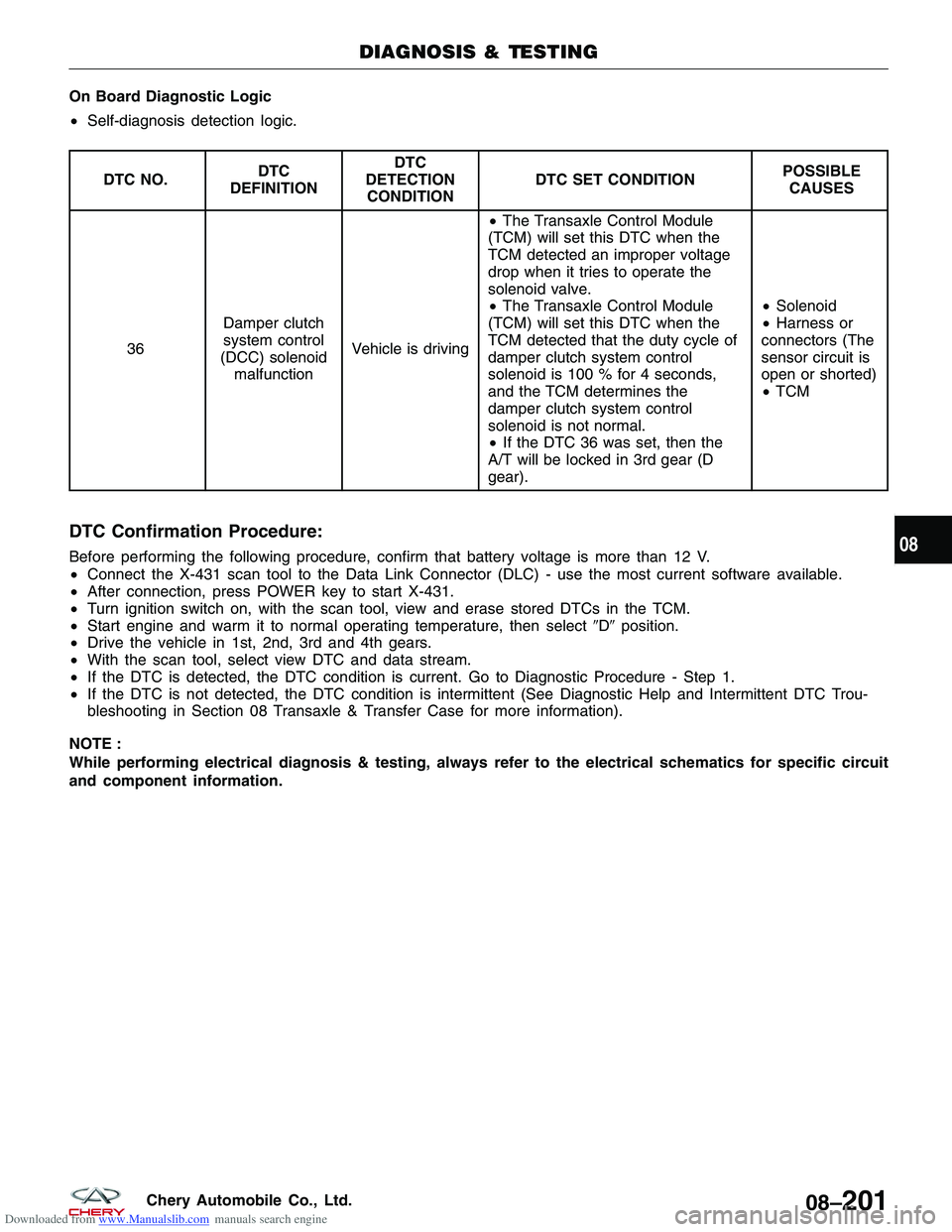

Downloaded from www.Manualslib.com manuals search engine On Board Diagnostic Logic
•Self-diagnosis detection logic.
DTC NO. DTC
DEFINITION DTC
DETECTION CONDITION DTC SET CONDITION
POSSIBLE
CAUSES
36 Damper clutch
system control
(DCC) solenoid malfunction Vehicle is driving •
The Transaxle Control Module
(TCM) will set this DTC when the
TCM detected an improper voltage
drop when it tries to operate the
solenoid valve.
• The Transaxle Control Module
(TCM) will set this DTC when the
TCM detected that the duty cycle of
damper clutch system control
solenoid is 100 % for 4 seconds,
and the TCM determines the
damper clutch system control
solenoid is not normal.
• If the DTC 36 was set, then the
A/T will be locked in 3rd gear (D
gear). •
Solenoid
• Harness or
connectors (The
sensor circuit is
open or shorted)
• TCM
DTC Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.
• After connection, press POWER key to start X-431.
• Turn ignition switch on, with the scan tool, view and erase stored DTCs in the TCM.
• Start engine and warm it to normal operating temperature, then select Dposition.
• Drive the vehicle in 1st, 2nd, 3rd and 4th gears.
• With the scan tool, select view DTC and data stream.
• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 08 Transaxle & Transfer Case for more information).
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
DIAGNOSIS & TESTING
08
08–201Chery Automobile Co., Ltd.
