2009 CHERY TIGGO engine

Downloaded from www.Manualslib.com manuals search engine Diagnostic Tools
•Diagnostic Scan Tool X-431
• Digital Multimeter
• Jumper Wire
Diagnostic Trouble Code (DTC) List
Antilock Brake System DTC List
DTC DTC DEFINITION
C1101 Battery Voltage High (>18 Volt)
C1102 Battery Voltage Low (<18 Volt)
C1200 Left Front Wheel Speed Sensor Circuit Open or Short to Ground
C1201 Range/Performance: Speed Jump Or Damaged Exciter
C1202 No Signal: Air-Gap Error Or Wrong Exciter
C1203 Right Front Wheel Speed Sensor Circuit Open or Short to Ground
C1204 Range/Performance: Speed Jump Or Damaged Exciter
C1205 No Signal: Air-Gap Error Or Wrong Exciter
C1206 Left Rear Wheel Speed Sensor Circuit Open or Short to Ground
C1207 Range/Performance: Speed Jump Or Damaged Exciter
C1208 No Signal: Air-Gap Error Or Wrong Exciter
C1209 Right Rear Wheel Speed Sensor Circuit Open or Short to Ground
C1210 Range/Performance: Speed Jump Or Damaged Exciter
C1211 No Signal: Air-Gap Error Or Wrong Exciter
C1275 G Sensor Open Or Short To Ground
C1274 G Sensor Signal Fixed Signal
C1604 ECU Hardware: ECU Internal Or Valve Failure
C2112 Valve Relay: Valve Relay Or Fuse Failure
C2402 Motor - Electrical: Open Or Short To Battery, Motor Relay, Fuse Or Motor Lock Fail
DIAGNOSIS & TESTING
12–46Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Diagnostic Trouble Code (DTC) Tests

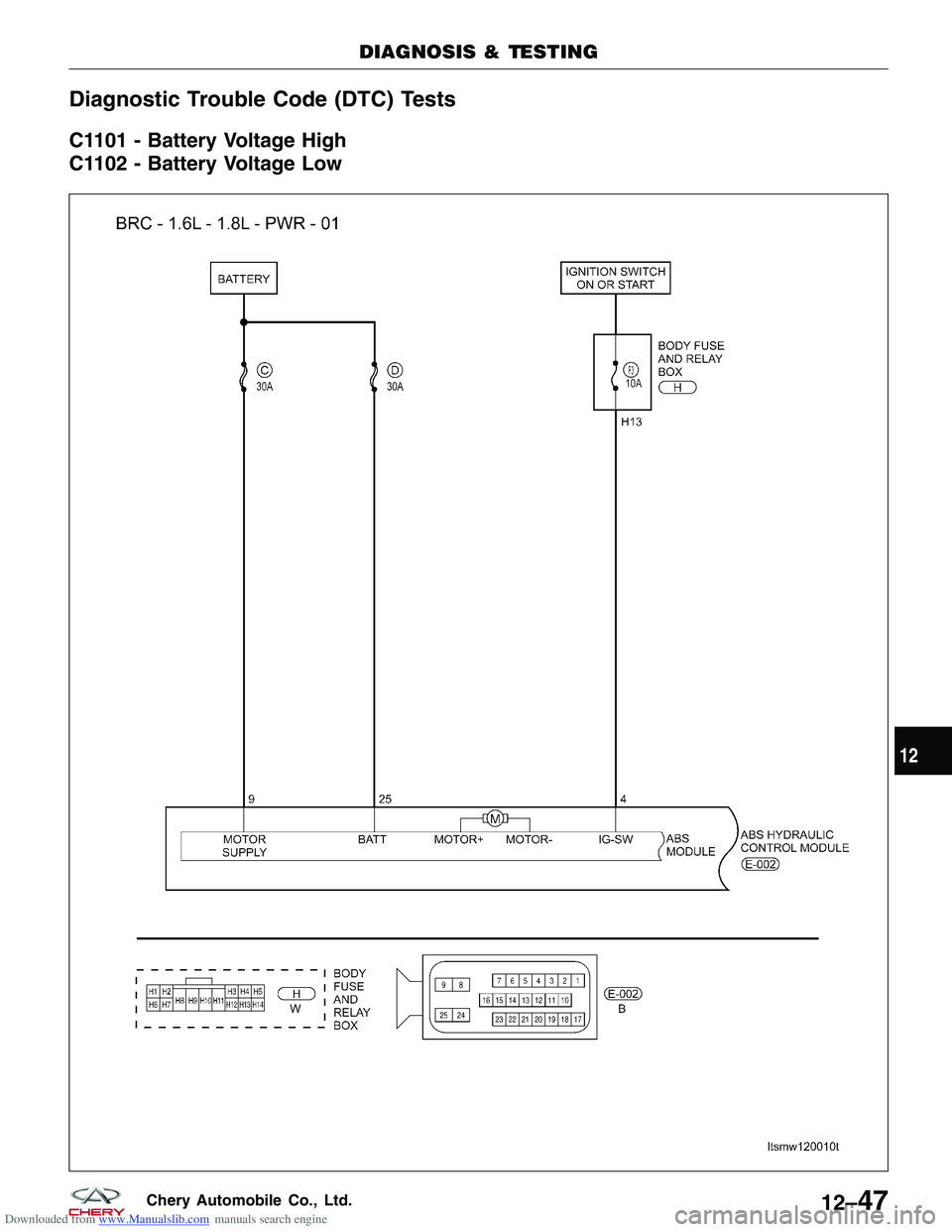

C1101 - Battery Voltage High
C1102 - Battery Voltage Low
DIAGNOSIS & TESTING
LTSMW120010T
12
12–47Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine DIAGNOSIS & TESTING
LTSMW120011T
12–48Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine DIAGNOSIS & TESTING

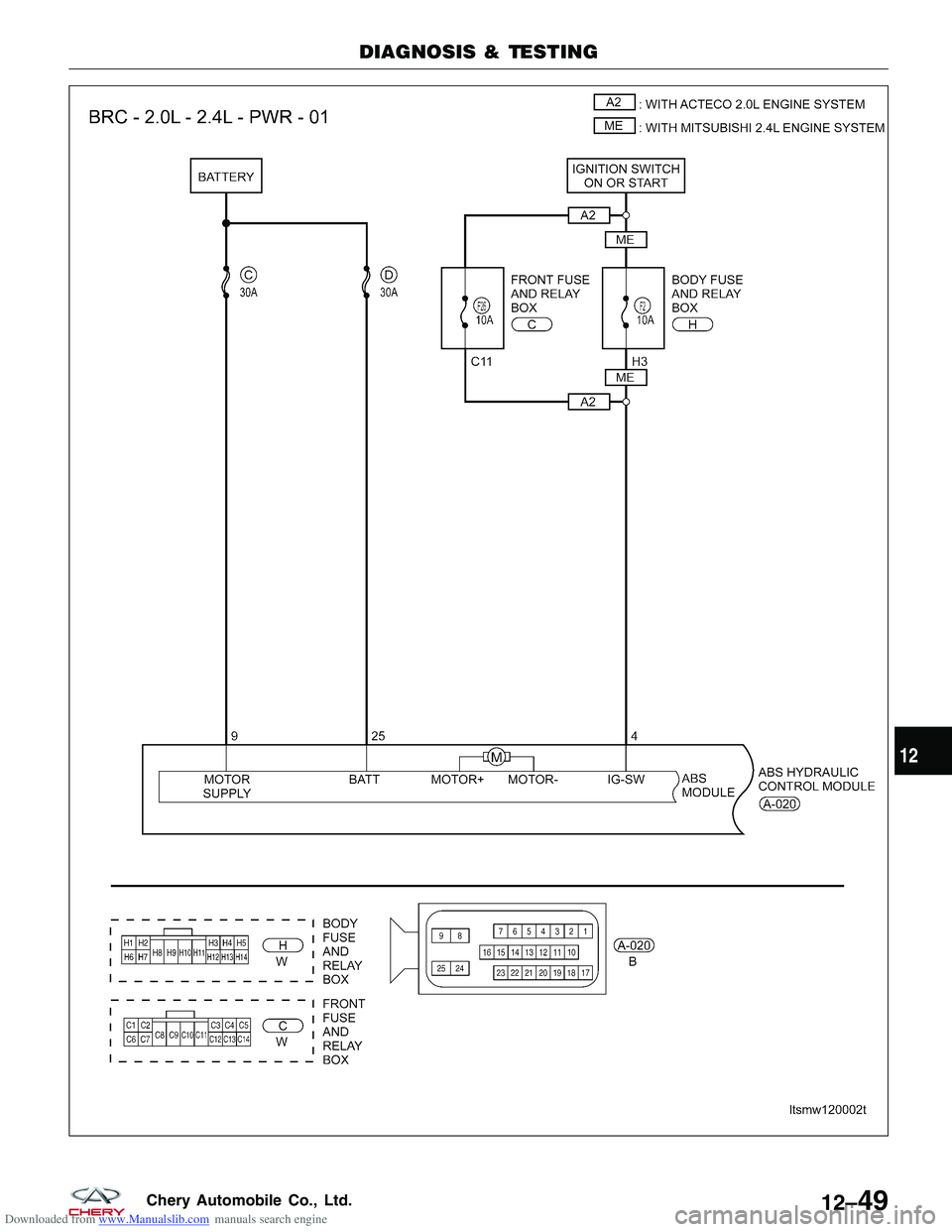

LTSMW120002T
12
12–49Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine DIAGNOSIS & TESTING

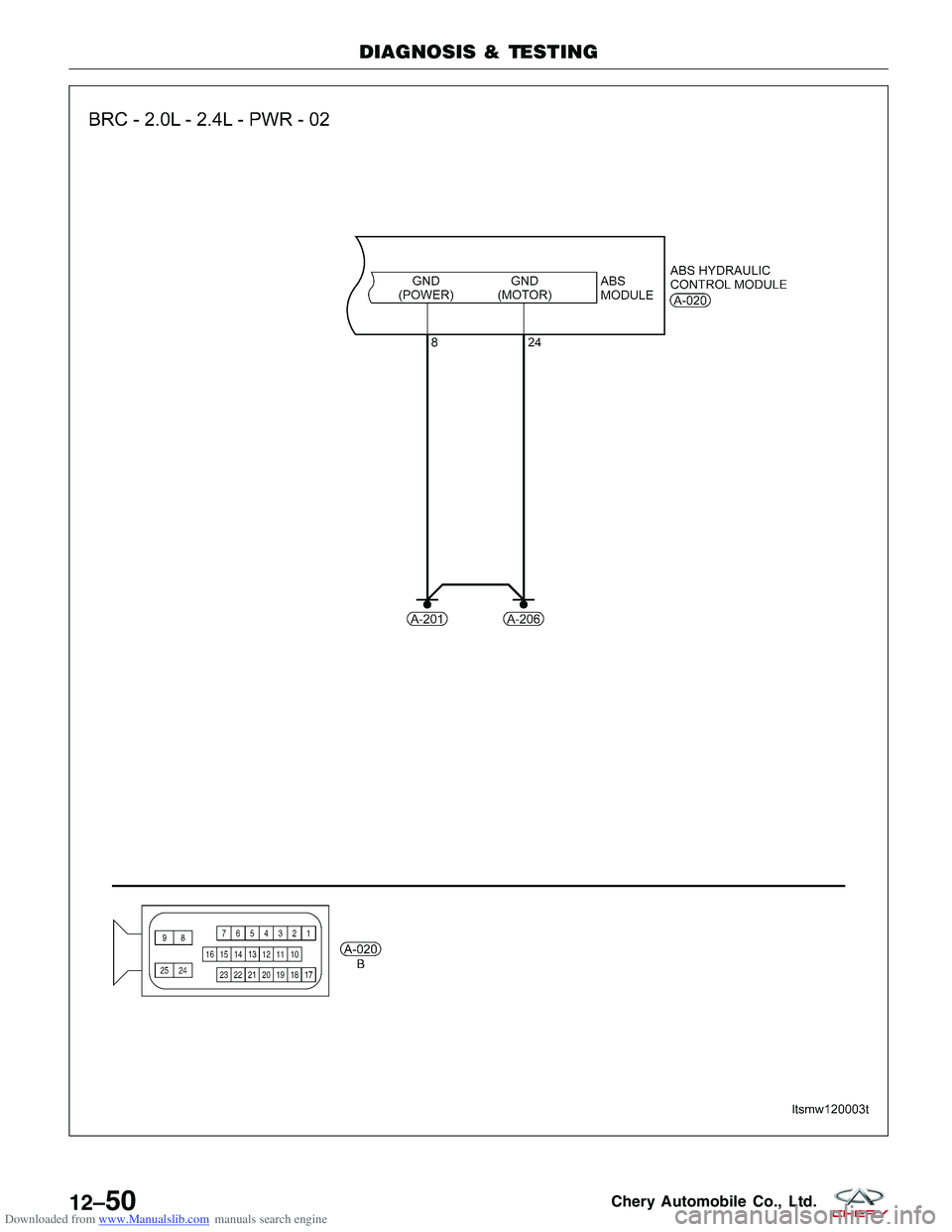

LTSMW120003T
12–50Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine On Board Diagnostic Logic
•Self-diagnosis detection logic.
DTC NO. DTC DEFINITION DTC DETECTION
CONDITION DTC SET
CONDITION POSSIBLE CAUSE
C1101 Battery Voltage High
(Above 18 V)
Ignition switch: ON ABS module
detected that the
battery voltage is
excessively high.
•
Charging system
• ABS module
C1102 Battery Voltage Low
(Below 9.5 V) ABS module
detected that the
battery voltage is
excessively low.•
Battery
• Harness is shorted
• Charging system
• ABS module
DTC Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
• Turn ignition switch off.
• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.
• Turn ignition switch on.
• With the scan tool, record and erase stored DTCs in the ABS module.
• Start the engine and warm it to normal operating temperature.
• Turn ignition switch off and wait for a few seconds.
• Turn ignition switch ON then select view DTC.
• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 12 Brakes for more information.
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
Diagnostic Procedure
1.CHECK GROUND CONNECTIONS
• Turn ignition switch off.
• Loosen and retighten ground screws on the body (See Ground Inspection in Section 12 Brakes).
• The ground connections E-207 and E-208 mounting position (See Vehicle Wiring Harness Layout - Engine
Room Harness With 1.6L & 1.8L Engine in Section 16 Wiring).
• The ground connections A-201 and A-206 mounting position (See Vehicle Wiring Harness Layout - Engine
Room Harness With 2.0L & 2.4L Engine in Section 16 Wiring).
Are the ground connections OK?
Ye s>>Go to the next step.
No
>>Repair or replace the ground connections.
2.CHECK ABS MODULE ELECTRICAL CONNECTOR
• Disconnect the ABS module electrical connector.
• Inspect the electrical connector for damage.
Is the electrical connector OK?
Ye s>>Go to the next step.
No
>>Repair or replace the electrical connector as necessary.
DIAGNOSIS & TESTING
12
12–51Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 3.CHECK ABS MODULE POWER SUPPLY
• Turn ignition switch on
• Check ABS module power supply between terminal
4 and terminal 8, 24 in the ABS module electrical
connector A-020 or E-002 terminal side.
Is the voltage between 9.4 - 17 V?
Ye s>>Replace the ABS module.
No
>>If the voltage is less than 9.4 V, go to
step 4.
If the voltage is more than 17 V, go to
step 7.
4.CHECK SYSTEM VOLTAGE
• Connect ABS module connector.
• Start the engine, raise the speed over 1000 RPM.
• Measure the charging voltage at the battery positive and negative terminals.
Is the voltage less than 9.4 V?
Ye s>>Replace the AC generator.
No
>>Go to the next step.
5.CHECK THE BATTERY
• Start the engine, raise the engine speed to over 1000 RPM for a few minutes.
• Turn ignition switch off.
• Measure the voltage drop at the battery positive and negative terminals while cranking the engine.
• Battery voltage should be more than approximately 9.4 V.
Is the check result normal?
Ye s>>Go to step 6.
No
>>Charge or replace the battery.
6.CHECK ABS MODULE POWER SUPPLY CIRCUIT
• Measure the continuity between the ABS module terminal 4 and the battery positive terminal.
• Continuity should exist.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Check fuse.
Check the harness.
Check all related components.
DIAGNOSIS & TESTING
LTSMD120001
12–52Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 7.CHECK SYSTEM VOLTAGE
• Maintain engine speed to over 1000 RPM.
• Measure the charging voltage at the battery positive and negative terminals.
Is the voltage more than 17 V?
Ye s>>Replace the AC generator.
No
>>Go to the next step.
8.CHECK DTC
• With the X-431 scan tool, read ABS module DTCs.
• Refer to DTC Confirmation Procedure.
Is DTC C1101 or C1102 still present?
Ye s>>Replace the ABS module.
No
>>The system is now operating properly.
Erase all codes and test drive the vehicle to verify the repair is complete.
DIAGNOSIS & TESTING
12
12–53Chery Automobile Co., Ltd.
