2009 CHERY TIGGO engine

Downloaded from www.Manualslib.com manuals search engine C1200 - Left Front Wheel Speed Sensor Circuit Open or Shorted
DIAGNOSIS & TESTING
LTSMW120012T
12–54Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine DIAGNOSIS & TESTING

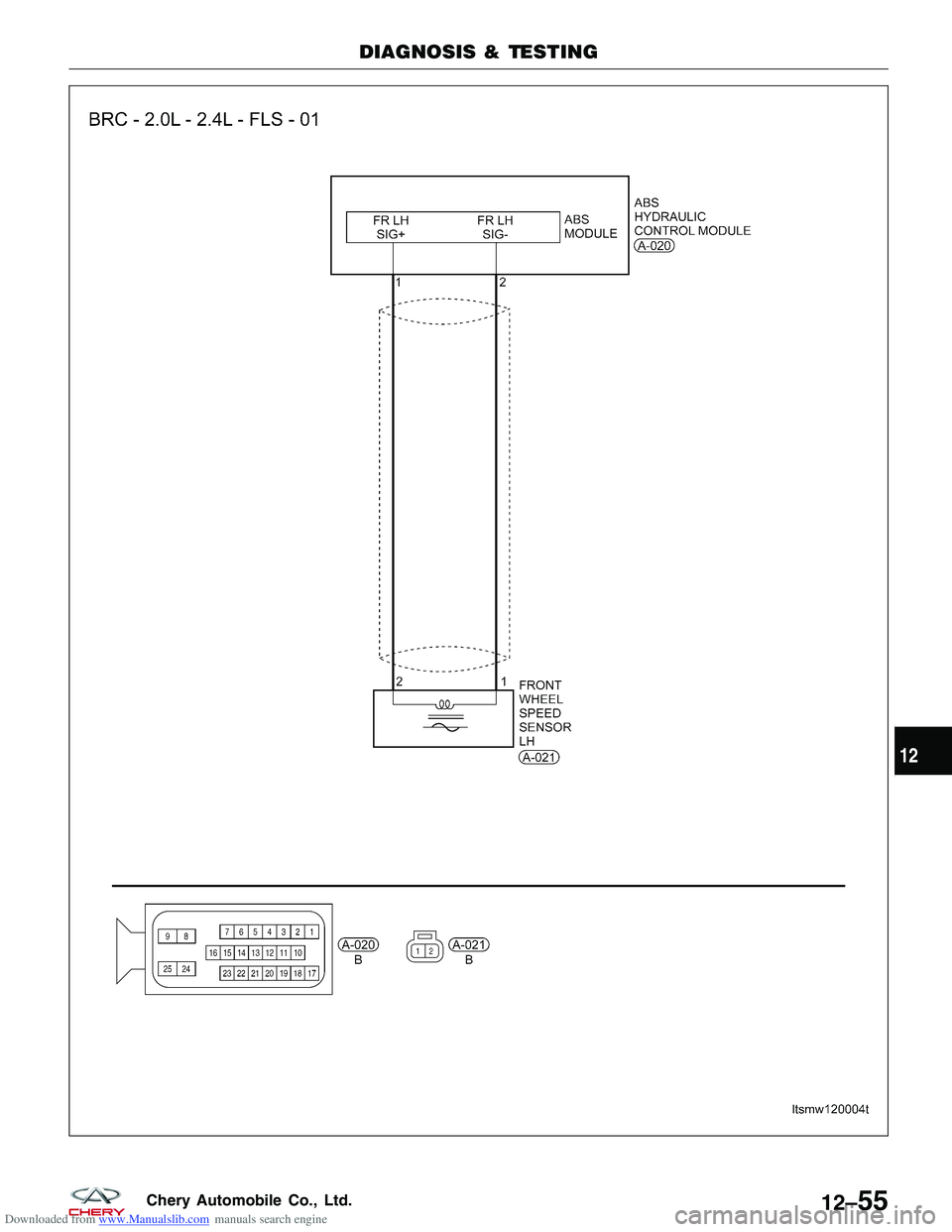

LTSMW120004T
12
12–55Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine On Board Diagnostic Logic
•Self-diagnosis detection logic.
DTC NO. DTC DEFINITION DTC DETECTION
CONDITION DTC SET
CONDITION POSSIBLE CAUSE
C1200 Left front wheel
speed sensor circuit open or shorted •
Ignition switch:
ON
• Vehicle: Running ABS module
detected that the
Left Front wheel
speed sensor input
signal to ABS
module is open or
shorted. •
Left Front wheel
speed sensor
• Harness is open or
shorted
• ABS module
DTC Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
• Turn ignition switch off.
• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.
• Turn ignition switch on.
• With the scan tool, record and erase stored DTCs in the ABS module.
• Cycle the ignition switch from off to on.
• Start the engine and warm it to normal operating temperature.
• Turn ignition switch off and wait for a few seconds.
• Start the engine. With the scan tool connected to the DLC, drive the vehicle over 40 km/h (25 mph).
NOTE :
Vehicle must be driven above 40 km/h (25 mph) for fault setting conditions to be met.
• With the scan tool select: View ABS Data Stream and DTC.
• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 12 Brakes for more information).
• Erase all codes and test drive the vehicle to verify the repair is complete.
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
Diagnostic Procedure
1.CHECK ABS MODULE DTC
• With the scan tool select: View ABS Data Stream.
• With an assistant driving the vehicle, check the following data stream list items while driving the vehicle over 40
km/h (25 mph).
Left Front Wheel Speed
Right Front Wheel Speed
Left Rear Wheel Speed
Right Rear Wheel Speed
• With the scan tool, read active DTCs in the ABS module.
Is DTC C1200 present and the Left Front Wheel Speed signal abnormal?
Ye s>>Go to the next step.
No
>>The condition that caused this DTC to set is currently not present (See Diagnostic Help and Intermit-
tent DTC Troubleshooting in Section 12 Brakes for more information).
DIAGNOSIS & TESTING
12–56Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 2.CHECK LEFT FRONT WHEEL SPEED SENSOR ELECTRICAL CONNECTOR
• Turn ignition switch off.
• Disconnect the wheel speed sensor (1) electrical
connector.
• Inspect the wheel speed sensor electrical connector
for damage.
Is the electrical connector OK?
Ye s>>Go to the next step.
No
>>Repair or replace the electrical connector
as necessary.
3.CHECK LEFT FRONT WHEEL SPEED SENSOR REFERENCE SIGNAL CIRCUIT
• Turn ignition switch on.
• Measure the sensor reference voltage between ter-
minal 2 of the wheel speed sensor connector, ter-
minal side and ground.
• Voltage should exist (2.0 - 4.0 V).
Is the proper voltage present?
Ye s>>Go to the next step.
No
>>Repair or replace the circuit for an open,
short to ground or short to battery in connector or
harness.
4.CHECK LEFT FRONT WHEEL SPEED SENSOR RESISTANCE
• Check the wheel speed sensor resistance between
the sensor terminals 1 and 2, component side.
Is the sensor resistance 700 - 1500 ohms?
Ye s>>Go to the next step.
No
>>Replace the Left Front wheel speed
sensor.
DIAGNOSIS & TESTING
PZSMD120001
LTSMD120003
VISMD120005
12
12–57Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 5.CHECK LEFT FRONT WHEEL SPEED SENSOR GROUND CIRCUIT FOR AN OPEN
• Turn ignition switch off.
• Disconnect the ABS module electrical connector.
• For 1.6L/1.8L engine: Check the continuity between
terminal 2 of the ABS module connector E-002, and
terminal 1 of the Left Front wheel speed sensor
connector E-028, terminal side.
• For 2.0L/2.4L engine: Check the continuity between
terminal 2 of the ABS module connector A-020, and
terminal 1 of the Left Front wheel speed sensor
connector B-021, terminal side.
• Continuity should exist.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the circuit for an open.
6.CHECK LEFT FRONT WHEEL SPEED SENSOR GROUND CIRCUIT FOR A SHORT TO GROUND
• Check the continuity between terminal 1 of the Left Front wheel speed sensor connector, terminal side and
ground.
• Continuity should not exist.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the circuit for a short to ground.
7.CHECK LEFT FRONT WHEEL SPEED SENSOR GROUND CIRCUIT FOR A SHORT TO VOLTAGE
• Check the voltage between terminal 1 of the Left Front wheel speed sensor connector, terminal side and
ground.
• Voltage should not exist.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the circuit for a short to battery.
8.CHECK DTC
• With the X-431 scan tool, read the ABS module DTCs.
• Refer to DTC Confirmation Procedure.
Is DTC C1200 present?
Ye s>>Replace the ABS module (See ABS Module Removal & Installation in Section 12 Brakes).
No
>>The system is now operating properly.
Erase all codes and test drive the vehicle to verify the repair is complete.
DIAGNOSIS & TESTING
LTSMD120004
12–58Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine C1203 - Right Front Wheel Speed Sensor Circuit Open or Shorted
DIAGNOSIS & TESTING
LTSMW120013T
12
12–59Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine DIAGNOSIS & TESTING

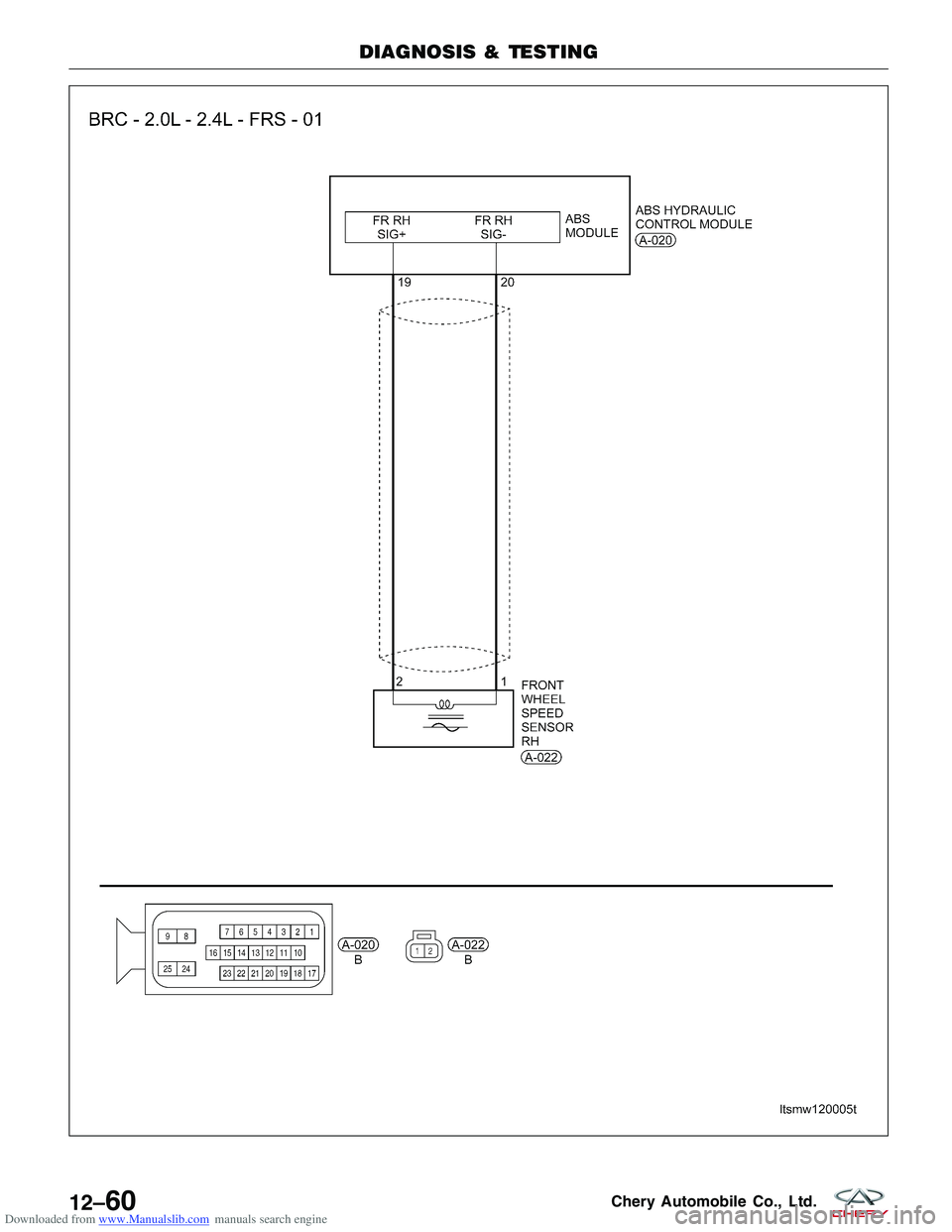

LTSMW120005T
12–60Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine On Board Diagnostic Logic
•Self-diagnosis detection logic.
DTC NO. DTC DEFINITION DTC DETECTION
CONDITION DTC SET
CONDITION POSSIBLE CAUSE
C1203 Right front wheel
speed sensor circuit open or shorted •
Ignition switch:
ON
• Vehicle: Running ABS module
detected that the
Right Front wheel
speed sensor input
signal to ABS
module is open or
shorted. •
Right Front wheel
speed sensor
• Harness is open or
shorted
• ABS module
DTC Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
• Turn ignition switch off.
• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.
• Turn ignition switch on.
• With the scan tool, record and erase stored DTCs in the ABS module.
• Cycle the ignition switch from off to on.
• Start the engine and warm it to normal operating temperature.
• Turn ignition switch off and wait for a few seconds.
• Start the engine. With the scan tool connected to the DLC, drive the vehicle over 40 km/h (25 mph).
NOTE :
Vehicle must be driven above 40 km/h (25 mph) for fault setting conditions to be met.
• With the scan tool select: View ABS Data Stream and DTC.
• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 12 Brakes for more information).
• Erase all codes and test drive the vehicle to verify the repair is complete.
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
Diagnostic Procedure
1.CHECK ABS MODULE DTC
• With the scan tool select: View ABS Data Stream.
• With an assistant driving the vehicle, check the following data stream list items while driving the vehicle over 40
km/h (25 mph).
Left Front Wheel Speed
Right Front Wheel Speed
Left Rear Wheel Speed
Right Rear Wheel Speed
• With the scan tool, read active DTCs in the ABS module.
Is DTC C1203 present and the Right Front Wheel Speed signal abnormal?
Ye s>>Go to the next step.
No
>>The condition that caused this DTC to set is currently not present (See Diagnostic Help and Intermit-
tent DTC Troubleshooting in Section 12 Brakes for more information).
DIAGNOSIS & TESTING
12
12–61Chery Automobile Co., Ltd.
