2009 CHERY TIGGO engine

Downloaded from www.Manualslib.com manuals search engine Electrical Schematics

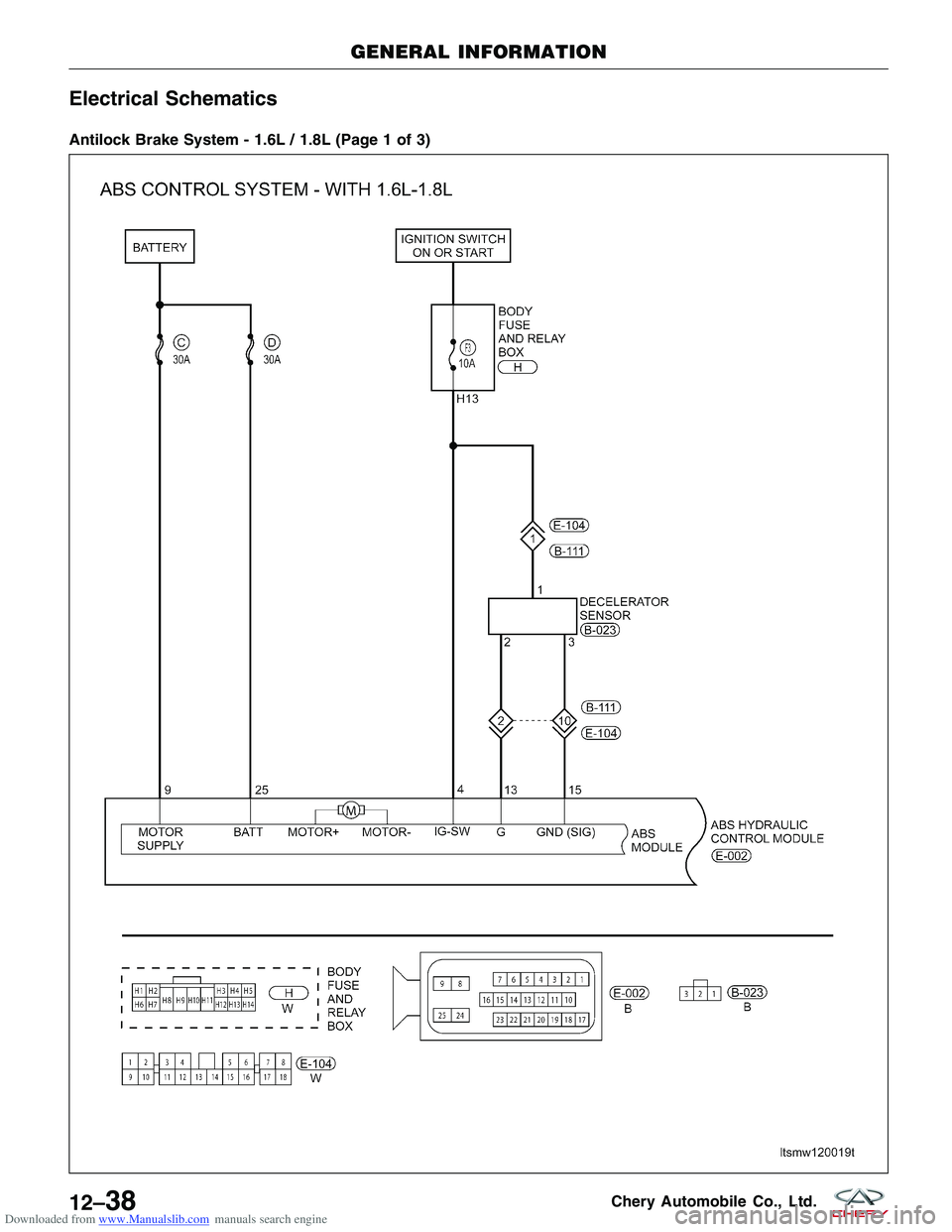

Antilock Brake System - 1.6L / 1.8L (Page 1 of 3)
GENERAL INFORMATION
LTSMW120019T
12–38Chery Automobile Co., Ltd.

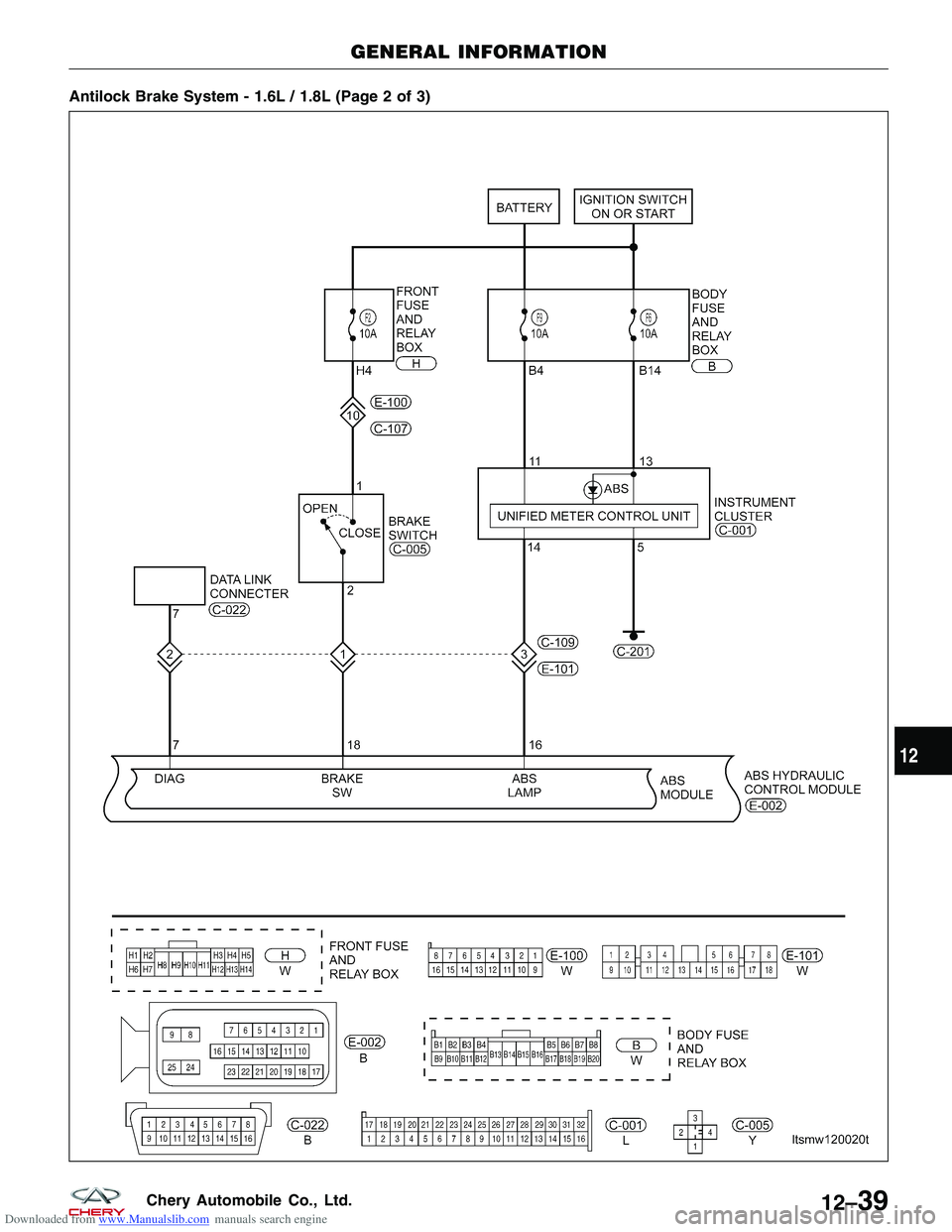

Downloaded from www.Manualslib.com manuals search engine Antilock Brake System - 1.6L / 1.8L (Page 2 of 3)
GENERAL INFORMATION
LTSMW120020T
12
12–39Chery Automobile Co., Ltd.

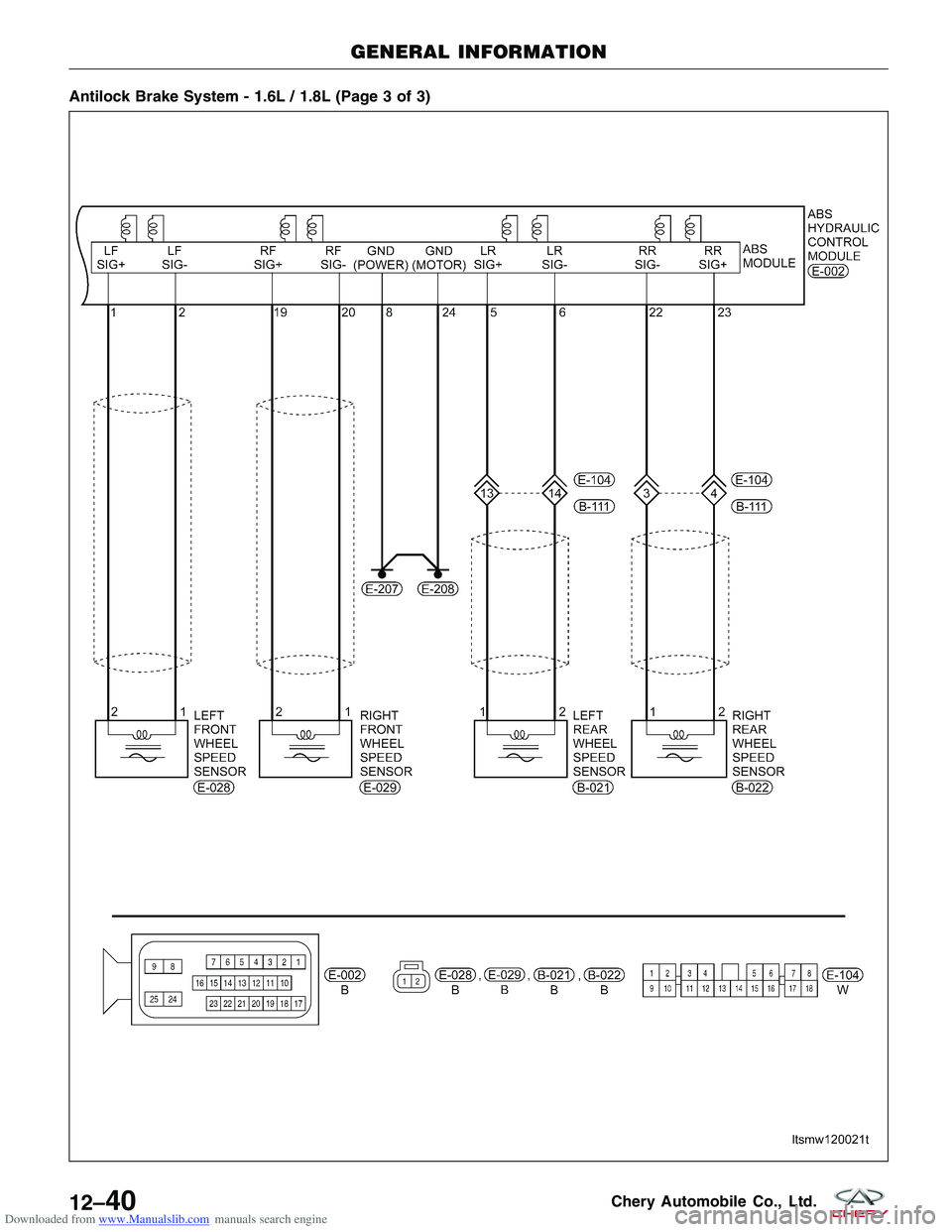

Downloaded from www.Manualslib.com manuals search engine Antilock Brake System - 1.6L / 1.8L (Page 3 of 3)
GENERAL INFORMATION
LTSMW120021T
12–40Chery Automobile Co., Ltd.

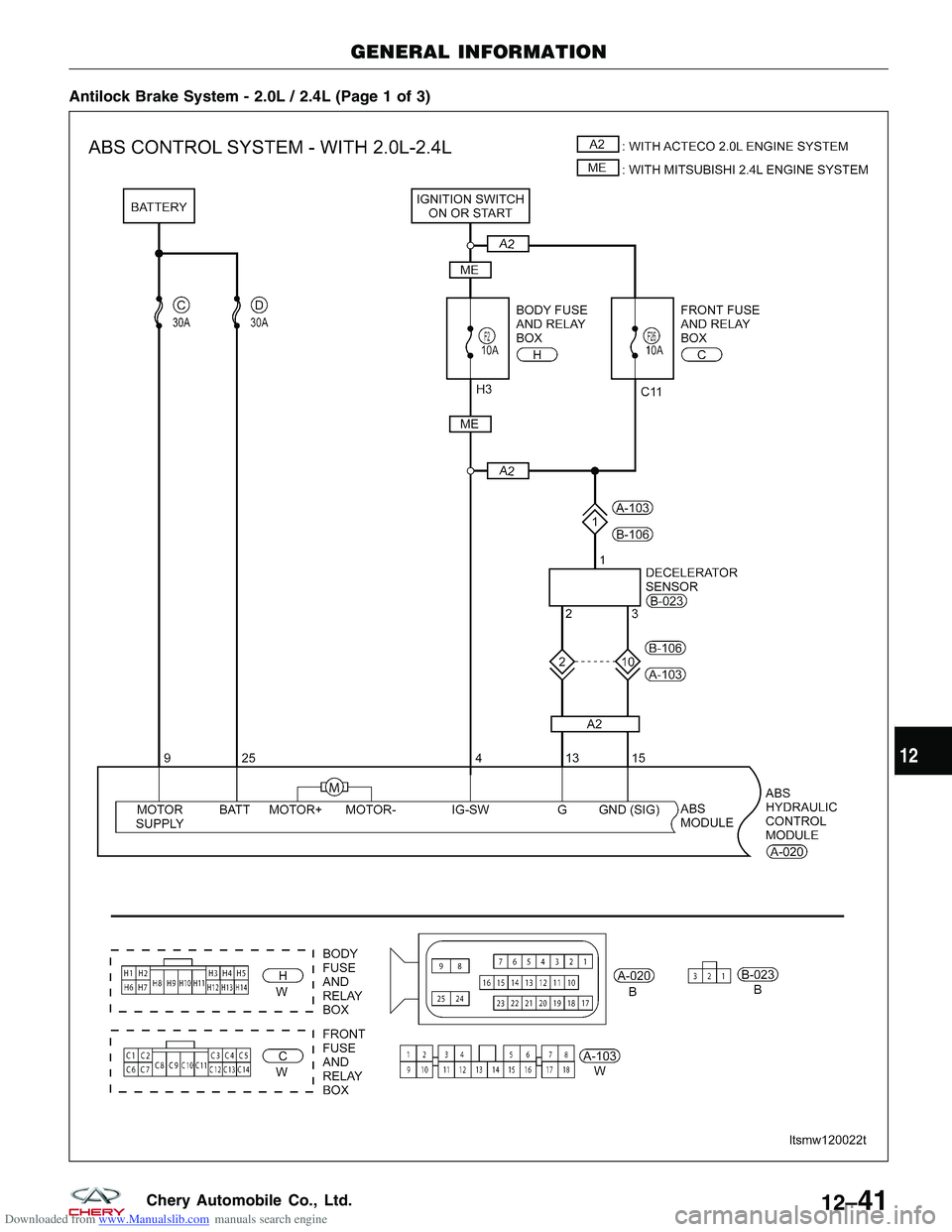

Downloaded from www.Manualslib.com manuals search engine Antilock Brake System - 2.0L / 2.4L (Page 1 of 3)
GENERAL INFORMATION
LTSMW120022T
12
12–41Chery Automobile Co., Ltd.

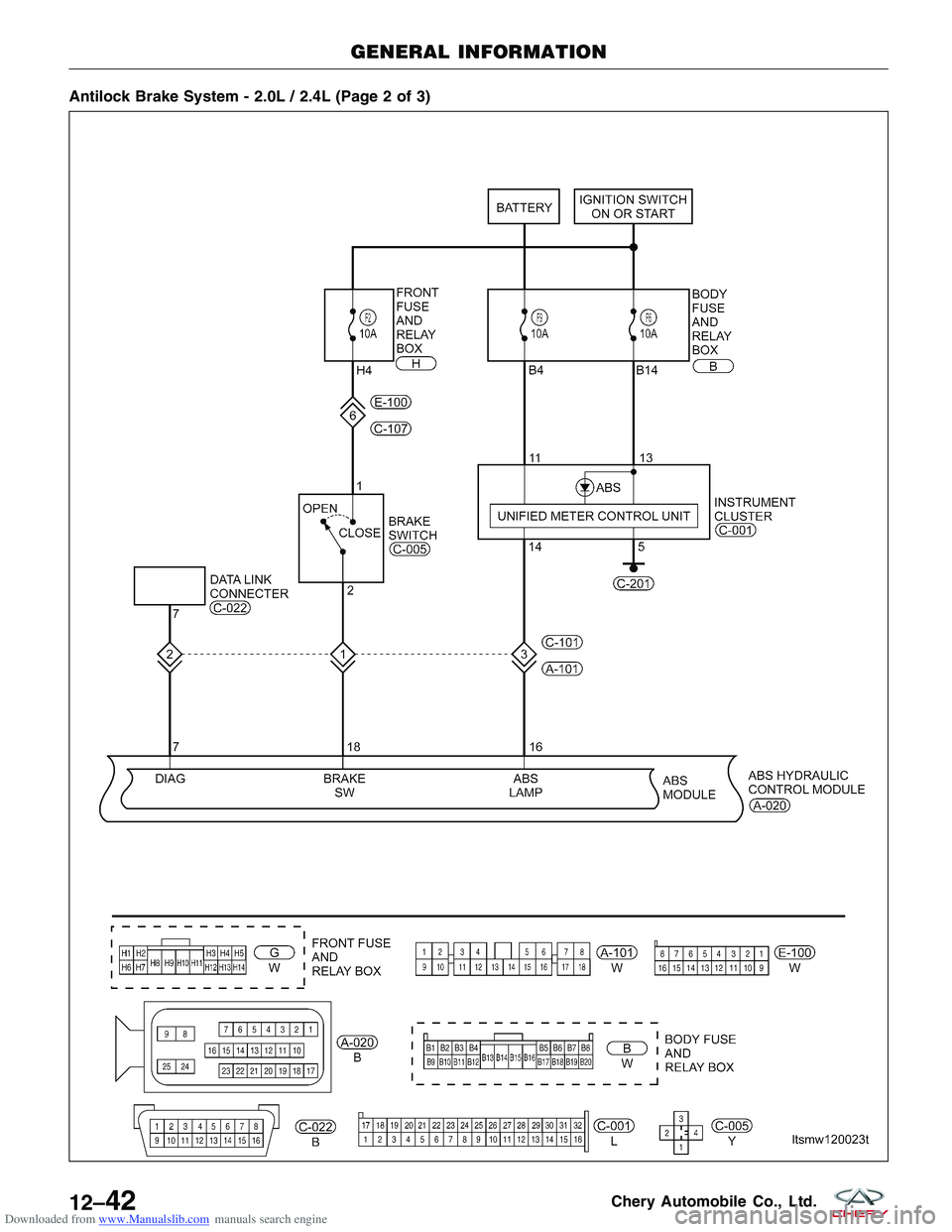

Downloaded from www.Manualslib.com manuals search engine Antilock Brake System - 2.0L / 2.4L (Page 2 of 3)
GENERAL INFORMATION
LTSMW120023T
12–42Chery Automobile Co., Ltd.

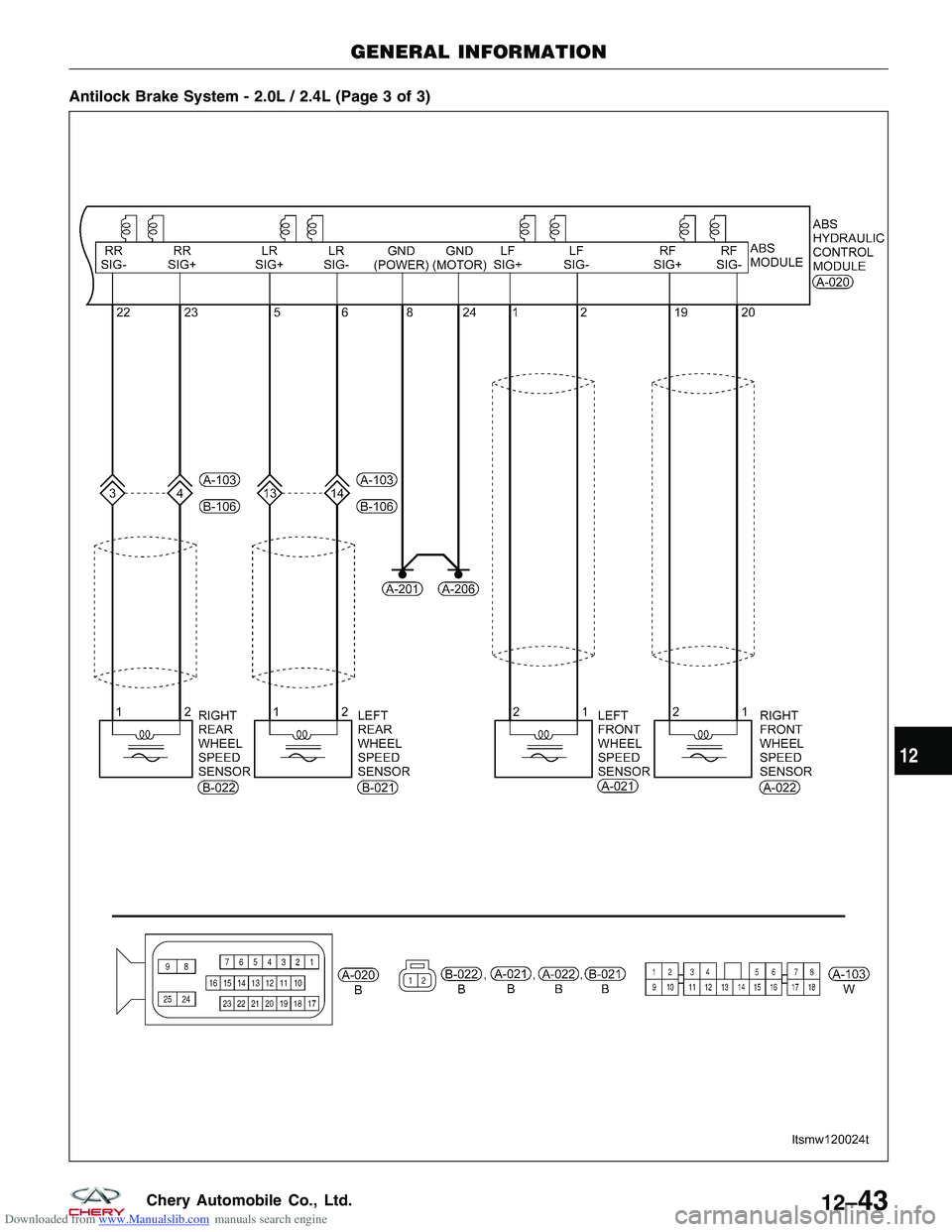

Downloaded from www.Manualslib.com manuals search engine Antilock Brake System - 2.0L / 2.4L (Page 3 of 3)
GENERAL INFORMATION
LTSMW120024T
12
12–43Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Antilock Brake System (ABS) Module Connector Pin-Out Table
ABS Hydraulic Control Module Connector Pin-Out Table
PINCIRCUIT IDENTIFICATION PINCIRCUIT IDENTIFICATION
1 Front Wheel Speed Sensor LH + 14-
2 Front Wheel Speed Sensor LH - 15Decelerator Sensor (GND)
3 -16ABS Lamp
4 Ignition Switch 17-
5 Rear Wheel Speed Sensor LH + 18Brake Switch
6 Rear Wheel Speed Sensor LH - 19Front Wheel Speed Sensor RH +
7 Diagnostic Link K 20Front Wheel Speed Sensor RH -
8 GND (Power) 21-
9 Continuous Supply Voltage (Motor) 22 Rear Wheel Speed Sensor RH +
10 -23Rear Wheel Speed Sensor RH -
11 -24GND (Motor)
12 -25Continuous Supply Voltage
13 Decelerator Sensor (G) --
GENERAL INFORMATION
12–44Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine DIAGNOSIS & TESTING
Diagnostic Help
Diagnostic Help
1. The X-431 scan tool connects to the Data Link Connector (DLC) and communicates with the vehicle electronicmodules through the vehicle data circuits.
2. Confirm that the malfunction is current and carry-out the diagnostic tests and repair procedures.
3. If the Diagnostic Trouble Code (DTC) cannot be deleted, it is a current fault.
4. Use a digital multimeter to perform voltage readings on electronic systems.
5. Refer to any Technical Bulletins that may apply to the failure.
6. Visually inspect the related electrical wiring harness.
7. Perform a voltage drop test on the related circuits between the suspected component and the ABS module.
8. Inspect and clean all ECM, ABS, engine, and chassis grounds that are related to the most current DTC.
9. If numerous trouble codes were set, use an electrical schematic and look for any common ground circuits or voltage supply circuits that may apply to the DTC.
10. For any wheel speed sensor DTCs, inspect for dirt/metal debris.
11. Use the scan tool to perform a System Test if one applies to the failed component.
Intermittent DTC Troubleshooting
If the failure is intermittent perform the following:
• Check for loose connectors.
• Look for any chafed, pierced, pinched, or partially broken wires.
• Monitor the scan tool data relative to this circuit.
• Wiggle the related electrical wiring harness and connectors while looking for an interrupted signal on the
affected circuit.
• If possible, try to duplicate the conditions under which the DTC set.
• Look for the data to change or for the DTC to reset during the wiggle test.
• Look for broken, bent, pushed out or corroded terminals.
• Inspect the sensor and mounting area for any condition that would result in an incorrect signal, such as dam-
age, foreign material.
• A data recorder, and/or oscilloscope should be used to help diagnose intermittent conditions.
• Remove the ABS module from the troubled vehicle and install in a new vehicle and test. If the DTC cannot be
deleted, the ABS module is malfunctioning. If the DTC can be deleted, return the ABS module to the original
vehicle.
Ground Inspection
Ground connections are very important to the proper operation of electrical and electronic circuits. Ground connec-
tions are often exposed to moisture, dirt and other corrosive elements. The corrosion (rust) can become an unwanted
resistance. This added resistance can affect the way a circuit works.
Electronically controlled circuits are very sensitive to proper grounding. A loose or corroded ground can drastically
affect an electronically controlled circuit. A poor or corroded ground can affect the circuit. Perform the following when
inspecting a ground connection:
1. Remove the ground bolt or screw.
2. Inspect all mating surface for tarnish, dirt, rust, etc.
3. Clean as required to assure good contact.
4. Reinstall bolt or screw securely.
5. Inspect for add-onaccessories which may be interfering with the ground circuit.
6. If several wires are crimped into one ground eyelet terminal, check for proper crimps. Make sure all of the wires are clean, securely fastened and providing a good ground path. If multiple wires are crimped to one eyelet, make
sure no excess wire insulation has been crimped creating a bad ground.
12
12–45Chery Automobile Co., Ltd.
