2009.5. PEUGEOT 807 Owners Manual

9.84
The traffi c announcement (TA) is displayed. I do not receive any traffi c information.
Tune to a radio station which broadcasts traffi c information. The radio station is not part of the regional traffi c information network.
QUESTION SOLUTION RESPONSE
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used b y the station listened to or there is no transmitter in the geographical area th rough which the vehicle is travelling.
The environment (hills, buildings, tunnels, baseme nt car parks...) block reception, including in RDS mode.
The aerial is absent or has been damaged (for exam ple when going through a car wash or into an underground car park).
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipme nt operating time depends on the battery charge. The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The stored stations do not function (no sound, 87.5 Mhz is displayed...)
An incorrect waveband is selected. Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which the stations are stored.
The message "the audio system is overheated" appears on the display.
Switch the audio system off for a few minutes to allow the system to cool. In order to protect the installation if the surrounding temperature is too high, the audio equipment switches to an automatic thermal protection mode leading to a reduction of the volume or stopping of the playing of the CD.

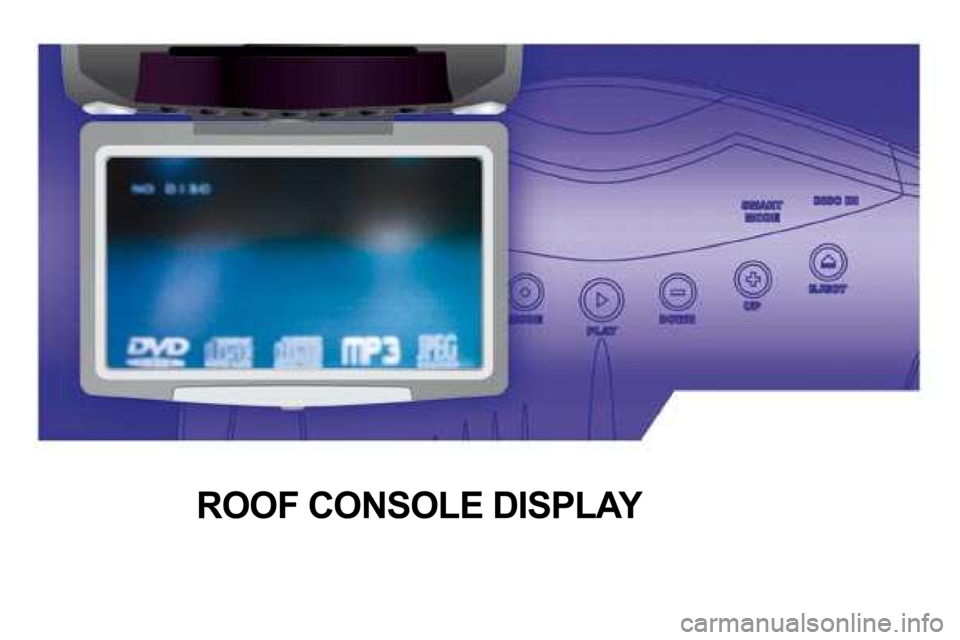

ROOF CONSOLE DISPLAY

ROOF CONSOLE DISPLAY

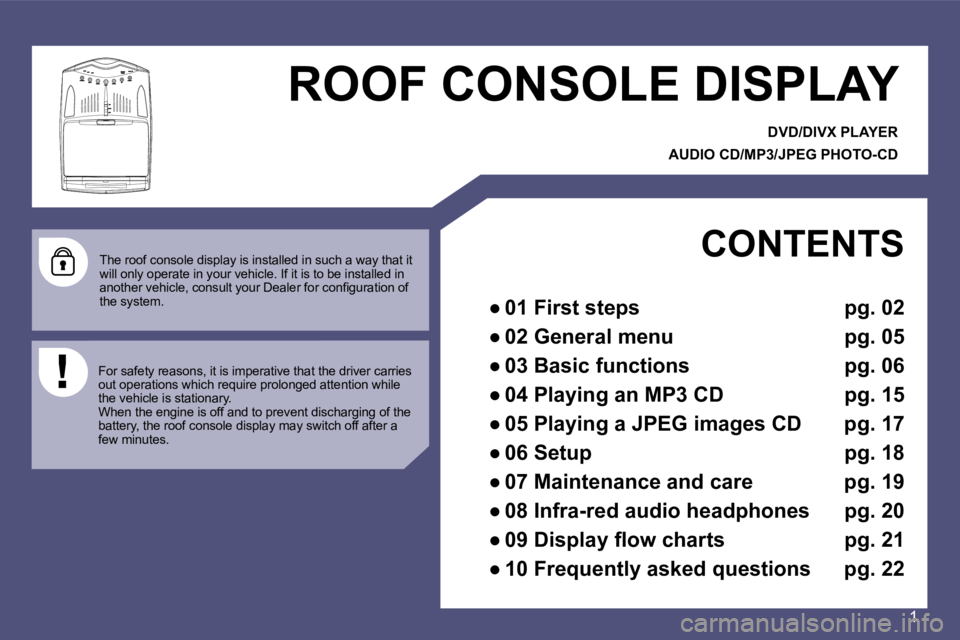

The roof console display is installed in such a way that it
will only operate in your vehicle. If it is to be i nstalled in
another vehicle, consult your Dealer for conigurati on of
the system.
For safety reasons, it is imperative that the drive r carries
out operations which require prolonged attention wh ile
the vehicle is stationary.
When the engine is off and to prevent discharging o f the
battery, the roof console display may switch off af ter a
few minutes. CONTENTS

2
POWERSTOP
AUTOON
OFF
MODE
PLAYDOWN UPEJECT
DVD
SMART
MODE DISC IN
AV1 AV2
01
Additional lighting switch. RESET button.
Passenger compartment
lighting.
A/V source selection
(DVD/DIVX, AV1, AV2).
A disc is
inserted.
SMART mode
activation.
Av1: AV1 input selected.
Av2: AV2 input selected.
DVD player video signal.
CONTROLS
FIRST STEPS
On/Off.
Stop play.
A/V source selection (DVD/DIVX, AV1, AV2).
VCD/CD/MP3: next title.
Cursor up.
DVD/DIVX: previous chapter.
VCD/CD/MP3: previous title.
Cursor down.
Disc eject.
Play/pause.
DVD/DIVX: next chapter.

3
AV2 IN12
3
7
5
4
6
01
8
30 %30 %

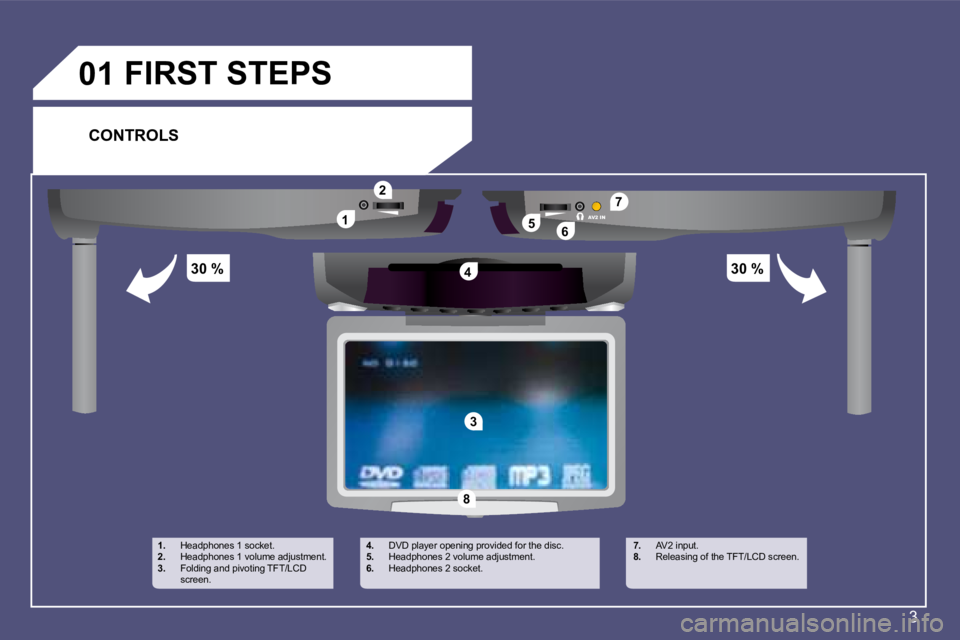

1.
Headphones 1 socket.
2. Headphones 1 volume adjustment.
3. Folding and pivoting TFT/LCD
screen. 4.
DVD player opening provided for the disc.
5. Headphones 2 volume adjustment.
6. Headphones 2 socket. 7.
AV2 input.
8. Releasing of the TFT/LCD screen.
CONTROLS
FIRST STEPS

4
SUB-T
SMARTPOWER
DISP
REPEAT
ANGLE
SETUP
MODE
VOL+
SEL
VOL-
AUDIOENTER
TITLE
MENU
123
456
789
0
ZOOM
01
SUB-T
SMART
DISP
REPEATSETUP
MODE
VOL+
SEL
VOL-
AUDIO
ENTER
TITLE
MENU
ZOOM
On/Off.
SMART mode on/off.
Play/Pause.
Stop play.
DVD: next chapter/previous chapter.
VCD/CD/MP3: next/previous title.
On the menus: cursor up/down.
Subtitle language selection.
Audio language selection.
Displaying of player setup menu.
Selection of TFT screen AV source (DVD, AV1 or AV2)

or of AV output AV1/AV2 in SMART mode. Displaying of DVD/DIVX main menu.
Volume decrease.
Displaying of DVD/DIVX title menu.
DVD screen settings (brightness, contrast, …).
Volume increase.
Selection conirmation.
Fast forward/backward play. On the menus:
cursor left/right.
ZOOM: Zoom mode setting.
ANGLE: Viewing angle selection.
REPEAT mode activation and selection.
Displaying of the duration (during play).
Numeric Block
CONTROLS FIRST STEPS

5
02

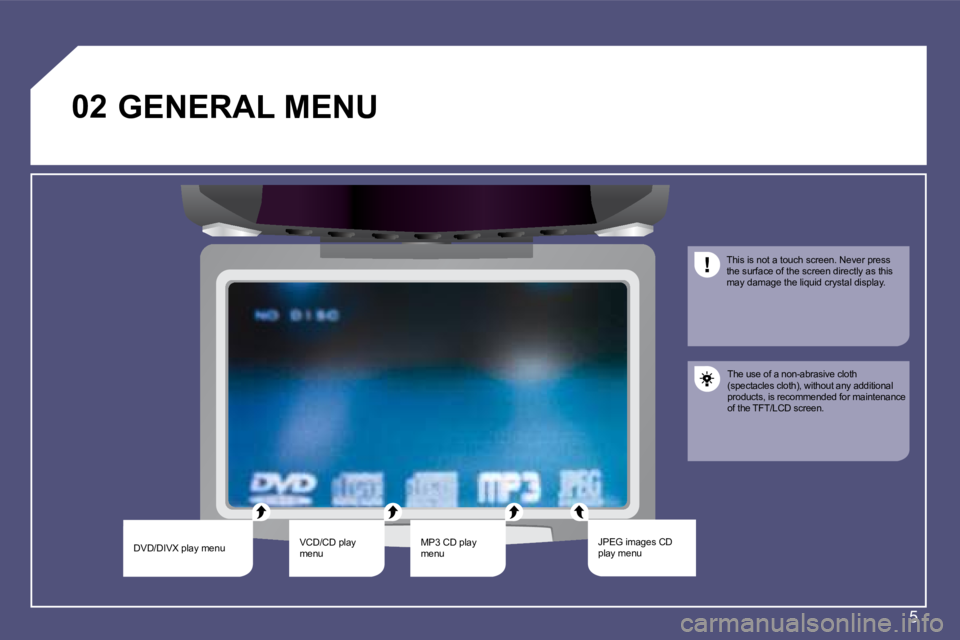

DVD/DIVX play menuVCD/CD play
menuMP3 CD play
menu JPEG images CD
play menuThis is not a touch screen. Never press
the surface of the screen directly as this
may damage the liquid crystal display.
GENERAL MENU
The use of a non-abrasive cloth
(spectacles cloth), without any additional
products, is recommended for maintenance
of the TFT/LCD screen.

6
1
2 1
2 1
2
03
12
UP EJECT
SMART
MODE DISC IN
ARTDEDISC IN
POWER
STOP
DVDAV1
MULTIMEDIA SYSTEM ON/OFF BASIC FUNCTIONS
To switch on the multimedia system, switch on
the vehicle's ignition.
Press the POWER button on the roof console
display or on the remote control. Play begins automatically.
To load a disc, insert it gently, printed
face uppermost, until it is fully
inserted.
Press the EJECT button on the roof
console display.
Remove the disc gently.
LOADING/EJECTING A CD
