2009.5. PEUGEOT 807 Owners Manual

139
Petrol and Diesel technical data
TECHNICAL DATA
8

PETROL CONSUMPTION
As per EC Directive 80/1268 (as amended) in MPG (li tres/100 km)

Model codes Engines Gearbox Urban driving
Extra-urban
driving
Mixed driving
Emission of
CO2 by mass
(g/km)

E_RFJ__ 2.0 PETROL Manual 12.0 7.3 9.0 213
The consumption values, presented here, are the values communica ted at the time of printing. These consumption
values were established in accordance with EC Directive 80/1268 (as amended). They may vary depending on the style
of driving, traffi c conditions, weather conditions, the load in the vehicle, the maintenance of the vehicle and the use of the
accessories.

PETROL ENGINE

Model codes
E_RFJ__

Engines
2.0 PETROL
Manual (5-speed)
Power (bhp) 140
Max. power: EU standard (KW) 103
Capacity (cm
3 ) 1 997
Bore x stroke (mm) 85 x 88
Number of valves 16
Max. power engine speed (rpm) 6 000
Max torque: EU standard (Nm) 200
Max. torque engine speed (rpm) 4 000
Fuel RON 95 - RON 98
Catalytic converter Yes
Electronic injection Yes

Oil capacities (in litres)

Engines (with fi lter replacement) 5.0

143
Petrol and Diesel technical data
TECHNICAL DATA
8
The consumption values, presented here, are the values communicated at the time of printing. These consumption
values were established in accordance with EC Directive 80/1268 (as amended). They may vary depending on the style
of driving, traffi c conditions, weather conditions, the load in the vehicle, the maintenance of the vehicle and the use of
accessories.
DIESEL CONSUMPTION
As per EC Directive 80/1268 (as amended) in MPG (litres/100 km)

Model codes Engines Gearbox Urban driving
Extra-urban
driving
Mixed driving
Emission of
CO
2 by mass
(g/km)

E_RHKH 2.0 HDi Manual 6 8.8 5.8 6.9 182

E_RHRH 2.0 HDi PEF Manual 6 9.0 6.0 7.1 188

E_4HTH

2.2 HDi PEF Manual 6 9.2 6.1 7.2 191

E_4HPH


E_4HRJ
Automatic 6 11 6.6 8.2 218

E_4HSJ

Petrol and Diesel technical data
140
PETROL DIMENSIONS, WEIGHTS AND TOWING LOADS
(in mm - in kg)

Model codes
EARFJ__ EBRFJ__
7 seats 8 seats
Manual

Engines
2.0 PETROL
Wheelbase(s) (at full load) 2 823
on Axle 1 1 570
on Axle 2 1 548
Length 4 727
Width 1 850
Height at kerb weight

without roof bars 1 745 to 1 759
with fi xed roof bars 1 854 to 1 863
Kerb weight 1 738 to 1 825 1 706 to 1 875
on Axle 1 1 018 to 1 043 1 014 to 1 060
on Axle 2 720 to 782 692 to 815

141
Petrol and Diesel technical data
TECHNICAL DATA
8
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load
mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine;
when the exterior temperature is above 37 °C, restrict the towe d weight.

Model codes
EARFJ__ EBRFJ__
7 seats 8 seats

Engines
2.0 PETROL
Manual
Gross train weight (GTW) 3 705 3 705
Gross vehicle weight (GVW) 2 405 2 405
Gross weight
on axle 1 1 270
on axle 2 1 300
Gross towed weight 1 750 1 700
Gross weight of unbraked trailer 750 750
Gross weight on towing attachment 76 76

Petrol and Diesel technical data
144 DIESEL DIMENSIONS, WEIGHTS AND TOWING LOADS (in mm - in kg)

Model codes EARHKH EBRHKH EARHRH EBRHRH
EA4HTH

EA4HPH
EA4HRJ EA4HSJ
EB4HTH

EB4HPH
EB4HRJ EB4HSJ


7 seats 8 seats 7 seats 8 seats 7 seats 8 seats

Engines 2.0 HDi 2.0 HDi PEF 2.2 HDi PEF
Wheelbase(s) (at full load) 2 823
on Axle 1 1 570
on Axle 2 1 548
Length 4 727
Width 1850
Height at kerb weight

without roof bars 1 745 to 1 759
with fi xed roof bars 1 854 to 1 863
Kerb weight 1 846 to 1 949 1 811 to 1 976 1 854 to 1 957 1 818 to 1 983 1 902 to 1 988 1 875 to 2 017
on Axle 1 1 117 to 1 153 1 114 to 1 158 1 121 t o 1 157 1 117 to 1 161 1 170 to 1 204 1 169 to 1 217
on Axle 2 729 to 796 697 to 818 733 to 800 701 to 822 732 to 784 696 to 800

145
Petrol and Diesel technical data
TECHNICAL DATA
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load ment ioned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is above 45 °C, restrict the towed wei ght.

Model codes EARHKH EBRHKH EARHRH EBRHRH EA4HTH
EA4HPH EA4HRJ
EA4HSJ EB4HTH
EB4H PH EB4HRJ
EB4HSJ
7 seats 8 seats 7 seats 8 seats 7 seats 8 seats

Engines 2.0 HDi 2.0 HDi PEF 2.2 HDi PEF
Gross train weight (GTW) 3 875 3 945 3 945
Gross vehicle weight (GVW) 2 530 2 530 2 570 on Axle 1 1 253 1 259 1 256 1 263 1 304 1 318
on Axle 2 1 277 1 271 1 274 1 267 1 266 1 252
Gross weight

on Axle 1 1 270 1 270 1 270 1 270 1 370 1 370
on Axle 2 1 300 1 300 1 300 1 300 1 300 1 300
Gross towed weight 1 820 1 800 1 850
Gross weight of unbraked trailer 750 750 750 75 0 750 750
Gross weight on towing
attachment 73 72 76 76 75 75

146

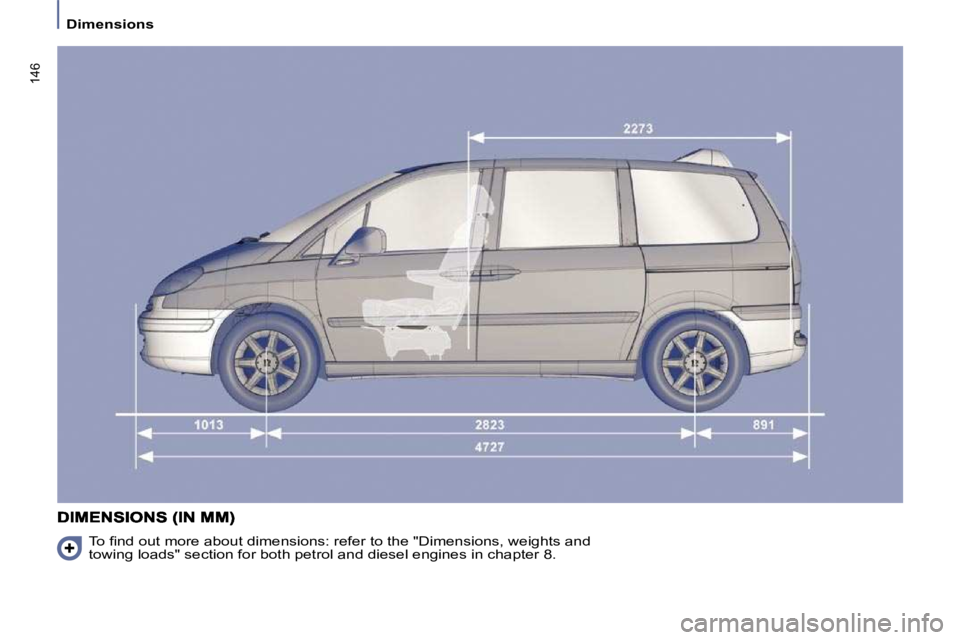

Dimensions
To fi nd out more about dimensions: refer to the "Dimensions, weights and
towing loads" section for both petrol and diesel engines in chapter 8.

147
8
Dimensions
TECHNICAL DATA
