2009.5. PEUGEOT 807 Owners Manual

9.76
11
33
22
USB PLAYER - PLUG
The system puts together playlists (temporary mem ory) created over a period which depends on the capacity of the USB e quipment. The other sources are available during this time. The playlists are updated each time the ignition is switched off or each time a USB stick is connected. When connecting for the fi rst time, the tracks are classifi ed by folder. When you reconnect, the classifi cation system selec ted previously is retained.
Connect the stick to the port, directly or using a lead. If the audio equipment is switched on, the USB source is detected as soon as it is connected. Play begins automatically after a delay which depends on the capacity of the USB stick. The fi le formats recognised are .mp3 (mpeg1 layer 3 only), .wma (standard 9 only), .wav and .ogg.
The list of compatible equipment is available from PEUGEOT dealers. USING THE USB SOCKET - PLUG
CONNECTING A USB STICK
Press LIST briefl y to display the list of Folders/Genres/Artists/Playlists on the USB equipment. Navigate through the list using the left/right and up/down buttons. Confi rm the selection by pressing OK.
Press and hold LIST to display the different classifi cations. Select by Folder/Artist/Genre/Playlist, press OK to select the classifi cation required, then press OK again to confi rm.
- by Folder: all folders containing audio fi les recognised on the peripheral device, classifi ed in alphabetical order without following the fl ow chart. - by Artist: all of the artist names defi ned in the ID3 Tags, classifi ed in alphabetical order. - by Genre: all of the genres defi ned in the ID3 Tags. - by Playlist: in accordance with the playlists recorded on the USB device.
OK
(available during the year)

44
11
55
9.77
USB PLAYER - PLUG
USING THE USB SOCKET - PLUG
The lists available are Artist, Genre and Playlist (as defi ned on the iPod ® ). Selection and Navigation are described in steps 1 to 5 above.
Do not connect a hard disc or USB devices other than audio equipment to the USB socket. This could damage your installation.
CONNECTING AN IPOD ® VIA THE USB SOCKET ®
Press one of these buttons to gain access to the previous/next track on the classifi cation list currently being played. Press and hold one of the buttons for fast forward or backward play.
Press one of these buttons to gain access to the previous/next Genre, Folder, Artist or Playlist on the classifi cation list currently being played.
(available during the year)

9.78
11
66
22
77
44
99
55
1010
33
88
BLUETOOTH
For safety reasons and because they require prolon ged attention on the part of the driver, the operations for pairing of the Bluetooth mobile telephone with the Bluetooth hands-free syst em of your audio equipment must be carried out with the vehicle stationary and the ignition on.
Press the MENU button.
A window is displayed with "Searching...".
Activate the telephone's Bluetooth function.
In the menu, select: - Bluetooth telephone function - Audio - Bluetooth confi guration - Perform a Bluetooth search
The services offered depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Consult your telephone's manual and your operator to fi nd out which services are available to you. A list of mobile telephones which offer the best range of services is available from the networ k. Consult a PEUGEOT dealer. BLUETOOTH TELEPHONE
SCREEN C
The TELEPHONE menu permits access to the following functions in particular: Directory * , Call list, Pairing management.
The fi rst 4 telephones recognised are displayed in this window.
A virtual keypad is displayed on the screen: enter a code with at least 4 digits. Confi rm by pressing OK.
"Pairing of Name_telephone successful" appears on the screen.
Select the telephone to be connected from the list. Only one telephone can be connected at a time.
A message is displayed on the screen of the telephone chosen: to accept the pairing, enter the same code on the telephone, then confi rm by pressing OK. If pairing fails, the number of attempts is not limited.
The automatic connection authorised is only active after the telephone has been confi gured. The directory and the call list can be accessed after the synchronisation period.
OK
PAIRING A TELEPHONE
* If your telephone hardware is fully compatible.
The pairing can also be initiated from the telepho ne.

11
22
11
11
22
33
22
9.79
YES
RECEIVING A CALL
An incoming call is announced by a ring and a superimposed display on the multifunction screen. Initiate the pairing between the telephone and the vehicle. This pairing can be initiated from the vehicle's telephone function menu or via the telephone's keypad. See steps 1 to 10 on the previous pages. During the pairing phase, the vehicle must be stationary with the key in the ignition.
Select the telephone to be connected from the telephone function menu. The audio system connects to a newly paired telephone automatically.
Select the YES tab on the display using the buttons and confi rm by pressing OK.
Press the steering wheel control OK to accept the call.
From the Bluetooth telephone function Audio menu, select Manage the telephone call then Call, Call list or Directory.
Press the end of the steering wheel control for mo re than two seconds to gain access to your directory. Or To dial a number, use your telephone's keypad, wit h the vehicle stationary.
MAKING A CALL
BLUETOOTH AUDIO STREAMING
(AVAILABLE DURING THE YEAR)
Wireless transmission of the telephone's music fi les via the audio equipment. The telephone must be able to manage the appropriate bluetooth profi les (Profi les A2DP/AVRCP).
* In certain cases, playing of the Audio fi les must be initiated from the keypad. ** If the telephone supports the function.
Activate the streaming source by pressing the SOURCE button * . The tracks to be played can be controlled as usual via the buttons on the Radio control panel and the steering wheel controls ** . The contextual information can be displayed on the screen.

9.80
9
05

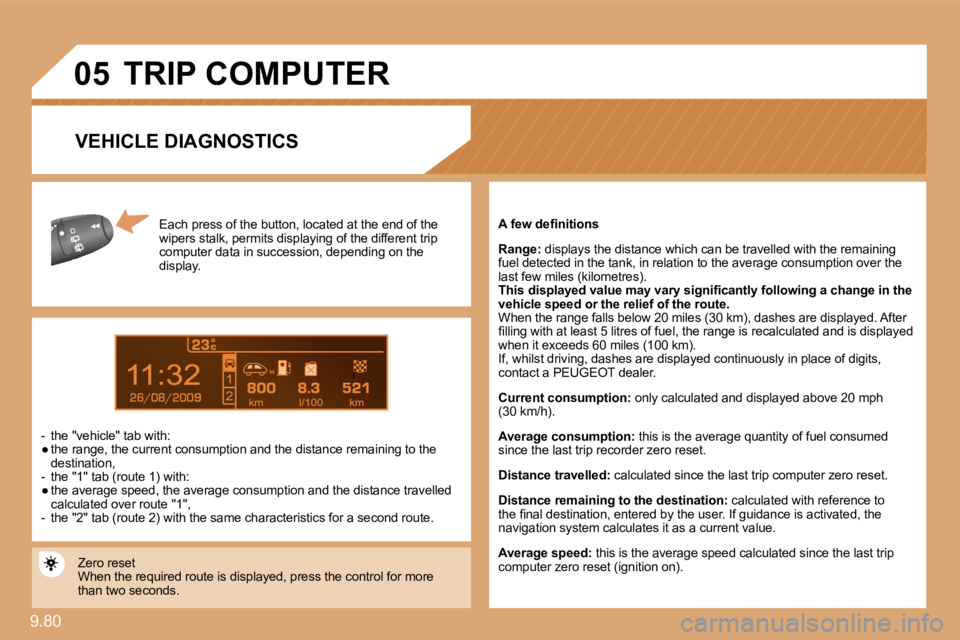

Each press of the button, located at the end of the wipers stalk , permits displaying of the different trip computer data in succession, depending on the display.
- the "vehicle" tab with:

55
66
77
88
11
22
33
44
9.81

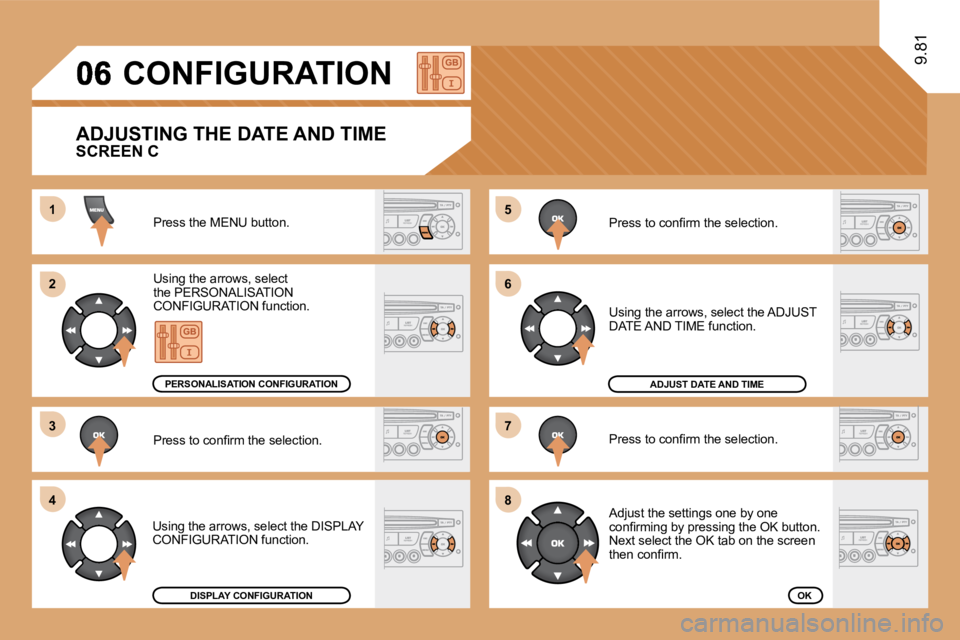

CONFIGURATION
Press the MENU button.
Using the arrows, select the PERSONALISATION CONFIGURATION function.
Press to confi rm the selection.
Using the arrows, select the DISPLAY CONFIGURATION function.
Press to confi rm the selection.
Press to confi rm the selection.
Using the arrows, select the ADJUST DATE AND TIME function.
Adjust the settings one by one confi rming by pressing the OK button. Next select the OK tab on the screen then confi rm.
DISPLAY CONFIGURATION
ADJUST DATE AND TIME
OK
PERSONALISATION CONFIGURATION
SCREEN C
ADJUSTING THE DATE AND TIME

9.82
1
1
2
3
4
3
4
3
4
2
3
4
3
4
2
3
4
2
4
4
3
4
4
4
3
4
4
1
2
3
2
3
3
2
2
1
2
3
3
3
4
4
4
2
3
4
3
4
3
4
2
3
3
3
4
07
PERSONALISATION-CONFIGURATION
AUDIO FUNCTIONS
DISPLAY C FLOW CHART
CONSULTING DIRECTORIES **
telephone directory
call log
services directory
customer contact centre
breakdown call
emergency call
STATUS OF FUNCTIONS *
functions activated or deactivated
TRIP COMPUTER
FM BAND PREFERENCES
alternative frequencies (RDS)
activate/deactivate
regional mode (REG)
activate/deactivate
radio-text information (RDTXT)
activate/deactivate
AUDIO CD PREFERENCES
CD changer repeat (RPT)
activate/deactivate
track random play (RDM)
activate/deactivate
ENTER DISTANCE TO DESTINATION
distance: x km
WARNING LOG
diagnostics
DEFINE THE VEHICLE PARAMETERS *
DISPLAY CONFIGURATION
video brightness adjustment
normal video
inverse video
brightness (- +) adjustment
date and time adjustment
day/month/year adjustment
hour/minute adjustment
choice of 12 h/24 h mode
choice of units
l/100 km - mpg - km/l
°Celsius/°Fahrenheit
CHOICE OF LANGUAGE
TELEPHONE
* The parameters vary according to vehicle.
CONFIGURATION
deletion of a match
list of matches
consulting matches
list of matches
choice of a mobile to connect
list of mobiles
** According to compatibility of Bluetooth telephone and service contract.
MANAGEMENT OF A COMMUNICATION
switch **
terminate the current call
secret mode
activate/deactivate

9.83
There is a difference in sound quality between the different audio sources (radio, CD, CD changer...).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source (radio, CD, CD changer...).
The CD is ejected automatically or is not played by the player.
- Check that the CD is inserted in the player the right way up. - Check the condition of the CD: the CD cannot be played if it is too damaged. - Check the content in the case of a recorded CD: consult the advice in the "Audio" section. - The audio equipment's CD player does not play DVDs. - Due to inadequate quality, certain recorded CDs will not be played by the audio system. - The CD changer does not play MP3 CDs.
The CD is inserted upside down, is unplayable, doe s not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
The CD player sound is poor. Insert good quality CDs and store them in suitable conditions. The CD used is scratched or of poor quality.
The audio equipment settings (bass, treble, ambien ces) are unsuitable. Set the treble or bass level to 0, without selecting an ambience.
The table below groups together the answers to the most frequently asked questions concerning your PC Sound and your PC Com.
QUESTION SOLUTION RESPONSE
FREQUENTLY ASKED QUESTIONS
