2009.5. PEUGEOT 807 Owners Manual

148

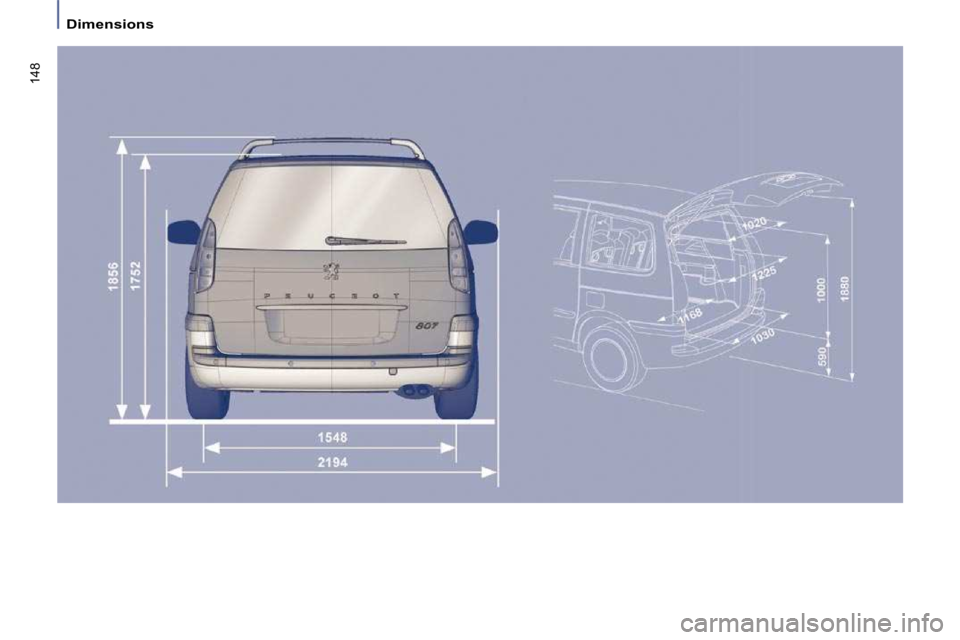

Dimensions

9.1
PC Com
MULTIMEDIA AUDIO EQUIPMENT/TELEPHONE
JUKEBOX FUNCTION ( 10 GB )/GPS (EUROPE)
CONTENTS

9.2

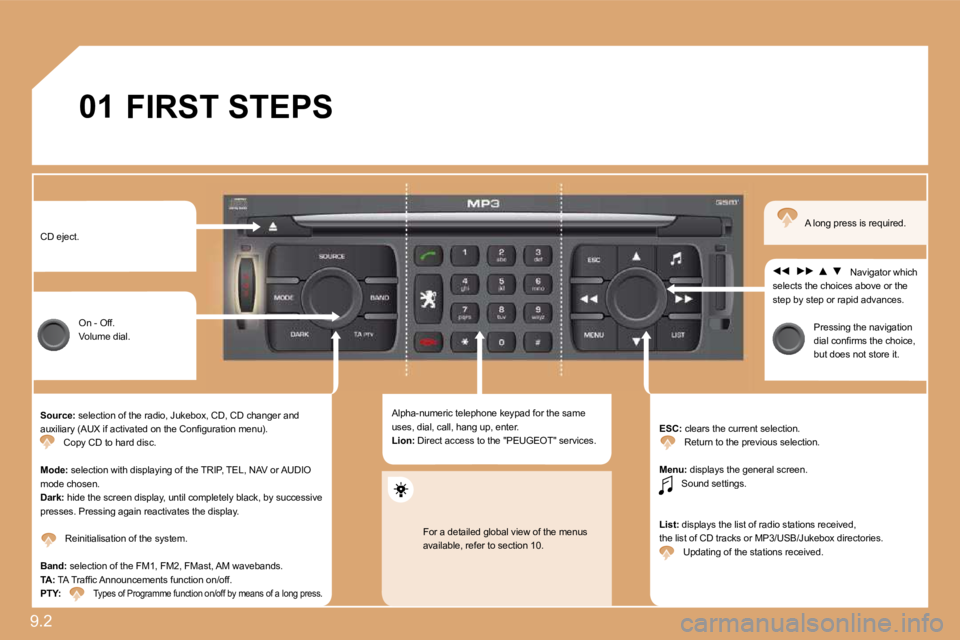

01 FIRST STEPS
CD eject.
On - Off. Volume dial.
Source: selection of the radio, Jukebox, CD, CD changer and auxiliary (AUX if activated on the Confi guration menu). Copy CD to hard disc.
Mode: selection with displaying of the TRIP, TEL, NAV or AUDIO mode chosen. Dark: hide the screen display, until completely black, by successive presses. Pressing again reactivates the display.
Reinitialisation of the system.
Band: selection of the FM1, FM2, FMast, AM wavebands. TA: TA Traffi c Announcements function on/off. PTY: Types of Programme function on/off by means of a lo ng press.
Alpha-numeric telephone keypad for the same uses, dial, call, hang up, enter. Lion: Direct access to the "PEUGEOT" services. ESC: clears the current selection. Return to the previous selection.
Menu: displays the general screen. Sound settings.
List: displays the list of radio stations received, the list of CD tracks or MP3/USB/Jukebox directories. Updating of the stations received.
Navigator which selects the choices above or the step by step or rapid advances.
Pressing the navigation dial confi rms the choice, but does not store it.
A long press is required.
For a detailed global view of the menus available, refer to section 10.

01
9.3
FIRST STEPS
ADDITIONAL CONTROL
Selection of the screen display mode. Press for more than 2 seconds: displayingof the general information.
Displaying of the AUDIO function contextual menu.
Displaying of the general menu. Press for more than 2 seconds: access to the help menu.
Displaying of the general Displaying of the general Displaying of the general information/Trip computer menu. information/Trip computer menu.
Displaying of the NAVIGATION function contextual menu.
Displaying of the TELEPHONE function contextual menu.
Cancellation of the operation in progress. Clearing of the last superimposed display. Press for more than 2 seconds: return to the permanent application.
Selection
and
confi rmation.
STEERING WHEEL CONTROLS SECTION 08

9.4
°

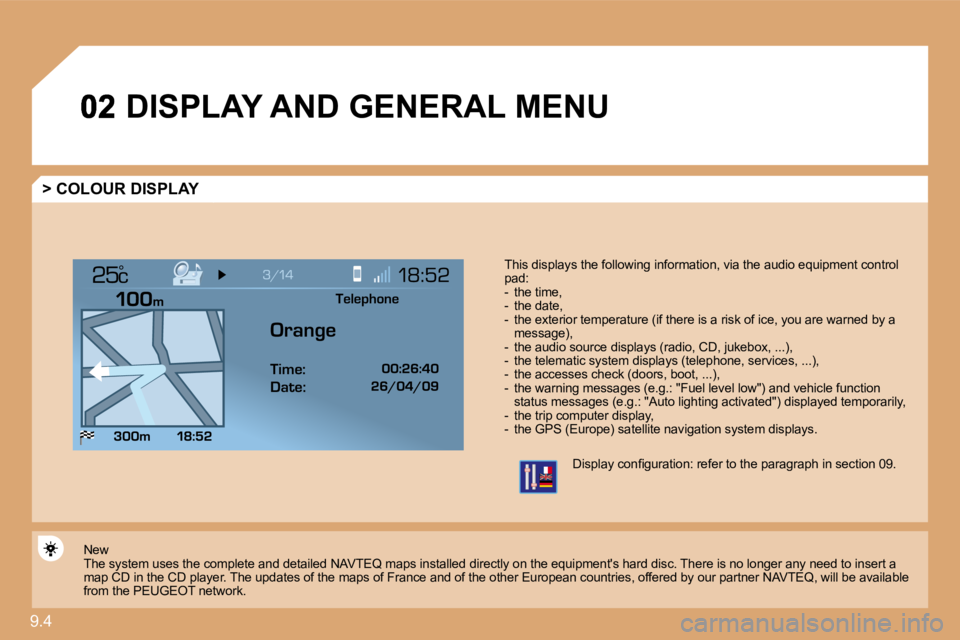

DISPLAY AND GENERAL MENU
> COLOUR DISPLAY
This displays the following information, via the audio equipment control pad: - the time, - the date, - the exterior temperature (if there is a risk of ice, you are warned by a message), - the audio source displays (radio, CD, jukebox, ...), - the telematic system displays (telephone, serv ices, ...), - the accesses check (doors, boot, ...), - the warning messages (e.g.: "Fuel level low") and vehicle function status messages (e.g.: "Auto lighting activated") d isplayed temporarily, - the trip computer display, - the GPS (Europe) satellite navigation system displays.
New The system uses the complete and detailed NAVTEQ m aps installed directly on the equipment's hard disc. There is no longer any need to insert a map CD in the CD player. The updates of the maps of France and of the other European countries, offered by our partner NAVTEQ, will be available from the PEUGEOT network.
Display confi guration: refer to the paragraph in section 09.
Telephone
Orange Time:
Date:

02
9.5
DISPLAY AND GENERAL MENU
MAP: orientation, details, display. AUDIO FUNCTIONS: radio, CD, Jukebox, options.
For cleaning the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended with no additional product.
TELEMATIC: telephone, directory, SMS.
CONFIGURATION: vehicle, screen, time, languages, voice, auxiliary socket (AUX) settings. settings.
VIDEO: activation, settings.
VEHICLE DIAGNOSTICS: warnings log.
NAVIGATION GUIDANCE: GPS, stages, options.
TRAFFIC INFORMATION: TMC information, messages.

9.6
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
02
1
DISPLAY AND GENERAL MENU

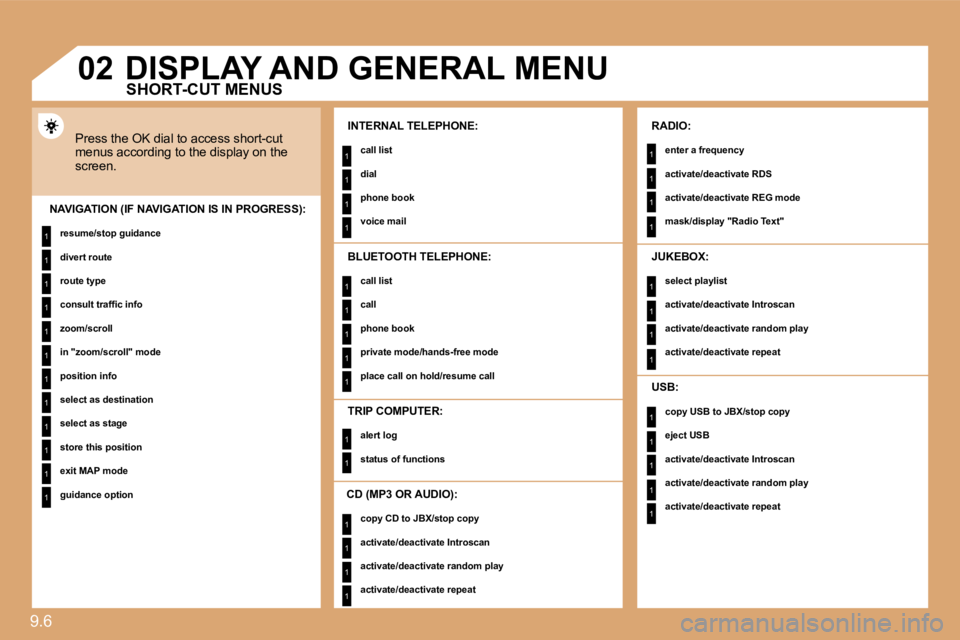

Press the OK dial to access short-cut menus according to the display on the screen.
INTERNAL TELEPHONE:
call list
dial
phone book
voice mail NAVIGATION (IF NAVIGATION IS IN PROGRESS):
resume/stop guidance
divert route
route type
consult traffi c info
zoom/scroll
in "zoom/scroll" mode
position info
select as destination
select as stage
store this position
exit MAP mode
guidance option
TRIP COMPUTER:
alert log
status of functions
BLUETOOTH TELEPHONE:
call list
call
phone book
private mode/hands-free mode
place call on hold/resume call
CD (MP3 OR AUDIO):
copy CD to JBX/stop copy
activate/deactivate Introscan
activate/deactivate random play
activate/deactivate repeat
RADIO:
enter a frequency
activate/deactivate RDS
activate/deactivate REG mode
mask/display "Radio Text"
JUKEBOX:
select playlist
activate/deactivate Introscan
activate/deactivate random play
activate/deactivate repeat
USB:
copy USB to JBX/stop copy
eject USB
activate/deactivate Introscan
activate/deactivate random play
activate/deactivate repeat
SHORT-CUT MENUS

11
22
33
55
77
44
66
88
03
9.7

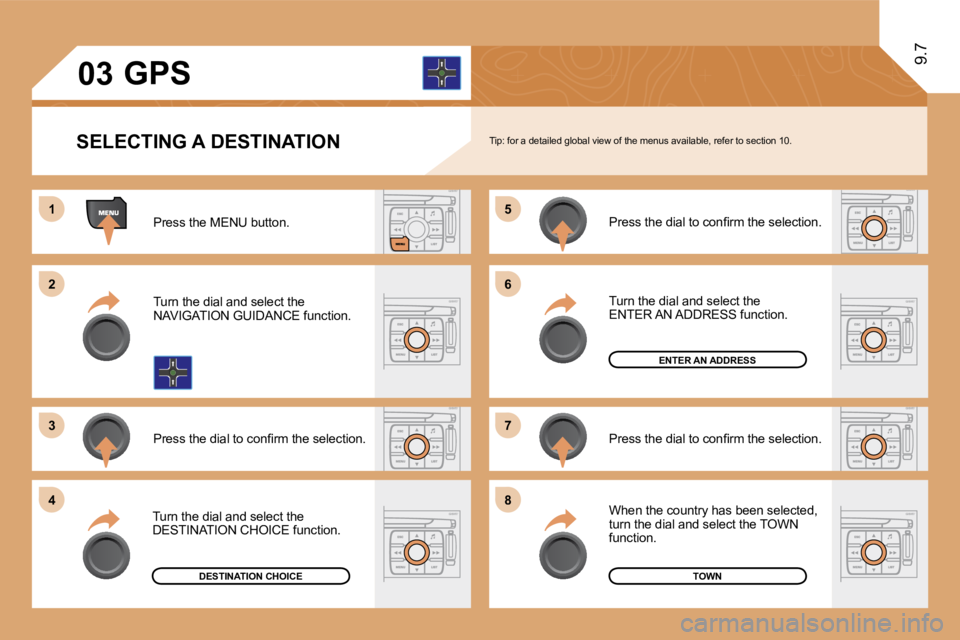

SELECTING A DESTINATION Tip: for a detailed global view of the menus available, refer to section 10.
Press the MENU button.
Turn the dial and select the NAVIGATION GUIDANCE function.
Press the dial to confi rm the selection.
Turn the dial and select the DESTINATION CHOICE function.
Press the dial to confi rm the selection.
Press the dial to confi rm the selection.
Turn the dial and select the ENTER AN ADDRESS function.
When the country has been selected, turn the dial and select the TOWN function.
TOWN
ENTER AN ADDRESS
DESTINATION CHOICE
GPS
