2009.5. PEUGEOT 807 Owners Manual

104
Child safety

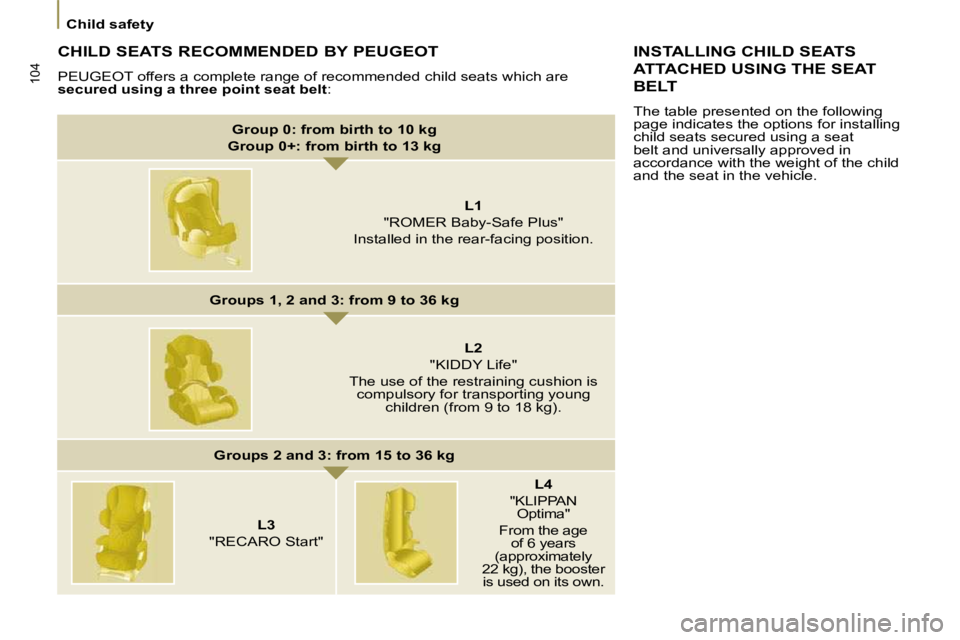

CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are

secured using a three point seat belt :
INSTALLING CHILD SEATS
ATTACHED USING THE SEAT
BELT
The table presented on the following
page indicates the options for installing
child seats secured using a seat
belt and universally approved in
accordance with the weight of the child
and the seat in the vehicle.

Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg

L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position .

Groups 1, 2 and 3: from 9 to 36 kg

L2
"KIDDY Life"
The use of the restraining cushion is compulsory for transporting young children (from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start"
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately
22 kg), the booster is used on its own.

SAFETY
105
Child safety
4

a : Group 0: from birth to 10 kg. Infant car seats and "car cots" canno t be installed on the front passenger seat.

b : consult the legislation in force in your country before install ing your child on this seat.

U : seat suitable for the installation of a child seat secured u sing a seat belt and universally approved, "rear facing" and/or
"forward facing".

L- :
only the child seats indicated can be installed on the seat concerned (according to country).

X : seat not suitable for the installation of a child seat of the weight group indicated.

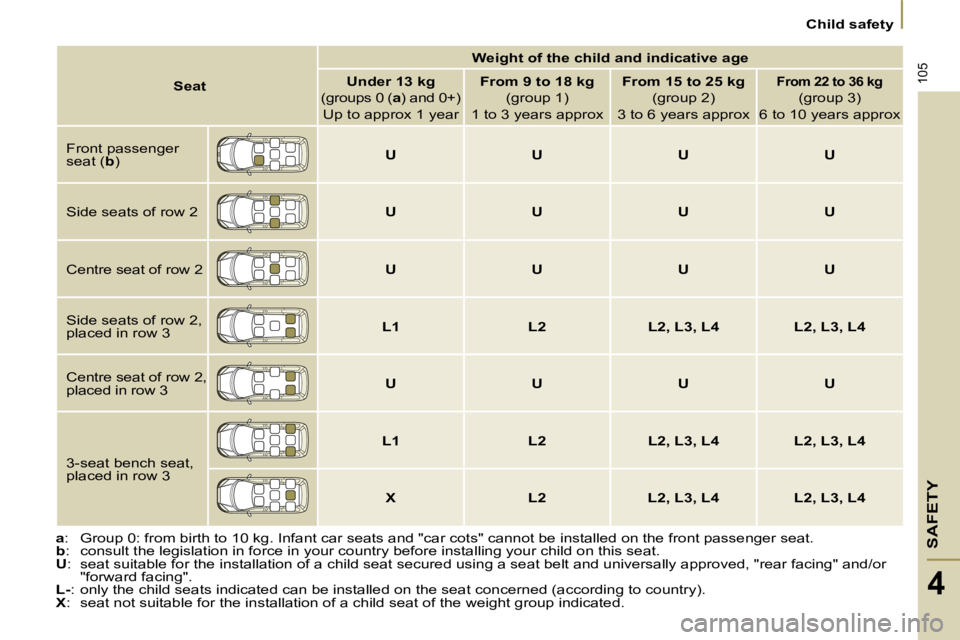

Seat
Weight of the child and indicative age

Under 13 kg
(groups 0 ( a ) and 0+)
Up to approx 1 year
From 9 to 18 kg
(group 1)
1 to 3 years approx
From 15 to 25 kg
(group 2)
3 to 6 years approx
From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger
seat ( b )
U U U U
Side seats of row 2 U U U U
Centre seat of row 2 U U U U
Side seats of row 2,
placed in row 3
L1 L2 L2, L3, L4 L2, L3, L4
Centre seat of row 2,
placed in row 3
U U U U
3-seat bench seat,
placed in row 3
L1 L2 L2, L3, L4 L2, L3, L4

X L2 L2, L3, L4 L2, L3, L4

106
Child safety
ADVICE ON CHILD SEATS
The incorrect installation of a child seat
in a vehicle compromises the child’s
protection in the event of an accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack in relation to the child’s body to
a minimum , even for short journeys.
To protect young children from the
rays of the sun, fi t side blinds to
the rear windows.
CHILD MONITORING MIRROR
This mirror enables the driver or front
passenger to observe all the rear
seats.
Fitted on its own ball joint and able to
retract into its housing in the roof, it
provides a panoramic view of the rear
interior of the vehicle.
For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is in contact with the back
of the vehicle’s seat and that the head
restraint does not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached
securely to prevent it from being
thrown around the vehicle in the event
of sharp braking.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Disarm the passenger air bag when a
"rear facing" child seat is installed on
the front seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag
were to infl ate. As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors, use the "Child Lock".
Take care not to open the rear windows
by more than one third.
Installing a booster seat
The chest part of the seat belt must
be positioned on the child’s shoulder
without touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child’s thighs.
PEUGEOT recommends the use of a
booster seat which has a back, fi tted
with a seat belt guide at shoulder level.

106
Child safety
ADVICE ON CHILD SEATS
The incorrect installation of a child seat
in a vehicle compromises the child’s
protection in the event of an accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack in relation to the child’s body to
a minimum , even for short journeys.
To protect young children from the
rays of the sun, fi t side blinds to
the rear windows.
CHILD MONITORING MIRROR
This mirror enables the driver or front
passenger to observe all the rear
seats.
Fitted on its own ball joint and able to
retract into its housing in the roof, it
provides a panoramic view of the rear
interior of the vehicle.
For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is in contact with the back
of the vehicle’s seat and that the head
restraint does not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached
securely to prevent it from being
thrown around the vehicle in the event
of sharp braking.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Disarm the passenger air bag when a
"rear facing" child seat is installed on
the front seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag
were to infl ate. As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors, use the "Child Lock".
Take care not to open the rear windows
by more than one third.
Installing a booster seat
The chest part of the seat belt must
be positioned on the child’s shoulder
without touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child’s thighs.
PEUGEOT recommends the use of a
booster seat which has a back, fi tted
with a seat belt guide at shoulder level.

107
Towing a trailer
ACCESSORIES
5
TOWING A TRAILER, CARAVAN, BOAT, ETC...
Refer to the administrative
documents (V5, ...) or to the Petrol
or Diesel "Dimensions, weights
and towed loads" section of
chapter 8.
Distribution of loads: distribute the
load in the trailer so that the heaviest
loads are as close as possible to the
axle and the nose weight is close
to the maximum authorised without,
however, exceeding it.
Cooling: towing a trailer on a slope
increases the coolant temperature.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.

Dimension A = 0.96 m
Driving advice
A towed vehicle must free wheel:
gearbox in neutral.

108
Towing a trailer
On the contrary, use a high gear to
lower the engine speed and reduce
your speed.
In all cases, pay attention to the
coolant temperature.
Brakes: towing increases the braking
distance. Drive at a moderate speed,
change down early and brake
gradually. Please contact a PEUGEOT dealer
fi rst for further information .
Automatic adjustment
For vehicles with Xenon bulbs, and if
the change in load makes it necessary,
this system automatically corrects the
height of the beam after approximately
2 minutes. The driver is then assured
of having optimum lighting and not
causing a nuisance to other road
users.
In certain cases of particularly
arduous use (towing the
maximum load up a steep slope
in high temperatures), the engine
automatically limits its power. In this
case, cutting off the air conditioning
allows the engine power to be
recovered, and therefore the towing
speed to be signifi cantly increased
(approximately 12 mph [20 km/h]
more). Sequential control of the
gearbox may also become unavailable.
Lighting
Bicycle carrier
Refer to the "Identifi cation
features" section of chapter 8. Refer to the "Steering wheel
controls" section of chapter 3.
When using a trailer connection,
you must add a fuse. Refer to
the "Changing a fuse" section of
chapter 7.

If the coolant temperature warning light
comes on, stop the vehicle and switch
off the engine as soon as possible.

Tyres: check the tyre pressures of
the towing vehicle and of the trailer,
observing the recommended pressure.
Side wind: sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed.
Towbar
We recommend the use of original
PEUGEOT towbars, which have been
tested for endurance from the design
stage of your vehicle.
Towing equipment must be fi tted in
accordance with the manufacturer’s
instructions, with particular attention to
the towing capacities of your vehicle,
the load towed, the nose weight and
the electrical connection. As this fi tting
should be carried out by a professional,
we recommend that you entrust the
fi tting of this equipment to a PEUGEOT
dealer.
In accordance with the general
instructions referred to above, we draw
your attention to the risk connected
with fi tting a towbar or other electrical
accessory which is not recommended
by the PEUGEOT network. Fitting such
equipment could result in a failure of
your vehicle’s electronic system. Manual adjustment
Adjust your headlamps so as not to
dazzle other road users. Check the
electrical signalling of the trailer.
If you fi t a bicycle carrier on
the tailgate, deactivate the
rear wiper from the display’s
confi guration menu.

109
Roof bars
5
USING ROOF BARS
To use the transverse roof bars,
release the four locking levers located
at the base of the feet of each bar.
From the left-hand side, slide them
in their rails to the required notch,
supporting the foot of the bar with two
hands to slide it correctly. Lock the four locking levers.
For greater ease, it is
recommended that two people carry
out these operations.
When the roof bars are not in use,
position them at the rear stop to avoid
excess consumption.
Use accessories recommended by
Automobiles PEUGEOT and follow
the fi tting instructions in the manual
provided by the manufacturer of the
load-carrying roof bars. - Remove the bolt, the stop and the
two washers at each location A .
- Move the bars to the locations A .
- Lift the two bars to remove them.
- Imperative: refi t the bolt, the
stop and the two washers at each
location A .
To refi t, proceed in the reverse order.
Removal and refitting of the
roof bars
Maximum authorised weight on the
roof rack: 220 lbs. (100 kg)

110
Snow screen
VERY COLD CLIMATE SCREEN
If fi tted on your vehicle, this is a
removable part which permits complete
or partial covering of the front air intake
(grille, ...) to favour the increase in the
engine temperature when driving in
very low temperatures and to prevent
the entry of snow into the engine
compartment.
FITTING

 Offer up the screen facing its
centring pin A on the front bumper.

 Put it in place by pressing at each
clip B located in the four corners.
REMOVAL

 Pass a screwdriver into the hole
located near each of the clips.

 Use the screwdriver as a lever to
unclip the four clips B in turn.

When the snow has cleared, do not
forget to remove the very cold climate
screen.
