2009.5. PEUGEOT 807 buttons

2
6
6
42
Exterior
6
When the fuel fi ller
fl ap is open, a safety
system limits the
opening of the sliding
side door while the
fuel tank is being
fi lled.
Flap open
4 buttons
A press selected by
one or the other.
The movement of
the door must be
guided on opening. 2 buttons

Left-
hand
door
Right-
hand
door

Key
Parking assistance
Audible and/or visual front
parking assistance.
91
item
identifi cation mark
page
identifi cation mark
19 114

ERGONOMICS and COMFORT
3
67
Seats
Memorising seat positions
Two driving positions can be
memorised, using buttons M/1 and

M/2 .
These are located on the side of the
seat:
- Place the ignition key in the 'running' position (2nd notch),
- Adjust your seat,
- Press button M , then button 1 for
a fi rst driving position within four
seconds.
Repeat the same actions on buttons M
and 2 to store another driving position.
An audible signal confi rms that a
position has been memorised.
Memorising a new position cancels the
previous one.
Activating a memorised driving
position Front heated seat controls
When the engine is running, the front
seats can be heated separately.
Use the adjustment controls located on
the side of each front seat to switch on
and select the self-regulated level of
heating:

1: Low.

2: Medium.

3: High.

0: Off.
After recalling a memorised
position fi ve times in succession,
the function will be cancelled until
the engine is started.
Engine running
- Keep button 1 or 2 pressed down
until the end of setting of the
corresponding memorised position.
Engine off
-
Briefl y press button 1 or 2 to recall
the corresponding memorised
position.

131
TROUBLESHOOTING
7
Changing a fuse
INSTRUMENT PANEL FUSES
- Open the lower glove box on the right-hand side.
- Pull the handle to open the cover and access the fuses.
N°
Rating
(Amps)
Functions

1 15 Rear wiper.

2 - Not used.

3 5 Air bag control unit.

4 10 Steering wheel angle sensor, Diagnostic socket, ESP sensor, Manu
al air conditioning, Clutch
switch, Headlamp beam height, Particle emission fi lter pump, Ele ctrochromatic interior mirror.

5 30 Electric mirrors, Electric window motor.

6 30 Front electric windows supply, Sunroof row 1.

7 5 Courtesy lights, Glove box light, Courtesy mirror lights.

8 20 Multifunction display, Anti-theft alarm siren, Audio equipmen
t, Compact disc changer, Audio/
telephone, Trailer fuse box, Diesel additive control unit, Tyre under-infl ation detection control unit,
Sliding doors module control unit.

9 30 Lighter.

10 15 Steering wheel switching, Trailer fuse box.

11 15 Diagnostic socket, Ignition switch, Automatic gearbox.

12 15 Driver’s seat memory unit, Passenger’s electric seat, Air bag control
unit, Parking assistance
control unit, Sliding side door buttons, Hands-free kit.

13 5 Engine fuse box, Trailer fuse box.

14 15 Rain sensor, Automatic air conditioning, Instrument panel, Su
nroofs, Odometer warning lights
unit, Audio-telematics control.

15 30 Locking/unlocking/deadlocking of the accesses.

16 - Not used.

17 40 Heated rear screen.

9.18
11
22
33
1
22
33
44
05
44
55

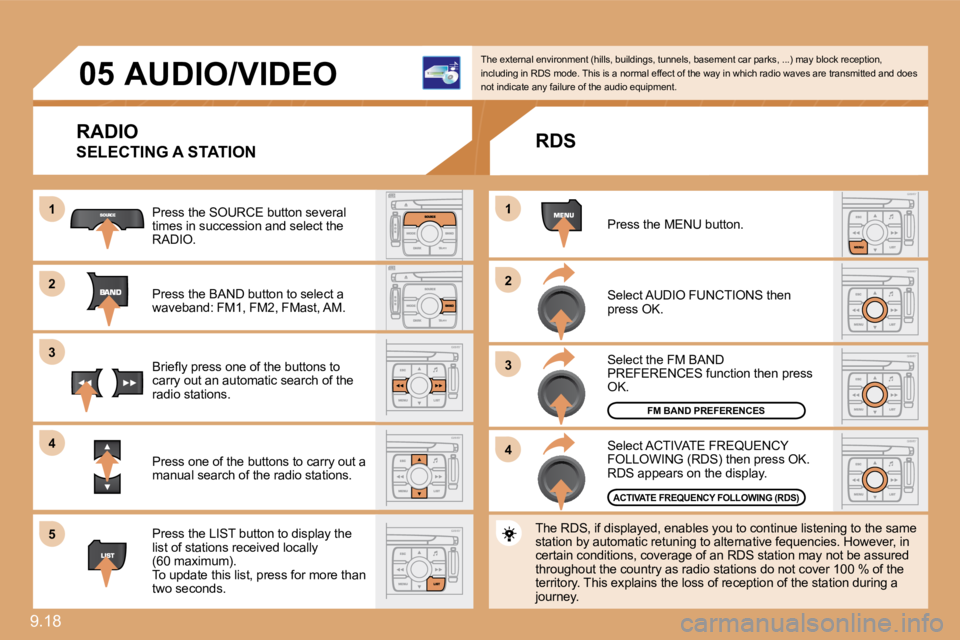

AUDIO/VIDEO
RADIO
SELECTING A STATION
Press the SOURCE button several times in succession and select the RADIO.
Press the BAND button to select a waveband: FM1, FM2, FMast, AM.
Briefl y press one of the buttons to carry out an automatic search of the radio stations.
Press one of the buttons to carry out a manual search of the radio stations.
Press the LIST button to display the list of stations received locally (60 maximum). To update this list, press for more than two seconds.
The external environment (hills, buildings, tunnels, basement car parks, ...) may block reception, including in RDS mode. This is a normal effect of t he way in which radio waves are transmitted and doe s not indicate any failure of the audio equipment.
RDS
Select ACTIVATE FREQUENCY FOLLOWING (RDS) then press OK. RDS appears on the display.
Select the FM BAND PREFERENCES function then press OK.
Select AUDIO FUNCTIONS then press OK.
Press the MENU button.
The RDS, if displayed, enables you to continue lis tening to the same station by automatic retuning to alternative fequen cies. However, in certain conditions, coverage of an RDS station may not be assured throughout the country as radio stations do not cover 100 % of the territory. This explains the loss of reception of the station during a journey.
FM BAND PREFERENCES
ACTIVATE FREQUENCY FOLLOWING (RDS)

1
22
05
Insert circular compact discs only. Some anti-pirating systems, on original discs or CDs copied using a personal recorder, may generate malfunctions regardless of the quality of the original player. Insert an audio CD or an MP3 compilation in the pl ayer, play begins automatically.
If the player already contains a disc, press the SOURCE button several times in succession and select CD to listen to it.
Press one of the buttons to select a track on the CD. Press the LIST button to display the list of tracks on the CD or of the directories of the MP3 compilation.
The playing and displaying of an MP3 compilation m ay depend on the recording programme and/or the parameter settin gs used. We recommend use of the ISO 9660 recording standard .
PLAYING A CD OR
AN MP3 COMPILATION
CD
AUDIO/VIDEO
INFORMATION AND ADVICE
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3, is an audio compression standard which permits the recording of several tens of music fi les on a single disc.
In order to be able to play a recorded CDR/DVDR or CDRW/DVDRW, when recording it is preferable to select standards ISO 9660 level 1.2 or Joliet. If the disc is recorded in another format, it may not be played correctly. It is recommended that the same recording standard is always used for an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality. In the particular case of a multi-session CD, the Joliet standard is recommended.
The audio equipment will only play audio fi les wit h the extension ".mp3" with a sampling rate of 22.05 KHz or 44.1 KH z. No other type of fi le (.wma, .mp4, .m3u...) can be played.
It is advisable to restrict fi le names to 20 characters without using special characters (e.g.: " ? ; ù) to avoid any pla ying or displaying problems.
MP3 CD
9.19

22
11
33
44
55
22
33
11

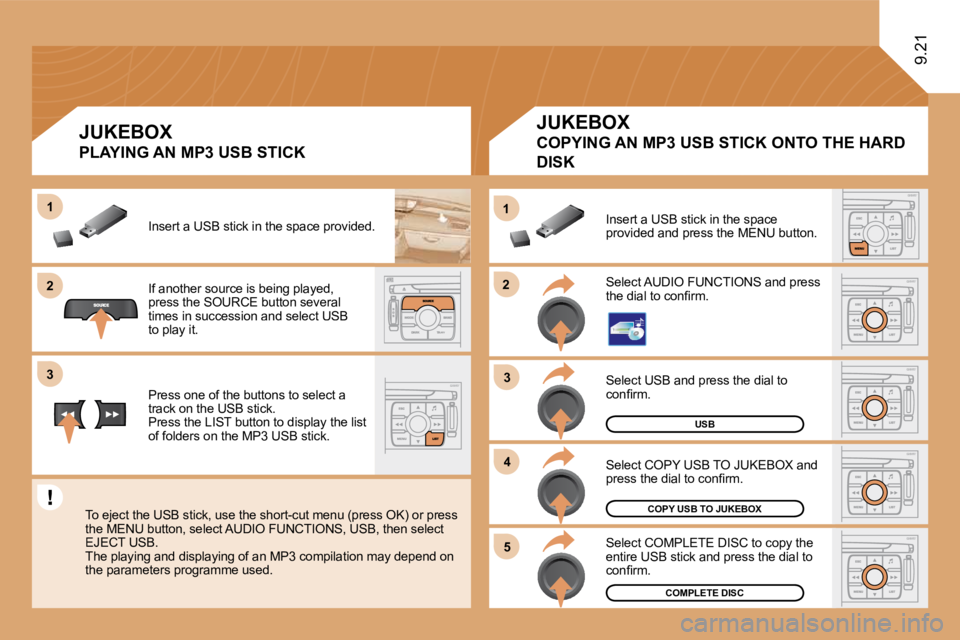

USB
Select USB and press the dial to confi rm.
COPY USB TO JUKEBOX
COMPLETE DISC
Select COPY USB TO JUKEBOX and press the dial to confi rm.
Select COMPLETE DISC to copy the entire USB stick and press the dial to confi rm.
Select AUDIO FUNCTIONS and press the dial to confi rm.
Insert a USB stick in the space provided and press the MENU button.
JUKEBOX
COPYING AN MP3 USB STICK ONTO THE HARD
DISK
If another source is being played, press the SOURCE button several times in succession and select USB to play it.
Press one of the buttons to select a track on the USB stick. Press the LIST button to display the list of folders on the MP3 USB stick.
To eject the USB stick, use the short-cut menu (press OK) or press the MENU button, select AUDIO FUNCTIONS, USB, then select EJECT USB. The playing and displaying of an MP3 compilation may depend on the parameters programme used.
JUKEBOX
PLAYING AN MP3 USB STICK
Insert a USB stick in the space provided. Insert a USB stick in the space provided.
9.21

9.24
1
22
11
33
22

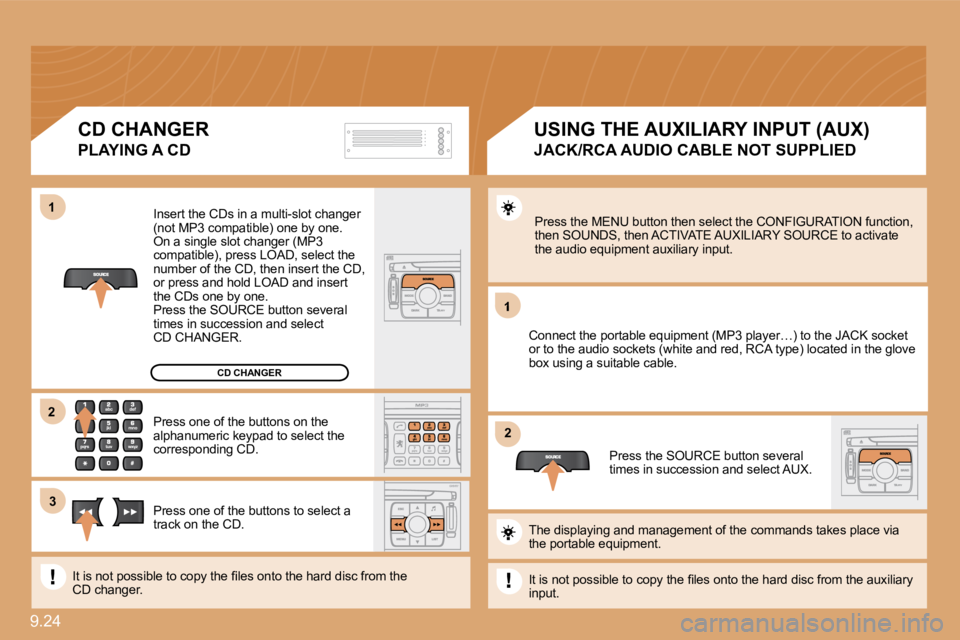

CD CHANGER
Insert the CDs in a multi-slot changer (not MP3 compatible) one by one. On a single slot changer (MP3 compatible), press LOAD, select the number of the CD, then insert the CD, or press and hold LOAD and insert the CDs one by one. Press the SOURCE button several times in succession and select CD CHANGER.
Press one of the buttons on the alphanumeric keypad to select the corresponding CD.
Press one of the buttons to select a track on the CD.
It is not possible to copy the fi les onto the hard disc from the CD changer.
CD CHANGER
PLAYING A CD
Press the MENU button then select the CONFIGURATIO N function, then SOUNDS, then ACTIVATE AUXILIARY SOURCE to acti vate the audio equipment auxiliary input.
Connect the portable equipment (MP3 player…) to the JACK socket or to the audio sockets (white and red, RCA type) located in the glove box using a suitable cable.
Press the SOURCE button several times in succession and select AUX.
The displaying and management of the commands take s place via the portable equipment.
It is not possible to copy the fi les onto the hard disc from the auxiliary input.
USING THE AUXILIARY INPUT (AUX)
JACK/RCA AUDIO CABLE NOT SUPPLIED

08
9.33

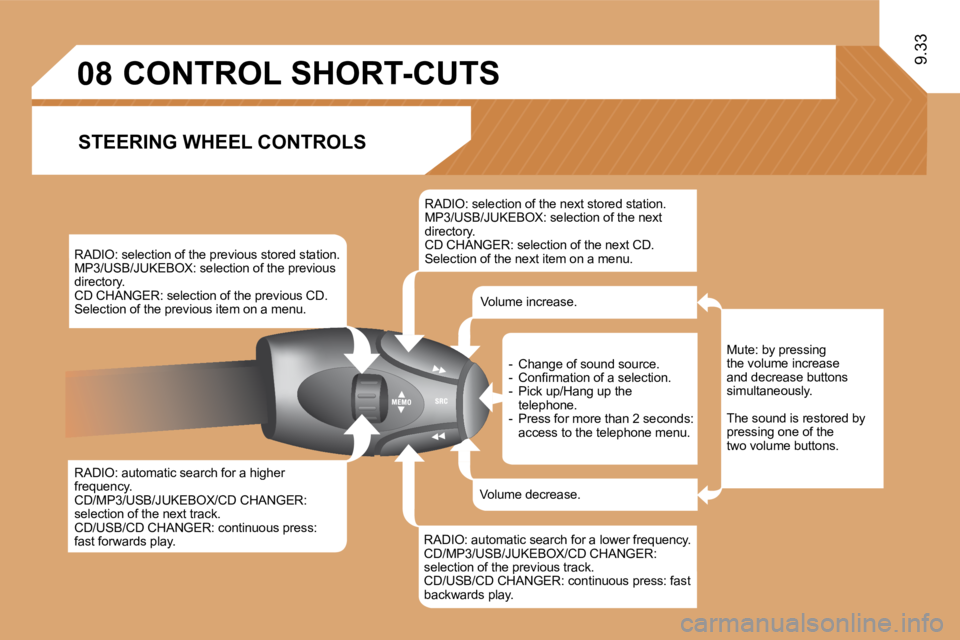

CONTROL SHORT-CUTS
STEERING WHEEL CONTROLS
RADIO: selection of the previous stored station. MP3/USB/JUKEBOX: selection of the previous directory. CD CHANGER: selection of the previous CD. Selection of the previous item on a menu.
RADIO: automatic search for a higher frequency. CD/MP3/USB/JUKEBOX/CD CHANGER: selection of the next track. CD/USB/CD CHANGER: continuous press: fast forwards play.
RADIO: selection of the next stored station. MP3/USB/JUKEBOX: selection of the next directory. CD CHANGER: selection of the next CD. Selection of the next item on a menu.
RADIO: automatic search for a lower frequency. CD/MP3/USB/JUKEBOX/CD CHANGER: selection of the previous track. CD/USB/CD CHANGER: continuous press: fast backwards play.
- Change of sound source. - Confi rmation of a selection. - Pick up/Hang up the telephone. - Press for more than 2 seconds: access to the telephone menu.
Volume increase.
Volume decrease.
Mute: by pressing the volume increase and decrease buttons simultaneously.
The sound is restored by pressing one of the two volume buttons.
