9
1
FAMILIARISATION
Interior
13. B a t t e r y / F u s e b o x .
14. Passenger air bag.
15. Passenger’s lower glove box.
16. Air conditioning controls.
17. L i g h t e r / 1 2 V a c c e s s o r i e s s o c k e t .
18. Hazard warning lights switch.
19. Storage compartment or additional
telematics control.
20. Cooled compartment.
21. Ashtray/Can holder.
22. Seat adjustment control.
23. Storage compartment.
24. F u s e b o x .
25. Handbrake - on the right.
1. E l e c t r i c m i r r o r c o n t r o l s .
- E l e c t r i c w i n d o w c o n t r o l s .
- Deactivation of the rear electric controls.
2. Driver’s upper glove box.
3. Central adjustable vents.
4.
Audio equipment or GPS multimedia
a u d i o e q u i p m e n t w i t h fl a p .
5. I n s t r u m e n t p a n e l / L a r g e c o l o u r
display.
6. Sunshine and passenger
compartment temperature sensor.
7. Passenger’s upper glove box.
26. B o n n e t r e l e a s e u n d e r c o v e r -
on the left.
27. Acoustic windscreen.
INTERIOR OVERVIEW
SETTING THE DATE
AND TIME
F o r m o r e i n f o r m a t i o n a b o u t
this adjustment, refer to the
"Setting the date and time" section of
t h e " I n - c a r t e c h n o l o g y " c h a p t e r .
ADDITIONAL HEATER
With the engine at idle
or when the vehicle is
stationary, it is normal
to notice a high-pitched
whistling and a slight emission of
smoke and odour.
PC Plug.
8. Windscreen demisting vents.
9. Speaker (tweeter).
10. F r o n t w i n d o w d e m i s t i n g v e n t s .
11. Passenger air bag disarming
s w i t c h , i f fi t t e d o n y o u r v e h i c l e .
12. Side adjustable vent.
Page 5 of 266
Interior
10
5. Control block.
6. Steering wheel audio equipment
controls.
7. Wipers/wash-wipe/trip computer
controls.
8. Gear lever.
9. I g n i t i o n .
1. I n t e r i o r p r o t e c t i o n a l a r m
deactivation button.
2. Speed limiter/cruise control
switches.
3. Lights and direction indicators
controls.
4. Driver’s air bag.
Horn.
10. Headlamp height adjustment.
11. a- Dynamic stability control button
( E S P / A S R ) .
b- Parking assistance button.
12. Steering wheel adjustment control.
INSTRUMENTS AND CONTROLS
Page 6 of 266
9
999
11
1
FAMILIARISATION
Interior
INSTRUMENTS AND CONTROLS

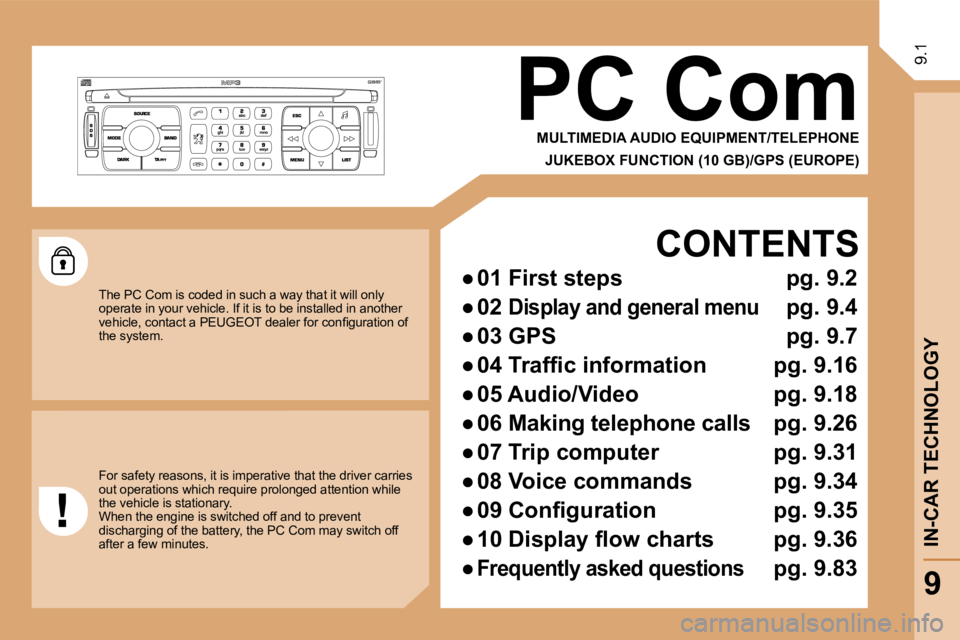

Truly ergonomic control for
access to the functions of
the PC Com.
PC Nav
This ergonomic audio equipment offers
a m a p o f E u r o p e o n a n S D c a r d , a
B l u e t o o t h t e l e p h o n e c o n n e c t i o n a n d
t h e p l a y i n g o f M P 3 / W M A fi l e s .
c o n fi r m a t i o n
selection PC Com PC Sound
This audio equipment incorporates a hard
disc with a capacity of 10 Gb, reserved
for your music.
I t p e r m i t s t h e p l a y i n g o f M P 3 C D s a n d D V D s .
The Jukebox function permits the
selective playing of up to 10 hours of
m u s i c . T h e d e t a i l e d m a p o f E u r o p e i s
stored on this hard disc, without the
addition of a CD. This map is displayed
on the 16/9ths 7-inch colour screen and
offers a 3D view.
The hands-free GSM telephone, via your
S I M c a r d , a l s o a l l o w s y o u a c c e s s t o t h e
P E U G E O T e m e r g e n c y t e a m ( s u b j e c t t o
conditions).
PC Plug
Page 27 of 266
Instruments and controls
READY TO SET OFF
2
31
Warning light is indicates Solution - action
Coolant
temperature
and level lit.
a n a b n o r m a l i n c r e a s e i n t h e
temperature. Park and switch off the ignition then allow to cool.
Visually check the level. Chapter 2, "Instruments
and controls" section.
fl a s h i n g . a drop in the coolant level. Chapter 6, "Levels" section. Contact a PEUGEOT
dealer.
Service lit temporarily. minor faults or warnings.
Consult the warnings log on the display or on the
screen. See chapter 9 In-car Technology, "Audio
equipment - Trip computer" section, depending on
the seriousness of the fault, contact a PEUGEOT
dealer.
In the case of a low diesel additive level,
see chapter 6 "Levels" section.
remaining on.
m a j o r f a u l t s .
Row 1 seat
belt not
fastened lit.
the driver or a front
passenger has not fastened
h i s s e a t b e l t . P u l l t h e s t r a p t h e n i n s e r t t h e t o n g u e i n t h e b u c k l e .
fl a s h i n g ,
accompanied
b y a n a u d i b l e
signal of
increasing
volume. the vehicle is moving with
the driver or front passenger
s e a t b e l t n o t f a s t e n e d .
C h e c k t h a t t h e s e a t b e l t i s f a s t e n e d b y p u l l i n g
t h e s t r a p . C h a p t e r 4 , " S e a t b e l t s " s e c t i o n .
The driver must ensure that all passengers fasten
a n d u s e t h e s e a t b e l t s c o r r e c t l y .
Front/side/
curtain air
bag fl a s h i n g o r
remaining on.
f a i l u r e o f a n a i r b a g . H a v e t h e s y s t e m c h e c k e d b y a P E U G E O T d e a l e r
w i t h o u t d e l a y . C h a p t e r 4 " A i r b a g s " s e c t i o n .
Front
passenger air
bag disarmed lit. intentional disarming of this
a i r b a g i n t h e p r e s e n c e o f a
rear facing child seat. C h a p t e r 4 , " A i r b a g s - c h i l d r e n o n b o a r d " s e c t i o n .
Page 114 of 266
112
Other accessories
These accessories and parts, after
being tested and approved for reliability
and safety, are all adapted to your
vehicle. A wide choice of recommended
accessories and original parts is offered
by the PEUGEOT Marque. To avoid any jamming under the
pedals:
- e n s u r e t h a t t h e m a t a n d i t s fi x i n g s are positioned correctly,
- never place one mat on top of another.
Compatible portable equipment
For the hands-free kit audio
e q u i p m e n t , t h e fi t t i n g o f a n R C A
a u x i l i a r y s o c k e t i s o f f e r e d s p e c i fi c a l l y
by the Network.
The audio cable for connection to
the auxiliary socket (RCA yellow-red
located in the glove box) is also offered
by the network.
Following connection of the cable and
selection of the AUX mode, via the
source button, your portable equipment
is ready to operate.
Set the portable equipment to half
volume to avoid saturating the audio
system sound. Then use the audio
system volume button. Audio systems, telephone,
hands-free kit, speakers, CD
changer, navigation system,
DVD player, ...
Alloy wheels, trims,
aluminium interior trim kit,
m u d fl a p s , . . .
Seat covers compatible with
side air bags, mats, boot tray,
sunroof, luggage net, door
d e fl e c t o r s , c o o l b o x s e c u r e d
on the slides, clip armrest, load
carrying roof bars, roof box,
snow chains, ski carrier, tailgate
bicycle carrier, interior bicycle carrier,
b o o s t e r s e a t s a n d c h i l d s e a t s , I s o fi x
seats, side sun blinds and rear blind, ...
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y a
PEUGEOT dealer. T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not
recommended by PEUGEOT
may result in a failure of your vehicle’s
electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g . Y o u
are advised to contact a representative
of the Marque to be shown the range
of recommended equipment or
accessories.
Depending on the country in which
the vehicle is sold, it is compulsory to
have a safety jacket, warning triangle
and replacement bulbs available in the
vehicle. Screenwash, interior and
exterior maintenance
and cleaning products,
replacement bulbs, ...
When using a tailgate bicycle
carrier, deactivate the rear
wiper from the display
c o n fi g u r a t i o n m e n u .
Before installing a
radiocommunication transmitter with
aerial, contact a PEUGEOT dealer who
w i l l i n f o r m y o u o f t h e s p e c i fi c a t i o n s o f
t h e t r a n s m i t t e r s w h i c h c a n b e fi t t e d ,
in accordance with the Motor Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).
A further range is also available,
structured around comfort, leisure and
maintenance:
Anti-theft alarm, window
e n g r a v i n g , fi r s t a i d k i t , s a f e t y
jacket, rear parking assistance,
warning triangle, ...
Page 124 of 266
122
Battery
ECONOMY MODE FUNCTION
After the engine has stopped, with
the key in the ignition position, certain
functions (windscreen wiper, electric
windows, courtesy lights, audio
equipment, etc.) can only be used for
a cumulative duration of thirty minutes,
to prevent discharging the battery.
Once the thirty minutes are over, the
message "Economy mode active"
appears on the display and the active
functions are put on standby.
To resume the use of these functions
immediately, start the engine and let it
run for a few seconds.
A fl a t b a t t e r y w i l l p r e v e n t t h e e n g i n e
from starting.
To charge the battery using a
battery charger
- disconnect the battery,
- follow the instructions for use given by the battery charger
manufacturer,
- reconnect starting with the negative (-) terminal,
- check that the terminals and connectors are clean. If they are
covered with sulphate (white or
greenish deposit), disconnect them
and clean them.
BATTERY
This is housed in a compartment
l o c a t e d u n d e r n e a t h t h e fl o o r , i n f r o n t o f
the driver’s seat.
Before disconnecting the battery, you
must wait for 2 minutes after switching
off the ignition.
Never disconnect a terminal when the
engine is running.
N e v e r c h a r g e a b a t t e r y w i t h o u t fi r s t
disconnecting the terminals.
Close the sunroof and the windows
before disconnecting the battery. If
they do not operate normally following
reconnection of the battery, they must
be reinitialised.
It is advisable to disconnect the
battery if the vehicle is not to be used
for a period of more one month.
After every reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to allow the electronic
systems to be initialised. If slight
d i f fi c u l t i e s a r e e x p e r i e n c e d a f t e r t h i s ,
please contact a PEUGEOT dealer.
The door open monitoring electrical
system consumes power, remember
to close the sliding doors when your
vehicle is parked for long periods.
To start the vehicle from
another battery
- connect the red cable to the positive (+) terminals of the two
batteries,
- connect one end of the green or black cable to the negative (-)
terminal of the slave battery,
- connect the other end of the green or black cable to an earth point on
the broken down vehicle as far as
possible from the battery,
- operate the starter, let the engine run,
- wait for the engine to return to idle, then disconnect the cables. For the sunroofs safety auto-
reverse, refer to the "Accesses"
section of chapter 2. For the electric windows safety
auto-reverse, refer to the "Mirrors
and windows" section of chapter 3.
Page 134 of 266
131
TROUBLESHOOTING
7
Changing a fuse
INSTRUMENT PANEL FUSES
- O p e n t h e l o w e r g l o v e b o x o n t h e r i g h t - h a n d s i d e .
- Pull the handle to open the cover and access the fuses.
N°
Rating
(Amps)
Functions
1 15 Rear wiper.
2 - Not used.
3 5 Air bag control unit.
4 10 Steering wheel angle sensor, Diagnostic socket, ESP sensor, Manu
al air conditioning, Clutch
s w i t c h , H e a d l a m p b e a m h e i g h t , P a r t i c l e e m i s s i o n fi l t e r p u m p , E l e c t r o c h r o m a t i c i n t e r i o r m i r r o r .
5 30 Electric mirrors, Electric window motor.
6 30 Front electric windows supply, Sunroof row 1.
7 5 C o u r t e s y l i g h t s , G l o v e b o x l i g h t , C o u r t e s y m i r r o r l i g h t s .
8 20 Multifunction display, Anti-theft alarm siren, Audio equipmen
t, Compact disc changer, Audio/
t e l e p h o n e , T r a i l e r f u s e b o x , D i e s e l a d d i t i v e c o n t r o l u n i t , T y r e u n d e r - i n fl a t i o n d e t e c t i o n c o n t r o l u n i t ,
Sliding doors module control unit.
9 30 Lighter.
10 15 S t e e r i n g w h e e l s w i t c h i n g , T r a i l e r f u s e b o x .
11 15 D i a g n o s t i c s o c k e t , I g n i t i o n s w i t c h , A u t o m a t i c g e a r b o x .
12 15 Driver’s seat memory unit, Passenger’s electric seat, Air bag control
unit, Parking assistance
control unit, Sliding side door buttons, Hands-free kit.
13 5 E n g i n e f u s e b o x , T r a i l e r f u s e b o x .
14 15 Rain sensor, Automatic air conditioning, Instrument panel, Su
nroofs, Odometer warning lights
unit, Audio-telematics control.
15 30 Locking/unlocking/deadlocking of the accesses.
16 - Not used.
17 40 Heated rear screen.
Page 154 of 266
9.1
PC Com
MULTIMEDIA AUDIO EQUIPMENT/TELEPHONE
JUKEBOX FUNCTION ( 10 GB )/GPS (EUROPE)
CONTENTS
