2008 Peugeot 407 Owner's Manual

3COMFORT
58

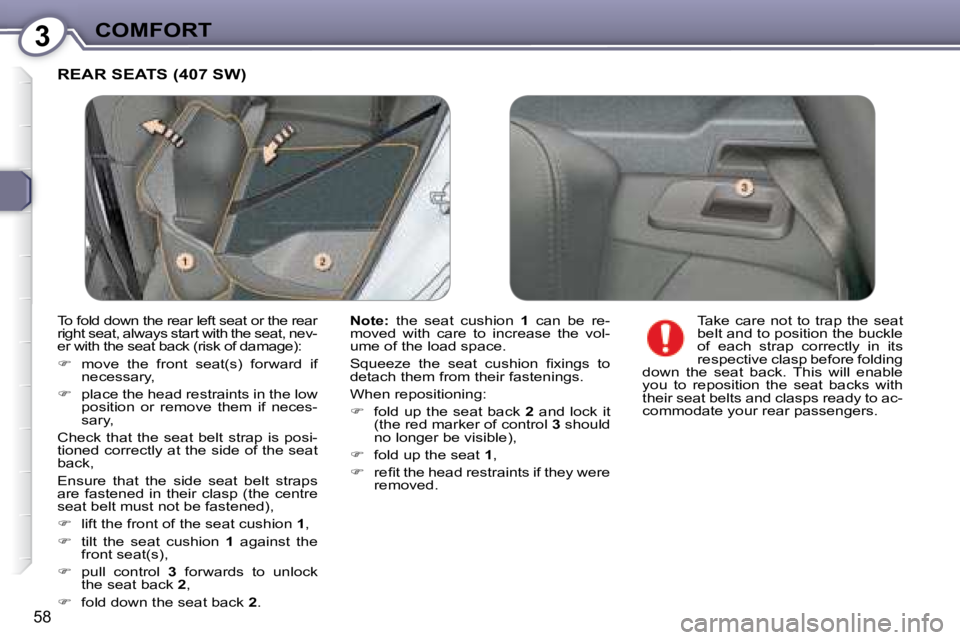

REAR SEATS (407 SW)

Note: the seat cushion 1 can be re-
moved with care to increase the vol-
ume of the load space.
Squeeze the seat cushion fi xings to
detach them from their fastenings.
When repositioning:

 fold up the seat back 2 and lock it
(the red marker of control 3 should
no longer be visible),

 fold up the seat 1 ,

 refi t the head restraints if they were
removed. Take care not to trap the seat
belt and to position the buckle
of each strap correctly in its
respective clasp before folding
down the seat back. This will enable
you to reposition the seat backs with
their seat belts and clasps ready to ac-
commodate your rear passengers.
To fold down the rear left seat or the rear
right seat, always start with the seat, nev-
er with the seat back (risk of damage):

 move the front seat(s) forward if
necessary,

 place the head restraints in the low
position or remove them if neces-
sary,
Check that the seat belt strap is posi-
tioned correctly at the side of the seat
back,
Ensure that the side seat belt straps
are fastened in their clasp (the centre
seat belt must not be fastened),

 lift the front of the seat cushion 1 ,

 tilt the seat cushion 1 against the
front seat(s),

 pull control 3 forwards to unlock
the seat back 2 ,

 fold down the seat back 2 .

3COMFORT
59

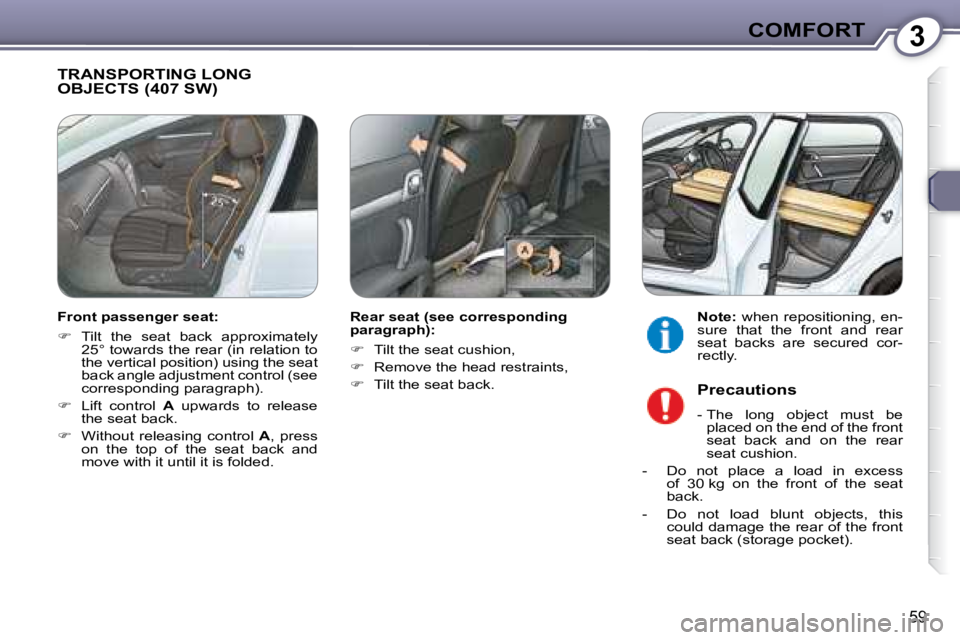

TRANSPORTING LONG OBJECTS (407 SW)
Rear seat (see corresponding
paragraph):

 Tilt the seat cushion,

 Remove the head restraints,

 Tilt the seat back.
Note: when repositioning, en-
sure that the front and rear
seat backs are secured cor-
rectly.
Precautions
- The long object must be placed on the end of the front
seat back and on the rear
seat cushion.
- Do not place a load in excess of 30 kg on the front of the seat
back.
- Do not load blunt objects, this could damage the rear of the front
seat back (storage pocket).
Front passenger seat:

 Tilt the seat back approximately
25° towards the rear (in relation to
the vertical position) using the seat
back angle adjustment control (see
corresponding paragraph).

 Lift control A upwards to release
the seat back.

 Without releasing control A , press
on the top of the seat back and
move with it until it is folded.

3COMFORT
60
"Forwards-facing"
INSTALLING A CHILD SEAT USING
A THREE POINT SEAT BELT
GENERAL POINTS RELATING TO CHILD SEATS
* The rules for transporting children are specifi c to each country. Consult the current legislation in your country.
Intermediate longitudinal
position
When a "rearwards-facing"
child seat is installed on the

front passenger seat , it is
essential that the passenger
air bag is disarmed. Otherwise, the
child would risk being seriously in-
jured or killed if the air bag were to
infl ate. When a "forwards-facing" child seat
is installed on the
front passenger
seat , adjust the vehicle’s seat to the
intermediate longitudinal position with
the seat back upright and leave the
passenger air bag armed.
"Rearwards-facing"
Although one of PEUGEOT’s main cri-
teria when designing your vehicle, the
safety of your children also depends
on you.
For maximum safety, please
follow these precautions:
- in accordance with Directive 2003/20, all children under the
age of 12 or less than one metre
fi fty tall must travel in approved
child seats suited to their weight ,
on seats fi tted with a seat belt or
ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for the transpor-
tation of children are the rear
seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.
PEUGEOT
recommends that chil-
dren should travel in the rear seats of
your vehicle:
- "rearwards-facing" up to the age
of 2,
-
"forwards-facing" over the age of 2.

3COMFORT
61

Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg

L1
"ROMER
Baby-Safe Plus"
Installed in the rear-facing position

Groups 1, 2 and 3: from 9 to 36 kg

L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT recommends use of
the restraining cushion.

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start’’
L4
"KLIPPAN Optima" From the age of 6 years
(approximately
22 kg), the booster is used on its own.
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which
are se-
cured using a three point seat belt :
Passenger air bag OFF

3COMFORT
62
LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT
In accordance with the European regulation (Directive 2000/3), this table indicates the options for the installation of child seats
secured using the seat belt and universally approved (a) dependi ng on the weight of the child and the seat in the vehicle:

Weight of the child/ indicative age

Seat
Below 13 kg
(groups 0 (b) and 0+) Up to approx 1 year
9 to 18 kg
(group 1)
De 1 to 3 years approx

15 to 25 kg
(group 2)
De 3 to 6 years
22 to 36 kg
(group 3)
De 6 to 10 years approx
Front passenger
seat (c)
- fi xed
- height adjustable
U


U (R)
U


U (R)
U


U (R)
U


U (R)
Rear side seats U U U U
Rear centre seat X X X X

a: Universal child seat: child seat which can be installed in all vehicles using the seat belt.

b: Group 0: from birth to 10 kg.

c: Consult the current legislation in your country before instal ling your child on this seat.

U: seat suitable for the installation of a child seat secured using the seat belt and universally approved, "rear facing" and /or
"forwards facing".

U (R): identical to U , but the vehicle seat must be adjusted to the highest po sition.

X: seat which is not suitable for the installation of a chi ld seat.

3COMFORT
65

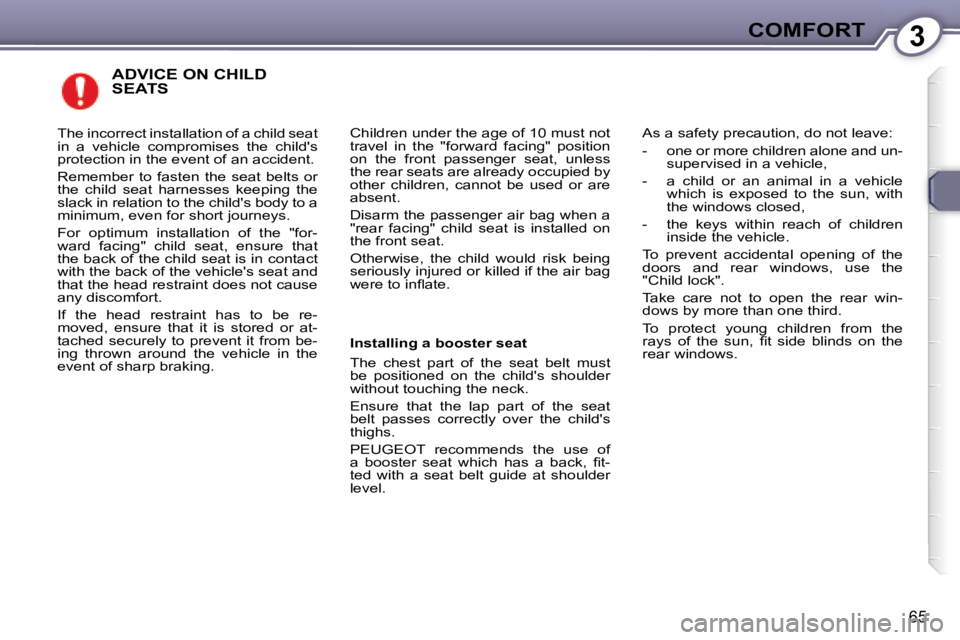

ADVICE ON CHILD SEATS
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Disarm the passenger air bag when a
"rear facing" child seat is installed on
the front seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag
were to infl ate.
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level. As a safety precaution, do not leave:
- one or more children alone and un-
supervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors and rear windows, use the
"Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack in relation to the child's body to a
minimum, even for short journeys.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat and
that the head restraint does not cause
any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or at-
tached securely to prevent it from be-
ing thrown around the vehicle in the
event of sharp braking.

3COMFORT
63

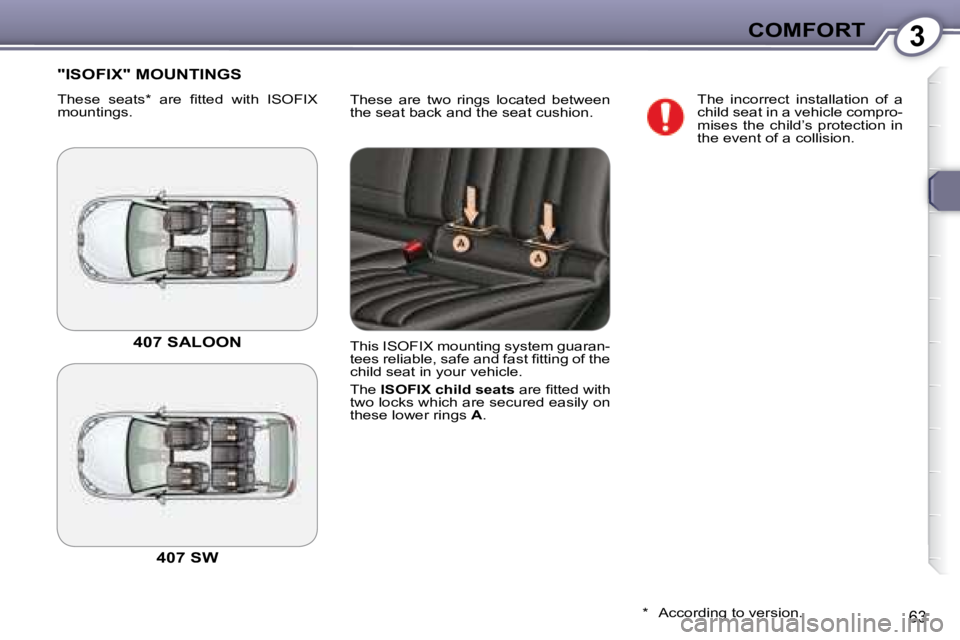

These are two rings located between
the seat back and the seat cushion.
"ISOFIX" MOUNTINGS
These seats * are fi tted with ISOFIX
mountings. The incorrect installation of a
child seat in a vehicle compro-
mises the child’s protection in
the event of a collision.
* According to version.
407 SALOON
407 SW
This ISOFIX mounting system guaran-
tees reliable, safe and fast fi tting of the
child seat in your vehicle.
The
ISOFIX child seats are fi tted with
two locks which are secured easily on
these lower rings A .

3COMFORT
64

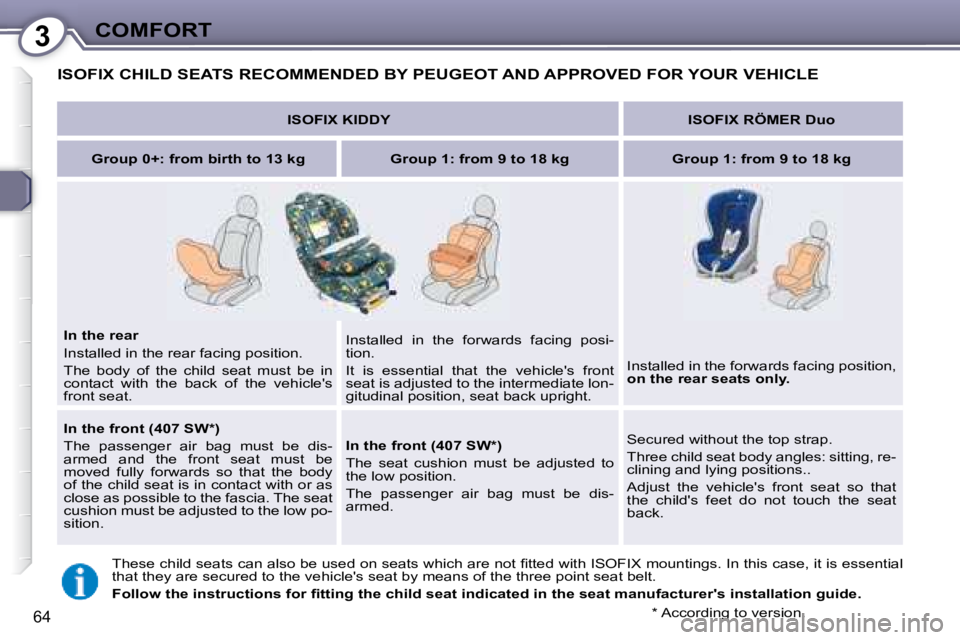

ISOFIX CHILD SEATS RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE

ISOFIX KIDDY
ISOFIX RÖMER Duo

Group 0+: from birth to 13 kg Group 1: from 9 to 18 kg Group 1: from 9 to 18 kg

In the rear
Installed in the rear facing position.
The body of the child seat must be in
contact with the back of the vehicle's
front seat. Installed in the forwards facing posi-
tion.
It is essential that the vehicle's front
seat is adjusted to the intermediate lon-
gitudinal position, seat back upright.
Installed in the forwards facing position,

on the rear seats only.


In the front (407 SW * )
The passenger air bag must be dis-
armed and the front seat must be
moved fully forwards so that the body
of the child seat is in contact with or as
close as possible to the fascia. The seat
cushion must be adjusted to the low po-
sition.
In the front (407 SW * )
The seat cushion must be adjusted to
the low position.
The passenger air bag must be dis-
armed. Secured without the top strap.
Three child seat body angles: sitting, re-
clining and lying positions..
Adjust the vehicle's front seat so that
the child's feet do not touch the seat
back.
These child seats can also be used on seats which are not fi t ted with ISOFIX mountings. In this case, it is essential
that they are secured to the vehicle's seat by means of the thre e point seat belt.

Follow the instructions for fi tting the child seat indicated in the seat manufacturer's installation guide.
* According to version.
