2008 Peugeot 407 Owner's Manual

FAMILIARISATION
Front seat belt

1. Fastening.

2. Height adjustment.
1. Stop position.

2. Ignition position.

3. Starting position.

 71
Electric window controls

1. Driver's electric window switch.

2. Passenger electric window switch.

3. Rear right electric window switch.

4. Rear left electric window switch.
Ignition switch

 91
Also...

5. Deactivation of the electric
window switches located in
the rear (child safety).

FAMILIARISATION

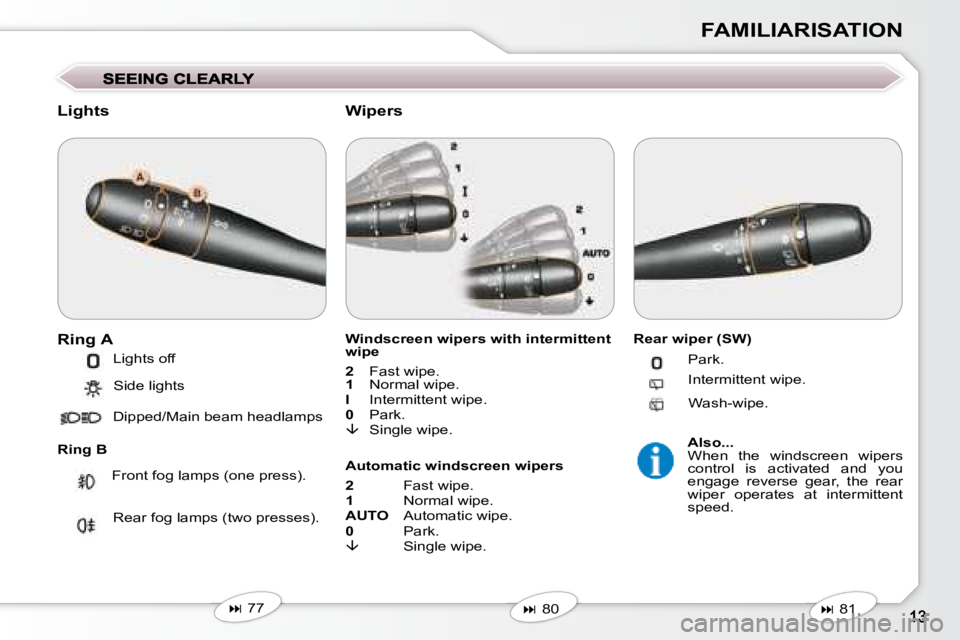

Lights
Ring A
Ring B Windscreen wipers with intermittent
wipe

2 Fast wipe.

1 Normal wipe.

I Intermittent wipe.

0 Park.



Single wipe.
Wipers
Rear wiper (SW)
Lights off
Side lights
Dipped/Main beam headlamps
Front fog lamps (one press). Rear fog lamps (two presses). Park.
Intermittent wipe.
Wash-wipe.

 77

 80
 81
Automatic windscreen wipers

2 Fast wipe.

1 Normal wipe.

AUTO Automatic wipe.

0 Park.



Single wipe.
Also...
When the windscreen wipers
control is activated and you
engage reverse gear, the rear
wiper operates at intermittent
speed.

FAMILIARISATION
Automatic air conditioning (monozone)
1. Automatic programme (comfort).

2. Temperature adjustment.

3. Air fl ow adjustment.

 42 Automatic air conditioning (dual zone)

1. Driver and passenger automatic programme (comfort).

2. Driver's side temperature adjustment.
Passenger's side temperature adjustment.

3. Air fl ow adjustment.

 46
Ventilation off.

4. Air distribution adjustment.

5. Front visibility control.

6. Rear screen demisting.

7. Intake of exterior air.
Recirculation of interior air. Ventilation off.

4. Driver's air distribution adjustment.

5. Passenger's air distribution adjustment.

6. Front visibility control.

7. Rear screen demisting.

8. Intake of exterior air.
Recirculation of interior air.

FAMILIARISATION

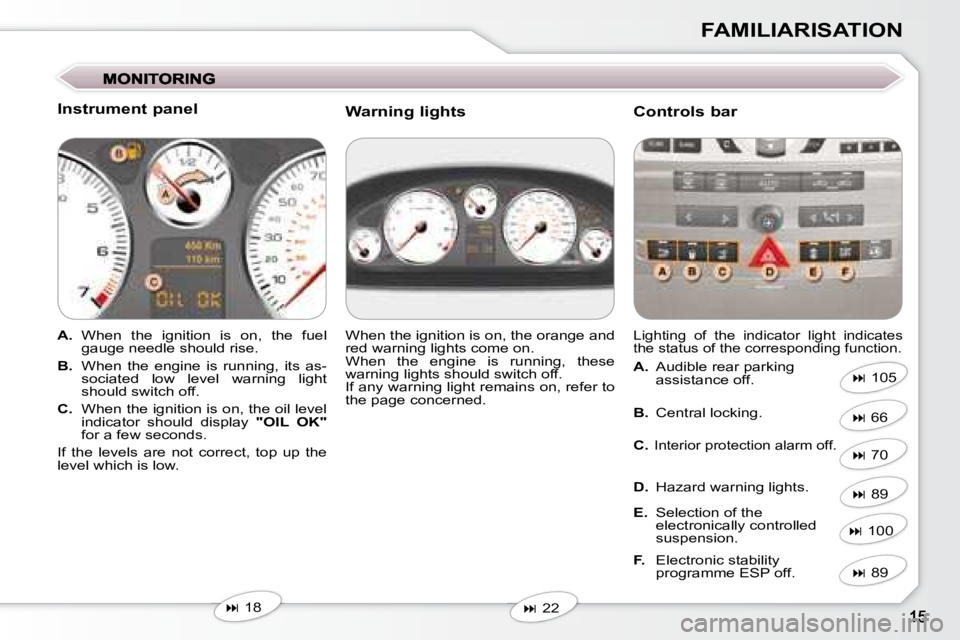

Instrument panel

A. When the ignition is on, the fuel
gauge needle should rise.

B. When the engine is running, its as-
sociated low level warning light
should switch off.

C. When the ignition is on, the oil level
indicator should display "OIL OK"
for a few seconds.
If the levels are not correct, top up the
level which is low.
Lighting of the indicator light indicates
the status of the corresponding function. When the ignition is on, the orange and
red warning lights come on.
When the engine is running, these
warning lights should switch off.
If any warning light remains on, refer to
the page concerned.

 18

 22
 105

A. Audible rear parking
assistance off.

B. Central locking.

C.
Interior protection alarm off.

D. Hazard warning lights.

E. Selection of the
electronically controlled
suspension.

F. Electronic stability
programme ESP off.
 66

 70

 89

 100

 89
Warning lights Controls bar

FAMILIARISATION

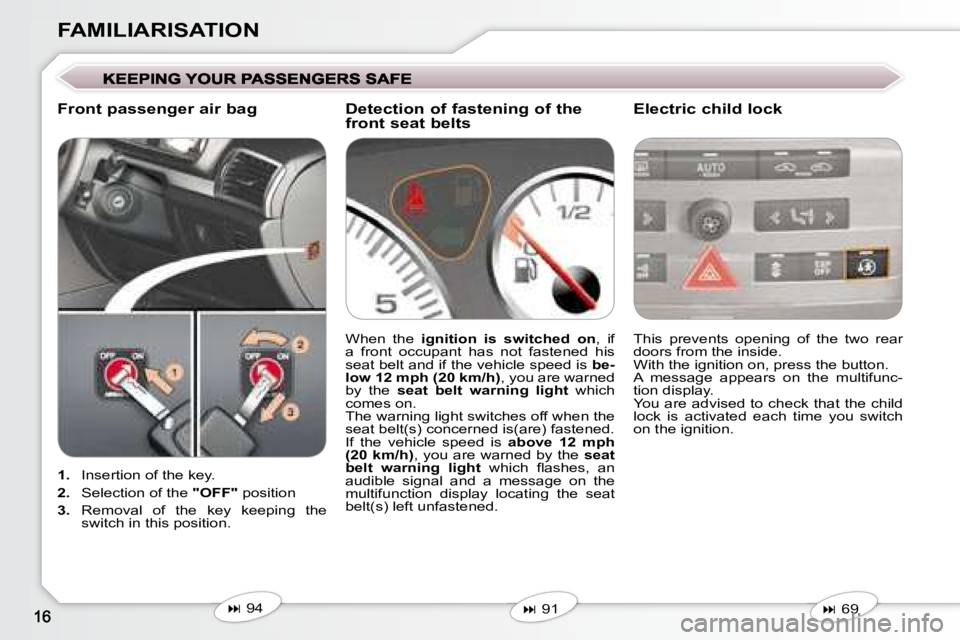

1. Insertion of the key.

2. Selection of the "OFF" position

3. Removal of the key keeping the
switch in this position. This prevents opening of the two rear
doors from the inside.
With the ignition on, press the button.
A message appears on the multifunc-
tion display.
You are advised to check that the child
lock is activated each time you switch
on the ignition.
When the
ignition is switched on , if
a front occupant has not fastened his
seat belt and if the vehicle speed is be-
low 12 mph (20 km/h) , you are warned
by the seat belt warning light which
comes on.
The warning light switches off when the
seat belt(s) concerned is(are) fastened.
If the vehicle speed is above 12 mph
(20 km/h) , you are warned by the seat
belt warning light which fl ashes, an
audible signal and a message on the
multifunction display locating the seat
belt(s) left unfastened.
Detection of fastening of the
front seat belts

 94

 91
 69
Front passenger air bag
Electric child lock

FAMILIARISATION

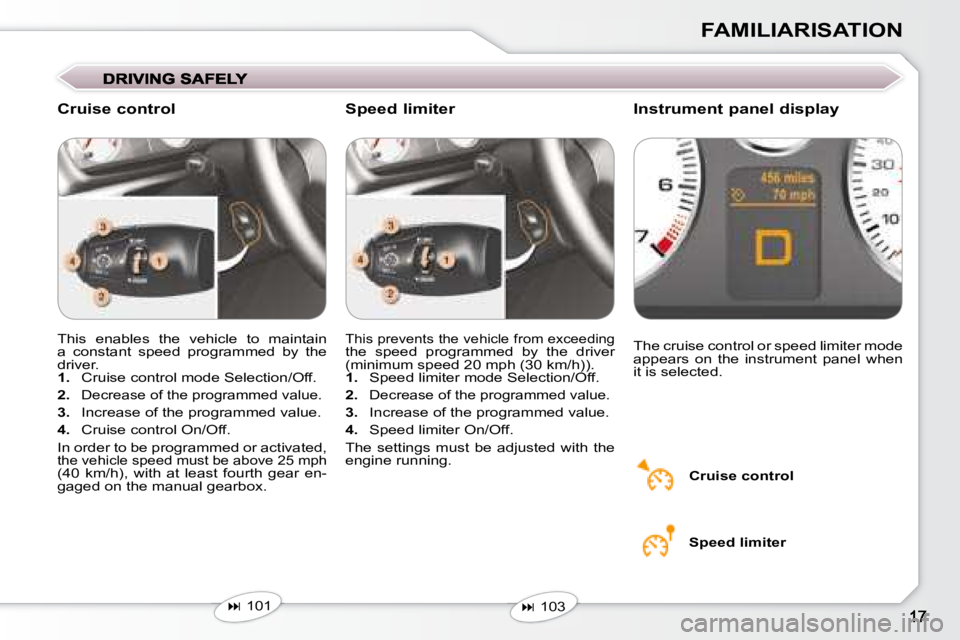

This enables the vehicle to maintain
a constant speed programmed by the
driver.

1. Cruise control mode Selection/Off.

2.
Decrease of the programmed value.

3. Increase of the programmed value.

4. Cruise control On/Off.
In order to be programmed or activated,
the vehicle speed must be above 25 mph
(40 km/h), with at least fourth gear en-
gaged on the manual gearbox. The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.
This prevents the vehicle from exceeding
the speed programmed by the driver
(minimum speed 20 mph (30 km/h)).

1. Speed limiter mode Selection/Off.

2.
Decrease of the programmed value.

3. Increase of the programmed value.

4. Speed limiter On/Off.
The settings must be adjusted with the
engine running.
Speed limiter
Cruise control

 101

 103
Cruise control
Instrument panel display
Speed limiter

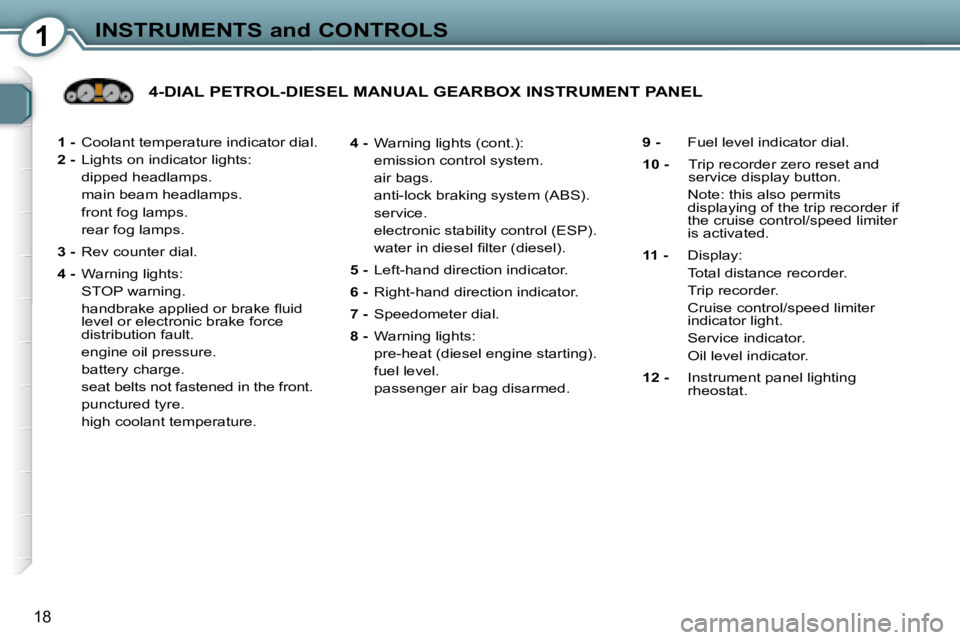

1INSTRUMENTS and CONTROLS
18

1 - Coolant temperature indicator dial.

2 - Lights on indicator lights:
dipped headlamps.
main beam headlamps.
front fog lamps.
rear fog lamps.

3 - Rev counter dial.

4 - Warning lights:
STOP warning.
handbrake applied or brake fl uid level or electronic brake force
distribution fault.
engine oil pressure.
battery charge.
seat belts not fastened in the front.
punctured tyre.
high coolant temperature.
4-DIAL PETROL-DIESEL MANUAL GEARBOX INSTRUMENT PANEL

9 - Fuel level indicator dial.

10 - Trip recorder zero reset and
service display button.
Note: this also permits displaying of the trip recorder if
the cruise control/speed limiter
is activated.

11 - Display:
Total distance recorder.
Trip recorder.
Cruise control/speed limiter indicator light.
Service indicator.
Oil level indicator.

12 - Instrument panel lighting
rheostat.

4 - Warning lights (cont.):
emission control system.
air bags.
anti-lock braking system (ABS).
service.
electronic stability control (ESP).
water in diesel fi lter (diesel).

5 - Left-hand direction indicator.

6 - Right-hand direction indicator.

7 - Speedometer dial.

8 - Warning lights:
pre-heat (diesel engine starting).
fuel level.
passenger air bag disarmed.

1INSTRUMENTS and CONTROLS
19
