2008 Peugeot 407 Owner's Manual

3COMFORT
50

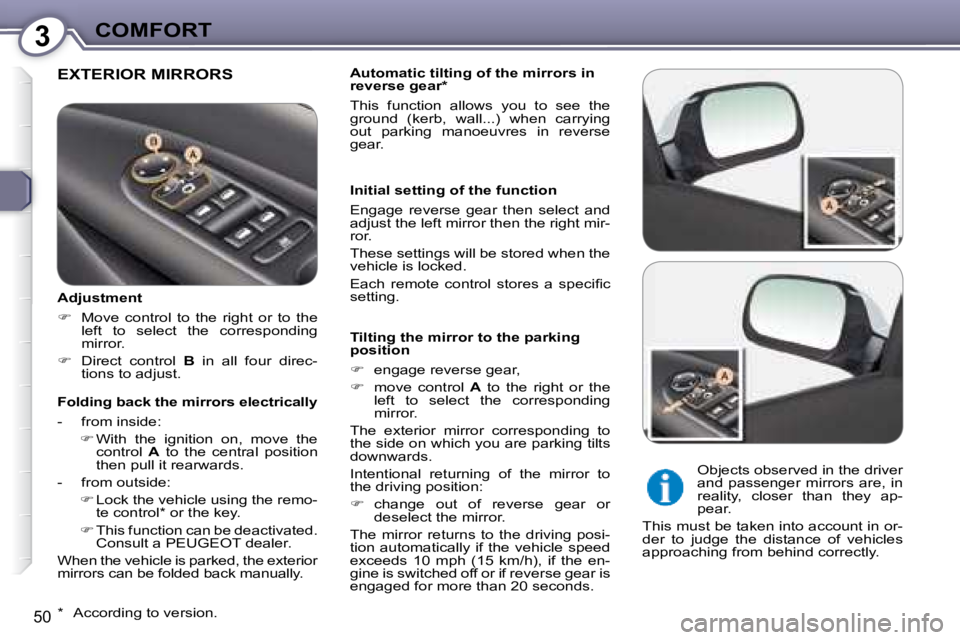

EXTERIOR MIRRORS Automatic tilting of the mirrors in
reverse gear*
This function allows you to see the
ground (kerb, wall...) when carrying
out parking manoeuvres in reverse
gear. Objects observed in the driver
and passenger mirrors are, in
reality, closer than they ap-
pear.
This must be taken into account in or-
der to judge the distance of vehicles
approaching from behind correctly.
Folding back the mirrors electrically
- from inside:

 With the ignition on, move the
control A to the central position
then pull it rearwards.
- from outside:
 Lock the vehicle using the remo-
te control * or the key.

 This function can be deactivated.
Consult a PEUGEOT dealer.
When the vehicle is parked, the exterior
mirrors can be folded back manually.
* According to version.
Initial setting of the function
Engage reverse gear then select and
adjust the left mirror then the right mir-
ror.
These settings will be stored when the
vehicle is locked.
Each remote control stores a specifi c
setting.
Tilting the mirror to the parking
position

 engage reverse gear,

 move control A to the right or the
left to select the corresponding
mirror.
The exterior mirror corresponding to
the side on which you are parking tilts
downwards.
Intentional returning of the mirror to
the driving position:

 change out of reverse gear or
deselect the mirror.
The mirror returns to the driving posi-
tion automatically if the vehicle speed
exceeds 10 mph (15 km/h), if the en-
gine is switched off or if reverse gear is
engaged for more than 20 seconds.
Adjustment

 Move control to the right or to the
left to select the corresponding
mirror.

 Direct control B in all four direc-
tions to adjust.

3COMFORT
51

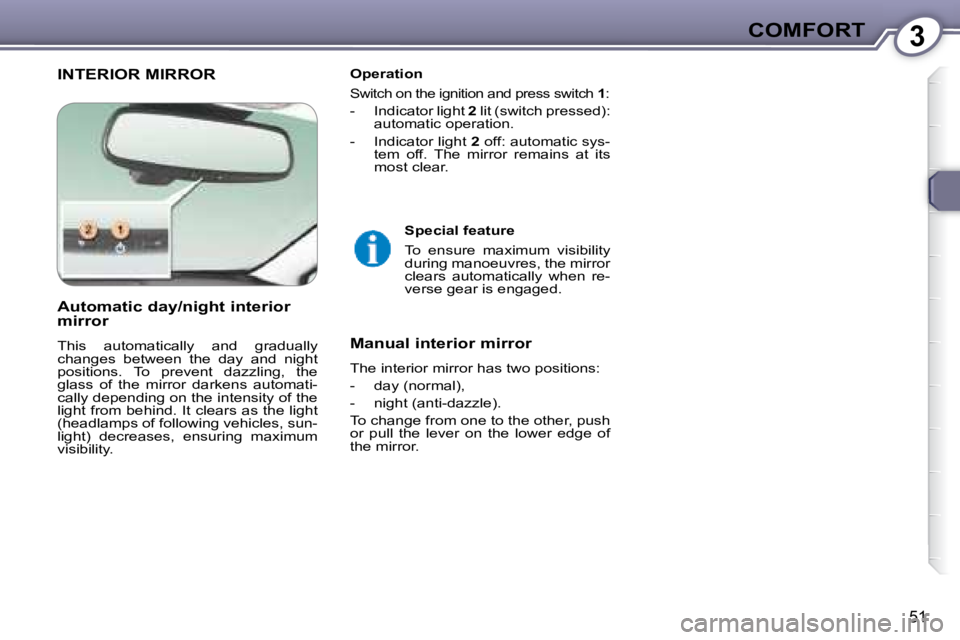

INTERIOR MIRROR Operation

Switch on the ignition and press switch 1 :
- Indicator light 2 lit (switch pressed):
automatic operation.
- Indicator light 2 off: automatic sys-
tem off. The mirror remains at its
most clear.
Manual interior mirror
The interior mirror has two positions:
- day (normal),
- night (anti-dazzle).
To change from one to the other, push
or pull the lever on the lower edge of
the mirror. Special feature
To ensure maximum visibility
during manoeuvres, the mirror
clears automatically when re-
verse gear is engaged.
Automatic day/night interior
mirror
This automatically and gradually
changes between the day and night
positions. To prevent dazzling, the
glass of the mirror darkens automati-
cally depending on the intensity of the
light from behind. It clears as the light
(headlamps of following vehicles, sun-
light) decreases, ensuring maximum
visibility.

3COMFORT

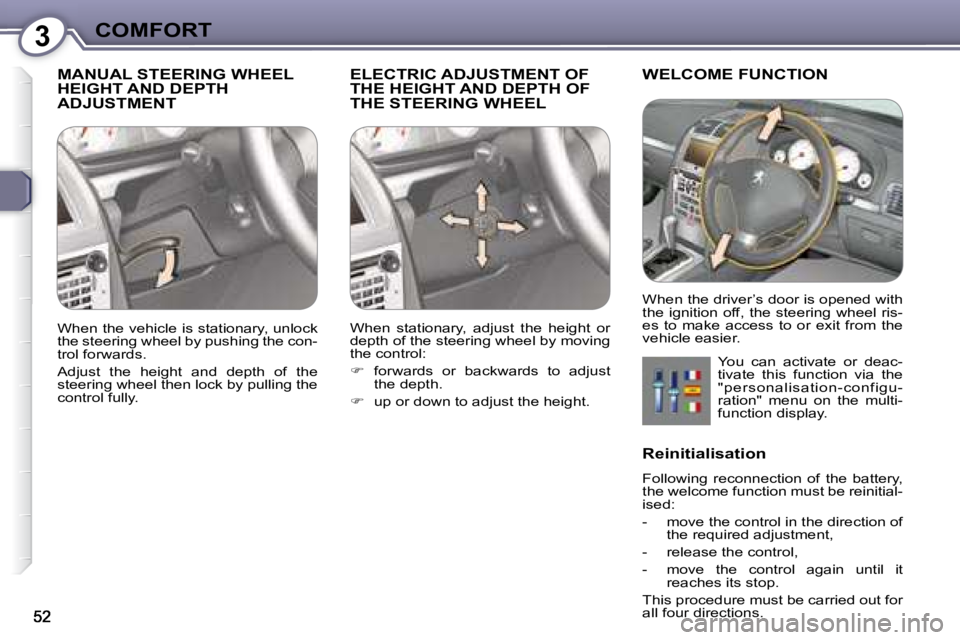

MANUAL STEERING WHEEL HEIGHT AND DEPTH ADJUSTMENT
ELECTRIC ADJUSTMENT OF THE HEIGHT AND DEPTH OF THE STEERING WHEEL
WELCOME FUNCTION
You can activate or deac-
tivate this function via the
"personalisation-configu-
ration" menu on the multi-
function display.
When the vehicle is stationary, unlock
the steering wheel by pushing the con-
trol forwards.
Adjust the height and depth of the
steering wheel then lock by pulling the
control fully.
When stationary, adjust the height or
depth of the steering wheel by moving
the control:

 forwards or backwards to adjust
the depth.

 up or down to adjust the height. When the driver’s door is opened with
the ignition off, the steering wheel ris-
es to make access to or exit from the
vehicle easier.
Reinitialisation
Following reconnection of the battery,
the welcome function must be reinitial-
ised:
- move the control in the direction of
the required adjustment,
- release the control,
- move the control again until it reaches its stop.
This procedure must be carried out for
all four directions.

3COMFORT
53

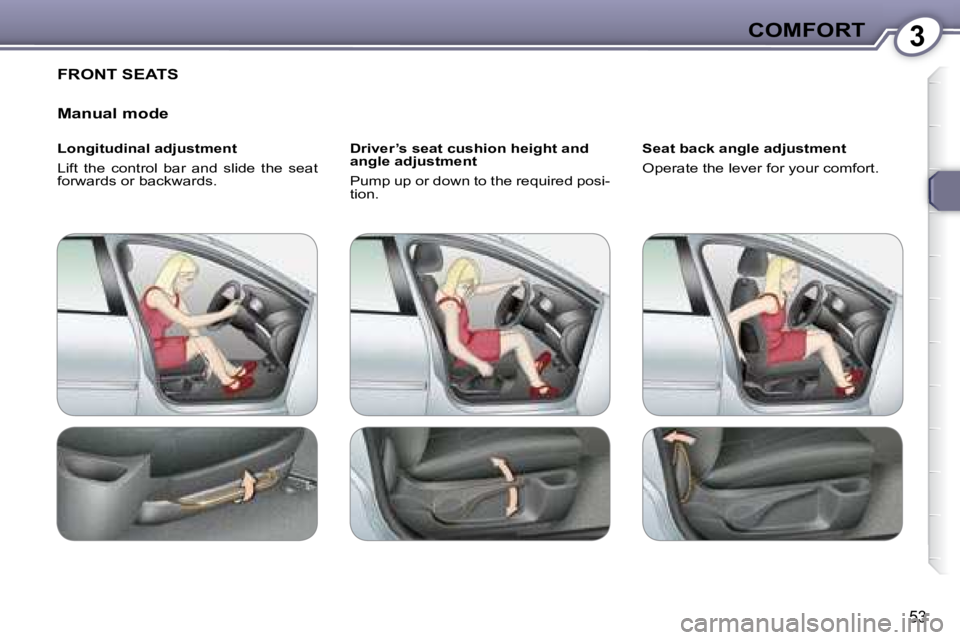

FRONT SEATS
Manual mode
Longitudinal adjustment
Lift the control bar and slide the seat
forwards or backwards. Driver’s seat cushion height and
angle adjustment
Pump up or down to the required posi-
tion. Seat back angle adjustment
Operate the lever for your comfort.

3COMFORT
54

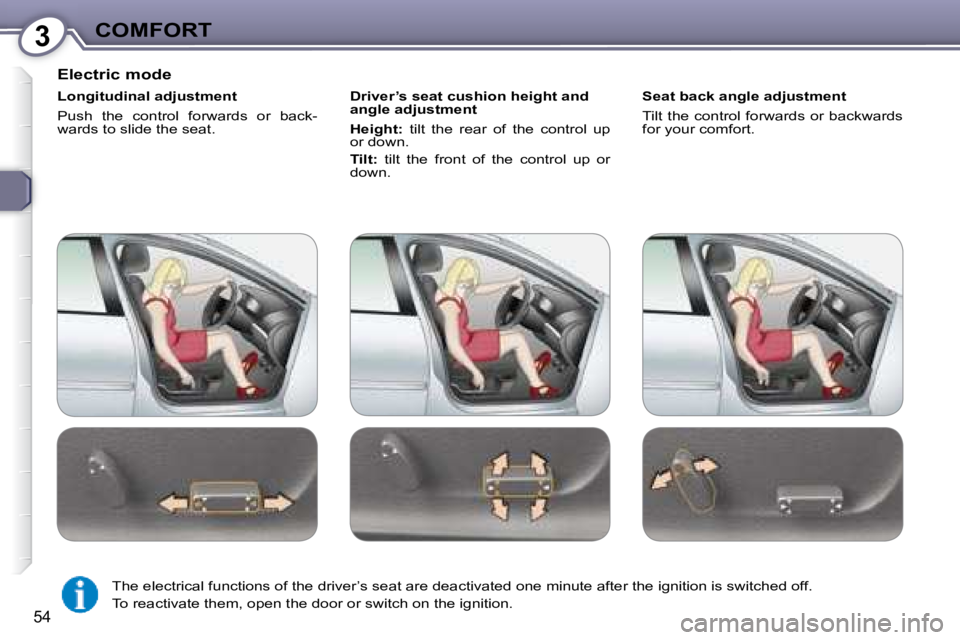

Electric mode
Longitudinal adjustment
Push the control forwards or back-
wards to slide the seat. Driver’s seat cushion height and
angle adjustment

Height: tilt the rear of the control up
or down.

Tilt: tilt the front of the control up or
down. Seat back angle adjustment
Tilt the control forwards or backwards
for your comfort.
The electrical functions of the driver’s seat are deactivated one minute after the ignition is switched off.
To reactivate them, open the door or switch on the ignitio n.

3COMFORT
55

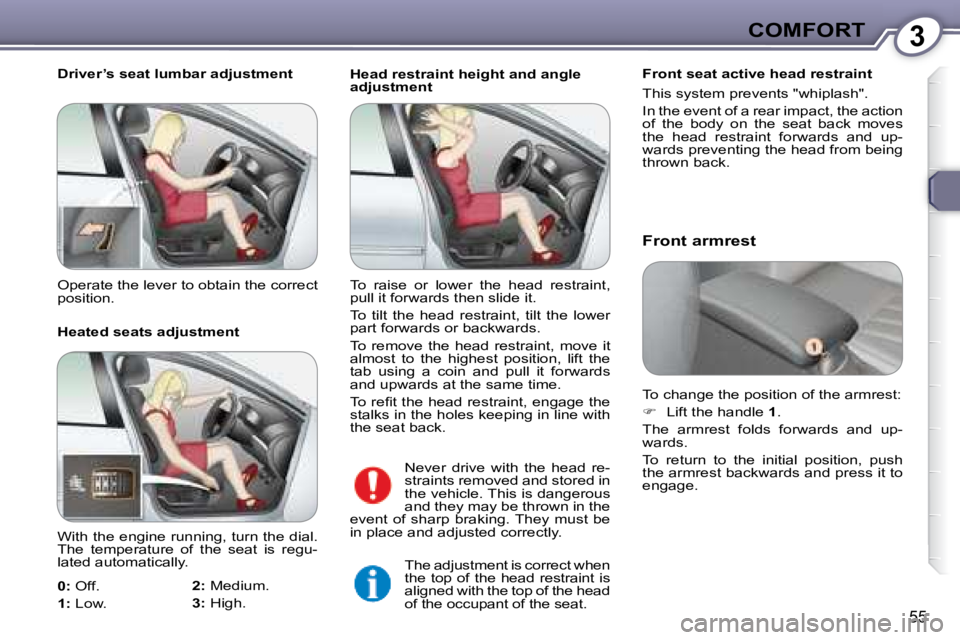

Head restraint height and angle
adjustment Front seat active head restraint
This system prevents "whiplash".
In the event of a rear impact, the action
of the body on the seat back moves
the head restraint forwards and up-
wards preventing the head from being
thrown back.
Front armrest
Driver’s seat lumbar adjustment
Heated seats adjustment

0: Off.

1: Low.
2: Medium.

3: High. The adjustment is correct when
the top of the head restraint is
aligned with the top of the head
of the occupant of the seat.
Never drive with the head re-
straints removed and stored in
the vehicle. This is dangerous
and they may be thrown in the
event of sharp braking. They must be
in place and adjusted correctly. To change the position of the armrest:

 Lift the handle 1 .
The armrest folds forwards and up-
wards.
To return to the initial position, push
the armrest backwards and press it to
engage.
Operate the lever to obtain the correct
position.
To raise or lower the head restraint,
pull it forwards then slide it.
To tilt the head restraint, tilt the lower
part forwards or backwards.
To remove the head restraint, move it
almost to the highest position, lift the
tab using a coin and pull it forwards
and upwards at the same time.
To refi t the head restraint, engage the
stalks in the holes keeping in line with
the seat back.
With the engine running, turn the dial.
The temperature of the seat is regu-
lated automatically.

3COMFORT
56

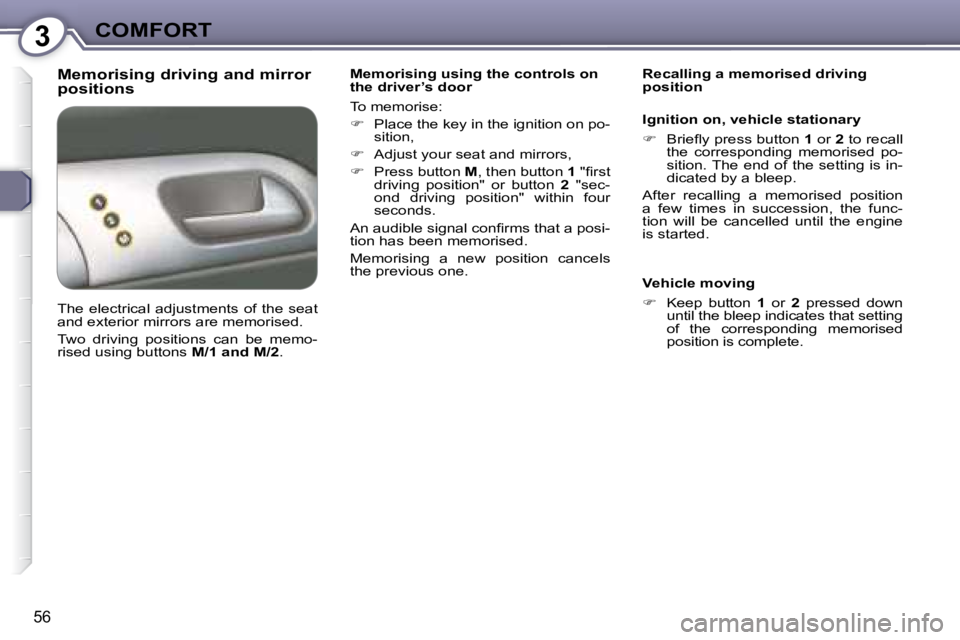

Memorising driving and mirror
positions Memorising using the controls on
the driver’s door
To memorise:

 Place the key in the ignition on po-
sition,

 Adjust your seat and mirrors,

 Press button M , then button 1 "fi rst
driving position" or button 2 "sec-
ond driving position" within four
seconds.
An audible signal confi rms that a posi-
tion has been memorised.
Memorising a new position cancels
the previous one. Recalling a memorised driving
position
Ignition on, vehicle stationary

 Briefl y press button 1 or 2 to recall
the corresponding memorised po-
sition. The end of the setting is in-
dicated by a bleep.
After recalling a memorised position
a few times in succession, the func-
tion will be cancelled until the engine
is started.
The electrical adjustments of the seat
and exterior mirrors are memorised.
Two driving positions can be memo-
rised using buttons M/1 and M/2 . Vehicle moving

 Keep button 1 or 2 pressed down
until the bleep indicates that setting
of the corresponding memorised
position is complete.

3COMFORT
57

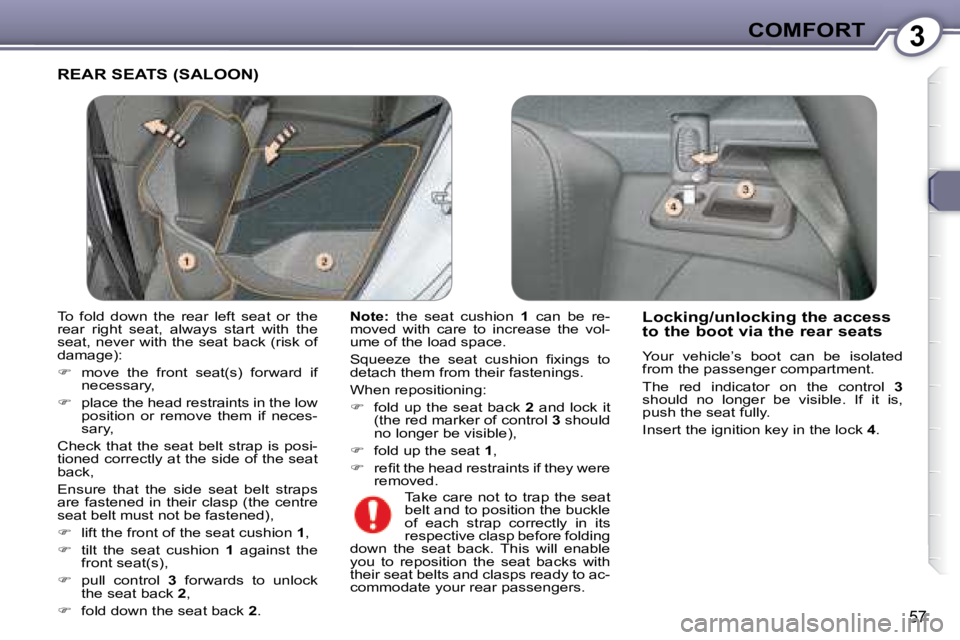

REAR SEATS (SALOON)

Note: the seat cushion 1 can be re-
moved with care to increase the vol-
ume of the load space.
Squeeze the seat cushion fi xings to
detach them from their fastenings.
When repositioning:

 fold up the seat back 2 and lock it
(the red marker of control 3 should
no longer be visible),

 fold up the seat 1 ,

 refi t the head restraints if they were
removed. Locking/unlocking the access
to the boot via the rear seats
Your vehicle’s boot can be isolated
from the passenger compartment.
The red indicator on the control
3
should no longer be visible. If it is,
push the seat fully.
Insert the ignition key in the lock 4 .
Take care not to trap the seat
belt and to position the buckle
of each strap correctly in its
respective clasp before folding
down the seat back. This will enable
you to reposition the seat backs with
their seat belts and clasps ready to ac-
commodate your rear passengers.
To fold down the rear left seat or the
rear right seat, always start with the
seat, never with the seat back (risk of
damage):

 move the front seat(s) forward if
necessary,

 place the head restraints in the low
position or remove them if neces-
sary,
Check that the seat belt strap is posi-
tioned correctly at the side of the seat
back,
Ensure that the side seat belt straps
are fastened in their clasp (the centre
seat belt must not be fastened),

 lift the front of the seat cushion 1 ,

 tilt the seat cushion 1 against the
front seat(s),

 pull control 3 forwards to unlock
the seat back 2 ,

 fold down the seat back 2 .
