2MULTIFUNCTION DISPLAYS
34

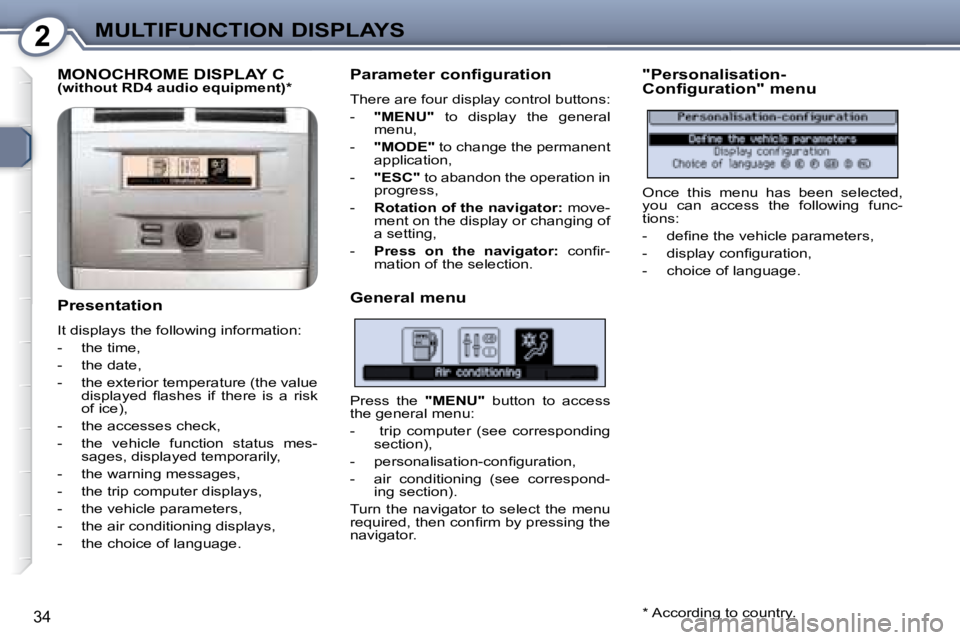

MONOCHROME DISPLAY C
(without RD4 audio equipment) *
Presentation
It displays the following information:
- the time,
- the date,
- the exterior temperature (the value displayed fl ashes if there is a risk
of ice),
- the accesses check,
- the vehicle function status mes- sages, displayed temporarily,
- the warning messages,
- the trip computer displays,
- the vehicle parameters,
- the air conditioning displays,
- the choice of language. Parameter configuration
There are four display control buttons:
-
"MENU" to display the general
menu,
- "MODE" to change the permanent
application,
- "ESC" to abandon the operation in
progress,
- Rotation of the navigator: move-
ment on the display or changing of
a setting,
- Press on the navigator: confi r-
mation of the selection.
General menu "Personalisation-
Configuration" menu
* According to country.
Press the
"MENU" button to access
the general menu:
- trip computer (see corresponding section),
- personalisation-confi guration,
- air conditioning (see correspond- ing section).
Turn the navigator to select the menu
required, then confi rm by pressing the
navigator. Once this menu has been selected,
you can access the following func-
tions:
- defi ne the vehicle parameters,
- display confi guration,
- choice of language.

2MULTIFUNCTION DISPLAYS
35
Defi ne the vehicle parameters
Once this menu has been selected,
you can activate or deactivate the fol-
lowing equipment:
- wiper linked with reverse gear,
- automatic switching on of the lights,
- "follow-me-home" lighting and du- ration,
- audible rear parking assistance.

Example: "Duration of "follow-me-
home" lighting" Display confi guration
Once this menu has been selected,
you can access the following settings:
- brightness-video setting,
- date and time setting,
- selection of the units.
Choice of language
Once this menu has been selected,
you can change the language used on
the display (German, Spanish, French,
English, Italian, Dutch, Portuguese,
Brazilian Portuguese).
Once you have selected a setting, turn
the navigator to change its value.
Press the navigator to confi rm and
record the modifi ed data.

2MULTIFUNCTION DISPLAYS
36

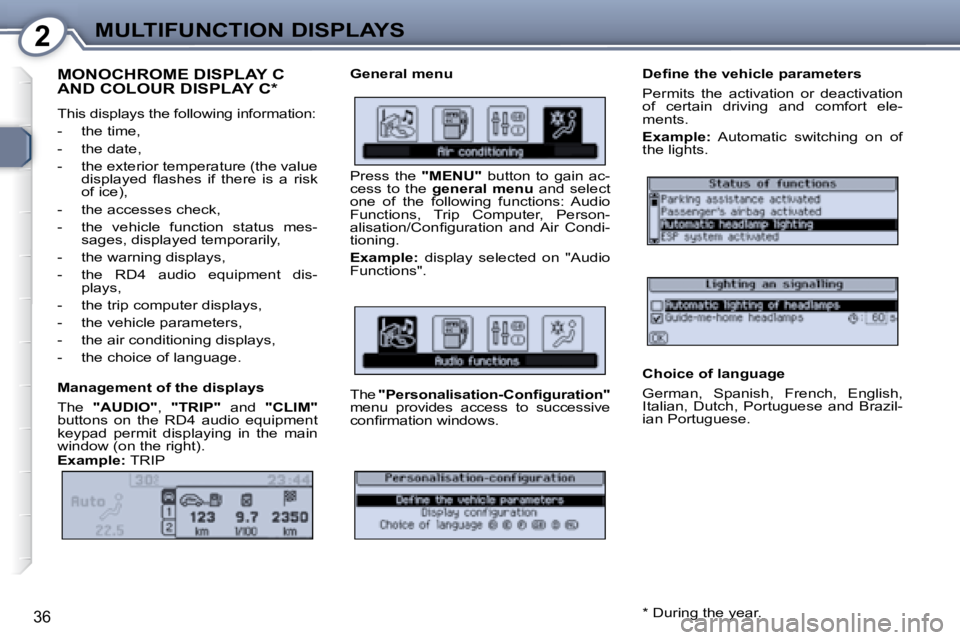

MONOCHROME DISPLAY C AND COLOUR DISPLAY C *
This displays the following information:
- the time,
- the date,
- the exterior temperature (the value displayed fl ashes if there is a risk
of ice),
- the accesses check,
- the vehicle function status mes- sages, displayed temporarily,
- the warning displays,
- the RD4 audio equipment dis- plays,
- the trip computer displays,
- the vehicle parameters,
- the air conditioning displays,
- the choice of language. General menu
Defi ne the vehicle parameters
Permits the activation or deactivation
of certain driving and comfort ele-
ments.

Example: Automatic switching on of
the lights.
Press the "MENU" button to gain ac-
cess to the general menu and select
one of the following functions: Audio
Functions, Trip Computer, Person-
alisation/Confi guration and Air Condi-
tioning.

Example: display selected on "Audio
Functions".
The "Personalisation-Confi guration"
menu provides access to successive
confi rmation windows.
Management of the displays
The "AUDIO" , "TRIP" and "CLIM"
buttons on the RD4 audio equipment
keypad permit displaying in the main
window (on the right).

Example: TRIP Choice of language
German, Spanish, French, English,
Italian, Dutch, Portuguese and Brazil-
ian Portuguese.
* During the year.

2MULTIFUNCTION DISPLAYS
37
Display confi guration Changing the date and time Set the parameters one by one, using
the navigator, then confi rm by clicking
on "OK" .
From the list displayed, select "Dis-
play confi guration" , then confi rm.
From the list displayed, select "Setting
the date and time" , then confi rm.
- Brightness, to be adjusted in ac-
cordance with a scale between
Moon (-) and Sun (+).
- Selection of the units of measure- ment.
- Setting the date and time. Your op- erational zone is displayed on the
screen. Use the navigator to move
from one selection to another.
Your new parameters are confi rmed
one by one, by pressing the naviga-
tor button. All of the parameters are
recorded if you click on OK, displayed
on the screen.
The ESCape button on the control pad
enables you to choose not to confi rm
your changes.
- Selection of the colours (on colour display C only). From the menu, displayed on the
screen, select the icon
"Personalisa-
tion-Confi guration" using the navi-
gator, then confi rm.

2MULTIFUNCTION DISPLAYS
38

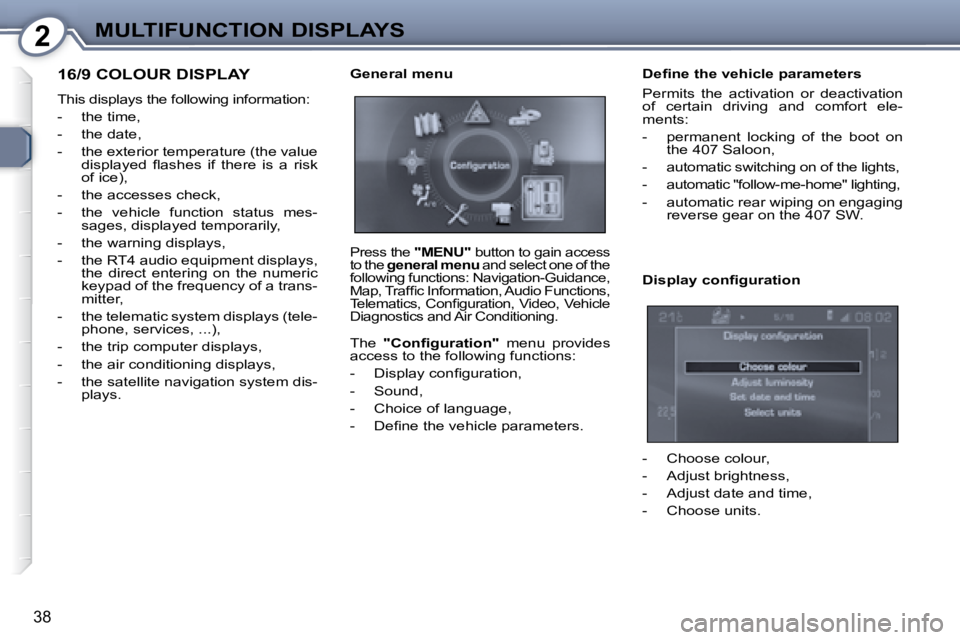

16/9 COLOUR DISPLAY
This displays the following information:
- the time,
- the date,
- the exterior temperature (the value displayed fl ashes if there is a risk
of ice),
- the accesses check,
- the vehicle function status mes- sages, displayed temporarily,
- the warning displays,
- the RT4 audio equipment displays, the direct entering on the numeric
keypad of the frequency of a trans-
mitter,
- the telematic system displays (tele- phone, services, ...),
- the trip computer displays,
- the air conditioning displays,
- the satellite navigation system dis- plays.
General menu
Display confi guration
Press the "MENU" button to gain access
to the general menu and select one of the
following functions: Navigation-Guidance,
Map, Traffi c Information, Audio Functions,
Telematics, Confi guration, Video, Vehicle
Diagnostics and Air Conditioning.
The "Confi guration" menu provides
access to the following functions:
- Display confi guration,
- Sound,
- Choice of language,
- Defi ne the vehicle parameters.
- Choose colour,
- Adjust brightness,
- Adjust date and time,
- Choose units.
Defi ne the vehicle parameters
Permits the activation or deactivation
of certain driving and comfort ele-
ments:
- permanent locking of the boot on
the 407 Saloon,
- automatic switching on of the lights,
- automatic "follow-me-home" lighting,
- automatic rear wiping on engaging reverse gear on the 407 SW.

2MULTIFUNCTION DISPLAYS
39

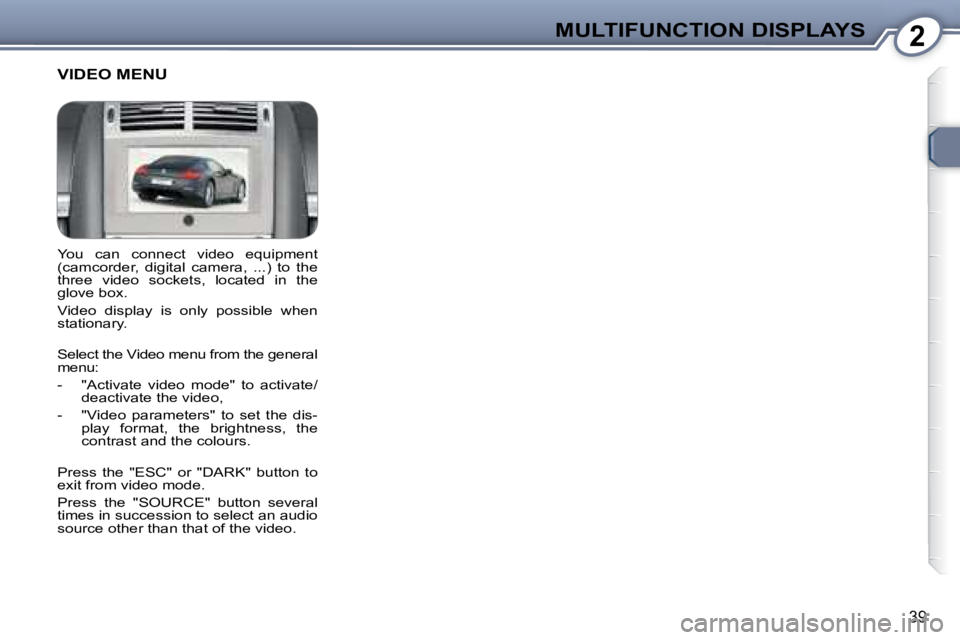

You can connect video equipment
(camcorder, digital camera, ...) to the
three video sockets, located in the
glove box.
Video display is only possible when
stationary.
Select the Video menu from the general
menu:
- "Activate video mode" to activate/deactivate the video,
- "Video parameters" to set the dis- play format, the brightness, the
contrast and the colours.
Press the "ESC" or "DARK" button to
exit from video mode.
Press the "SOURCE" button several
times in succession to select an audio
source other than that of the video.
VIDEO MENU

3COMFORT
40
For even air distribution, take care
not to obstruct the exterior air intake
grille located at the bottom of the wind-
screen, the vents, the air outlets under
the front seats and the air extractor lo-
cated behind the fl aps in the boot.
In certain cases of particularly arduous
use (towing the maximum load on a
steep gradient in hot weather), cutting
off the air conditioning permits recov-
ery of the engine power and therefore
improvement of the towing capacity.
Close the windows to benefi t from the
full effectiveness of the air conditioning.
Ensure that the passenger compart-
ment fi lter is in good condition. Have
the fi lter elements replaced periodical-
ly. If you drive in a dusty environment,
replace it twice as often.
The air conditioning system does not
contain chlorine and is not harmful to
the ozone layer.
Operate the air conditioning system
for 5 to 10 minutes, once or twice a
month, to keep it in perfect working
order. The water formed by the air conditioning
condensation is discharged via an open-
ing provided for this purpose. Therefore,
a puddle of water may form underneath
the vehicle when stationary.
If the system does not produce cold air,
do not use it and contact a PEUGEOT
dealer.

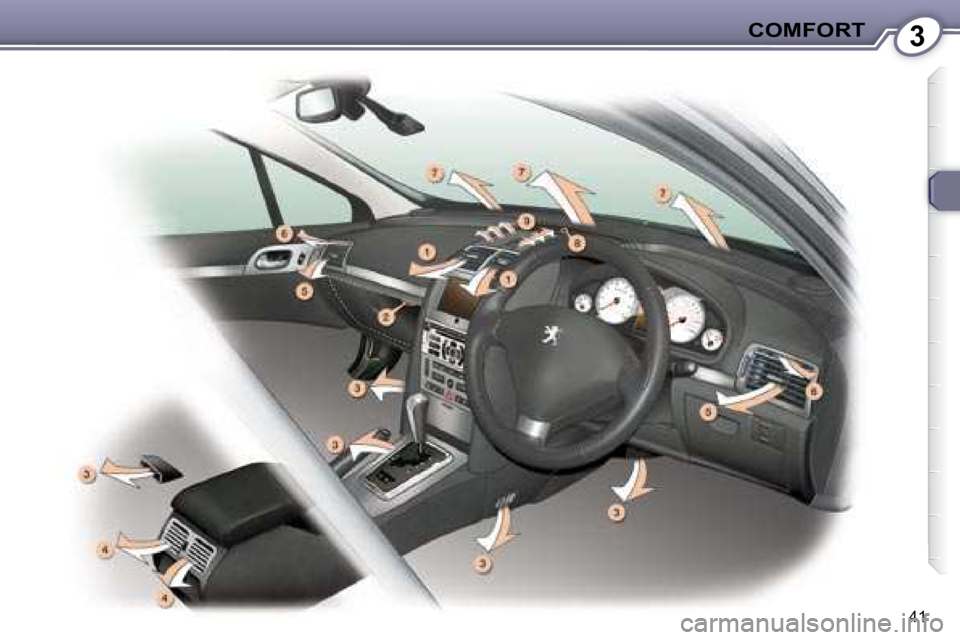

1. Centre panel vents.

2. Adjustment of the glove box air
fl ow (see section"Interior layout").

3. Air outlet to passenger footwells.

4. Two ventilation vents at the rear at
the base of the centre console be-
tween the passengers.

5. Side vents.

6. Front windows de-icing or demist-
ing vents.

7. Windscreen de-icing or demisting
vents.

8. Sunshine sensor.

9. Air diffuser grille. AUTOMATIC REGULATION OF THE AIR CONDITIONING
Use of the automatic regulation of the
air conditioning is recommended. It
permits automatic and optimised con-
trol of all of the following functions: air
fl ow, passenger compartment temper-
ature and air distribution, by means
of various sensors, so preventing the
need for you to change your refer-
ence settings other than the value dis-
played.
Air diffuser
The air diffuser grille, located at the
top of the centre console, signifi cantly
improves distribution and fl ows and
prevents air currents, while maintain-
ing an optimum temperature inside the
passenger compartment.
Do not cover the sunshine sensor
9 .
It is required for regulation of the air
conditioning.
Advice on operation
To obtain even ventilation, avoid
closing the air diffuser grille 10 .
In hot weather, in order to obtain intense
ventilation, you can close the air diffuser
grille 10 and use vents 1 and 6 only.
If, when the vehicle has been parked in
the sun for a long time, the interior tem-
perature remains very high, do not hesi-
tate to ventilate the passenger compart-
ment for a few minutes.
