9CHECKS
108
Bonnet strut OPENING THE BONNET
To close
Lower the bonnet and release it at the
end of its travel. Check that the bonnet
is properly locked.

From inside: pull the handle on the
left-hand side under the fascia to-
wards you.

From outside: move the catch to the
left and up then raise the bonnet. Secure the strut in its housing to hold
the bonnet open.
Before closing the bonnet, replace the
strut in its clip.

9
109

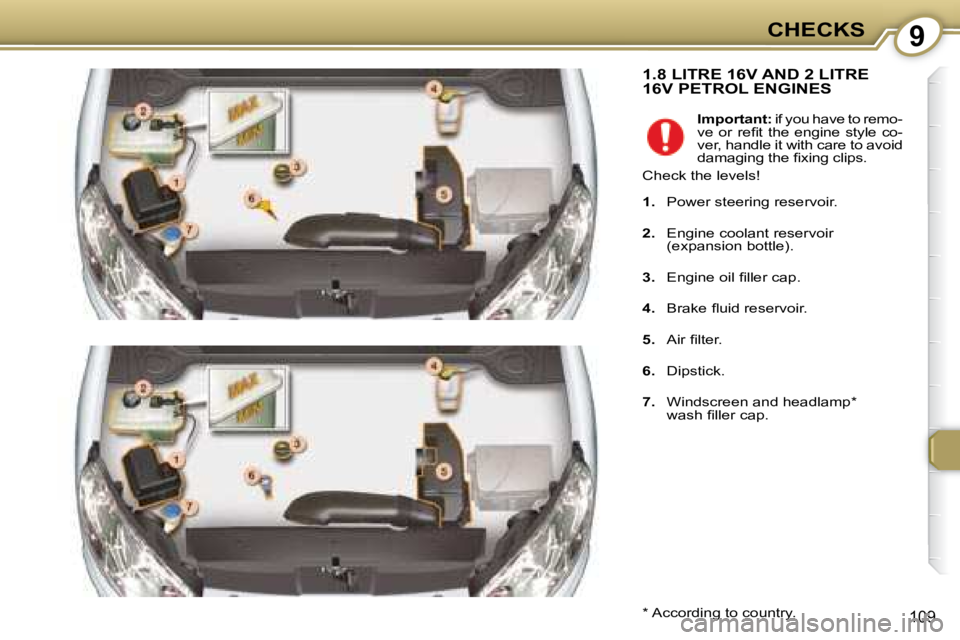

1.8 LITRE 16V AND 2 LITRE 16V PETROL ENGINES
* According to country.
Important: if you have to remo-
ve or refi t the engine style co-
ver, handle it with care to avoid
damaging the fi xing clips.
Check the levels!

1. Power steering reservoir.

2. Engine coolant reservoir
(expansion bottle).

3. Engine oil fi ller cap.

4. Brake fl uid reservoir.

5. Air fi lter.

6. Dipstick.

7. Windscreen and headlamp *
wash fi ller cap. CHECKS

9CHECKS
110
2.2 LITRE 16V AND 3 LITRE V6 24V PETROL ENGINES
* According to country.
Important: if you have to remo-
ve or refi t the engine style co-
ver, handle it with care to avoid
damaging the fi xing clips.
Check the levels!

1. Power steering reservoir.

2. Engine coolant reservoir
(expansion bottle).

3. Engine oil fi ller cap.

4. Brake fl uid reservoir.

5. Air fi lter.

6. Dipstick.

7. Windscreen and headlamp *
wash fi ller cap.

9
111

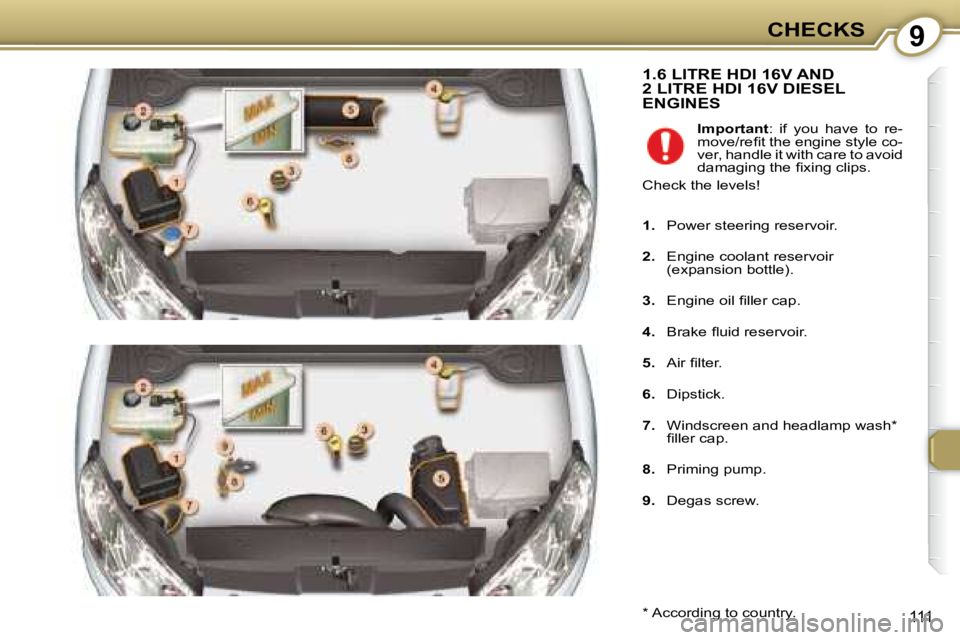

1.6 LITRE HDI 16V AND 2 LITRE HDI 16V DIESEL ENGINES
* According to country.
Important : if you have to re-
move/refi t the engine style co-
ver, handle it with care to avoid
damaging the fi xing clips.
Check the levels!

1. Power steering reservoir.

2. Engine coolant reservoir
(expansion bottle).

3. Engine oil fi ller cap.

4. Brake fl uid reservoir.

5. Air fi lter.

6. Dipstick.

7. Windscreen and headlamp wash *
fi ller cap.

8. Priming pump.

9. Degas screw. CHECKS

9CHECKS
112

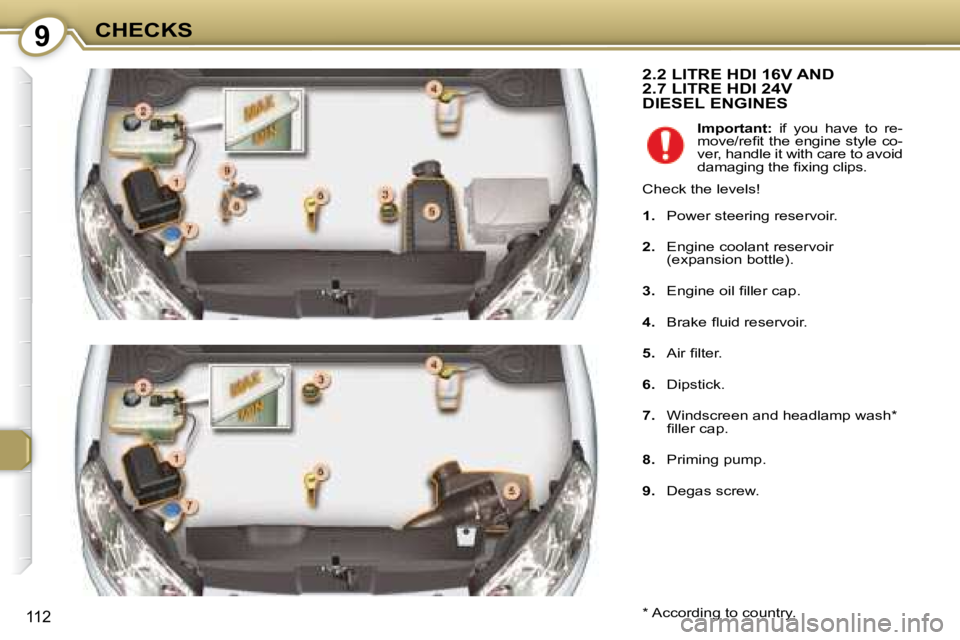

2.2 LITRE HDI 16V AND 2.7 LITRE HDI 24V DIESEL ENGINES
* According to country.
Important: if you have to re-
move/refi t the engine style co-
ver, handle it with care to avoid
damaging the fi xing clips.
Check the levels!

1. Power steering reservoir.

2. Engine coolant reservoir
(expansion bottle).
3. Engine oil fi ller cap.

4. Brake fl uid reservoir.

5. Air fi lter.

6. Dipstick.

7. Windscreen and headlamp wash *
fi ller cap.

8. Priming pump.

9. Degas screw.

9
113

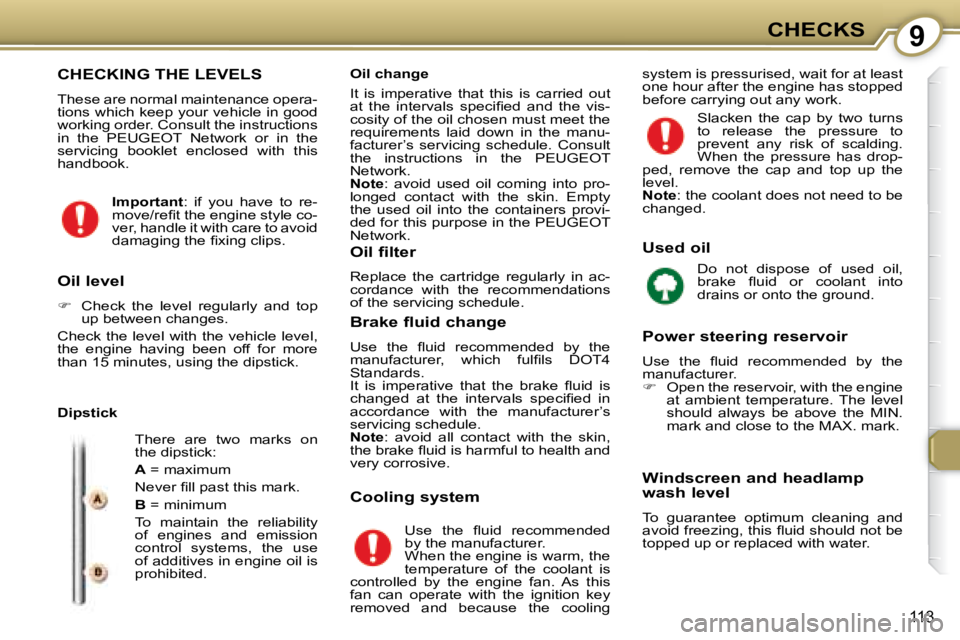

CHECKING THE LEVELS
These are normal maintenance opera-
tions which keep your vehicle in good
working order. Consult the instructions
in the PEUGEOT Network or in the
servicing booklet enclosed with this
handbook.
Dipstick There are two marks on
the dipstick:

A = maximum
Never fi ll past this mark.

B = minimum
To maintain the reliability
of engines and emission
control systems, the use
of additives in engine oil is
prohibited.
Oil level

 Check the level regularly and top
up between changes.
Check the level with the vehicle level,
the engine having been off for more
than 15 minutes, using the dipstick. Oil change
It is imperative that this is carried out
at the intervals specifi ed and the vis-
cosity of the oil chosen must meet the
requirements laid down in the manu-
facturer’s servicing schedule. Consult
the instructions in the PEUGEOT
Network.

Note : avoid used oil coming into pro-
longed contact with the skin. Empty
the used oil into the containers provi-
ded for this purpose in the PEUGEOT
Network. system is pressurised, wait for at least
one hour after the engine has stopped
before carrying out any work.
Oil filter
Replace the cartridge regularly in ac-
cordance with the recommendations
of the servicing schedule.
Brake fluid change
Use the fl uid recommended by the
manufacturer, which fulfi ls DOT4
Standards.
It is imperative that the brake fl uid is
changed at the intervals specifi ed in
accordance with the manufacturer’s
servicing schedule.

Note : avoid all contact with the skin,
the brake fl uid is harmful to health and
very corrosive. Used oil
Power steering reservoir
Use the fl uid recommended by the
manufacturer.

 Open the reservoir, with the engine
at ambient temperature. The level
should always be above the MIN.
mark and close to the MAX. mark.
Cooling system Windscreen and headlamp
wash level
To guarantee optimum cleaning and
avoid freezing, this fl uid should not be
topped up or replaced with water. Slacken the cap by two turns
to release the pressure to
prevent any risk of scalding.
When the pressure has drop-
ped, remove the cap and top up the
level.

Note : the coolant does not need to be
changed.
Use the fl uid recommended
by the manufacturer.
When the engine is warm, the
temperature of the coolant is
controlled by the engine fan. As this
fan can operate with the ignition key
removed and because the cooling Do not dispose of used oil,
brake fl uid or coolant into
drains or onto the ground.

Important : if you have to re-
move/refi t the engine style co-
ver, handle it with care to avoid
damaging the fi xing clips. CHECKS

9CHECKS
114

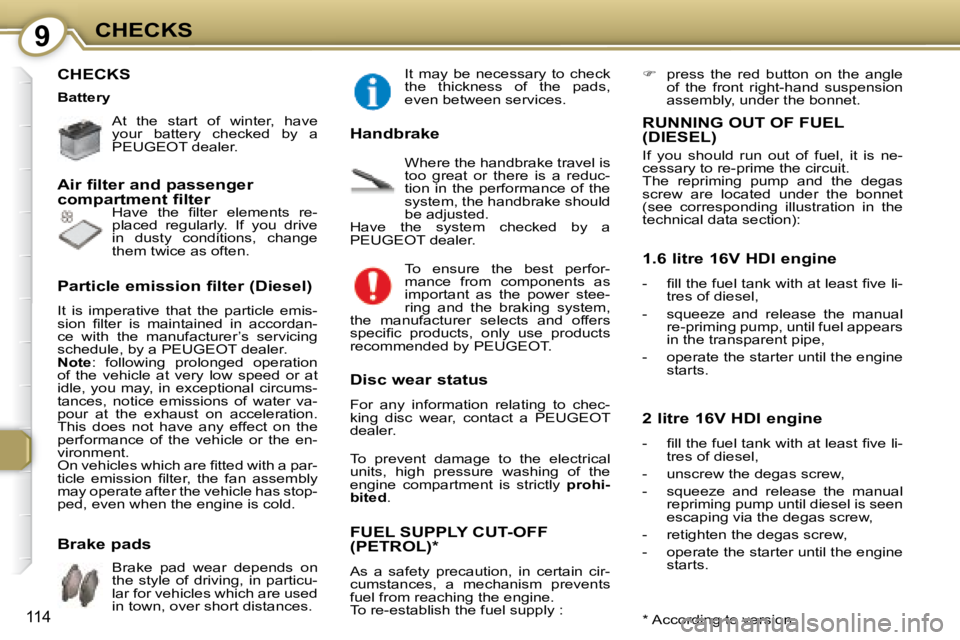

CHECKS
At the start of winter, have
your battery checked by a
PEUGEOT dealer.
Have the fi lter elements re-
placed regularly. If you drive
in dusty conditions, change
them twice as often.
Air filter and passenger
compartment filter
Particle emission filter (Diesel)
It is imperative that the particle emis-
sion fi lter is maintained in accordan-
ce with the manufacturer’s servicing
schedule, by a PEUGEOT dealer.

Note : following prolonged operation
of the vehicle at very low speed or at
idle, you may, in exceptional circums-
tances, notice emissions of water va-
pour at the exhaust on acceleration.
This does not have any effect on the
performance of the vehicle or the en-
vironment.
On vehicles which are fi tted with a par-
ticle emission fi lter, the fan assembly
may operate after the vehicle has stop-
ped, even when the engine is cold. Where the handbrake travel is
too great or there is a reduc-
tion in the performance of the
system, the handbrake should
be adjusted.
Have the system checked by a
PEUGEOT dealer.
Handbrake
Disc wear status
For any information relating to chec-
king disc wear, contact a PEUGEOT
dealer.
FUEL SUPPLY CUT-OFF (PETROL) *
As a safety precaution, in certain cir-
cumstances, a mechanism prevents
fuel from reaching the engine.
To re-establish the fuel supply :
RUNNING OUT OF FUEL (DIESEL)
If you should run out of fuel, it is ne-
cessary to re-prime the circuit.
The repriming pump and the degas
screw are located under the bonnet
(see corresponding illustration in the
technical data section):
1.6 litre 16V HDI engine
- fi ll the fuel tank with at least fi ve li-
tres of diesel,
- squeeze and release the manual re-priming pump, until fuel appears
in the transparent pipe,
- operate the starter until the engine starts.
2 litre 16V HDI engine
- fi ll the fuel tank with at least fi ve li- tres of diesel,
- unscrew the degas screw,
- squeeze and release the manual repriming pump until diesel is seen
escaping via the degas screw,
- retighten the degas screw,
- operate the starter until the engine starts.
Brake pad wear depends on
the style of driving, in particu-
lar for vehicles which are used
in town, over short distances.
Brake pads It may be necessary to check
the thickness of the pads,
even between services.
* According to version.
To ensure the best perfor-
mance from components as
important as the power stee-
ring and the braking system,
the manufacturer selects and offers
specifi c products, only use products
recommended by PEUGEOT .
Battery
To prevent damage to the electrical
units, high pressure washing of the
engine compartment is strictly prohi-
bited .
 press the red button on the angle
of the front right-hand suspension
assembly, under the bonnet.

1010PRACTICAL INFORMATION
115

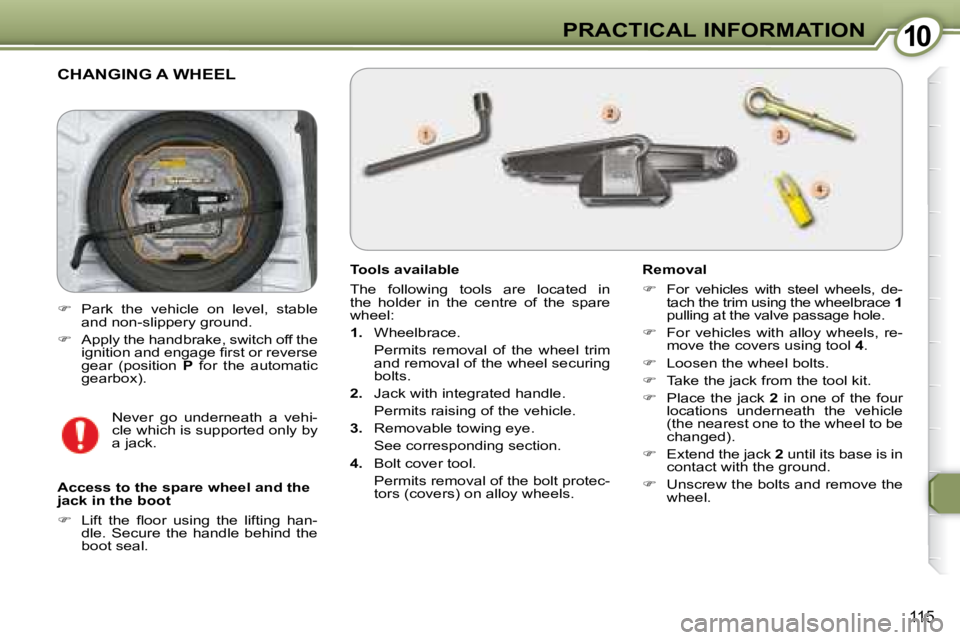

CHANGING A WHEEL
Tools available
The following tools are located in
the holder in the centre of the spare
wheel:

1. Wheelbrace.
Permits removal of the wheel trim and removal of the wheel securing
bolts.

2. Jack with integrated handle.
Permits raising of the vehicle.

3. Removable towing eye.
See corresponding section.

4. Bolt cover tool.
Permits removal of the bolt protec- tors (covers) on alloy wheels. Removal

 For vehicles with steel wheels, de-
tach the trim using the wheelbrace 1
pulling at the valve passage hole.

 For vehicles with alloy wheels, re-
move the covers using tool 4 .

 Loosen the wheel bolts.

 Take the jack from the tool kit.

 Place the jack 2 in one of the four
locations underneath the vehicle
(the nearest one to the wheel to be
changed).

 Extend the jack 2 until its base is in
contact with the ground.

 Unscrew the bolts and remove the
wheel.
Access to the spare wheel and the
jack in the boot

 Lift the fl oor using the lifting han-
dle. Secure the handle behind the
boot seal. Never go underneath a vehi-
cle which is supported only by
a jack.

 Park the vehicle on level, stable
and non-slippery ground.

 Apply the handbrake, switch off the
ignition and engage fi rst or reverse
gear (position P for the automatic
gearbox).
